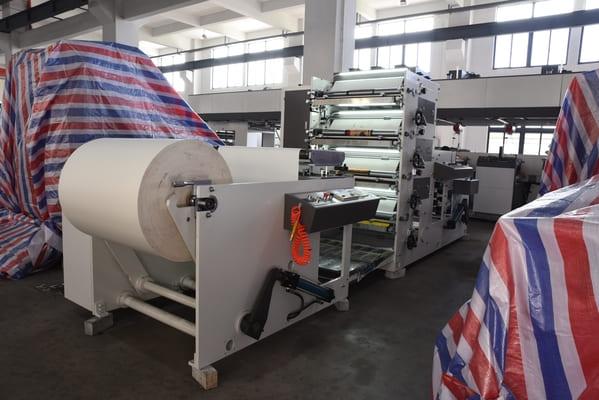

MY-950 Intelligent Model High Speed Paper Cup Printing Machine

Sample display：

Product Description：

The machine speed can reach 5 - 10 m/min. This machine is equipped with hydraulic system, magneticparticle control system and winding tension system, which can realize overload protection and runningspeed of the machine. Each printing group is equipped with 6 infrared drying lamps, making the inkdrying process faster and more uniform. Brand electrical components are adopted, and the speed iscontrolled by a frequency conversion stepless motor, effectively extending the service life. in addition.an edge sensing device is provided to ensure high-precision paper feeding. At last, the synchronousbelt is installed to make the machine run with lower noise.

Control Panel：Control panel with good quality switches,tempreture controller,distributor controller and pressing roller controller.And all the operationof machine can be easily finished by this panel.

Magnetic Particle Controller System：Hydraulic system is for loading&unloading the raw materials.The Magnetic Particle Controller System is used to control unwinding.rewinding tension system, it can also be used for buffer start, overloadprotection,speed regulation.

Edge Decting Sensors：It is high-precision and is specially used to track material edge.It is suitable for automatic control of rectifying deviation paper movingand make paper move straightly.
