Paper product production solutions

Coffee Cup production. Equipment around your product.

Define your coffee cup format, dimensions, materials and production target. Explore the equipment and supporting stages for your project.

Discuss your project Explore equipment
Coffee Cup Solution
Before choosing a machine

Your product requirement leads the equipment choice.

Share what you know now. Dimensions, materials and output help define the configuration.

01

Define the product

Finished-product type, capacity or dimensions, structure and intended use.

02

Confirm the target

Required output with its unit, paper specification and operating shifts if known.

03

Choose the starting point

Prepared materials or raw paper; available equipment, inspection and packing needs.

Finished-product examples

Define the product you want to make.

Explore existing examples, then confirm your dimensions, structure and materials.

Recommended equipment

Equipment linked to this application.

Review the existing recommended models. Final suitability depends on the agreed product, material, tooling and output.

Application details

Coffee Cup Solution

Coffee paper cup forming solutions

Coffee drinks have diverse needs for paper cup structure, heat resistance and grip comfort depending on the temperature, capacity and drinking scenarios. We will recommend suitable paper weights and paper cup machines according to the size you provide.

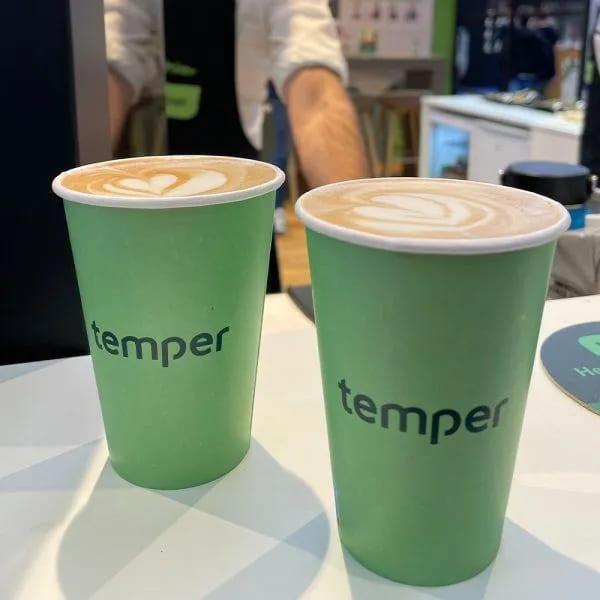

咖啡杯 (3).jpg

Applicable drinks and usage scenarios


-Coffeepaper cups are mainly used in the following occasions:

-Coffee shop chains (such as Starbucks, Costa, Luckin, etc.)

-Takeout and drink service

-Self-service coffee in hotels, airports, conference venues

-Self-service coffee machine, instant hot coffee in convenience store


Hot and cold drink types cover


-Hot drinks: American, latte, cappuccino, mocha, etc.

-Cold drinks: cold brew coffee, ice latte, ice American, etc.


Recommended Sizes & Paper Weight

Volume

Typical Use

Recommended Structure

Suggested Paper Weight (with PE coating)

4oz

Espresso, sample serving

Single-wall

210–230gsm (single PE)

8oz

Americano, dine-in latte

Single or Double-wall

Single: 230–260gsm (single PE)

Outer sleeve: 250–280gsm (uncoated)

12oz

Latte, Cappuccino, iced coffee

Single or Double-wall

Single: 250–280gsm (single PE)

Outer sleeve: 270–300gsm (uncoated)

16oz

Large-size or iced coffee

Single or Double-wall (recommended)

Single: 280–300gsm (double PE for iced drinks)

Outer sleeve: 280–320gsm (uncoated)


 Hot & Cold Beverage Recommendations

For Hot Coffee


-Single-layer paper cup: suitable for drinking scenarios with low temperature and short-term consumption
-Hollow double-layer paper cup: suitable for high-temperature drinks (such as lattes and mochas), the outer cup forms an air insulation layer, and the anti-scalding effect is better

It is recommended to use single-sided PE coating paper to maintain heat sealing and liquid barrier properties of the inner wall.

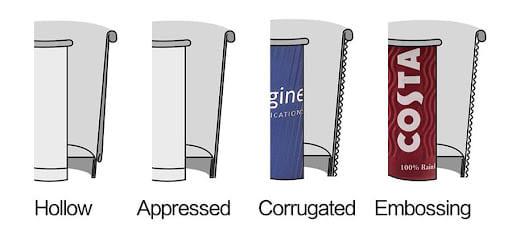

中空杯 (4).jpg


For Iced Coffee


-Cold beverages cause condensation on the cup exterior
-Double PE coated paper is essential to prevent moisture penetration and cup softening
-Use higher grammage paper (≥280gsm) to maintain cup rigidity and improve grip

-For large volumes (≥16oz), enhance bottom strength to avoid leakage and deformation


Single-layer paper cup: simple structure, low cost and suitable beverage latte cappuccino. A single-layer paper cup is required to form a single-layer paper cup.

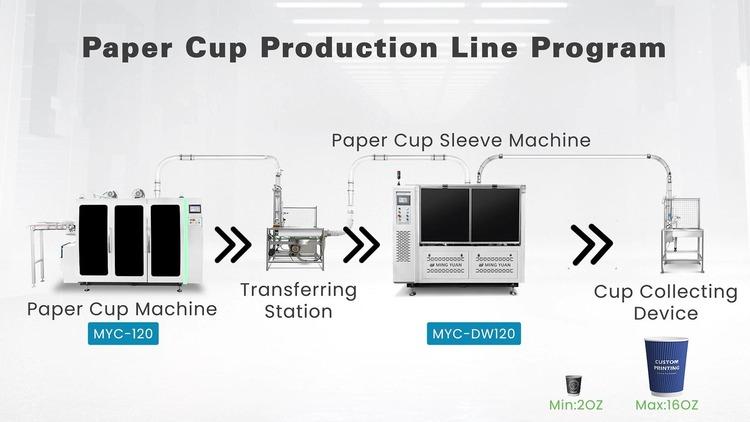

Hollow double-layer cup: The inner and outer cups are fitted, forming a heat insulation layer in the middle to enhance the anti-scalding and feel. It is suitable for beverage lattes, cappuccinos, iced coffee, etc. The molding method is made from paper cup machine + cup set machine connected to the wire

MYC-120+DW120(2)-封面 (1).jpg

Summary of suggestions

-It is recommended to use single PE coated paper to match the appropriate gram weight according to the capacity.
-Double PE coating paper must be used for cold drinks to avoid the penetration of condensate water and cause softening of the paper cup.
-The double-layer structure is more suitable for coffee products that require heat insulation and long-term drinking

-Paper weight is recommended to increase with the increase in capacity to ensure cup body stiffness and sealing performance


By scientifically configuring paper and structure, coffee paper cups can be widely adapted to various beverages and sales scenarios, improving user experience and product stability, and establishing a reliable foundation for the brand.

Select the required process

Single-wall or double-wall? Define the stages.

Confirm the coffee cup, materials and output before matching the forming and supporting equipment.

Route A

Single-wall coffee cups

Cup fans + bottom stock

Paper cup forming

Inspection / counting / packing as required

Compare forming machines
Route B

Double-wall coffee cups

Inner cup + outer sleeve material

Forming + matching sleeve machine

Confirm transfer, inspection and packing

Explore connected lines
Discuss my coffee cup project →
Customer applications

Related project stories.

Application questions

More answers for your project.

What are the raw materials used to produce paper cups?
Our paper cups are made of food-grade virgin wood pulp paperboard and food-contact grade PE/PLA coating, and all materials have passed international safety certifications.
What kind of paper is used for hollow/corrugated double-wall coffee cups?
The inner cup uses single PE coated paper (230-280gsm), and the outer cup uses uncoated printed paper (200-250gsm), which has a stable structure and good thermal insulation performance.
Why is there a waterproof coating on the inner wall of the paper cup?
The food-grade PE or PLA waterproof coating on the inner wall of the paper cup can effectively prevent leakage. At the same time, the PE coating provides better heat resistance, while the PLA coating is more environmentally friendly and degradable.
What kind of paper cup machine is needed to make coffee cups?
No. The hollow coffee cup consists of an inner cup and an outer cup. It needs to be connected to a paper cup machine and a double wall paper cup machine. The inner cup is formed first, and then the outer cup is glued together to form an insulating structure. Ordinary paper cup machines cannot comple
What temperature of beverage can be put in a coffee paper cup?
Our coffee paper cups can safely hold hot drinks (such as coffee, tea, etc.) below 90°C. It is recommended to use with a cup sleeve to prevent burns.
Why do most people choose double-walled coffee cups instead of single-walled ones?
The double-layer design can effectively insulate and prevent scalding, while enhancing the stability of the cup body. The air layer in the middle can prolong the heat preservation time, while the thickened cup wall also improves the grip comfort and can reduce the seepage of condensation water.
What are the common capacities of coffee cups?
Common capacities include 4oz (small cup), 8oz (medium cup), 12oz (large cup), 16oz and 20oz, which are suitable for different types of coffee (Italian, American, latte, etc.).
How is the hollow layer of a double-layer coffee cup achieved?
Our double-wall paper cups are produced in two steps: first, the inner cup is made by a paper cup machine, and then the outer layer is put on by a cup sleeve machine, and an insulating air layer is naturally formed in the middle. This process ensures that the cup is both insulated and strong.
Project consultation

Let’s find the right equipment for your project.

Share your product, size and production target. We’ll help clarify the equipment scope.

Equipment selection support

Your cup comes first.
Then the right equipment.

Tell us what you want to produce. We can discuss the forming machine and the connected equipment around your project.

01Cup type & size
02Output & unit
03Materials & packing
04Existing equipment

Not sure about the specifications yet? Start with the finished product.

Your requirements will help us recommend equipment and prepare a quotation.
Which machine is suitable for my cup?

Start with the cup structure, dimensions, paper and output target. The forming machine and any connected equipment can then be discussed.

Do I need printing and die cutting equipment?

It depends on your starting material. A business buying ready-made cup fans has a different equipment scope from one preparing fans from paper rolls.

Can a forming machine make double wall cups on its own?

Double wall projects need the inner cup and outer sleeve to match. Confirm the forming and sleeving combination for the selected cup.

How should I compare the production output?

Confirm the cup, material, tooling, run conditions and accepted output. Forming speed and packaging speed are different measures.
