MYC-DB120 Double Turn Plate Paper Bowl Machine: What It Is and Who It Suits

The MYC-DB120 is a fully automatic paper bowl forming machine built around a double turn plate structure. It converts printed or plain paper bowl blanks into finished paper bowls, and it is aimed at converters and food-packaging producers who need a dedicated bowl line rather than a cup machine adapted for bowls. If your product plan includes soup bowls, takeaway bowls, ice cream bowls or event catering bowls, this model is the starting point for a configuration discussion.

The machine is controlled by a Delta PLC system with 10 photoelectric sensors. When a fault is detected, the machine stops automatically, which supports safer and more reliable running. The whole machine uses an oil lubrication circulation system, and the cam transmission is driven by a servo motor for more accurate and stable motion.

Sample Output and Machine Structure

The images below show representative bowl samples and the machine structure. Use them to judge whether the bowl format matches your product range; final bowl dimensions must be confirmed against your own drawing or sample.

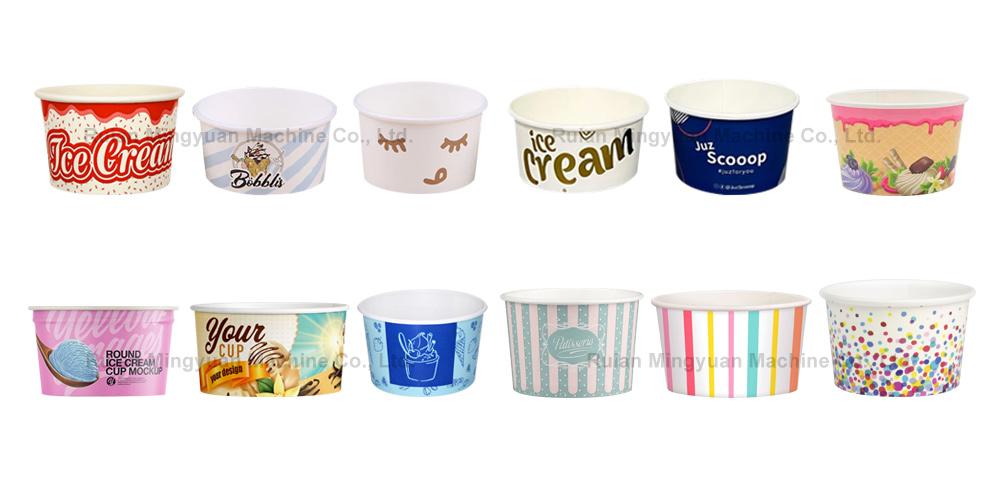

Sample display:

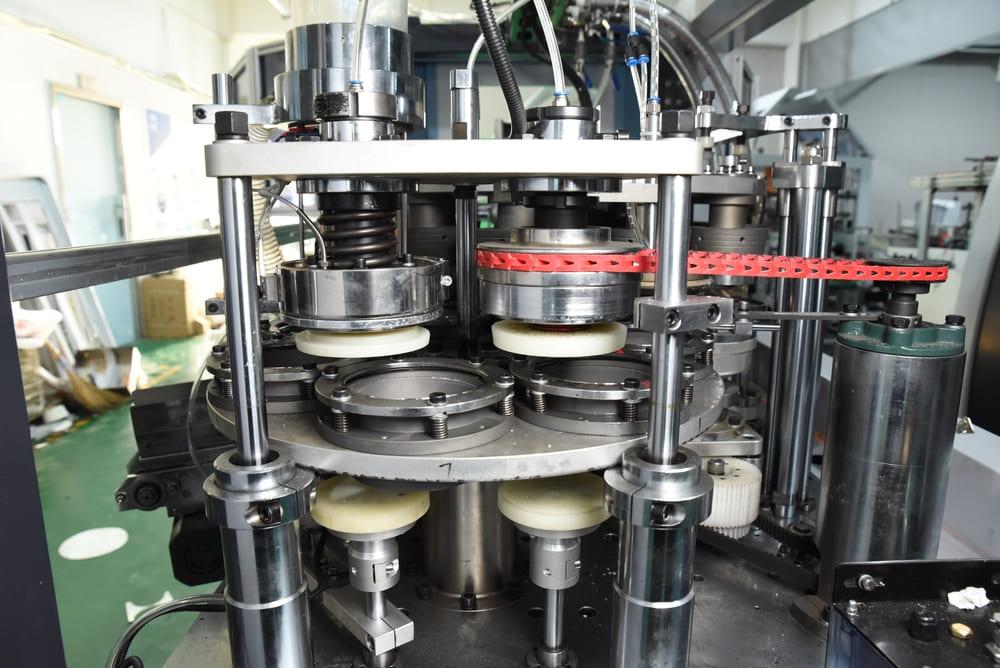

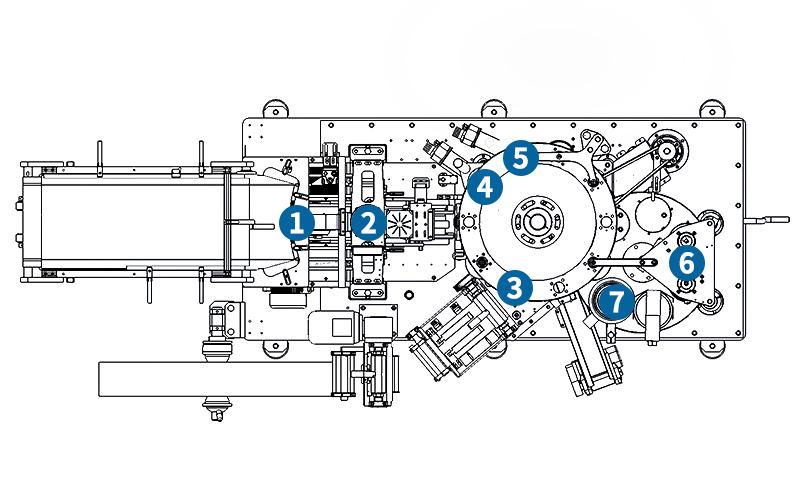

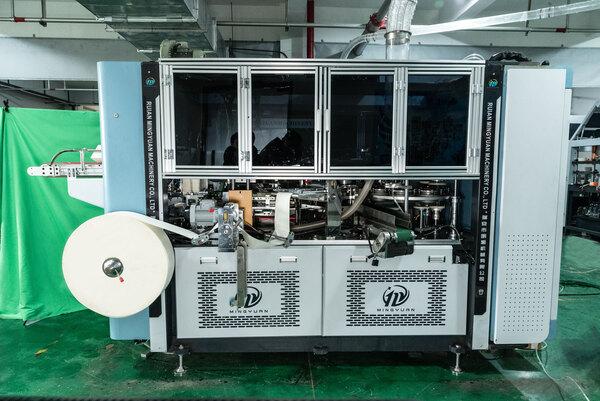

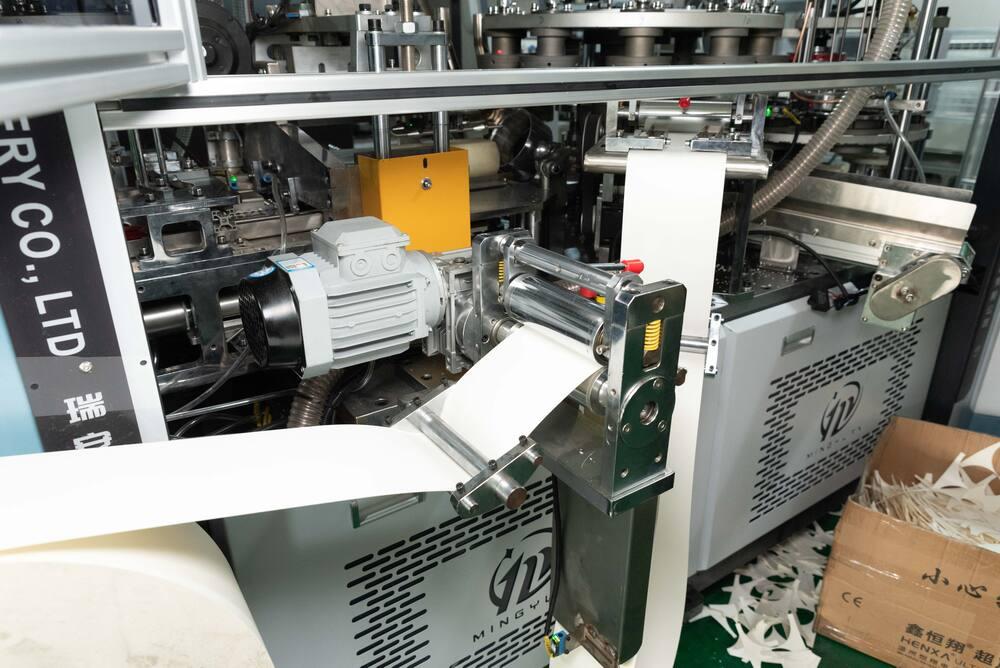

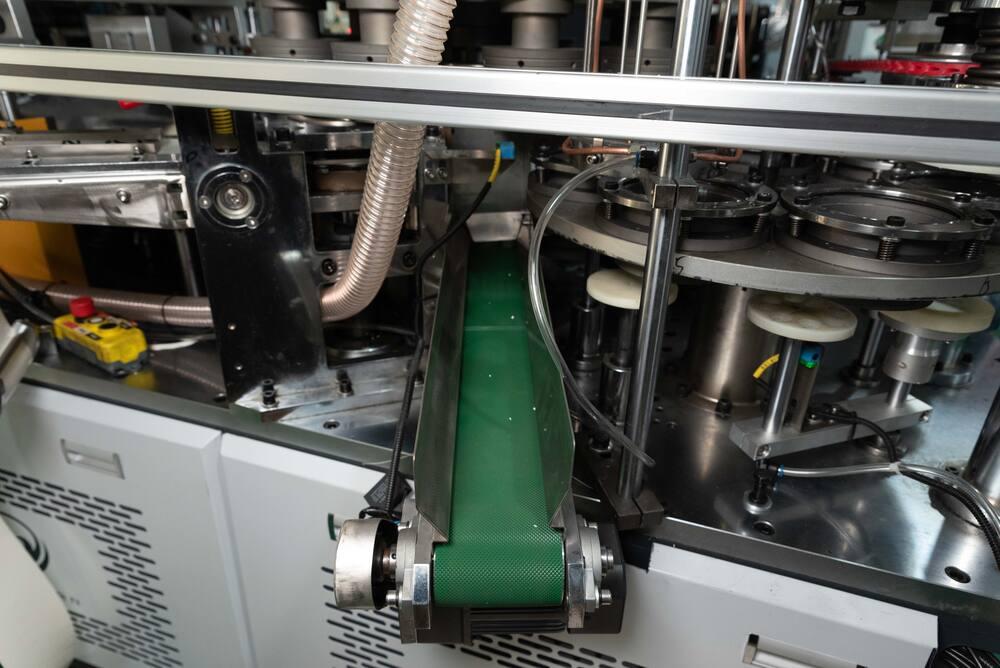

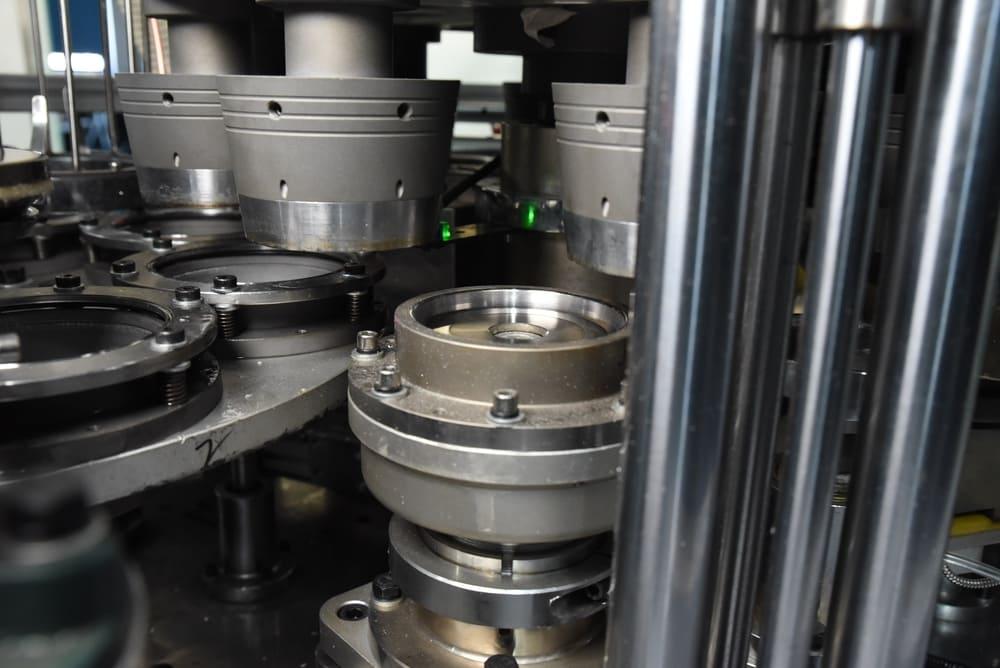

Machine structure:

Selection Variables to Confirm Before Quotation

Bowl machines are configured around the bowl, not the other way round. The points below are the variables that most often change the machine build, so confirm them early.

• Bowl drawing or physical sample: top diameter, bottom diameter and height define the forming tooling.
• Bowl type: single-wall or double-wall construction changes whether a separate sleeve or double-wall machine is needed in the line.
• Paper and coating: base paper grade, coating type and GSM affect forming stability and the sealing setup.
• Target output: state the output you need per shift so rated speed and realistic stable output can be discussed separately.
• Utilities: confirm the voltage and frequency available at your site, plus the compressed air supply, before the electrical configuration is fixed.
• Workshop layout: plan space for the machine, bowl collection and any downstream equipment.
• Packing requirement: decide whether bowls are collected, counted or packed manually or with auxiliary equipment.

Configuration Boundaries and Line Integration

The MYC-DB120 is a bowl forming machine, not a complete production line on its own. Printing, die cutting and material preparation are separate stages, and double-wall production typically requires an additional sleeve or double-wall machine. Where a project needs both, the bowl machine and the double-wall machine are planned as a linked line rather than a single unit. Review the MYC-DB120 with MYC-DW120B double wall paper bowl production line catalog to see how the two stages are combined, and check the MYC-DB120 double turn plate paper bowl machine page for the model itself.

Any statement about integrated printing, inline inspection or automatic packing should be treated as a project-specific question until it is confirmed in writing for your configuration.

Typical Bowl Applications

Bowl demand usually comes from food service rather than retail shelf packaging. Common directions include fast food and takeaway bowls, soup bowls, ice cream and dessert bowls, and festival or event catering. Each direction has its own expectations for wall strength, coating and lid or sleeve pairing, so describe the end use when you enquire.

Next Step: Send Your Bowl Details for Matching

To move from a general model to a matched configuration, send your bowl drawing or sample, the dimensions, the paper and coating, the GSM, your target output, your site voltage and frequency, your air supply, your workshop layout and your packing requirement. Our team will confirm which configuration fits and which items remain project-specific.

You can also review the 900ml MYC-DB120 paper bowl making machine with cup collection table case in Peru for an example of how a bowl project is scoped. For a broader view of available equipment, download the paper cup production line catalog, or contact us through the enquiry form or WhatsApp on this page to discuss your bowl specification.
