MY-450X Hob Type Paper Cup Packing Machine: What It Does

The MY-450X is a pillow-type automatic packing machine used to bag finished paper cups and similar food-packaging products at the end of a converting line. It is intended for producers who already form cups on a paper cup machine and want to move from manual collection and bagging to an automated, film-sealed packing step. It is a packing unit, not a complete production line: cup forming, printing and die cutting remain separate upstream stages.

How the Packing Process Works

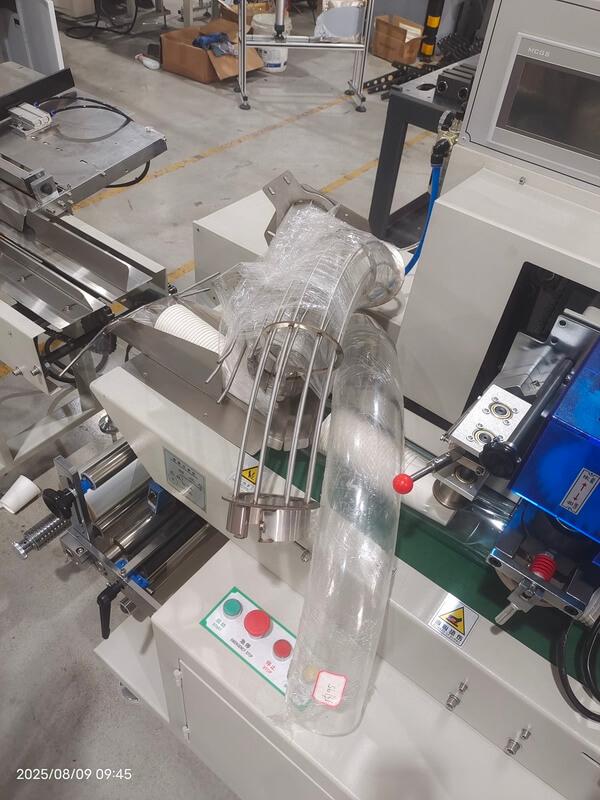

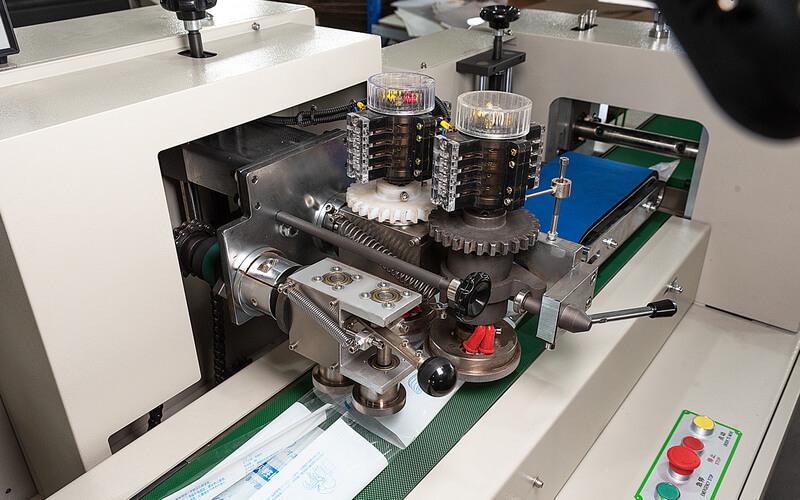

Cups are fed into the machine and wrapped in a continuous film, then sealed on the back of the pack by heated turntables on both sides. A cutter and cutter base made of high-speed steel separate the finished bags. Control is handled by a PLC with a touch screen, a color mark sensor supports precise film registration and correction, and servo motors drive the motion for repeatable positioning. Independent PID temperature control manages the sealing heat.

Selection Variables to Confirm Before Quotation

Packing performance depends on how the machine is matched to your cups and film, so the following points should be settled with the supplier rather than assumed:

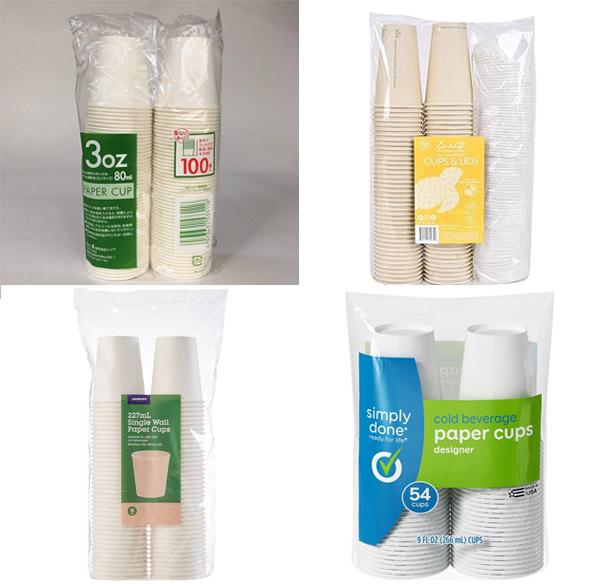

• Cup dimensions and stack count: top diameter, bottom diameter, height and how many cups per bag determine the bag length and the infeed arrangement.
• Film specification: the machine is described for OPP/PE films; confirm film thickness, roll width and roll diameter for your pack format.
• Bag format: pillow bag length and width range, and whether a specific seal pattern is required.
• Output target: the rated speed range is stated in Technical Specifications; actual stable output depends on cup size, bag configuration and upstream supply.

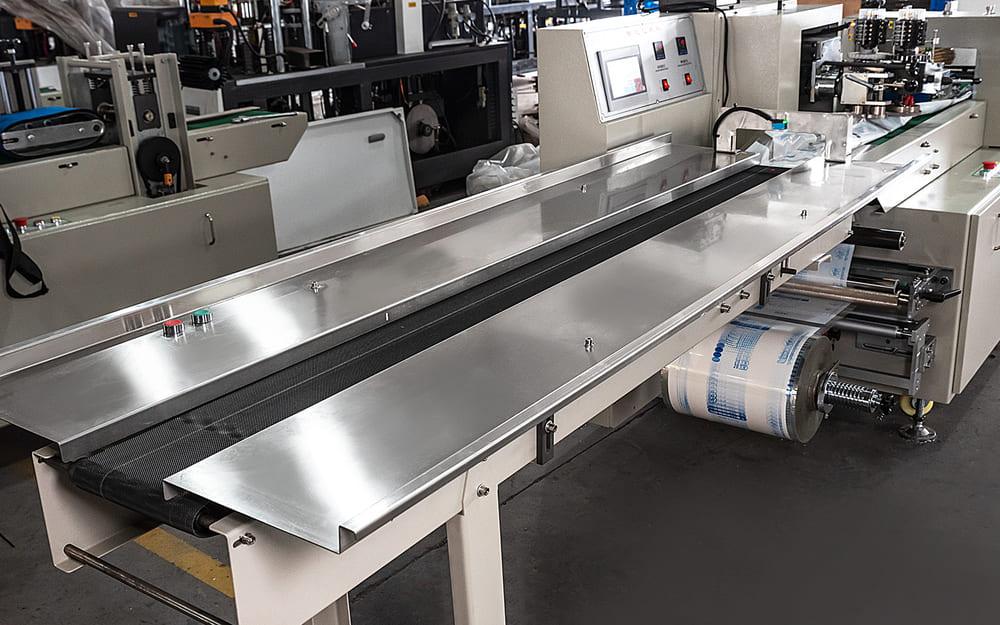

• Line interface: how packed cups leave the cup machine and enter the packer, and the height and layout of the connecting conveyor.
• Utilities and environment: voltage and frequency, air supply if required, and available floor space.

Configuration Boundaries

The MY-450X is supplied as a standalone packing machine. Optional items such as infeed conveyors, date coding, gas flushing or custom bag formats should be confirmed in writing as part of the quotation, not assumed as standard. Where a project combines cup forming and packing, the two stages are engineered as a line and should be reviewed together — see the MYC-OCM12 with MYC-DW100 and MY-450X packing solution catalog for an example of how the packing step is positioned after cup forming.

Information to Send for Matching

To receive an accurate configuration and quotation, prepare a cup drawing or physical sample with top diameter, bottom diameter and height; the paper and coating type; the required cups per bag; your target output; workshop voltage and frequency; available air supply; and a sketch of the proposed line layout. If you are still comparing packing options, the machine running video library shows equipment in operation and can help you judge the format before requesting a formal offer.

Next Step

Share your cup sample details and packing requirement through the inquiry form on this page, or contact the sales team on WhatsApp, and the configuration can be matched to your cup range and film specification. Final technical values, including speed, film compatibility and dimensions, are confirmed in the Technical Specifications and in the quotation for your specific project.
