MYC-180S 14 Servo Motors Drive High Speed Paper Cup Machine

The MYC-180S is a high speed paper cup machine built around a full servo-driven architecture. Instead of relying on a traditional cam and gearbox transmission, the machine coordinates its working stations through 14 servo motors, giving each motion axis independent control while keeping the forming sequence synchronized. It is intended for paper cup producers who need a stable, high-output converting platform for single-wall hot drink and cold drink cups, and who value reduced mechanical wear and simpler fault handling over conventional mechanical drive designs.

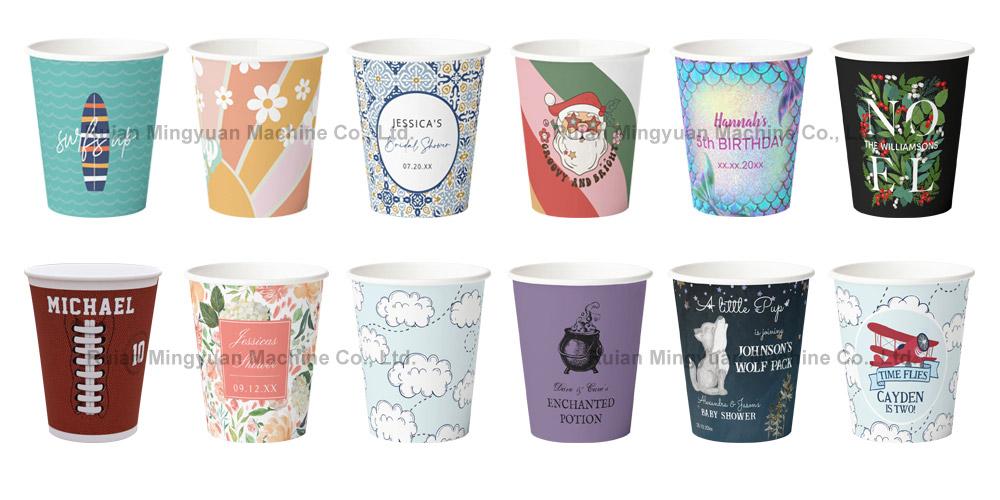

What This Machine Produces

The MYC-180S is a paper cup forming machine for single-wall cups. Typical applications include hot beverage cups, cold drink cups, water cups and milk tea cups, depending on the cup drawing, paper grade and coating selected. Because the finished cup size range, paper GSM and coating compatibility are configuration-dependent, buyers should confirm these values against the Technical Specifications field and the final quotation rather than assuming a universal range.

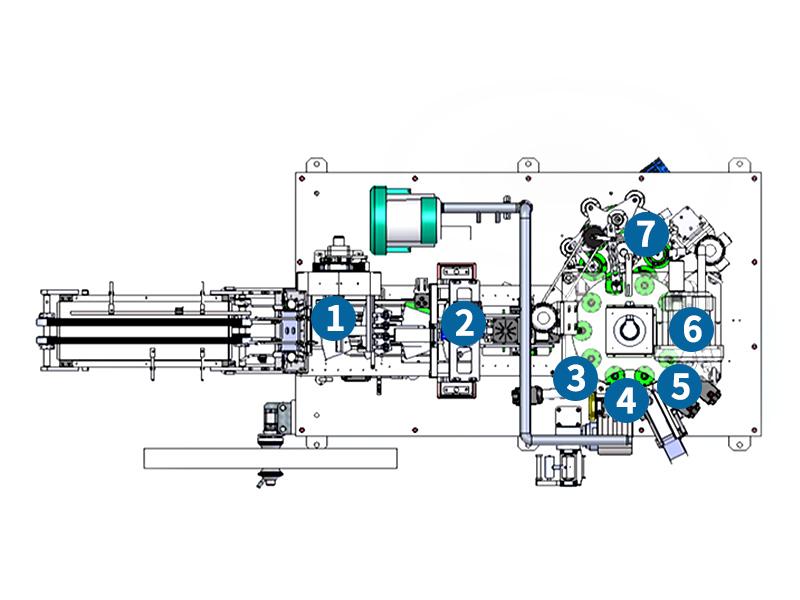

Machine Structure and Drive Concept

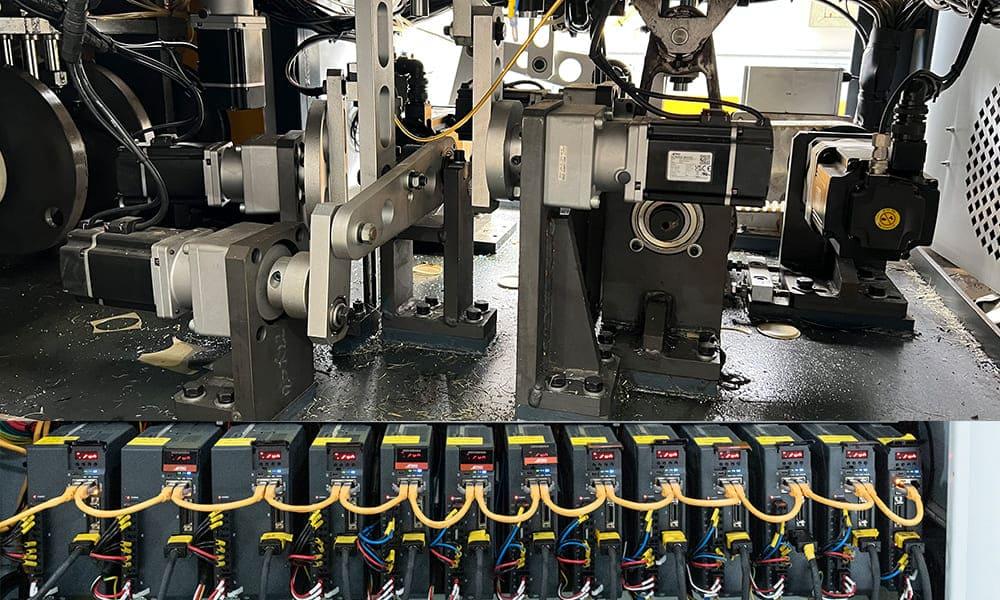

The machine uses servo drive technology across the whole unit. Servo control governs each working part with high positioning accuracy and coordinated synchronous motion, so the stations act together as one timed process rather than through a fixed mechanical linkage. A PLC touch screen interface and multiple photoelectric sensors monitor abnormal working conditions and trigger automatic shutdown on fault, which helps protect machine parts from collision and supports machine stability and service life.

The decoration crankshaft and forming motions are controlled by servo motors rather than a traditional cam gearbox. This design avoids oil lubricants in the drive train and addresses the negative effects of cam and bearing wear and collision at high speed — a comprehensive upgrade over conventional paper cup machine architecture.

Selection Variables to Confirm Before Ordering

• Cup drawing or sample: top diameter, bottom diameter and height define the mold set and the feasible size range.
• Material and coating: single-wall paper grade, GSM and whether the cup is PE-coated or another coated stock.
• Target output: the rated speed is stated in Technical Specifications; stable production output depends on paper quality, cup size, operator skill and downstream packing.
• Sealing and station configuration: confirm the sealing method and station arrangement required for your cup type with the supplier.
• Utilities and installation: voltage and frequency, air supply, and workshop layout should be matched to your site.
• Downstream handling: whether cups will be counted, stacked, sleeved or packed automatically, and how the machine interfaces with that equipment.

Configuration Boundaries

The MYC-180S is a cup forming machine, not a complete production line. Printing, die cutting, coating and material preparation are separate stages unless a specific integrated configuration is confirmed in writing. Optional equipment should not be assumed as standard. Where a parameter is not listed in Technical Specifications, treat it as to be confirmed rather than fixed.

Related Equipment and References

Paper cup production usually involves more than one machine. If your project includes printed cup blanks, review the MY-970 automatic high speed roll die cutting machine as a separate upstream stage. For a look at the MYC-180S family in production, see the MYC-180S high speed milk tea cup making machine case. Buyers comparing cup formats can also review the paper lunch box solution if bowl or box formats are part of the same product plan.

Inquiry Guidance

To receive an accurate configuration and quotation, send your cup drawing or sample, top/bottom/height dimensions, paper material and coating, GSM, target output, voltage and frequency, air supply details, workshop layout and packing requirement. Our team will confirm the supported cup range, mold configuration and delivery scope against your specification. Use the inquiry form on this page or the WhatsApp contact option to start the matching process.
