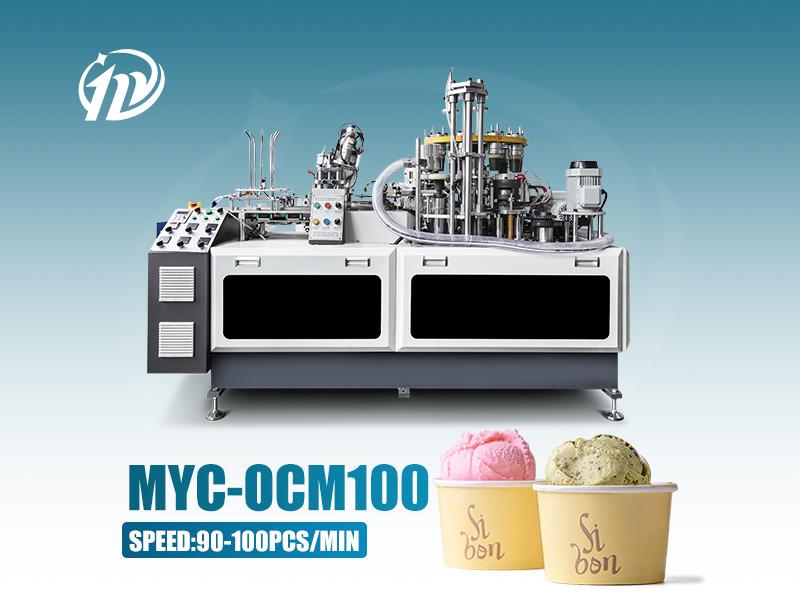

MYC-OCM100 Simple Model Ice Cream Cup Machine

The MYC-OCM100 is a simple-model paper cup forming machine intended for producing single-wall paper cups, including ice cream and dessert cups. It is a practical starting point for buyers who need a compact, easy-to-operate cup making machine for small to medium production runs, and it can also serve as an entry machine for workshops adding a paper cup line for the first time.

This page explains what the machine produces, how it is configured, and what information you should prepare before requesting a quotation. Confirmed machine parameters such as paper weight range, speed, power supply and dimensions are listed in the Technical Specifications section of this page.

What This Machine Produces

The MYC-OCM100 forms single-wall paper cups from printed or plain paper board. Typical applications include ice cream cups, dessert cups, tasting cups and similar small to medium single-wall containers. The finished cup size range depends on the mold set installed, so the cup drawing or a physical sample is the most reliable way to confirm whether a specific cup can be produced on this model.

Because the machine is a simple model, it is normally selected for straightforward single-wall cup structures rather than complex multi-layer or specialty formats. If your project requires a different cup structure, a bowl format, or a higher automation level, the machine configuration should be reviewed before ordering.

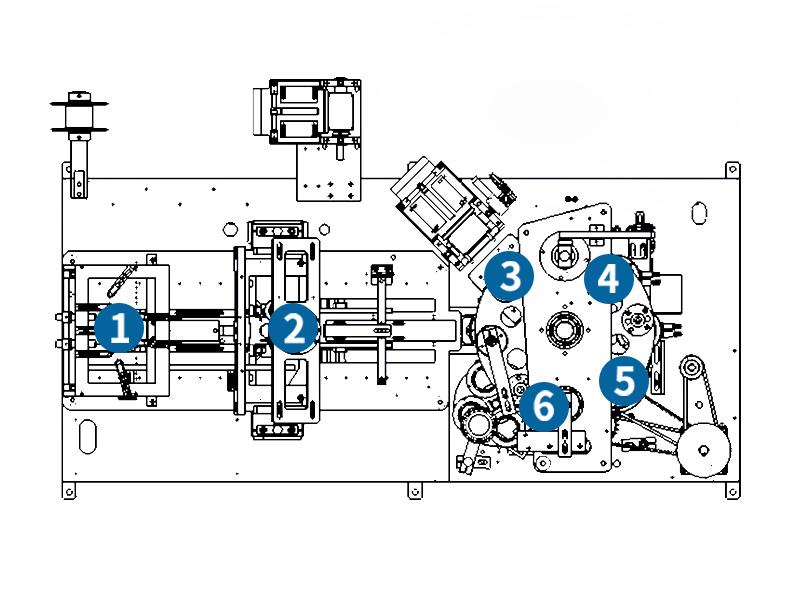

Machine Structure and Control

The machine is equipped with a PLC control system and a sensor fault detection system. When a fault is detected, the machine stops automatically, which supports safer operation and reduces the risk of damaged cups or mechanical issues during unattended moments. An automatic oil lubrication system is also included to support smoother running and easier daily maintenance.

The drive system uses a servo motor together with an open CAM drive and a full gear transmission system. This combination is intended to make cup forming more accurate and stable during continuous production. Buyers should note that the exact electrical configuration, voltage and frequency must be confirmed against the destination country before shipment.

Selection Variables to Confirm Before Ordering

Paper cup machine selection depends on more than the model name. The following points should be clarified with the supplier so that the delivered machine matches your production plan:

• Cup type and structure: single-wall ice cream cup, dessert cup, tasting cup or another single-wall format.
• Finished cup dimensions: top diameter, bottom diameter and height, ideally supplied as a drawing or sample.
• Paper material and coating: the paper board type and whether a coated or uncoated surface is required.
• Paper weight: the GSM range must fall within the machine's supported range, which is listed in the Technical Specifications.
• Target output: the required daily or shift output, so rated speed and realistic stable output can be discussed separately.
• Mold configuration: the mold set is matched to the cup size, so mold requirements should be stated at the inquiry stage.
• Utilities and workshop conditions: available voltage, frequency, air supply and floor space.
• Downstream handling: whether cups will be counted, stacked, packed or inspected manually or with additional equipment.

Configuration Boundaries

The MYC-OCM100 is positioned as a simple model. Optional functions, higher automation levels, alternative sealing methods and additional inspection or packing equipment are not part of the standard configuration unless they are confirmed in the quotation. Buyers comparing this model with other machines should treat each configuration item as a separate decision rather than assuming that features from a higher model are included.

If your project involves a different cup family, a paper bowl, or a fully integrated production line, review the related equipment options before finalizing the machine choice. For bowl-format production, the MYC-DB120 Double Turn Plate Paper Bowl Machine is a relevant reference. Buyers who want to see the machine in operation can review the MYC-OCM100 simple model ultrasonic ice cream cup machine running video.

Project Preparation and Inquiry Guidance

To receive an accurate quotation and configuration proposal, please send the following information with your inquiry:

• Cup drawing or physical sample, with top diameter, bottom diameter and height.
• Paper material, coating type and GSM.
• Required output per shift or per day.
• Destination country, voltage and frequency.
• Available compressed air supply and workshop layout.
• Packing method and any downstream equipment requirements.

Once these details are confirmed, the suitable mold set, machine configuration and supporting equipment can be matched to your project. Final machine parameters, utility requirements and delivery configuration are confirmed in the quotation and order documents.

Please use the inquiry form on this page or contact us via WhatsApp to discuss your cup size, paper material and target output. Our team will confirm the applicable configuration and provide the matching quotation.
