MYC-150 High-Speed Ice Cream Cup Making Machine

The MYC-150 is a newly developed eight-servo driven paper cup machine for manufacturers who need a flexible, high-speed platform for ice cream cups and related paper containers. It forms single-wall paper cups and containers across a 1.5 oz to 16 oz range, with a steady operating speed of 150–180 pieces per minute. Buyers planning ice cream cup production, dessert packaging, or a mixed cup-size program can use this model as a starting point and confirm the final configuration against their own cup drawing.

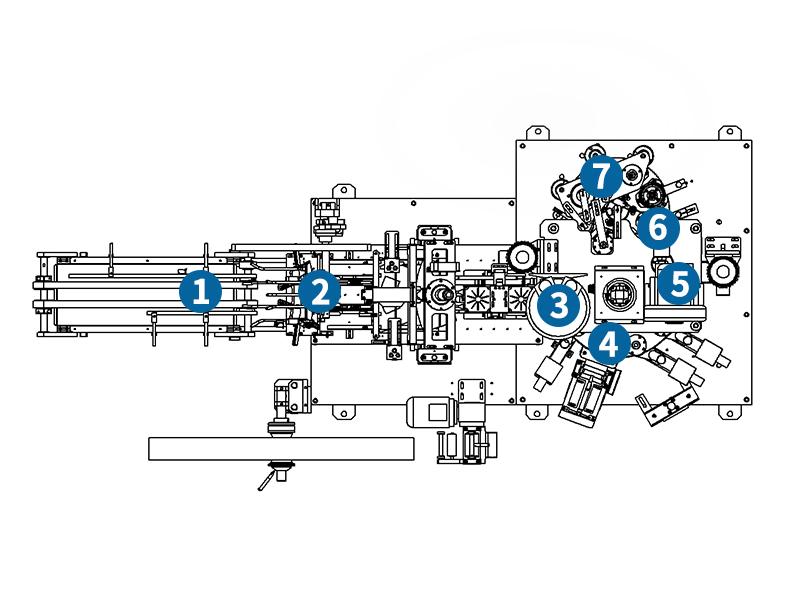

Machine Structure and Drive Concept

The MYC-150 uses eight servo motors distributed across the machine. Each servo drive works independently to control its own station with high precision, while the drives coordinate with one another to keep the forming sequence synchronized. This architecture supports flexibility, speed, a comparatively affordable capital cost, and lower maintenance compared with mechanically linked drive trains.

Typical Applications

• Single-wall paper cups for ice cream, gelato, frozen yogurt and chilled desserts
• Portion cups and small paper containers in the 1.5 oz to 16 oz range
• Dessert and snack packaging lines that need a compact, servo-driven forming machine
• Producers running several cup sizes who want one platform with changeable molds

For background on common cup formats in this segment, see regular sizes of ice cream cups.

Selection Variables to Confirm Before Quotation

Because cup forming is mold-specific, the machine configuration depends on the exact product rather than on the model number alone. Please prepare the following before requesting a quotation:

• Cup drawing or physical sample, including top diameter, bottom diameter and height
• Target cup size or size range within the supported 1.5 oz to 16 oz envelope
• Paper material and coating type, plus paper GSM
• Required output and whether the target is rated speed or stable production output
• Bottom sealing method and any specific sealing requirement
• Voltage and frequency at the installation site
• Available air supply and workshop layout
• Packing method and any downstream handling requirement

Confirmed machine parameters such as speed, power, air consumption, dimensions and weight are listed in the Technical Specifications section of this page. Final mold and station configuration is confirmed against the cup drawing.

Related Equipment and Project Planning

Cup forming is one stage of a wider paper packaging workflow. If your project also involves printed paper blanks or in-house blank preparation, the MY-970 automatic high-speed roll die cutting machine is a relevant upstream option to review. For a broader view of cup formats and production planning in this application, the ice cream cup solution page outlines how forming equipment fits into a complete dessert packaging line.

Next Step

Send your cup drawing or sample, target size range, paper and coating details, and required output. Our team will confirm the matching mold configuration and machine setup, then prepare a quotation based on your actual production requirement. You can also reach us directly through the WhatsApp inquiry option on this page.
