MYC-ZDJ1200 Full Servo Paper Plate Machine 2 to 12 Inch

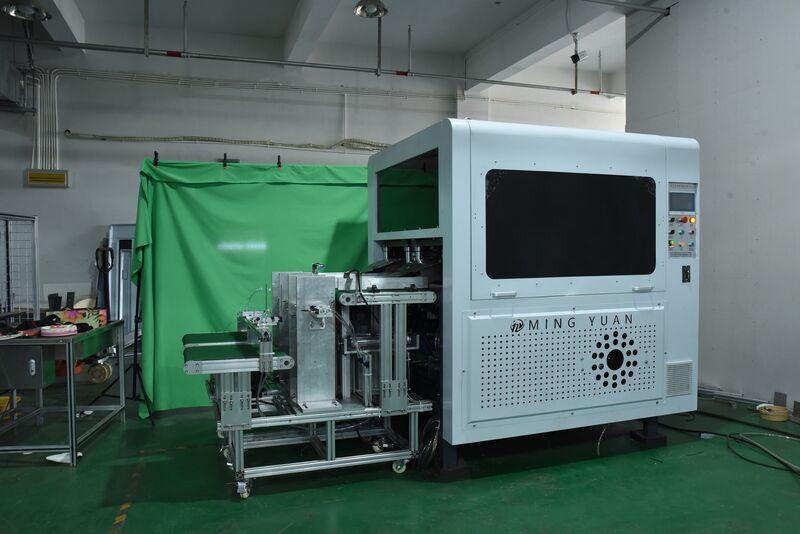

MYC-ZDJ1200 Full servo motor driven paper plate machine

MYC-ZDJ1200 full servo motor driven paper plate machine

What the MYC-ZDJ1200 Paper Plate Machine Is Built For

The MYC-ZDJ1200 is a high-speed, full servo motor driven paper plate machine designed for converting printed or plain paper board into disposable paper plates. It is aimed at food-packaging producers, disposable tableware converters and catering-supply manufacturers who need a dedicated plate-forming machine rather than a cup or bowl line. The machine is intended for standard plate shapes such as round and square plates; other shapes should be confirmed against a plate drawing before quotation.

Because plate forming combines paper feeding, pressing/forming and edge shaping, the practical selection question is not only speed but whether the machine can hold your plate diameter, paper grade and shape consistently. Confirmed values for model, speed, plate size range, power, air, dimensions and weight are listed in the Technical Specifications field on this page; the sections below explain how to prepare a matching request.

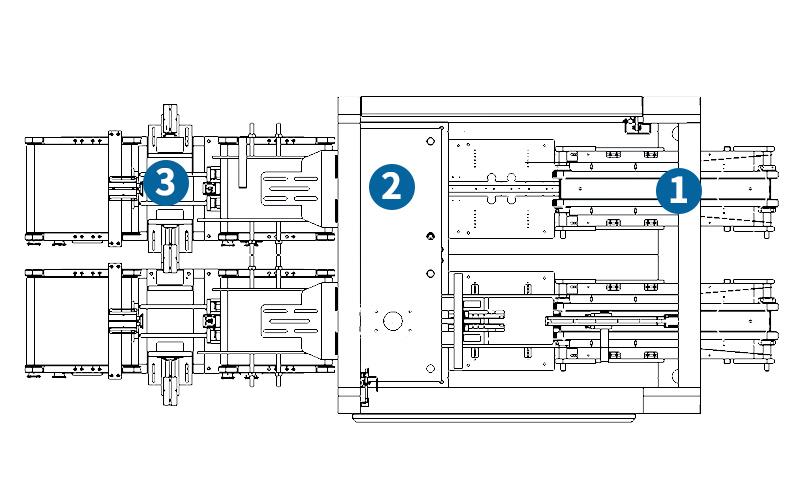

Machine Structure and Working Sequence

The machine uses servo motor drive together with a robotic hand feeding system, which the source describes as improving paper feed accuracy. A sensor-based fault detection system monitors the machine and stops it automatically when an error is detected, which helps protect the tooling and reduce scrap during unattended running. A newly designed plate counting and collection system is included to reduce manual handling and labour cost at the discharge end.

Feeding, forming and discharge at a glance

• Paper feed: robotic hand feeding with servo control for positioning accuracy.
• Forming: plate pressing and shaping to the configured plate size and shape.
• Fault handling: sensors detect abnormal conditions and stop the machine automatically.

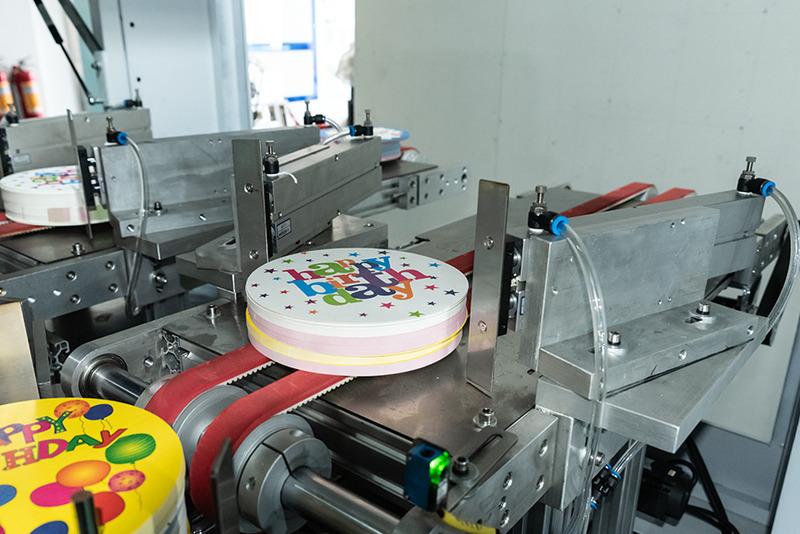

• Discharge: automatic plate counting and collection to reduce manual stacking.

Rated speed and stable production output are not the same figure. The catalogue speed is a rated value; real output depends on paper grade, plate shape, operator skill and downstream packing. Treat the rated figure as a ceiling for line planning and confirm expected stable output with the supplier during acceptance.

Selection Variables to Confirm Before Ordering

Paper plate machines are configured around the plate, not the other way round. Send the following so the machine configuration, tooling and feeding system can be matched to your product:

Where a requirement falls outside the standard plate range or shape, the supplier should confirm feasibility from the drawing rather than assume compatibility. Related equipment for other disposable tableware formats is listed in the MYC-DB120 double turn plate paper bowl machine page, and shaped plate projects can be reviewed under the disposable fast food paper plate solution.

Paper Matching and Quality Checks

Plate quality is largely decided before the machine runs: paper grade, coating and moisture content all influence how the board presses and holds a rim. During sample approval, check the points below with your own paper rather than relying on a generic demonstration.

• Sample and drawing confirmation: approve a formed plate against the drawing, including diameter, rim height and shape.
• Paper trial: run the intended GSM and coating to confirm forming stability and surface appearance.
• Forming and edge check: inspect rim uniformity, creasing and any cracking on coated board.
• Leak and strength check: for food-contact use, verify the plate holds its intended load and does not leak at the seams.
• Counting accuracy: confirm the collection system stacks the agreed quantity per batch.
• Fault response: test that sensor detection stops the machine as described before acceptance.

Installation, Changeover and Maintenance Planning

Plan the project around the tooling and the people who will run it. Changeover between plate sizes or shapes depends on the tooling supplied, so ask for the changeover procedure and the tools required rather than assuming a fixed time. For maintenance, keep the servo drive, robotic feeding hand, sensors and collection system on a scheduled inspection list, and keep spare sensor and feeding components available to limit downtime. Operators should be trained on the fault-stop behaviour so a stop is diagnosed rather than bypassed.

Next Step: Send Your Plate Specification

To receive a matched quotation for the MYC-ZDJ1200, send your plate drawing or sample, plate diameter and shape, paper type with GSM and coating, target daily output, workshop voltage and frequency, available air supply, and your packing requirement. Our team will confirm the configuration and the points that need verification before order. You can also review the MYC-ZDJ1200 full servo paper plate machine catalogue entry for the confirmed specification, or use the inquiry form or WhatsApp button on this page to start the discussion.
