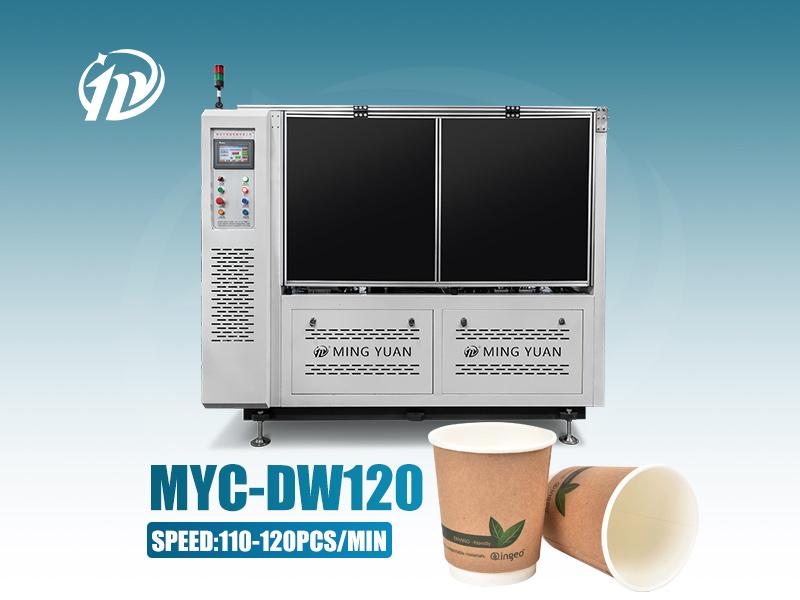

MYC-DW120 Double Wall Paper Cup Sleeve Machine

Myc-120 Connected To Myc-Dw120 Double Wall Paper Cup Forming Production Line Catalog

MYC-DW120 Double Wall Paper Cup Sleeve Machine: Scope and Application

The MYC-DW120 is a double wall paper cup sleeve machine designed to form the outer sleeve that is combined with an inner cup to produce double wall (hollow) paper cups. It suits converters and food-packaging producers who already run or plan a cup forming line and want to add an outer-sleeve stage for hot-beverage and premium cup formats. The machine handles the sleeve-forming sequence from paper fan feeding through to finished sleeve stacking and collection, and it is intended to be matched to a compatible inner-cup machine rather than used as a stand-alone complete line.

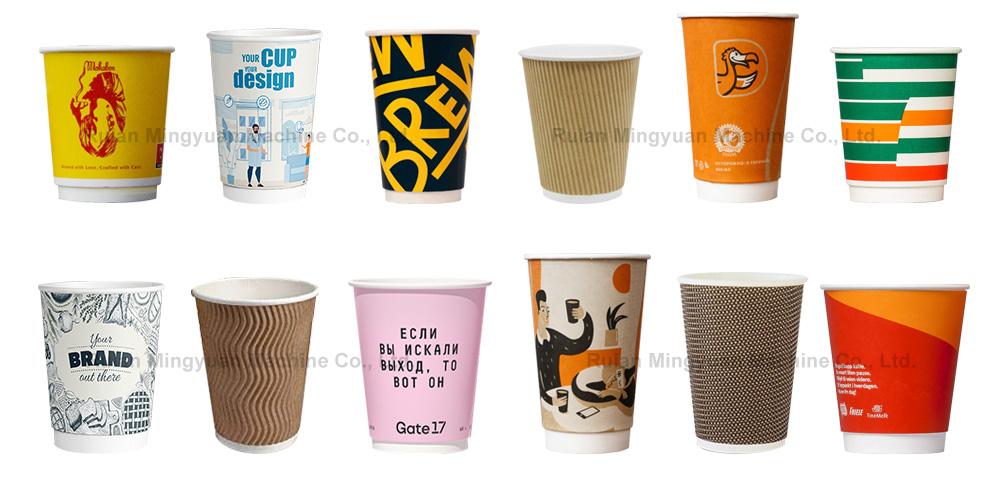

Sample Display

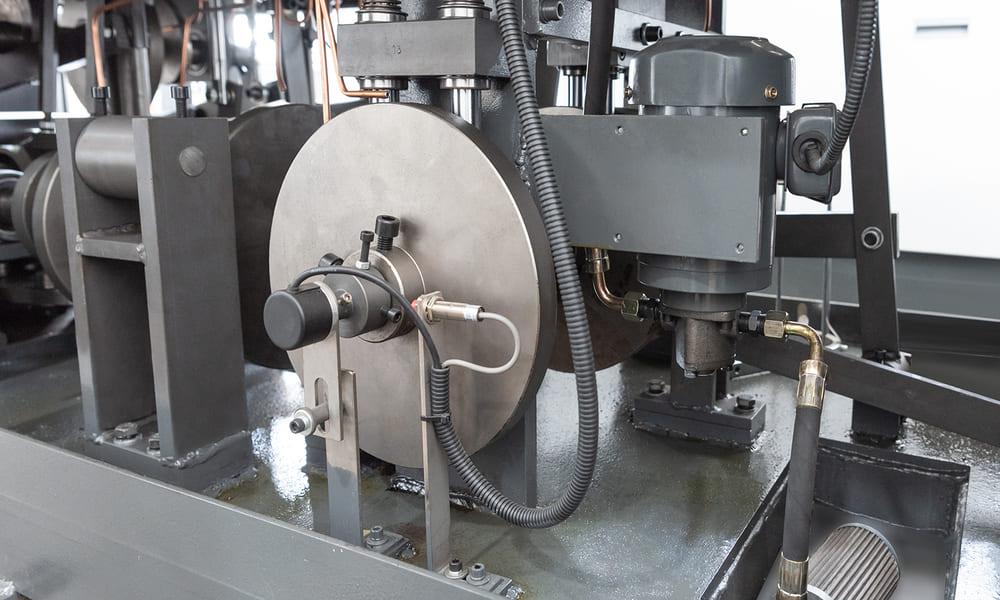

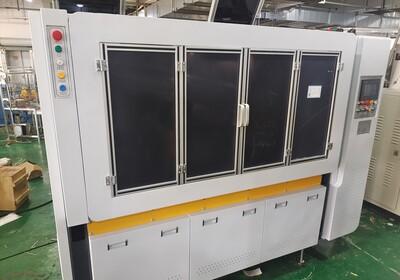

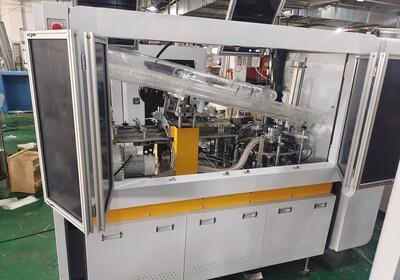

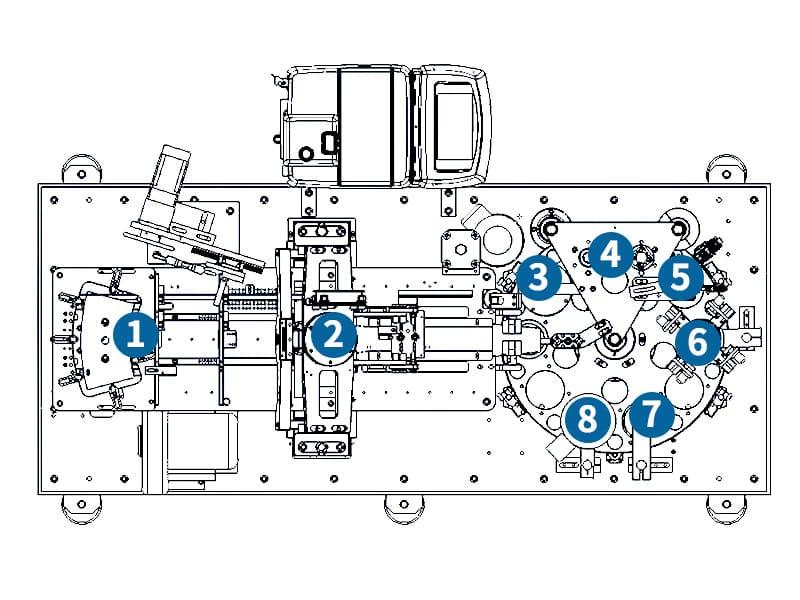

Machine Structure

How the Sleeve-Forming Process Works

The MYC-DW120 is built around a PLC control system with a touch screen, which is intended to make operation and parameter setting straightforward. A failure sensor and encoder detection system monitors the forming process and triggers automatic shutdown when abnormalities or errors are detected, which helps protect components and support longer service life. The machine uses a hot melt glue system, and the whole unit is equipped with an oil lubrication system so that mechanical parts run more smoothly.

Within one working cycle, the machine is designed to complete the full sleeve process: paper fan feeding, sleeve side sealing, sleeve transferring, robot-hand feeding of the sleeve, automatic silicone oil circulation, bottom heating and knurling, servo motor gluing, two-times sleeve pressing, and cup stacking and collecting.

Selection Variables to Confirm Before Quotation

Because the sleeve must match the inner cup precisely, the final configuration depends on the cup project rather than on the machine alone. Buyers should confirm the following points with the supplier:

• Cup drawing or physical sample: top diameter, bottom diameter and height of both the inner cup and the finished double wall cup.
• Paper and coating: the paper grade and coating used for the outer sleeve, since these affect sealing and forming behaviour.
• Target output: the required production rate and how the sleeve machine will be balanced against the upstream cup machine.
• Glue and sealing method: confirmation of the hot melt glue system and the sealing configuration required for the intended cup type.
• Line integration: whether the sleeve machine will run connected to an existing cup forming machine or as a separate unit.
• Utilities and workshop: voltage and frequency, air supply, and available floor space for machine and collection area.
• Packing requirement: how finished sleeves or cups will be collected, stacked and packed downstream.

Configuration Boundaries and Line Integration

The MYC-DW120 forms the outer sleeve; it does not by itself produce the complete double wall cup. A complete double wall cup production setup therefore combines a cup forming machine with the sleeve machine, and the two must be matched on cup size, output and transfer method. Where a connected line is planned, the sleeve machine can be specified as part of a double wall paper cup forming production line; see the MYC-120 connected to MYC-DW120 double wall paper cup forming production line catalog for the line-level view. Buyers comparing single wall and double wall options can review the single and double wall paper cup solutions before fixing the machine combination.

Rated speed and stable output should be treated separately: the figure shown in the Technical Specifications reflects the machine's rated capability, while actual sustained output depends on cup size, paper and coating, glue settings, operator skill and how well the sleeve machine is balanced with the upstream cup machine. Final configuration, cup range and utility requirements are to be confirmed against the buyer's cup drawing and sample.

Information to Send for Matching

To receive an accurate configuration and quotation, please send the cup drawing or a physical sample, the inner and outer cup dimensions, the paper and coating specification, the required output, your voltage and frequency, available air supply, workshop layout, and packing requirement. Our team will confirm the applicable sleeve configuration and line arrangement for your project.

You can also review the MYC-DB120 double turn plate paper bowl machine if your project includes bowl formats alongside cups. For a direct discussion of your cup project, use the inquiry form on this page or contact us via WhatsApp to confirm machine configuration and next steps.
