MYC-DW100 Double Wall Paper Cup Sleeve Machine 70-90 pcs/min

Name: MYC-DW100 Double Wall Paper Cup Sleeve Machine 70-90 pcs/min
Brand: MINGYUAN
SKU: MYC-DW100
Price: 10000.00 USD
Availability: InStock
Rating: 4.9 (12 reviews)

Mini Capacity (8 hours/day)	33600-43200
Maxi Capacity(24 hours/day)	100800-129600
Speed	70-90pcs/min
Size	4-22oz( 120-700 ML )
Power	50/60HZ,380V/220V
Raw Material	180-350g/m PE coated paper, gloss printed paper (gray based paper with gloss printing). varnish PE coated paper cup fan or other film coated paper
Suitable Paper Weight	150-350gsm
Model	MYC-DW100
Certification	CE, ISO,SGS

Get Quote

+86-13362708280

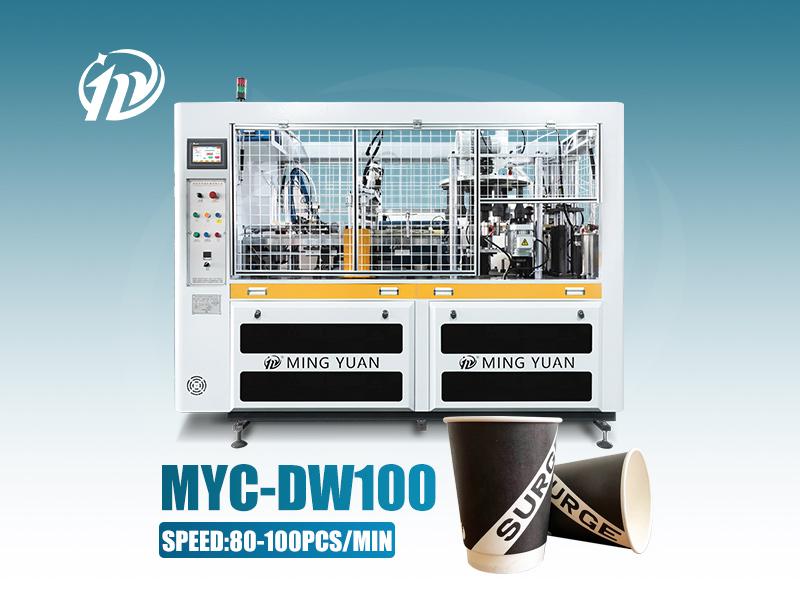

MYC-DW100 Double Wall Paper Cup Sleeve Machine.

MYC-DW100 Double Wall Hollow Cup Sleeve Machine

The MYC-DW100 is an intelligent automatic double wall cup machine designed to form the hollow (sleeve) outer wall that is combined with an inner cup to produce double wall paper cups. It is aimed at converters and food-packaging producers who already run a paper cup forming machine and want to add a hollow double wall capability, or who are planning a two-stage cup production setup. The machine handles the sleeve-forming stage only; the inner cup is produced on a separate cup forming machine.

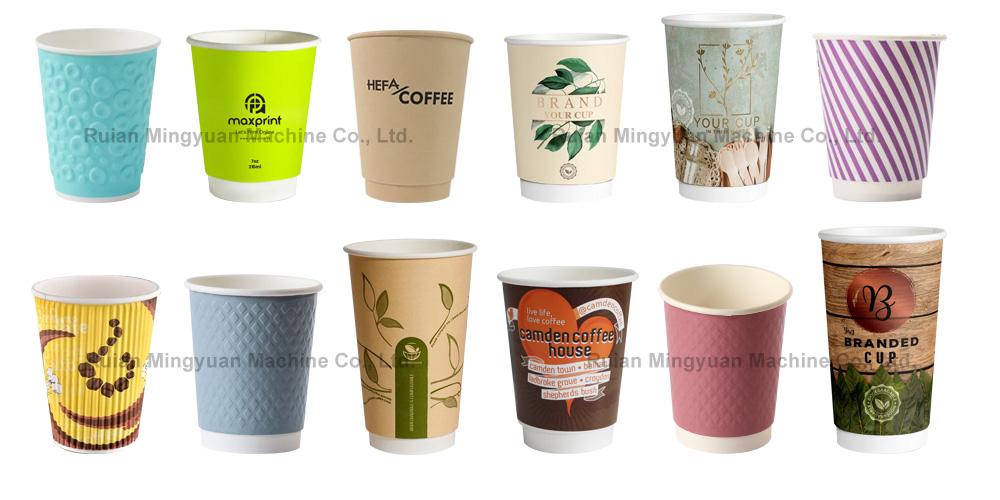

Double wall hollow paper cup sample produced on the MYC-DW100 sleeve machine

What the machine does

The MYC-DW100 completes the full sleeve-making sequence in one automatic cycle: paper fan feeding, sleeve side sealing, sleeve transferring, robot hand feeding of the sleeve, automatic oil circulation, servo motor glue feeding, two-times sleeve pressing, and cup stacking. The result is a finished hollow double wall cup ready for downstream packing.

Machine structure and controls

The machine uses an intelligent operating system including PLC and touch screen, which keeps operation and daily maintenance straightforward. The mechanical platform is built on an open intermittent indexing mechanism, gear transmission and a longitudinal axis structure. A whole-machine oil lubrication system keeps all mechanical parts running more smoothly, and intelligent photoelectric control supports correct machine operation.

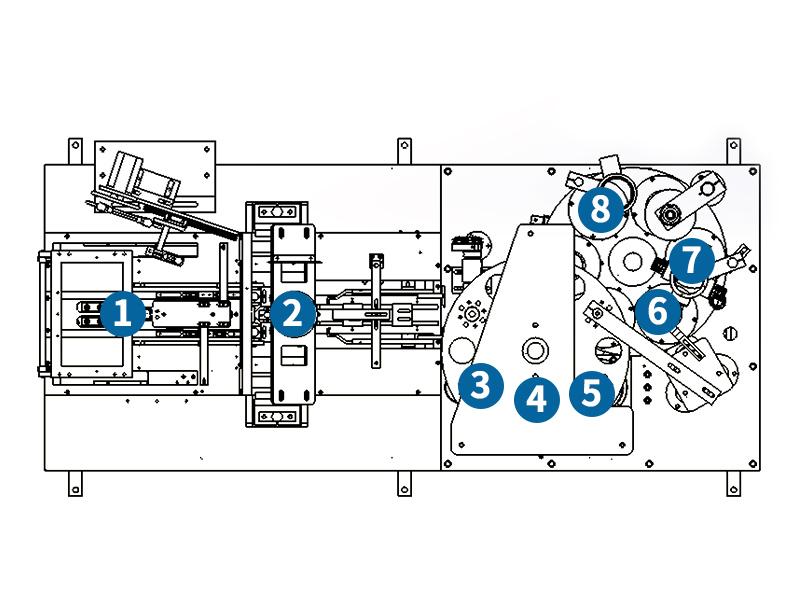

MYC-DW100 double wall hollow cup sleeve machine structure with hot melt glue system

Configuration notes

The machine is supplied with a hot melt glue system for sleeve sealing. Because cup size, paper grade and glue choice are linked, the sleeve tooling and glue settings should be matched to your specific cup drawing rather than assumed. Rated speed and confirmed cup size range are listed in the Technical Specifications field; actual stable output depends on paper, glue, cup size and operator practice, so plan capacity with a margin.

Selection and project checklist

Decision point	What to confirm before quotation
Cup format	Inner cup drawing or physical sample, plus the intended outer sleeve dimensions
Paper and coating	Paper grade, GSM and coating for the sleeve layer, and whether the cup is for hot or cold drinks
Sealing	Hot melt glue type and supplier, since glue behaviour affects sleeve bonding
Line position	Which cup forming machine will feed the inner cups, and how cups will be transferred between stages
Utilities and site	Voltage and frequency, air supply, and available floor space for machine and cup stacking
Output planning	Target daily output and shift pattern, so rated speed can be translated into realistic capacity

Typical production context

The MYC-DW100 is commonly paired with an automatic paper cup forming machine to build a two-stage double wall cup line. You can review the single and double wall paper cup solutions for how the stages fit together, and see the MYC-OCM12 cup machine connected with the MYC-DW100 in a production line arrangement. If you are still deciding on the paper for hollow or corrugated double wall coffee cups, the hollow double wall cup paper FAQ explains the material considerations.

Send these details for matching

Cup drawing or sample with top diameter, bottom diameter and height
Paper type, GSM and coating for the sleeve layer
Target output per shift and expected cup sizes
Voltage and frequency at your site, plus available air supply
Workshop layout and how cups will be packed after stacking

Share your cup specification through the inquiry form or WhatsApp so the sleeve tooling, glue system and machine configuration can be checked against your product before a quotation is prepared. You can also review the MYC-DB120 double turn plate paper bowl machine if your project also includes bowl formats.

Model	MYC-DW100
Machine	Double Wall Paper Cup Machine
Speed	70-90 pieces per minute
Paper Cup Size	4 - 22 oz
Machine Size	275015602080 mm
Machine Weight	2000 kg

Hot Melt Glue System: Storing and heating the hot melt glue.
Rotary Suction Unit: It can suck down different type paper materials like ripple paper(corrugated paper) easily.
Servo Motor Gluing Driver: Paste the hot melt glue accurately. The thickness and length of the glue can be adjusted as the cup size.

Related Products

More》

Related Resource

double wall paper cup sleeve machine

MYC-DW100 Double Wall Paper Cup Sleeve Machine 70-90 pcs/minRelated Finished Hollow Cups

Double Wall Cup with Heat Insulation Layer

With an extra air cushion between cup walls, double wall cups protect hands from heat. Hollow cup paper cup machines ensure precise bonding of the outer sleeve and inner cup.

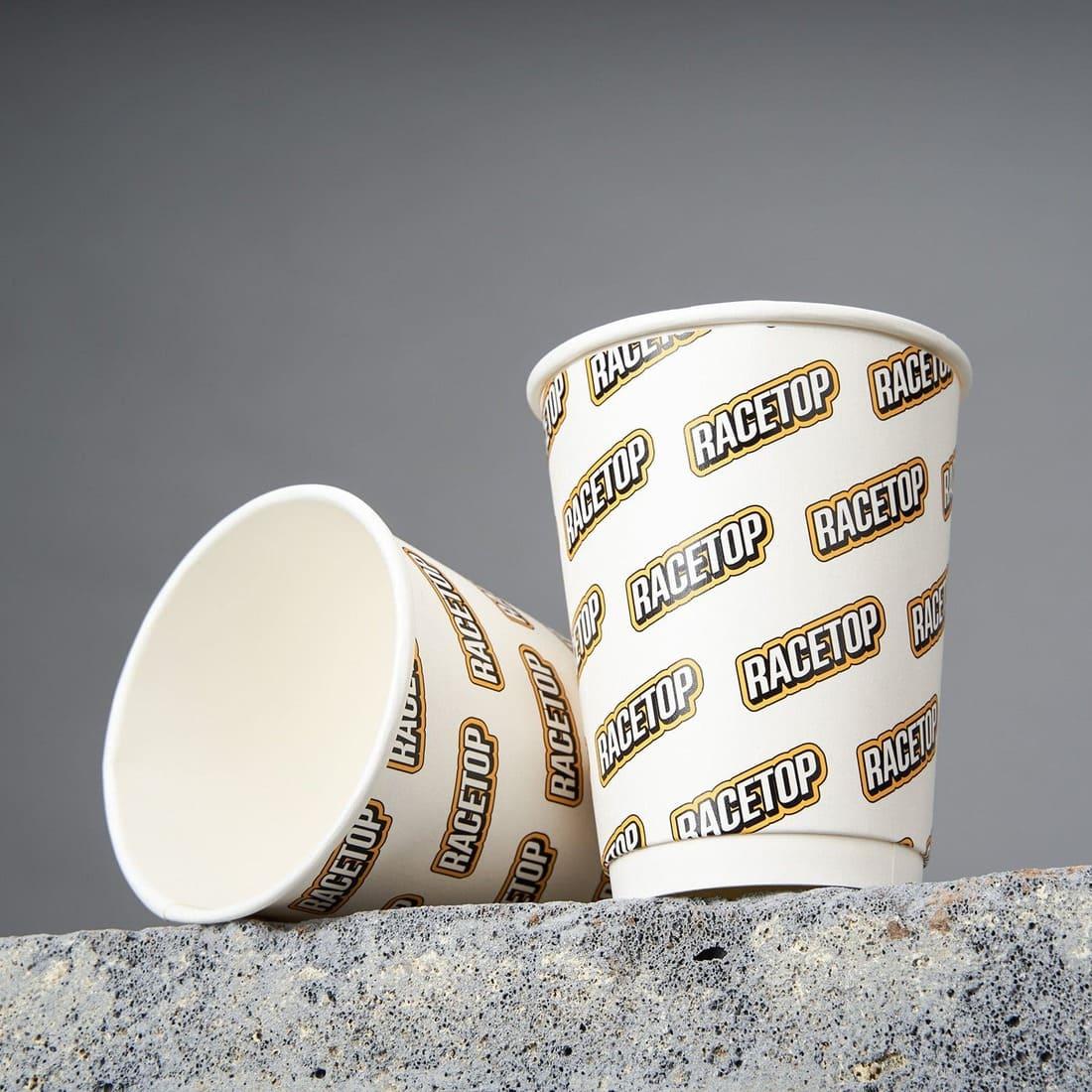

Custom Printed Double Wall Paper Cup

Double wall paper cups allow high-quality printing for branding purposes. Using double wall paper cup machines, businesses can customize designs while maintaining strength and insulation.

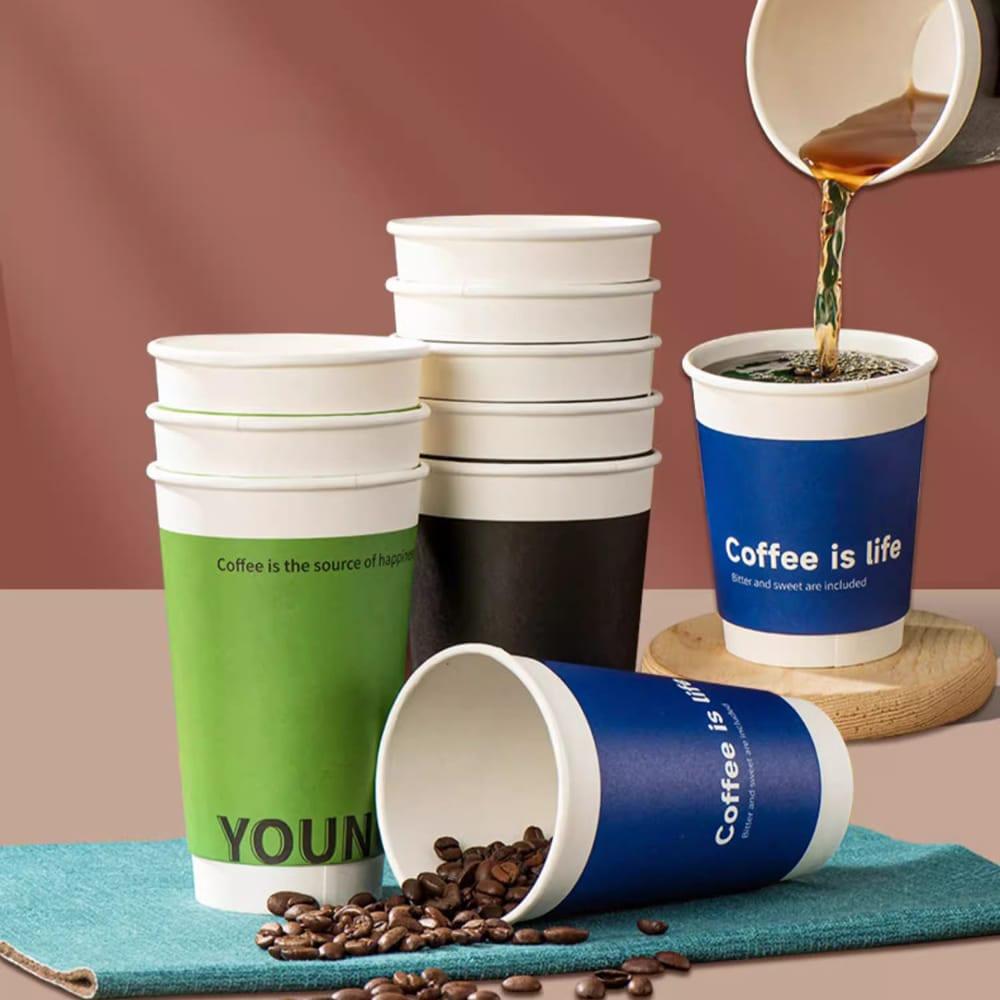

Hollow Insulated Paper Cup for Takeaway Drinks

Hollow paper cups are perfect for takeaway beverages, keeping drinks warm while preventing burns. These cups are efficiently produced by double wall paper cup machines.

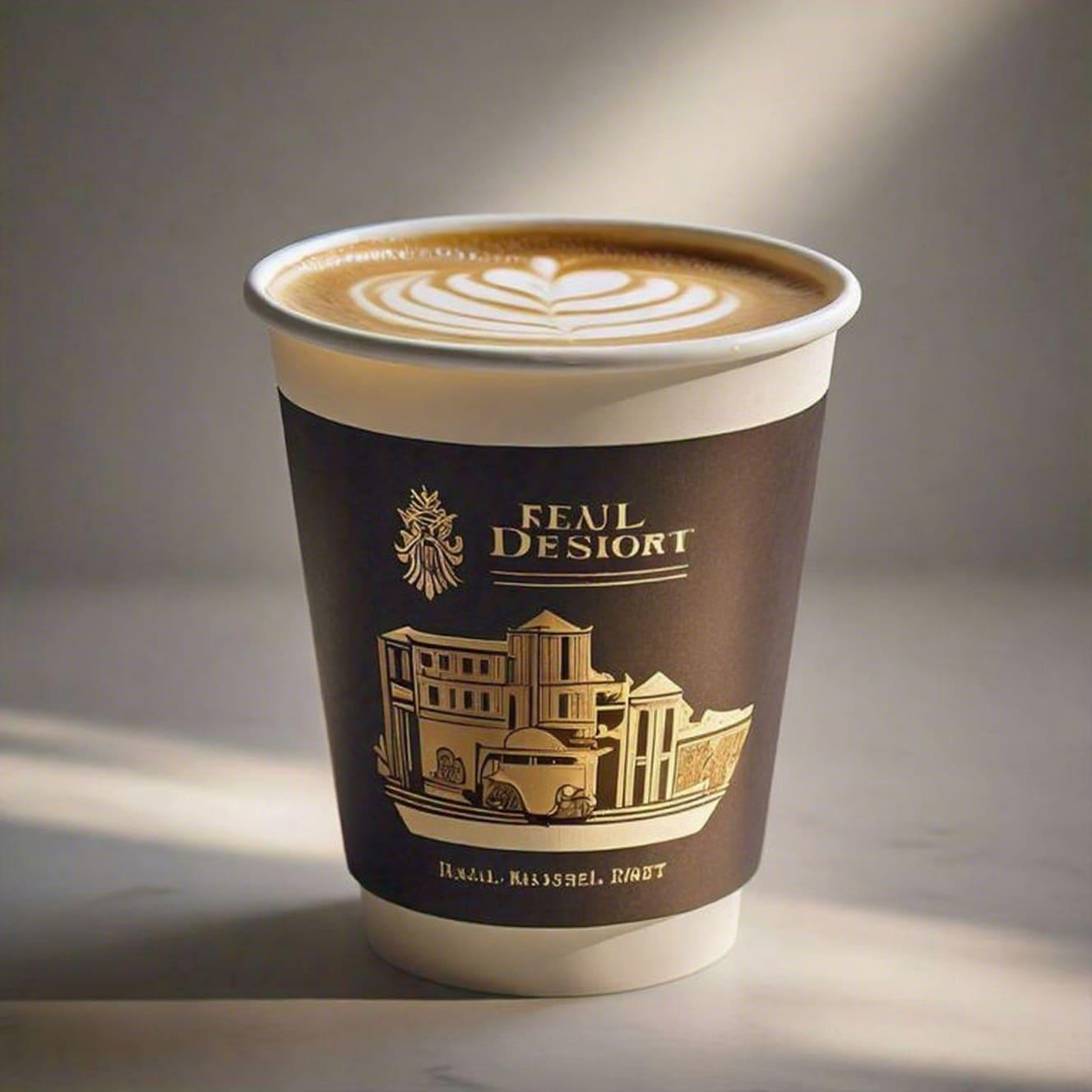

Double Wall Paper Cup for Hot Beverages
