MYC-DW120 Double Wall Hollow Cup Sleeve Machine: Scope and Application

The MYC-DW120 is a double wall hollow cup sleeve machine designed for converters who produce insulated paper cups with a separate outer sleeve. Rather than forming the inner cup, this machine takes pre-formed cup bodies and adds the hollow outer sleeve that creates the air gap responsible for heat insulation. It suits food-packaging producers, cup converters and OEM cup suppliers planning a double wall cup line, and it can be matched with an upstream cup forming machine to build a continuous production sequence.

Typical finished applications include hot-drink cups for coffee shops, takeaway beverage cups and other insulated paper cups where a hollow sleeve improves hand comfort. Buyers should confirm the exact cup type and sleeve style against their own cup drawing before ordering.

How the Sleeve Forming Process Works

The machine completes a sequence of operations in one flow: paper fan feeding, sleeve side sealing, sleeve transferring, robot-hand sleeve feeding onto the cup, automatic silicone oil circulation, bottom heating and knurling, servo-motor gluing, two-times sleeve pressing, and cup stacking and collecting. The PLC control system with touch screen makes operation and parameter setting straightforward, while the failure sensor and encoder detection system monitors the forming process and triggers automatic shutdown when abnormalities occur, helping extend the service life of wearing parts.

The machine is equipped with a hot melt glue system and an oil lubrication system that keeps the mechanical parts running smoothly. Final sealing method, glue type and station configuration should be confirmed with the supplier for the specific cup design.

Selection Variables to Confirm Before Quotation

Because the sleeve machine must match the cup it wraps, several variables need to be settled before a configuration can be quoted. The table below summarises the decision points a buyer should prepare.

Confirmed model, speed, power, air, dimensions and weight are listed in the Technical Specifications field of this page. Rated speed and stable production output can differ once material, cup size and operator conditions are applied, so discuss the expected output with the supplier rather than assuming the rated figure.

Sample Cups and Machine Structure

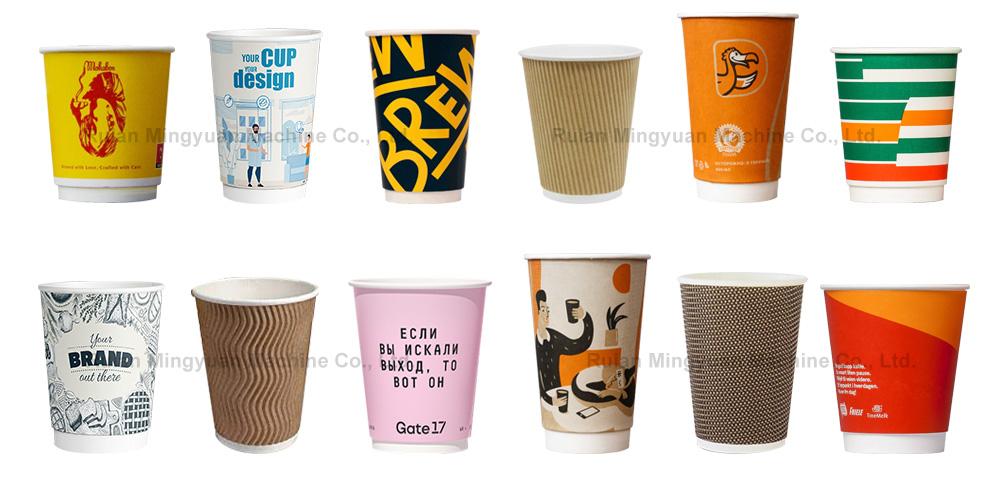

Sample display:

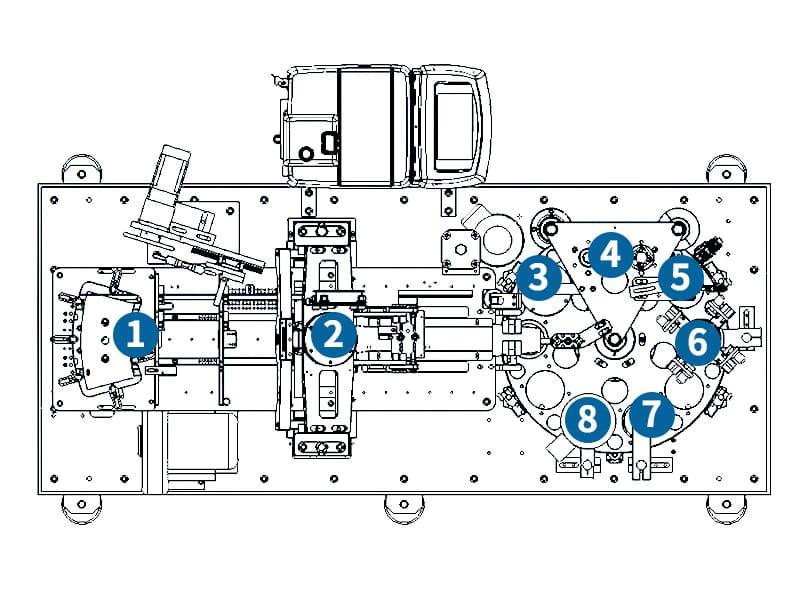

Machine structure:

Line Integration and Related Equipment

The MYC-DW120 is a sleeve-forming unit, not a complete production line on its own. It is normally paired with an upstream paper cup forming machine so that formed inner cups feed into the sleeve process. Buyers planning a full double wall cup line can review the MYC-120 connected to MYC-DW120 double wall paper cup forming production line catalog for the combined configuration, and compare the wider range in the single and double wall paper cup solutions overview. Optional downstream equipment such as packing should be treated as a separate scope and confirmed in the quotation.

Information to Send for Matching

• Cup drawing or physical sample with top diameter, bottom diameter, height and sleeve height.
• Paper material, GSM and coating for the inner cup and the sleeve.
• Required stable output and shift pattern.
• Site voltage, frequency and available air supply.
• Workshop layout and how the machine will connect to existing forming or packing equipment.
• Packing requirement for the finished cups.

Share these details through the inquiry form on this page or contact us on WhatsApp so the configuration, tooling and line interface can be matched to your cup design before a quotation is issued.
