MY-100 Paper Lid Making Machine for Coffee and Soup Cup Lids

MYC-COM100 Simple style Single wall paper cup machine

Product Description:

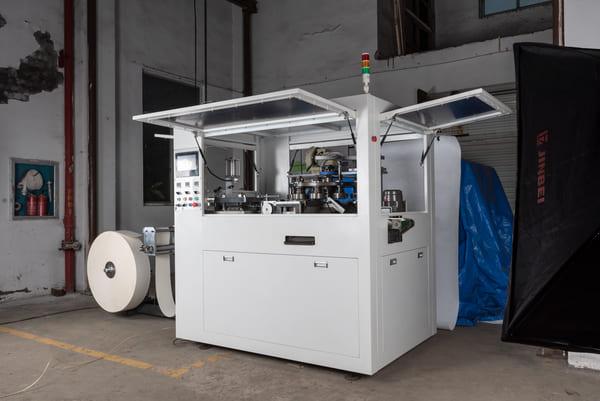

The MY-100 Paper Lid Making Machine is a dedicated converting machine for producing paper lids and covers for ice cream cups, soup cups, coffee cups and similar paper food containers. It is designed for buyers who need a separate lid-making step alongside their existing cup or bowl production, rather than a combined cup-and-lid line. Rated speed is 70–100 pcs/min; the stable working output for a given lid design should be confirmed during sample trials.

What the MY-100 Produces

The machine converts roll paper into finished paper lids through a sequence of servo-controlled roll feeding, embossing, hole punching, heating, folding, knurling and discharge. Finished lids are collected through a conveyor with a counter, which supports packing and output tracking at the end of the machine.

Lid diameter, rim profile and the matching cup top diameter are the first things to confirm. A lid that fits one cup rim will not necessarily fit another, so the lid drawing and a matching cup sample are the most useful starting documents for a quotation.

Key Configuration Points

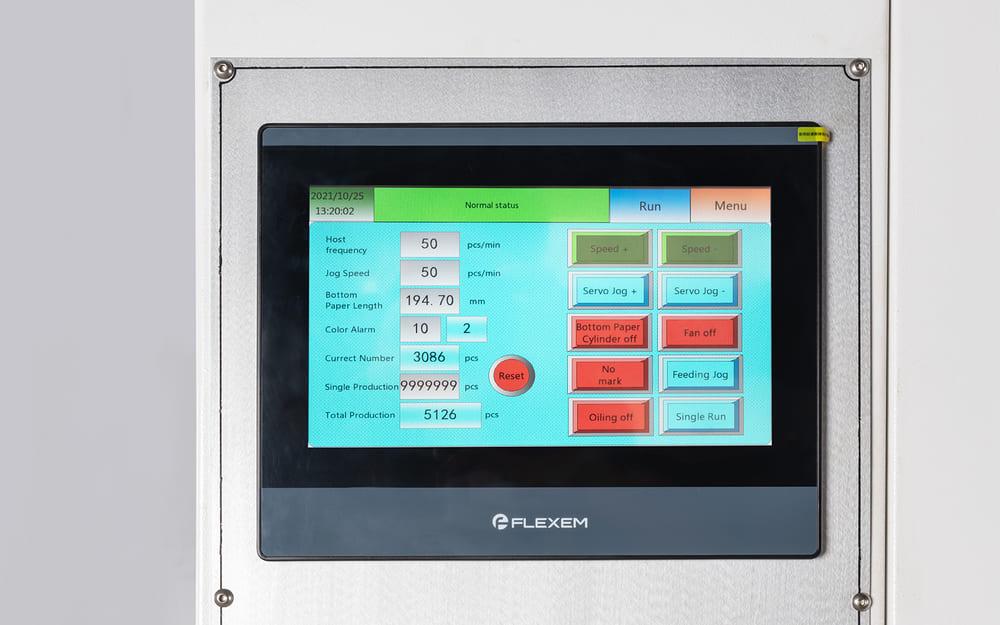

• Control system: PLC with touch screen interface for machine settings and operation.
• Paper feeding: Automatic roll paper feeding driven by servo motor, which supports consistent feed length.
• Forming functions: Embossing unit, punching hole device, hot air heaters, folding and knurling stations.
• Discharge and collection: Conveyor discharge with counter for the collection unit.
• Material: Paper weight range is stated in the Technical Specifications field; confirm coating type and roll width against your lid design before ordering.

Selection Variables to Confirm Before Ordering

Quality Checks and Daily Maintenance

Because the lid is a sealing component, the practical acceptance points are rim fit, knurling tightness, embossing clarity and hole position. A running trial with your own paper is the most reliable way to confirm these points before shipment. During production, typical attention areas include heater temperature stability, feed length consistency, punch tool condition and knurling roll wear.

• Check lid fit on the actual cup rim at the start of each batch.
• Inspect knurling and folding quality after any paper roll change.
• Keep the punching tool and embossing unit clean to avoid marking defects.
• Record heater settings for each paper and coating combination for repeatable changeovers.

Related Equipment and Next Steps

Lid production is often planned together with cup forming and with roll die cutting of the printed paper. Buyers reviewing a complete paper packaging setup can also look at the MY-970 automatic high speed roll die cutting machine for preparing printed paper rolls, and at the integrated convex paper cover production solution for a broader view of lid and cover formats.

To receive a matched quotation for the MY-100 Paper Lid Making Machine, send your lid drawing or sample, the matching cup top diameter, paper type and GSM, coating, target output per shift, voltage and frequency, and your workshop layout. Our team will confirm the mould configuration and the final machine specification with you before order. You can also contact us directly through the inquiry form or WhatsApp on this page.
