MYL-100S High Speed Paper Lid Machine: Scope and Application

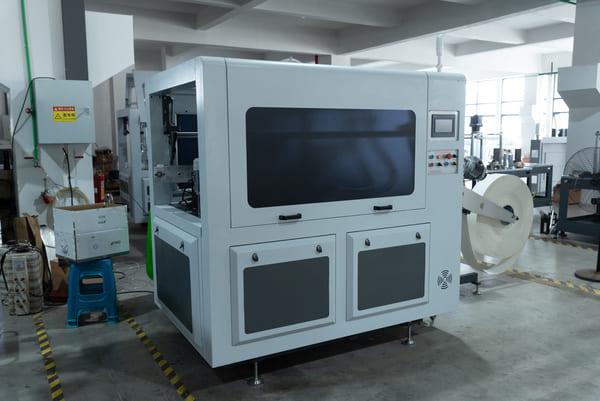

The MYL-100S is a dedicated paper lid forming machine for producing paper covers used with ice cream cups, soup cups, coffee cups and similar food-service containers. It is intended for converters and packaging producers who need an in-house lid supply matched to their existing cup formats, rather than buying lids from an outside supplier. The machine converts roll paper through a sequence of feeding, embossing, hole punching, heating, folding, knurling and discharge, with a conveyor belt and counter at the collection unit.

Because lid fit depends on the cup rim rather than the lid alone, the machine should be specified against the actual cup it will serve. Buyers should confirm the target lid diameter, the matching cup rim profile, and whether the lid is flat or raised before discussing configuration.

Workflow and Machine Layout

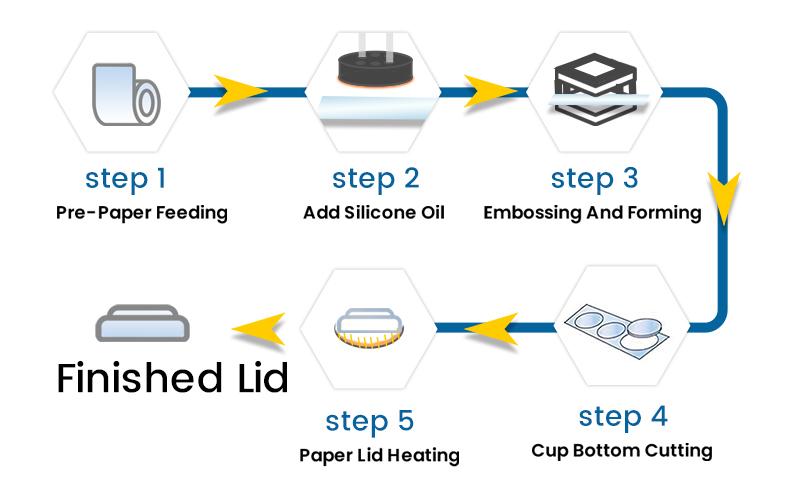

The workflow diagram below shows the process sequence from roll paper infeed to finished lid collection. Review it together with the design drawing to understand the machine footprint and the position of the forming, heating and discharge stations in your workshop layout.

Design Drawing and Floor Space Planning

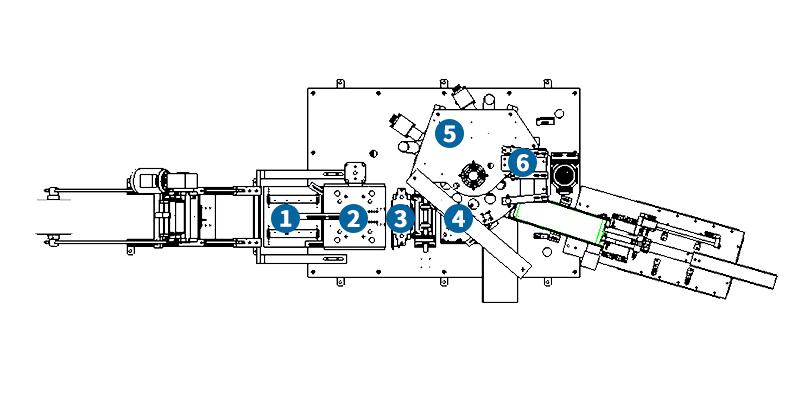

The design drawing indicates the machine's overall arrangement. Use it to plan clearance for roll paper loading, operator access, the collection conveyor and any downstream packing table. Final dimensions and weight should be confirmed against the Technical Specifications field and the approved drawing for your order.

Configuration Highlights

The machine is built around a PLC touch screen control system, an automatic oil lubrication system, automatic roll paper feeding driven by servo motor, an embossing unit, a punching hole device and hot air heaters. Paper is fed to the mould, then heated, folded, knurled and discharged to the collection unit.

• Control: PLC with touch screen interface for parameter setting and running monitoring.

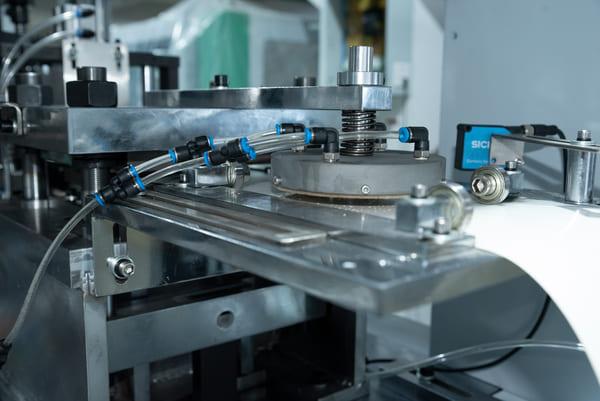

• Paper feed: automatic roll feeding with servo motor drive, supporting consistent registration into the mould.
• Forming features: embossing unit and punching hole device, plus heating, folding and knurling stations.
• Heating method: hot air heaters; the applicable sealing behaviour should be confirmed for your paper and coating combination.
• Collection: conveyor belt with counter for batch control at discharge.
• Maintenance: automatic oil lubrication system reduces manual lubrication intervals.

Selection Variables to Confirm Before Quotation

Lid machines are configured around the lid they must produce, so several inputs need to be settled before a quotation can be matched accurately. The table below lists the decision points and why each one matters.

Line Integration and Related Equipment

The lid machine is a separate forming stage and should not be treated as a complete cup production line. In a typical project it sits alongside cup forming, and the lid and cup formats must be developed as a matched pair. Where lids are printed or produced from printed roll paper, the roll preparation stage is handled by separate equipment such as the MY-970 automatic high speed roll die cutting machine.

For projects that combine cup and lid production, the integrated convex paper cover production solution explains how the lid stage can be planned together with the cup line. Buyers producing soup or ice cream cups may also need to review bowl and cup formats before fixing the lid diameter.

Information to Send for Matching

To receive an accurate configuration and quotation, please send the following with your inquiry:

• Lid drawing or a physical lid sample, including diameter and height.
• The cup or bowl the lid will be used with, or its rim dimensions.
• Paper type, coating and GSM you intend to run.
• Required output per shift and your operating pattern.
• Site voltage and frequency, and whether compressed air is available.
• Workshop layout constraints and your packing requirement for finished lids.

Confirmed model parameters, including paper weight range, speed, power, air consumption, dimensions and weight, are listed in the Technical Specifications section of this page. Values not shown there should be confirmed with our team for your specific configuration.

Next Step

Use the inquiry form on this page or contact us via WhatsApp to discuss your lid project. Sharing a lid sample or drawing at the first contact shortens the matching process, because the mould profile and heating settings depend on the exact lid geometry and paper specification.
