MY-125 Paper Lid Making Machine for Curled Paper Cup Lids

MYC-COM100 Simple style Single wall paper cup machine

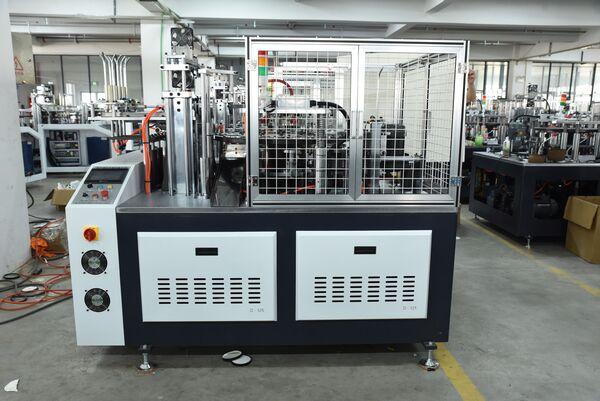

What the MY-125 Paper Lid Making Machine Does

The MY-125 is a paper lid forming machine for producing paper cup lids and similar paper covers from printed or plain paper board. It suits converters and cup producers who want to add lid production alongside existing cup forming, or who need a dedicated lid line for takeaway beverage cups. The machine handles paper in the 180–400 g/㎡ range and runs at a rated speed of 65–75 pcs/min, as listed in the Technical Specifications. Actual stable output depends on lid diameter, paper grade, coating and operator settings, so confirm these with the supplier before planning capacity.

Machine Structure and Working Sequence

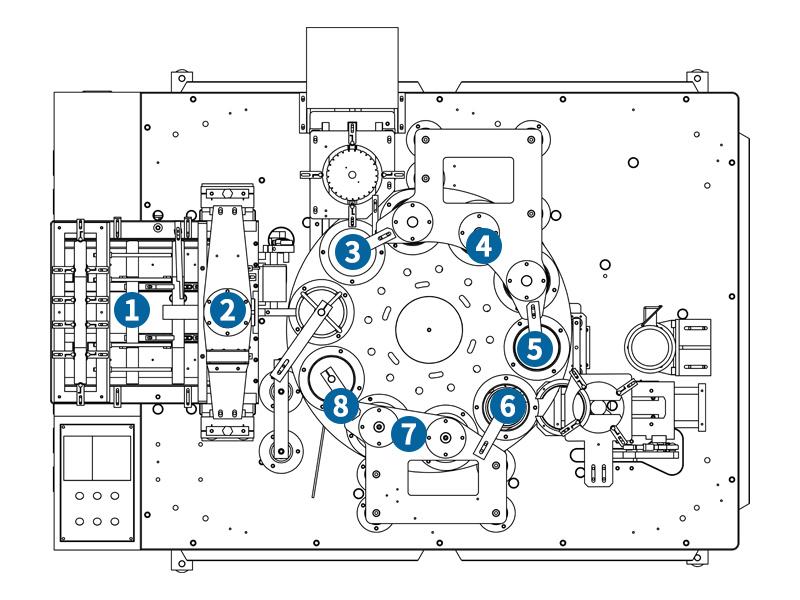

The machine combines a paper feeding section, lid forming and rim-curling stations, and a collection device in one frame. The structure is designed so the formed lids are discharged and stacked automatically, which reduces manual handling at the outfeed.

Control and Safety Features

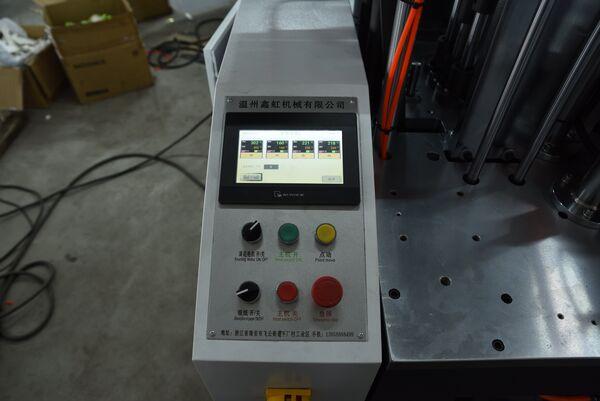

The machine uses a PLC control system for operation settings. A fault sensor detection function stops the machine automatically when an operating fault is detected, which supports safer running and protects the tooling. Branded electrical components are specified to support service life. These are the supplier's stated features; buyers should confirm the exact control brand and sensor configuration in the quotation.

Selection Variables to Confirm Before Ordering

Lid dimensions and paper specification drive the tooling and the achievable output. Send the following with your inquiry so the configuration can be matched:

• Lid drawing or physical sample, including outer diameter, rim height and any embossing or print area
• Paper type, GSM and coating (for example PE-coated or uncoated board) within the supported range
• Target output per shift and whether the machine will run alongside existing cup lines
• Voltage and frequency at the installation site, plus available air supply if required by the final configuration
• Workshop layout, including infeed and outfeed space, and packing requirements for finished lids

Quality Checks and Maintenance Planning

Lid quality is usually judged on rim formation, dimensional consistency and fit with the matching cup. Plan routine checks on the forming tools, feeding alignment and sensor function, and keep spare wear parts on hand. The supplier should confirm the recommended maintenance schedule and the mold or tooling change procedure for your lid size.

Related Equipment and Next Steps

Lid production is often planned together with cup forming and the paper preparation stage. Review the MYC-COM100 single wall paper cup machine if you are building a combined cup and lid operation, and see the integrated convex paper cover production solution for related lid formats. Machine running footage is available in the machine running video section.

To receive a matched quotation, send your lid drawing or sample, paper specification, target output and site details through the inquiry form or WhatsApp. The supplier can then confirm tooling, configuration and the final specification for your project.
