MY-520 Roll Die Cutting Machine for Paper Cup Fans

>ModelModel MY-520
SpeedRated Cutting Speed 200-300 times/min
Max Cutting PressureMax Cutting Pressure
Max Cutting Paper SizeMax Cutting Paper Size 520mm* 360mm
Min Cutting Paper SizeMin Cutting Paper Size
Paper WeightSuitable Paper Weight 120-400 GSM
Overall DimensionsOverall Dimensions 3790*1000*1270mm
Total WeightTotal Weight 1500 KG
CertificationCertification CE, ISO, SGS
Get Quote

What the MY-520 Roll Die Cutting Machine Does

The MY-520 is a roll-fed die cutting machine for converting printed or unprinted paper roll stock into flat paper fan blanks. Those blanks are the upstream input for paper cup and paper bowl forming, so the machine sits at the front of a cup production flow rather than at the forming stage itself. Buyers planning cup, bowl or related food-packaging output should consider it when they want fan blanks cut in-house instead of purchasing pre-cut fans.

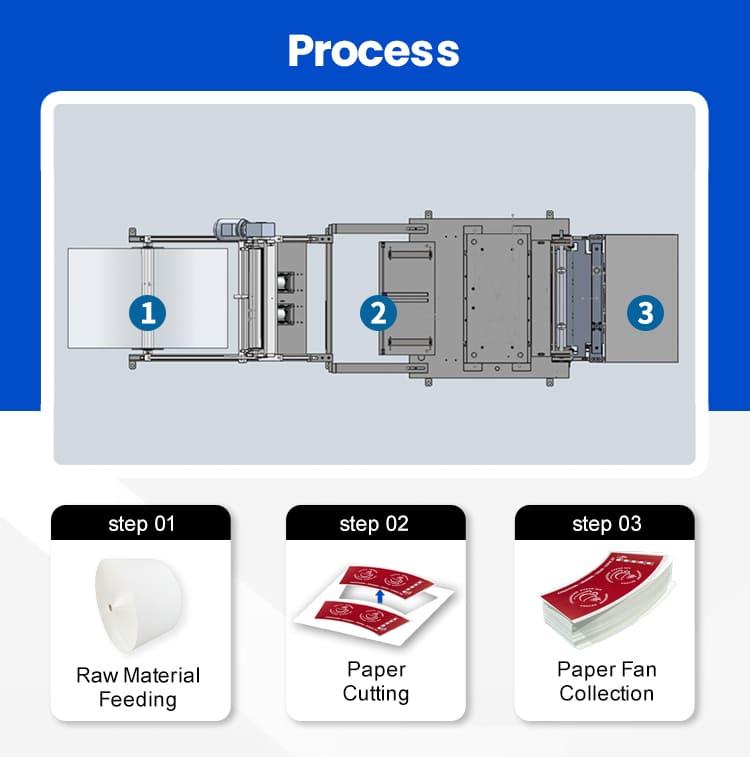

The working sequence is straightforward: raw material feeding, fan cutting, then fan collection with waste removal. Each of these stages is a separate function on the machine, and the cut fan quality directly affects how smoothly the downstream forming machine runs.


Process Stages and Material Scope

The machine handles PE/PLA coated white cardboard and kraft paper within the paper weight range shown in Technical Specifications. Because coated stock behaves differently from uncoated kraft during cutting, buyers should confirm the exact paper grade, coating type and roll width before ordering. The maximum raw material width and the largest paper fan size the machine supports are listed in the specification table; fan dimensions outside that envelope need to be reviewed with the supplier before quotation.

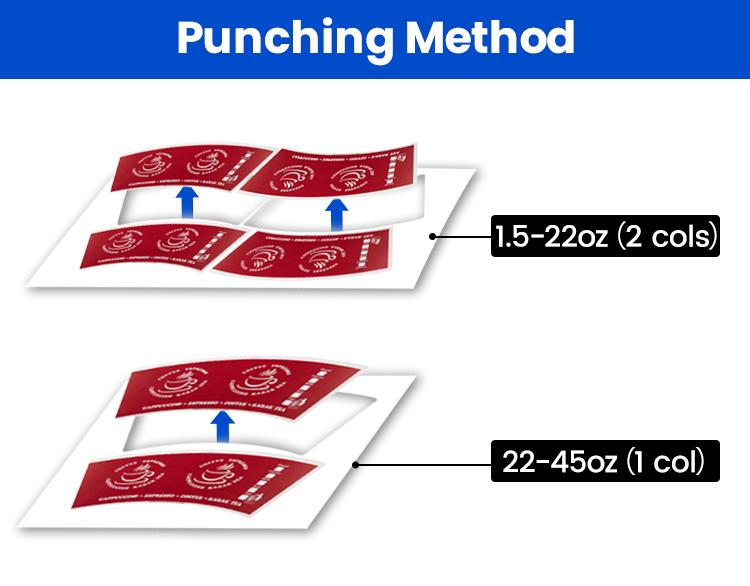

Smaller paper fans can be cut at a higher effective rate than large fans, so the practical output depends on the fan size being produced. Rated cutting speed is a machine figure; stable output in a real workshop will vary with paper grade, fan geometry, operator handling and how quickly cut fans are removed.

Selection Variables to Confirm Before Quotation

Die cutting is a matching exercise between the fan drawing and the machine configuration. Send the following so the supplier can confirm feasibility rather than estimate it:

  • Cup or bowl drawing or a physical sample, with top diameter, bottom diameter and height.
  • Paper fan drawing or the unfolded blank dimensions, including any handle or notch features.
  • Paper type, coating (PE or PLA) and GSM, plus the roll width you intend to buy.
  • Target output per shift and the fan size mix you expect to run.
  • Workshop voltage and frequency, available air supply, and the space reserved for the machine.
  • How cut fans will be moved to the forming machine, and whether a collection or stacking arrangement is needed.
Decision point What to confirm Why it matters
Fan size Whether your largest fan fits the machine's maximum fan size Oversized fans cannot be cut on this model
Roll width Whether your purchased roll width is within the maximum raw material width Determines whether standard mill rolls can be used directly
Paper and coating Grade, coating type and GSM within the supported range Affects cut quality and downstream forming
Output planning Fan size mix and expected running hours Smaller fans run at a higher effective rate than large ones
Line fit How fans transfer to the cup or bowl forming machine Prevents handling bottlenecks between stages

Where It Fits in a Cup Production Line

The MY-520 is a standalone die cutting unit, not a complete production line. It prepares fan blanks; forming, sealing and inspection happen on separate equipment. Buyers building a full flow typically pair a roll die cutter with a cup forming machine, and sometimes with printing and double-wall or bowl equipment. If you are comparing die cutting options, the MY-520 Roll Die Cutting Machine page sits alongside higher-speed models such as the MY-970 automatic high speed roll die cutting machine, which may suit higher-volume projects.


For an overview of how cutting, forming and downstream stages combine, the paper cup production line catalog shows typical line configurations.

Quality Checks and Maintenance Planning

Cut fan accuracy is the main quality checkpoint: fan dimensions, clean edges and consistent stacking all influence forming yield. Plan routine checks on blade condition, feed alignment and waste removal, since a blocked waste path interrupts production quickly. Confirm the recommended spare blade and wear-part list, and the maintenance interval, with the supplier before shipment.

Next Step

Send your cup drawing, fan dimensions, paper specification and target output through the inquiry form on this page, or contact the sales team via WhatsApp. The supplier can then confirm whether the MY-520 matches your fan size and paper, and quote the correct configuration.

Model

MY-520

Rated Cutting Speed

200-300 times/min

Material

PE/PLA coated white cardboard / Kraft Paper

Paper Cup Size Range

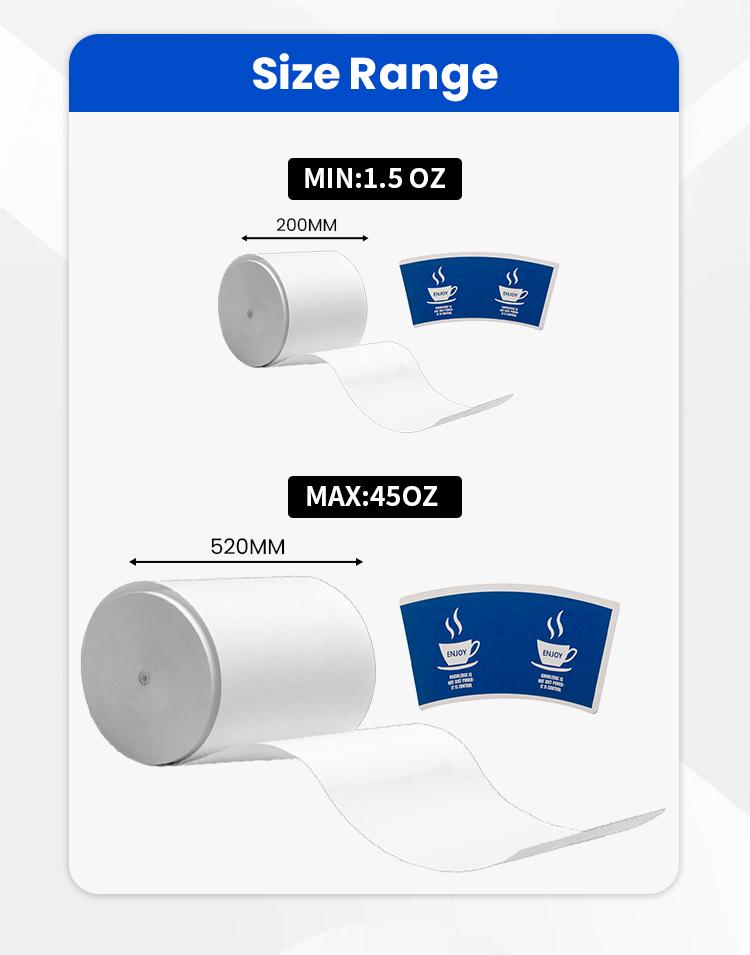

1.5-45 oz

Gross Weight

1500 KG

Suitable Paper Weight

120-400 gsm

Overall Dimensions

3790mm * 1000mm * 1270mm

The table above lists the confirmed parameters for the MY-520 roll die cutting machine. Values such as rated cutting speed, paper weight range and cup size range describe the machine configuration as supplied; actual output depends on the die, paper grade, coating and operating conditions. For matching against a specific cup drawing or paper roll, please send the cup top/bottom diameter and height, material and coating type, GSM and target output. See the MY-520 Roll Die Cutting Machine product page for the full machine description, and the MY-970 Automatic High Speed Roll Die Cutting Machine if a different speed class is under consideration.

Automatic Waste Removal: Improve production efficiency and reduce labor costs.

Automatic Collecting: Customizable number of sheets to collect.

Paper Cutting: Precision processing, more precise molding.


Related Resource


MY-520 Roll Die Cutting Machine for Paper Cup FansMain Features
Touch Screen-

1. Touch Screen-

It adopts PLC controller and touch screen (man -machine interface)all the working parameters can be set up on the control panel whichis convenient for parameter setting and adjusting.(easy to operate)

2. Feeding Unit

Adopts chain type pneumatic roller unwind, tension controls unwindspeed, and that's hydraumatic, it could support at least 1.5T.
Feeding Unit
Entity Induction Switch

3. Entity Induction Switch

By the action of the entity induction switch, finished product will beautomatically lowered down to remain the height of the pilling paperunchanged, during the whole die-cutting process, manual paper-takingis not needed.
