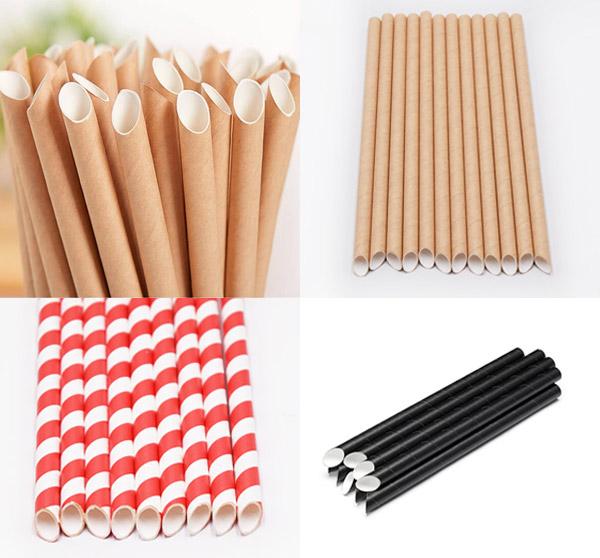

Sample Display

What the MY-SL Bevel Cutting Paper Straw Machine Does

The MY-SL is a bevel (oblique) cutting machine for paper drinking straws. It takes double-length or single-length straws and automatically cuts them into two finished straws or one finished straw with an angled tip, combining automatic straw dropping with bevel cutting in one working sequence. Buyers planning a paper straw converting line — or adding angled-tip straws to an existing straight-straw operation — should evaluate this machine against their straw diameter, wall thickness and target output.

Control and Cutting Configuration

The machine is controlled by PLC, and the host unit is equipped with frequency conversion and speed regulation. The man-machine interface is a touch screen, so cutting settings are simple to enter and easy to operate. The cutting section uses a multi-knife cutting system, which the source describes as waste-free, high precision, time-saving and efficient. Working speed is listed in the Technical Specifications field; treat that figure as a rated value and confirm the stable output for your specific straw size and paper grade during quotation.

Selection Variables to Confirm Before Ordering

• Straw dimensions: finished straw outer diameter, wall thickness and total length, plus the required bevel angle.
• Input format: whether you will feed double-length straws for splitting into two, or single-length straws for one angled tip.
• Paper and coating: base paper GSM and whether the straw carries a coating, since these affect cut quality and knife wear.
• Target output: required pieces per shift and how the machine will be paced with your upstream straw forming equipment.
• Knife and changeover plan: spare knife sets and the changeover routine for different straw diameters.
• Utilities and layout: supply voltage and frequency, air supply if required, and available floor space for infeed and collection.

Line Integration and Project Preparation

The MY-SL is a cutting stage, not a complete straw production line. Plan how straws arrive from the forming machine, how cut straws are collected or conveyed to packing, and what buffer capacity sits between stages. For buyers also producing paper cups or bowls, the same factory planning logic applies to forming and blank preparation equipment such as the cup die cutting machine range. To review the wider equipment portfolio before requesting a quotation, you can download the product catalog.

Information to Send for Matching

To confirm the right configuration, send a straw drawing or physical sample, the finished diameter, wall thickness, length and bevel angle, the paper and coating specification, your required output per shift, supply voltage and frequency, available air supply, workshop layout, and packing requirements. Final machine configuration, knife arrangement and utility details are confirmed at quotation stage.

Next Step

Use the inquiry form on this page or the WhatsApp consultation option to share your straw specifications and output target. Our team will respond with a configuration proposal matched to your project.
