MYC-120 Paper Cup Forming Machine and Double Wall Paper Cup Production Pack

Myc-120 Connected To Myc-Dw120 Double Wall Paper Cup Forming Production Line Catalog

MYC-120 Paper Cup Forming Machine & Double Wall Paper Cup Production Packaging Forming Line

This page describes a complete, automated production line that integrates two MYC-120 paper cup forming machines with a MYC-DW120 double wall paper cup machine and an automatic packaging machine. The line is designed for manufacturers who need to produce double wall paper cups at scale while minimizing manual handling between process stages.

How the Integrated Line Works

The production sequence is designed for continuous, automated flow from single-layer cup forming to finished, packaged double wall cups:

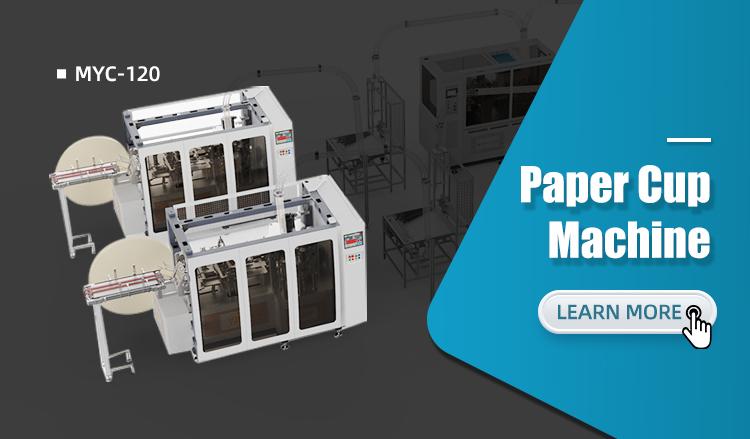

1. Single-layer cup forming: Two MYC-120 machines run simultaneously, producing single-layer paper cups. These cups are transferred to the next stage via a transfer table.

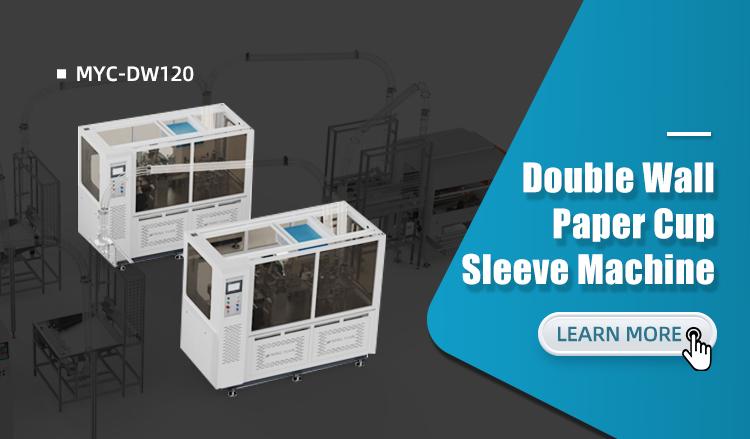

2. Double wall lamination: The single-layer cups are fed into the MYC-DW120 double wall paper cup machine. This machine applies the outer wall layer to produce the finished double wall cup.

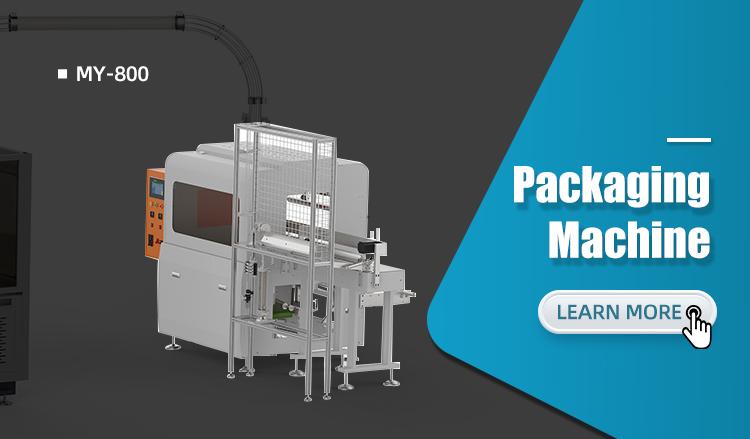

3. Automatic packaging: The completed double wall cups are automatically stacked and counted before being fed into the packaging machine for final packing.

This configuration achieves full-process automation from single-layer paper cup forming → double-wall paper cup forming → automatic packaging. This approach is intended to ensure high efficiency, reduce manual intervention, and lower labor costs compared to separate, non-integrated machines.

Key Benefits of an Integrated Line

• Reduced Labor: Automating the transfer and packaging stages minimizes the need for manual cup handling and counting.
• Improved Efficiency: A continuous flow between machines reduces work-in-progress inventory and potential bottlenecks.
• Consistent Output: Automated stacking and counting help ensure consistent packaging quantities.
• Space Optimization: A linked line can offer a more compact footprint than multiple standalone machines with intermediate storage.

Configuration & Project Planning

This line configuration is based on linking specific Mingyuan models. To ensure a correct match for your project, please provide the following details when making an inquiry:

• Target cup size (top diameter, bottom diameter, height) and volume (oz/ml).
• Paper material type (e.g., single/double PE, PLA, plastic-free) and GSM.
• Required production output per minute or per hour.
• Factory floor plan and available utilities (power supply, air pressure).
• Specific packaging requirements (e.g., bag count, bag type).

For a detailed technical specification of the individual machines, please refer to the Technical Specifications field on this page. For more information on line integration options, you can also review the MYC-120 Connected to MYC-DW120 Double Wall Paper Cup Forming Production Line Catalog.

To discuss how this line can be configured for your specific cup specifications and factory setup, please contact our sales team or use the inquiry form. We can provide guidance on machine selection and line layout based on your project requirements.
