Paper Cup Forming Machine with Packaging Production Line

Name: Paper Cup Forming Machine with Packaging Production Line
Brand: MINGYUAN
SKU: MYC-OCM22
Price: 10000.00 USD
Availability: InStock
Rating: 4.9 (12 reviews)

Mini Capacity (8 hours/day)	38400-48000
Maxi Capacity(24 hours/day)	115200-144000
Speed	80-100pcs/min
Size	6-22 0Z
Power	50/60HZ,380V/220V
Raw Material	Polyethylene (PE) Coating/Polylactic Acid (PLA) Coating/coated paper/kraft paper/white cardboard
Suitable Paper Weight	140-350gsm
Model	MYC-OCM22
Certification	CE,ISO,SGS

Get Quote

+86-13362708280

Myc-Ocm22 Paper Cup Forming Machine And Packaging Production Line Catalog

This production line integrates two machines to form a complete paper cup forming and packaging solution. First, the MYC-OCM22 forms single-layer paper cups, which are then transferred to a cup collection rack.

MYC-OCM22 Paper Cup Forming Machine

Automated Cup Collection and Packaging

From the collection rack, the formed paper cups are neatly arranged and fed sequentially onto a conveyor belt, which delivers them to the packaging machine for efficient and orderly packing.

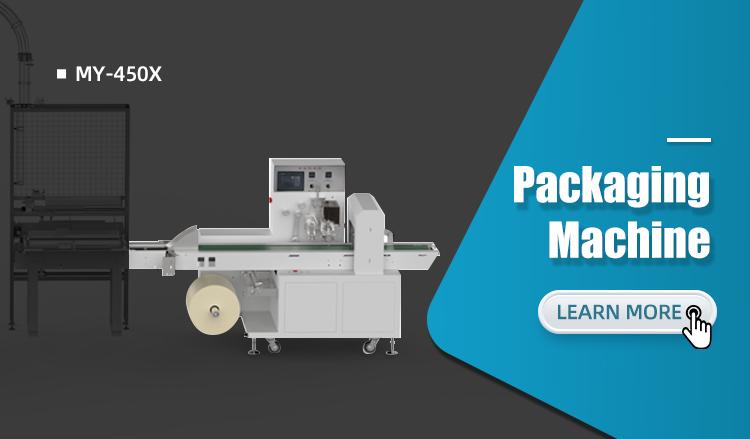

MY-450X Packaging Machine

Production Line Integration and Configuration

This line is designed for buyers who need a coordinated forming and packaging process. The MYC-OCM22 and the packaging machine are configured to work in sequence, reducing manual handling and improving output consistency.

Key Configuration Considerations

Machine sequence: The MYC-OCM22 forms cups first; the packaging machine then receives them via the collection rack and conveyor, so the two units must be matched in speed and interface.
Line integration: The system is intended for buyers planning a continuous forming-to-packing workflow, not for standalone cup forming or packing only.
Project preparation: Confirm your cup drawing, target dimensions, paper material and GSM, required output, and workshop layout before finalizing the configuration.

Buyer Inquiry Checklist

To ensure the line matches your project, please provide the following details:

Target cup size and drawing (top, bottom, and height dimensions).
Paper material, coating, and GSM.
Required output speed and stable production target.
Workshop layout and available floor space.
Voltage, frequency, and air supply specifications.
Packing requirement (e.g., bag type, count per pack).

For a complete overview of the line's specifications and options, please refer to the MYC-OCM22 Paper Cup Forming Machine and Packaging Production Line Catalog. You can also review a related production line setup in this case study.

Model	MYC-OCM22 Intelligent Model	MY-450X
Machine	Paper cup machine	Packaging machine
Speed	80-100 pieces per minute	25-40 packs/minute
Paper Cup Size	6 - 22 oz	\
Bag Seal Type	\	Back seal
Machine Size	285014602090mm	40208801400mm
Machine Weight	2230 kg	650 kg

Efficient connection, reducing labor costs：

The MYC-OCM22 paper cup machine is connected to the pillow packaging machine to achieve automatic packaging. The entire production line only requires a small number of people to supervise, which greatly reduces labor costs and improves production efficiency.

The quality of finished products is more stable：

Through automatic detection and neat arrangement, paper cups are accurately positioned and integrated before entering the packaging machine, avoiding deformation and contamination caused by manual stacking, and ensuring the neatness and consistency of each batch of products.

Intelligent integrated production, saving space

Compared with traditional decentralized production, paper cup forming and packaging are completed directly on the same production line, saving material turnover and handling space, improving the overall utilization rate of the factory layout, and is more suitable for large-scale and continuous production.
