Complete 6 oz Double Wall Paper Cup Production Line | Syria

Customer Case · Syria

Complete 6 oz Double Wall Paper Cup Production Line in Syria: From Printing to Cup Forming

A complete production line for a customer in Syria: it prints and cuts its own paper fans, then forms 6 oz double wall cups in one continuous flow.

SyriaCustomer market

6 ozPrinted double wall paper cup

~210 GSMPrinted paper fan for the inner cup

75 × 90 × 50 mmTop diameter × height × bottom diameter

5 machinesFrom paper printing to double wall cup

Project Background

A Hot-Drink Cup Built from Two Printed Layers

The customer wanted a 6 oz double wall cup for coffee and tea, with its own design printed on both the inner cup and the outer sleeve.

To control its own artwork, the customer chose to print and cut the paper fans in-house. So the line starts with paper processing, and the two cup machines are linked into one flow.

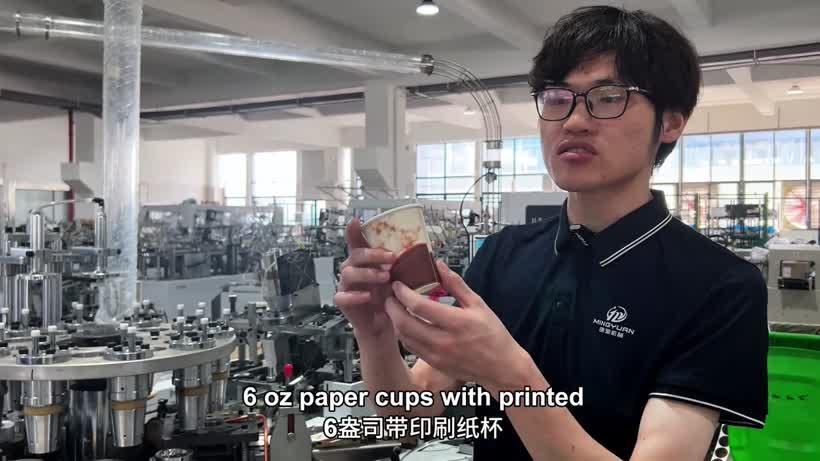

6 oz printed double wall paper cup shown during the Syria project review

Material Plan

One Cup, Two Printed Paper Fans

Each layer has its own printed fan and its own machine.

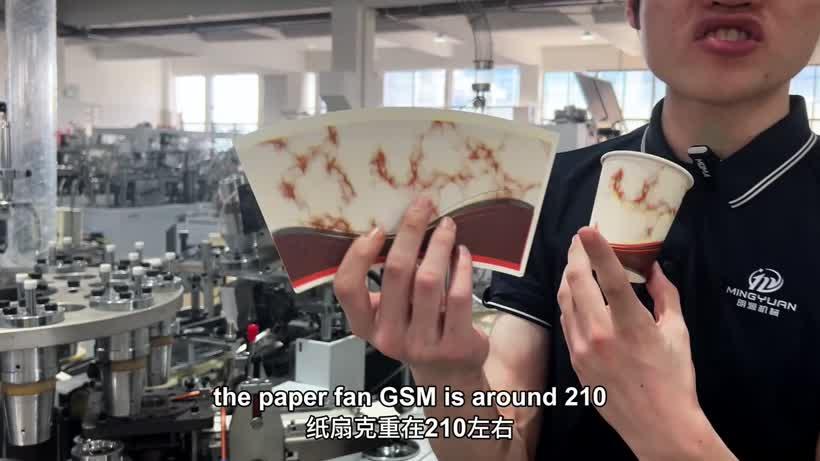

Printed paper fan of about 210 GSM next to the formed 6 oz inner paper cup

Layer 1 · Inner cup

Printed inner cup fan, around 210 GSM

Formed into the 6 oz inner cup on the MYC-OCM100. This is the layer that holds the drink.

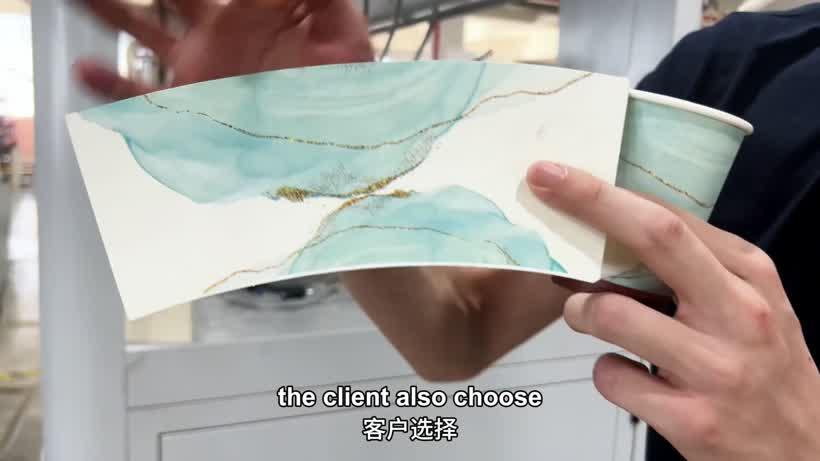

Printed teal watercolor paper fan used for the outer sleeve of the double wall cup

Layer 2 · Outer sleeve

Printed outer sleeve fan

A soft teal watercolor design. The MYC-DW100 wraps it around the inner cup as the second wall people see and hold.

Why a second wall? It lets customers hold a hot drink without an extra cup sleeve, and gives more space for print.

Paper Processing

The Double Wall Paper Cup Production Line Starts with Printing

The first three machines turn plain roll paper into printed fans, ready for both cup machines.

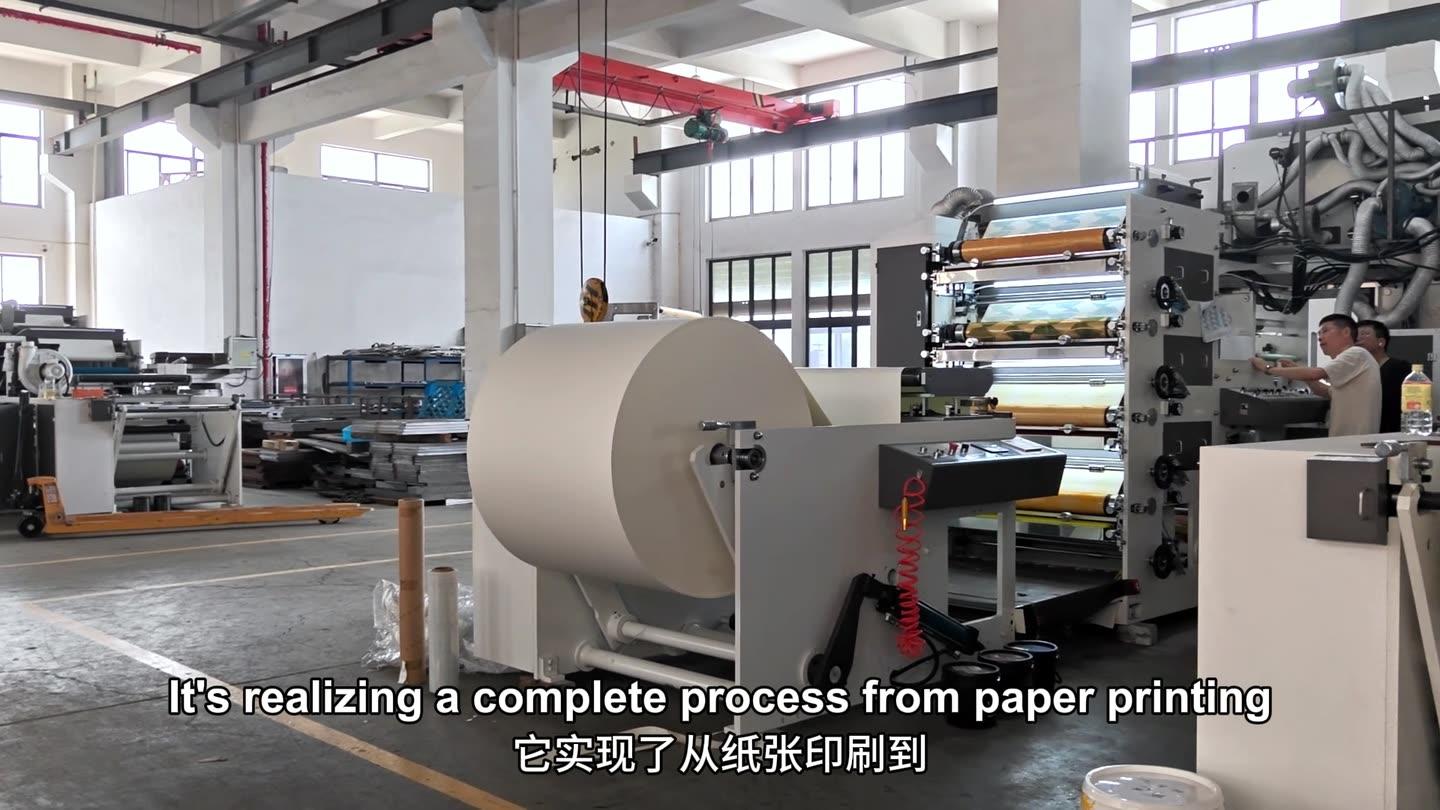

Printing Machine

Prints the cup artwork onto roll paper.

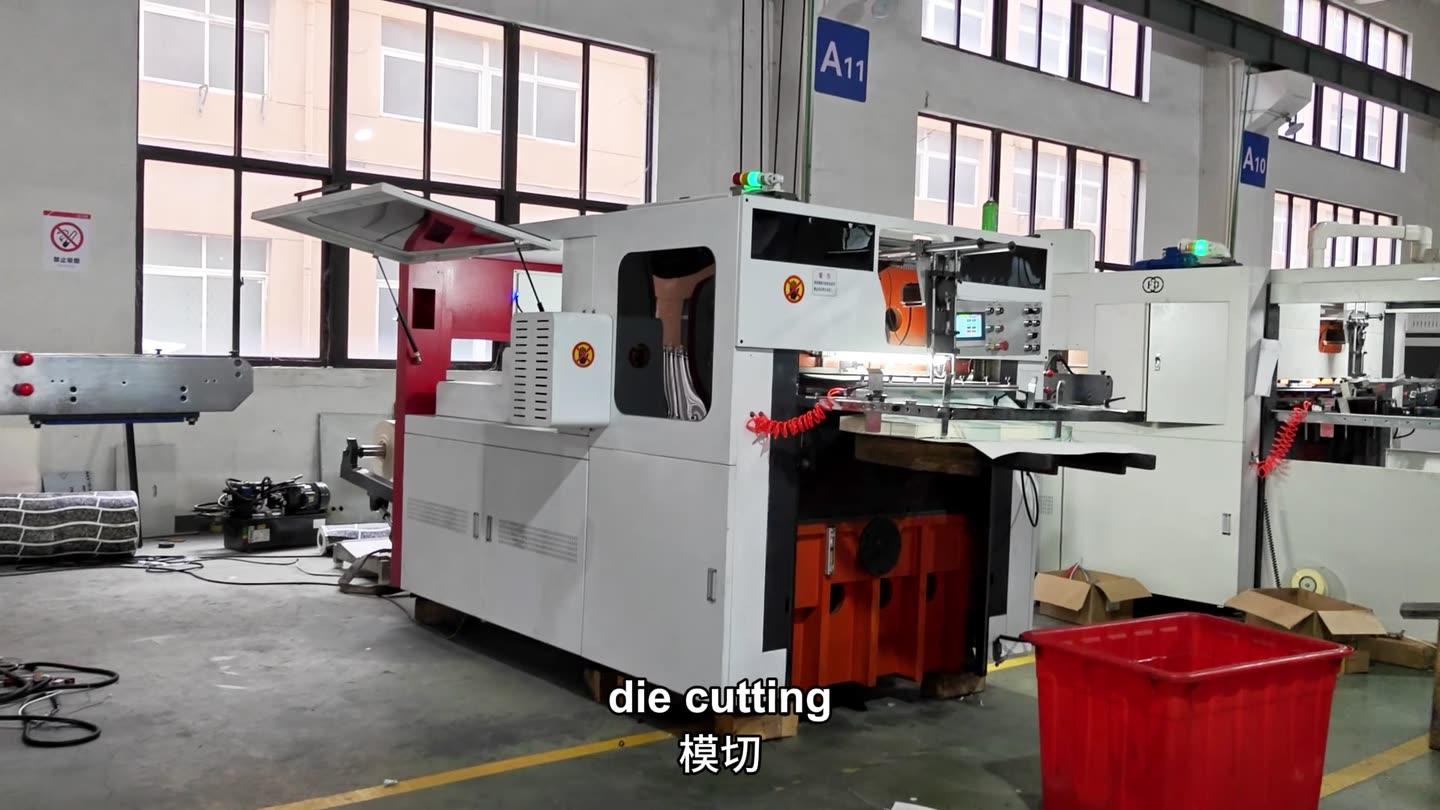

Die Cutting Machine

Cuts the printed paper into cup and sleeve fans.

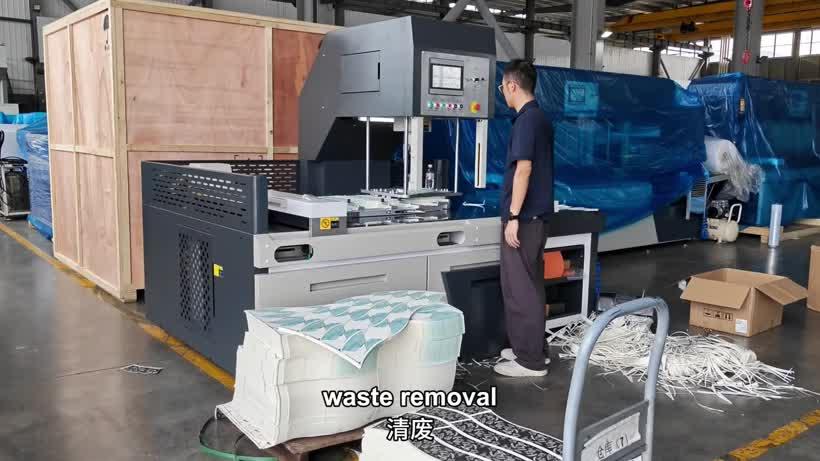

Waste Removal Machine

Removes the scrap and leaves clean fans for forming.

With printing done in-house, the customer can change artwork on its own schedule instead of waiting for an outside supplier.

Cup Forming Equipment

Why Cup Forming Is Split Across Two Machines

One machine makes the inner cup, the other adds the outer wall.

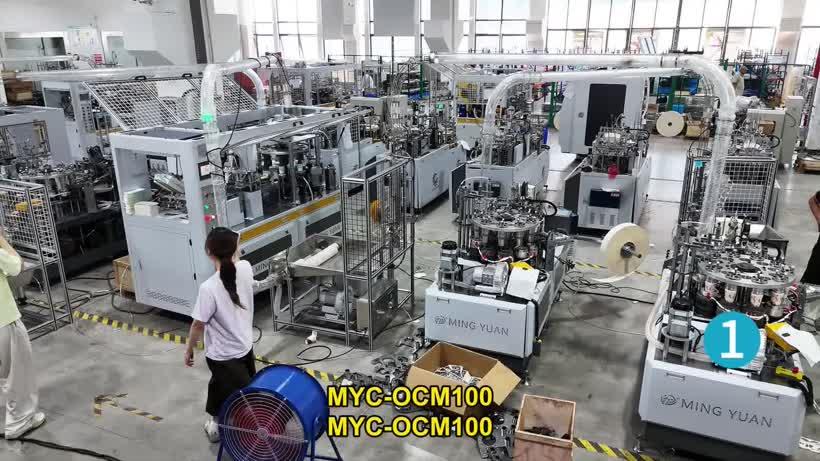

MYC-OCM100 single wall paper cup machine forming inner cups for the Syria line

Machine 1

MYC-OCM100 Simple Model Paper Cup Machine

Our simple model single wall machine. It forms the 6 oz inner cup and sends it straight to the transfer station.

Machine 2

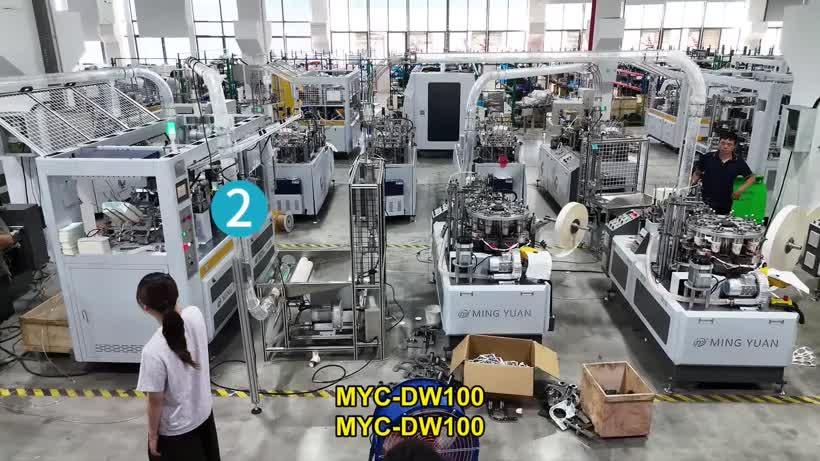

MYC-DW100 Cup Sleeve Machine

Wraps the printed sleeve around each inner cup to make the finished double wall cup.

Line Layout

How the Inner Cup Moves Through the Line

Four stations, one direction, no manual handling between machines.

STEP 01MYC-OCM100Forms the printed 6 oz inner cup
STEP 02Transfer StationPasses each inner cup to the next machine
STEP 03MYC-DW100Adds the printed outer sleeve
STEP 04Collecting TableGathers the finished double wall cups

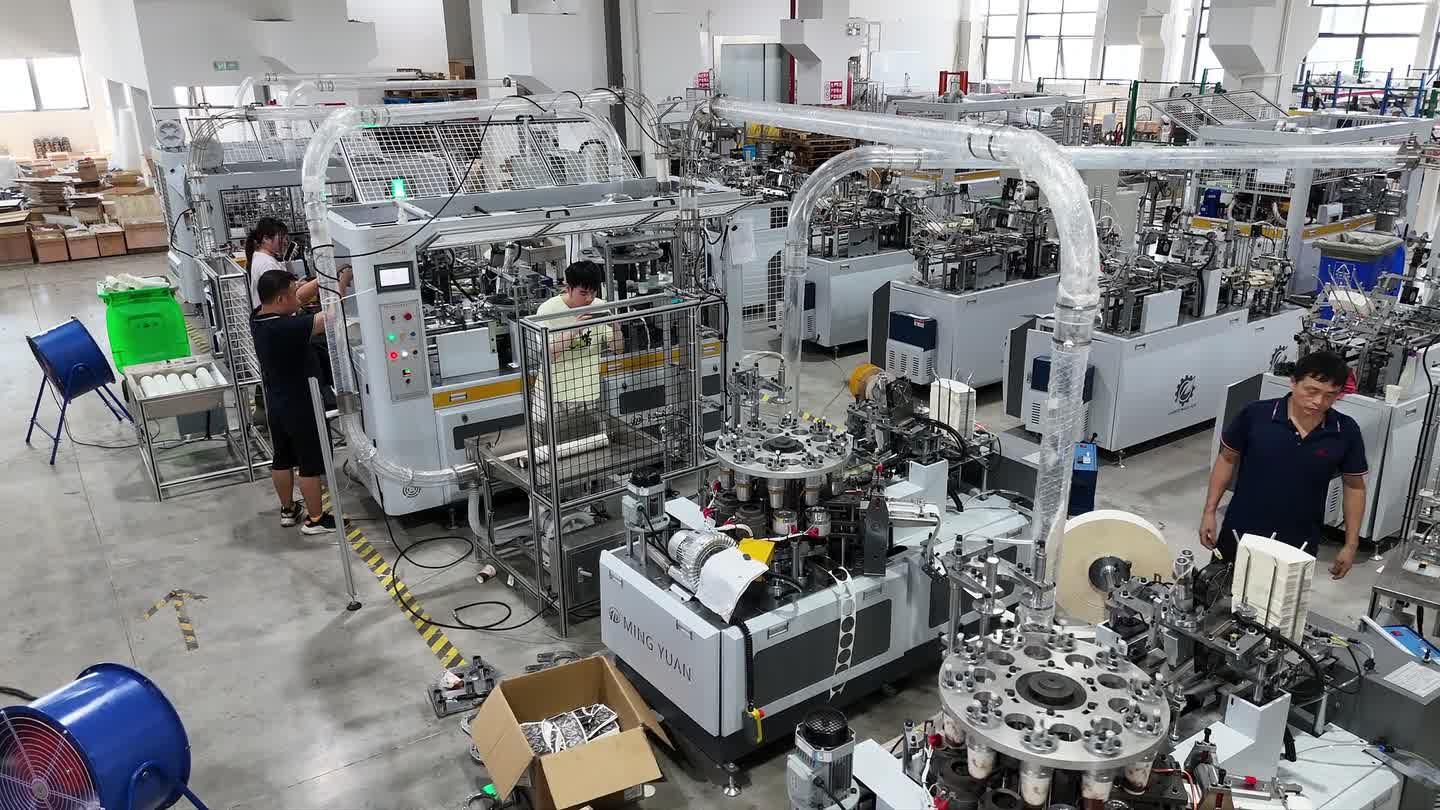

Overview of the linked double wall paper cup production line with MYC-OCM100 and MYC-DW100

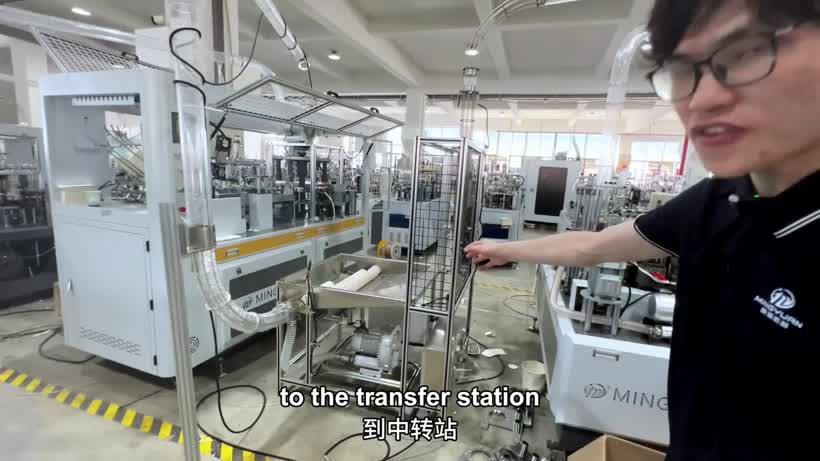

Transfer station carrying inner paper cups from the MYC-OCM100 to the MYC-DW100 — Transfer station between the two machines

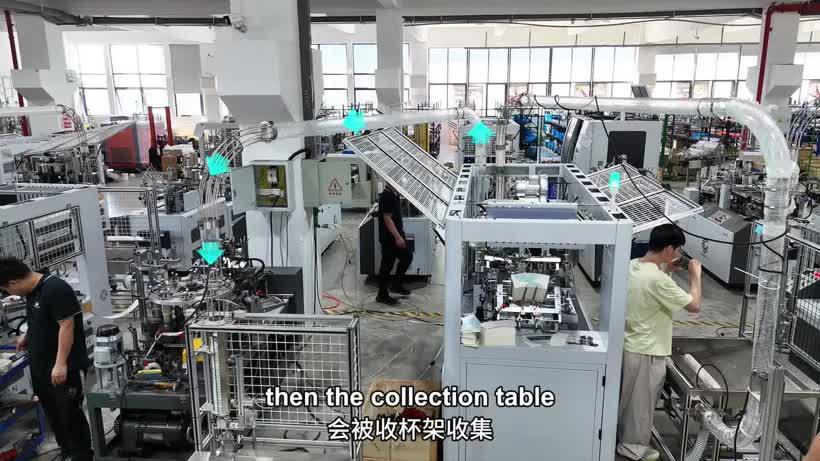

Collecting table receiving finished 6 oz double wall paper cups — Collecting table at the end of the line

The transfer station carries inner cups directly from the MYC-OCM100 to the MYC-DW100, so they are not stacked and moved by hand. Finished cups end up on one collecting table, ready for checking and packing.

Finished Cup Check

Sizing Up the 6 oz Double Wall Cup

Finished cups were measured with a tape measure on camera.

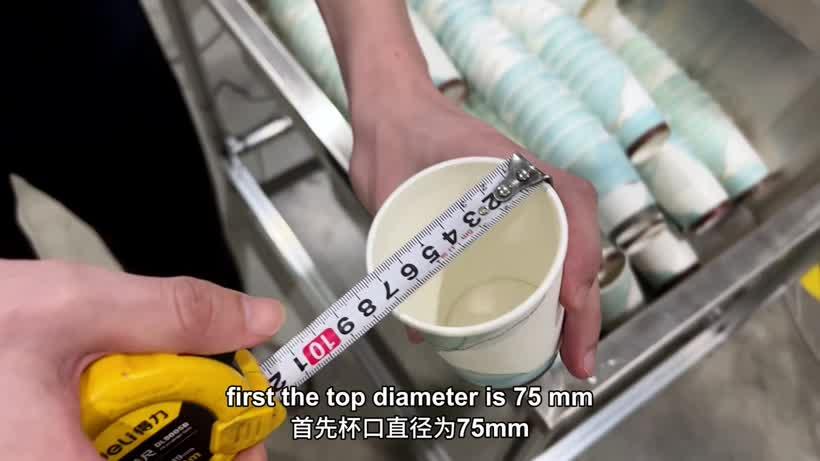

75 mm Top diameter

Used to match the lid.

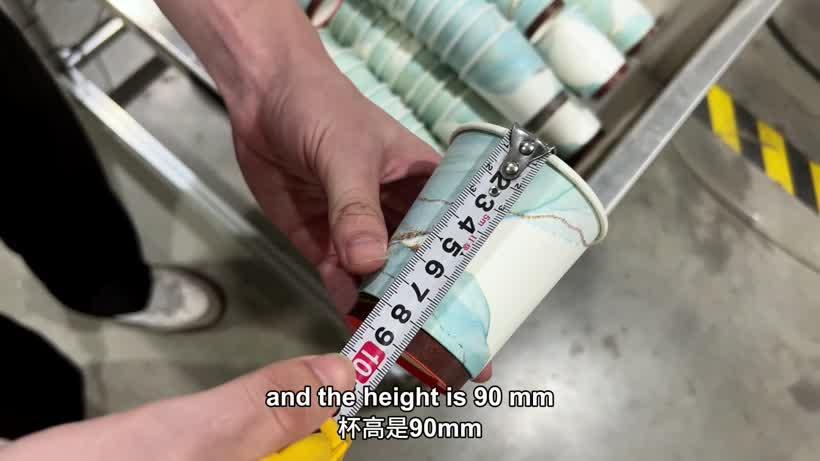

90 mm Height

Including the outer sleeve.

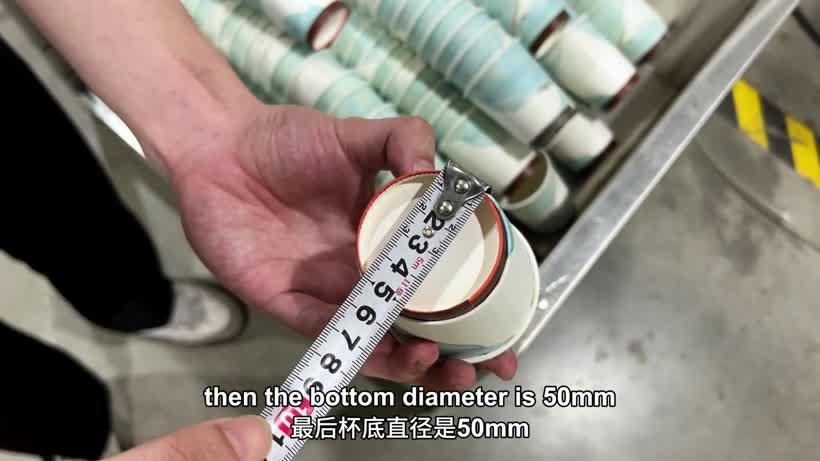

50 mm Bottom diameter

The tapered 6 oz base.

A fixed size reference for lids, cartons and future batches.

Project Summary

The Final Line Configuration

Customer market	Syria
Finished product	6 oz printed double wall paper cup
Inner cup	Printed paper fan, around 210 GSM, formed on the MYC-OCM100 simple model paper cup machine
Outer sleeve	Printed paper fan, formed around the inner cup on the MYC-DW100 cup sleeve machine
Paper processing machines	Printing machine → die cutting machine → waste removal machine
Cup forming section	MYC-OCM100 → Transfer Station → MYC-DW100 → Collecting Table
Measured size	75 mm top diameter, 90 mm height, 50 mm bottom diameter

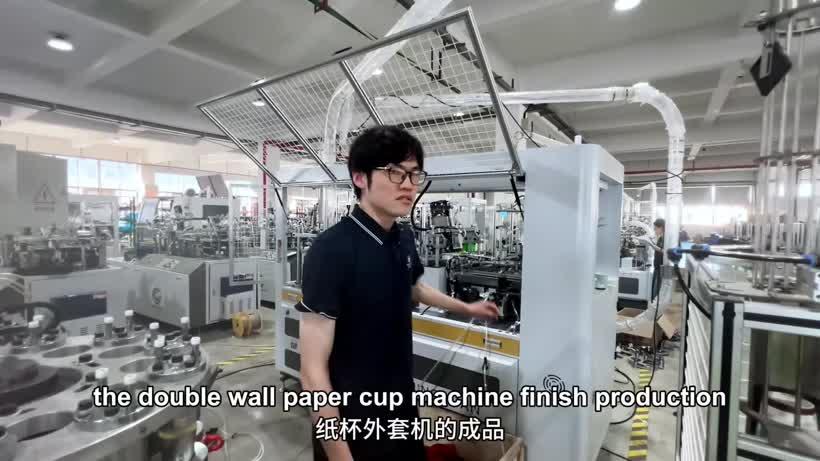

Finished output of the MYC-DW100 cup sleeve machine
