Integrated Paper Cup Production Line: MYC-180S, MYC-DW120, and MY-800

This page describes a complete, automated paper cup production line configuration that combines two MYC-180S fully automatic paper cup machines, two MYC-DW120 cup sleeve machines, and one MY-800 automatic packaging machine. This setup is designed for manufacturers who need synchronized production of paper cups and cup sleeves with integrated packaging, reducing manual handling between process stages.

① MYC-180S Fully Automatic Paper Cup Machine

Two MYC-180S machines operate simultaneously to complete the fully automatic production process of paper cups, from paper feeding, heating, and bottom forming to top edge rolling. Each machine is engineered for continuous, high-volume output and is suitable for producers focused on standard single-wall cup manufacturing.

② MYC-DW120 Cup Sleeve Machine

Each MYC-180S paper cup machine is connected to one MYC-DW120 cup sleeve machine for cup sleeve production and automatic cup sleeve application. This configuration achieves synchronous output of paper cups and cup sleeves, enabling the production of double-layer cups without separate offline sleeving operations.

③ MY-800 Automatic Packaging Machine

Finished double-layer paper cups are collected and fed into the MY-800 packaging machine via a cup receiving rack. The cups are bagged and sealed, forming an integrated automated production line from cup forming and sleeving to final packaging.

Line Configuration and Integration

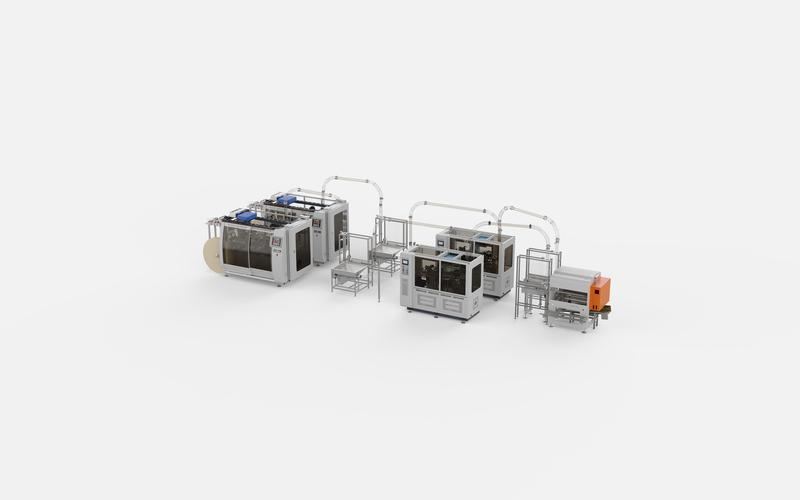

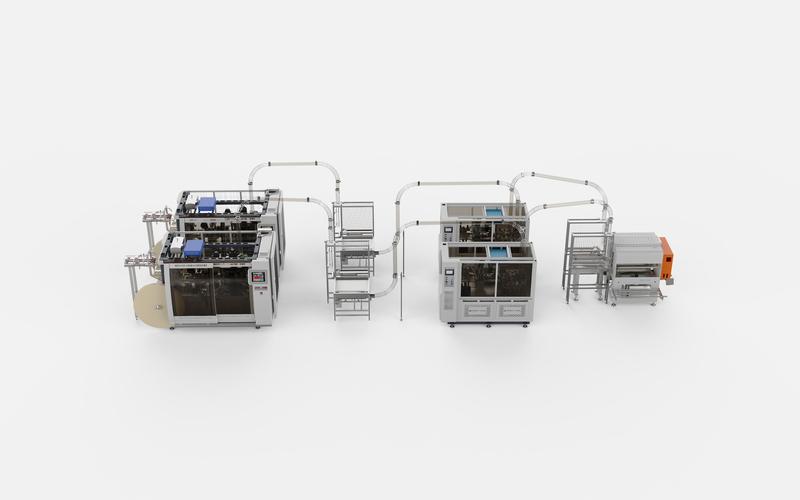

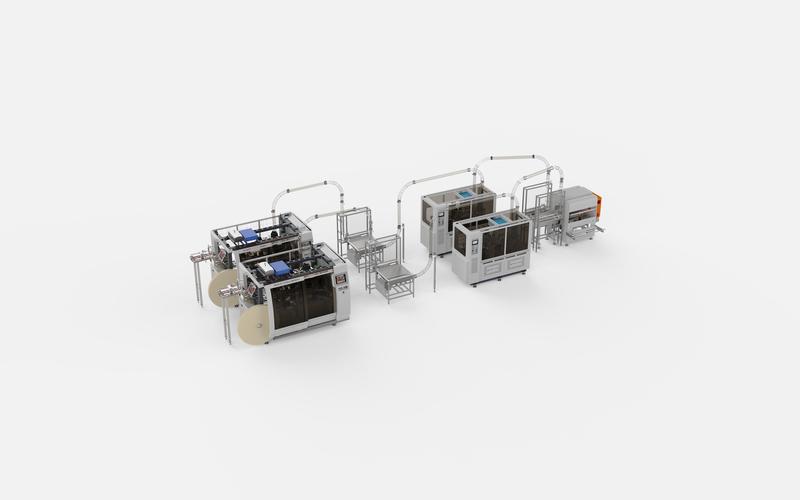

This production line is arranged as a synchronized system: two parallel cup-forming lines, each paired with a sleeve machine, feeding a single packaging unit. Buyers evaluating this configuration should consider the following integration points:

• Line balancing: Confirm that the rated output of the MYC-180S and MYC-DW120 pair matches the intake capacity of the MY-800 packaging machine for your target cup size.
• Floor layout: Plan for the physical footprint of two cup machines, two sleeve machines, the packaging unit, and the cup receiving rack with adequate service access.
• Utility planning: Verify power supply, air pressure, and workshop space requirements for all five machines before installation.
• Changeover needs: If you produce multiple cup sizes, confirm mold change procedures and setup time for each machine in the line.

Buyer Information Checklist

To receive an accurate line configuration and quotation, please prepare the following details:

• Cup drawing or physical sample with top diameter, bottom diameter, and height dimensions
• Paper material type, GSM, and coating specification (PE, PLA, or water-based)
• Target output per minute and daily production volume
• Voltage and frequency of your local power supply
• Available air supply pressure and capacity
• Workshop floor plan with ceiling height and column positions
• Packing requirement (bag type, count per bag, and carton size)

For detailed technical parameters such as speed range, power consumption, dimensions, and weight of each machine, please refer to the Technical Specifications section on the respective product pages. Final configuration and output figures should be confirmed with our engineering team based on your specific cup design and material.
