Solution For Connecting MYC-180S Paper Cup Machine and Quality Inspection Machine with Packing Machine in China

Customer Background

A Chinese customer plans to expand their disposable paper cup business, choosing 8oz paper cups as their flagship product. The customer prioritizes production stability, finished product consistency, and quality control, thus requiring a complete production line with automated testing and packaging capabilities.

Customer Needs

Target Product:
8oz Paper Cups (commonly used for coffee, milk tea, and office cups)

Production Requirements include:
Fast forming speed
High sealing accuracy at the cup rim, body, and bottom, with automated appearance inspection capabilities to reduce manual quality control
Neat and accurate packaging for direct shipment.

Solution

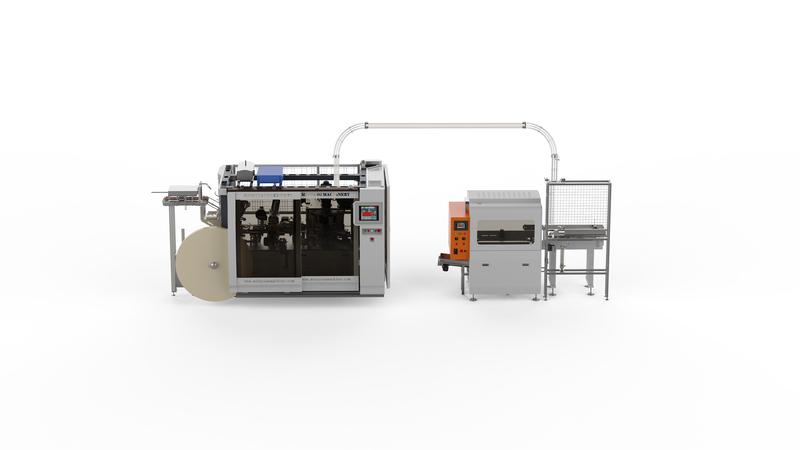

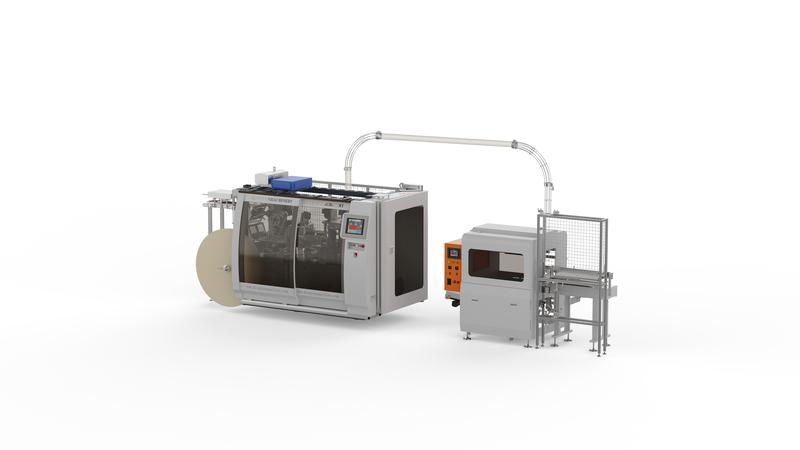

This solution adopts a fully automated structure encompassing forming, quality inspection, and packaging. The equipment includes:

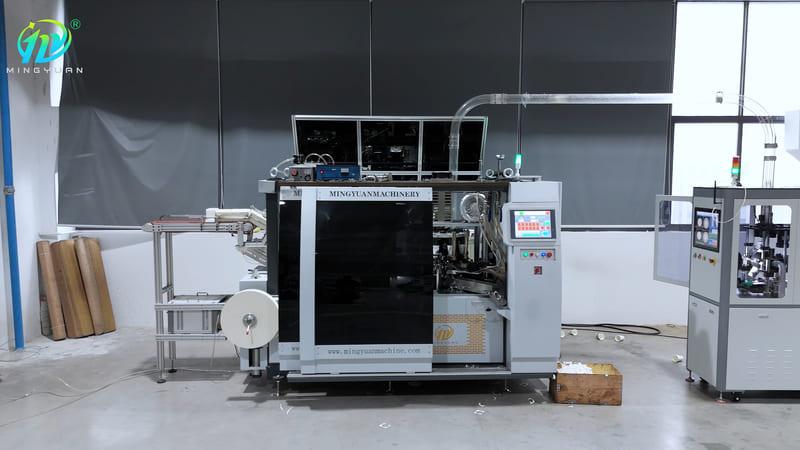

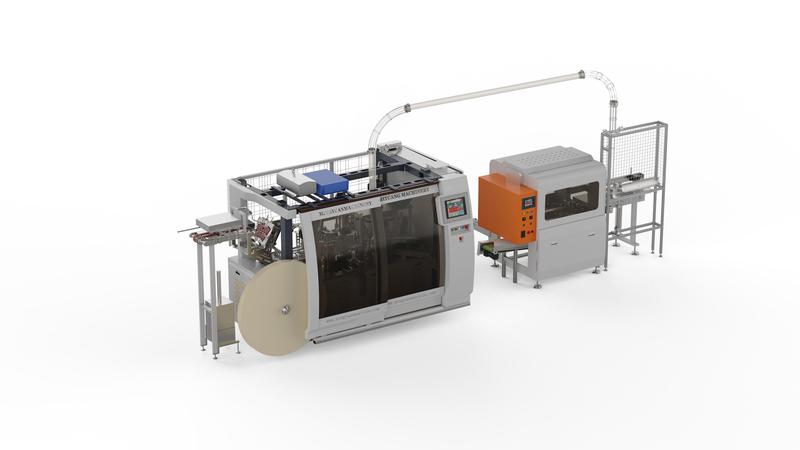

1. MYC-180S Fully Automatic Paper Cup Machine (Forming)

Primarily responsible for forming 8oz paper cups.
High-speed production of 180-210pcs/min.

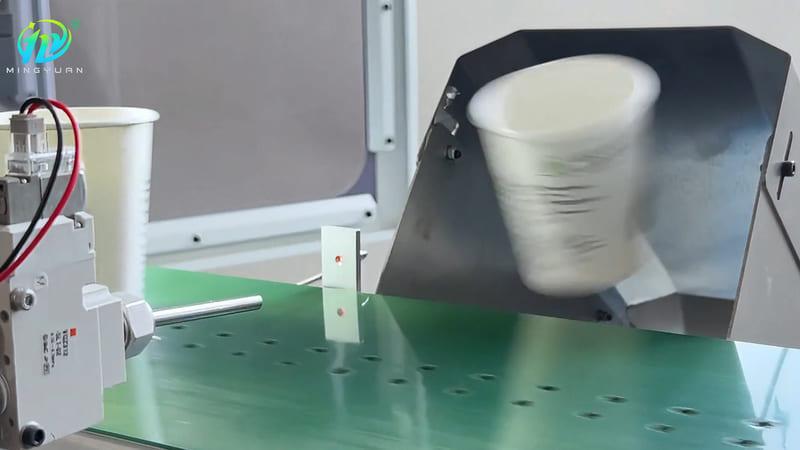

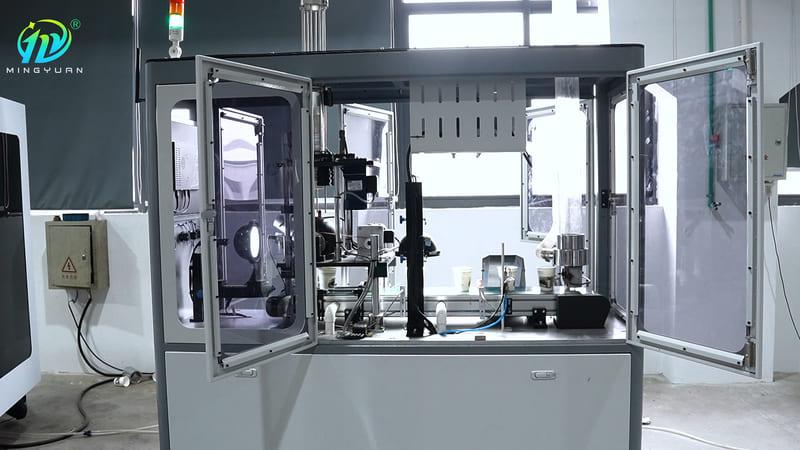

2. JC001 Quality Inspection Machine

Equipped with a dual-camera structure:
Inner wall camera: Detects for stains, damage, and leaks inside the cup.
Outer wall camera: Detects for leaks, stains, deformation, and other appearance issues on the cup body.

The quality inspection machine automatically identifies and rejects defective cups, ensuring that only qualified products enter the packaging stage, significantly improving yield and stability.

3. MY-800 Automatic Packaging Machine (Post-Packaging)

Automatically receives qualified cups after quality inspection.
Completes automatic cup sorting, arrangement, bagging, and sealing.
