Two MYC-180S paper cup machines and two MYC-DW120 cup sleeve machineswith MY-800 Packing machine Solution in Kazakhstan

KAZAKHSTAN CUSTOMER PROJECT

Automatic Double-Wall Paper Cup Production Line

A scalable inline solution configured for high-output production of 12oz and 16oz double-wall paper cups, from inner cup forming to automatic packaging.

CLIENT BACKGROUND

Building a Sustainable Production Line

The client is a beverage packaging supplier in Kazakhstan preparing to enter the hot beverage double-wall paper cup market. Its two long-term flagship products will be 12oz and 16oz cups.

The goal was not a small trial setup, but a production line designed for stable mass production and future expansion.

Kazakhstan double-wall paper cup production project

CLIENT NEEDS

Core Requirements Identified

Two Flagship Sizes

Produce 12oz and 16oz double-wall cups simultaneously.

High Daily Output

Use high-speed equipment suited to mass production.

Future Scalability

Allow additional cup types and production expansion.

Reduced Manual Work

Limit labor requirements, especially during packaging.

RECOMMENDED SOLUTION

A Complete Inline Production Configuration

Each machine was selected to support a specific stage while maintaining flexibility between the two cup sizes.

01 / INNER CUP PRODUCTION

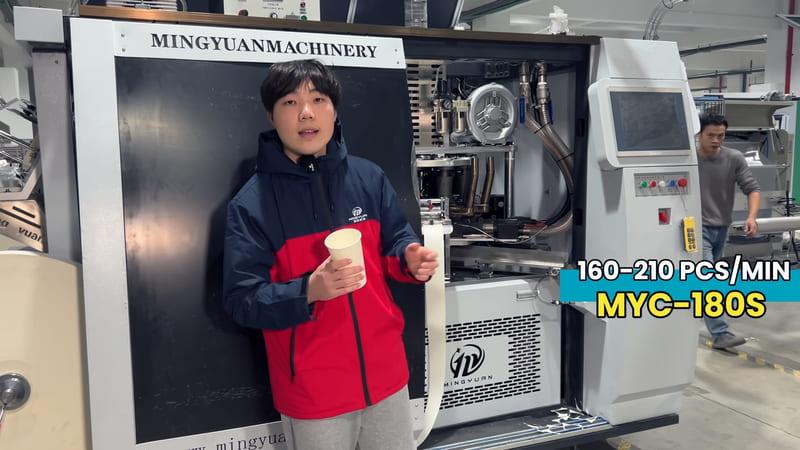

Two MYC-180S Paper Cup Machines

Two MYC-180S machines enable parallel production of 12oz and 16oz inner cups without frequent mould changes. Each machine can focus on one size or both can produce the same size when order demand requires it.

Speed range of 160-210 pcs/min
Stable forming for medium and large cup sizes
Flexible production allocation by order

02 / TRANSFER AND SLEEVE FORMING

Two Transfer Stations and Two MYC-DW120 Machines

A double-wall cup requires separate inner cup forming and outer sleeve application. Transfer stations buffer and move the inner cups before the MYC-DW120 machines form and bond the outer sleeves.

Two transfer stations balance production rhythm
Two MYC-DW120 machines serve 12oz and 16oz sleeves
Coordinated inner cup and sleeve production

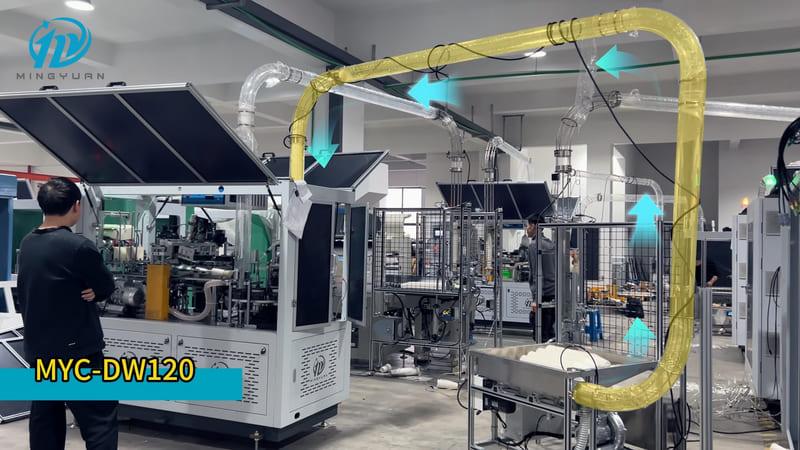

MYC-DW120 double-wall cup sleeve production line

03 / AUTOMATIC PACKAGING

MY-800 Packaging Machine

The MY-800 automatic packaging machine completes the final stage of the inline solution. It helps reduce back-end manual work and maintain consistent finished-product packaging.

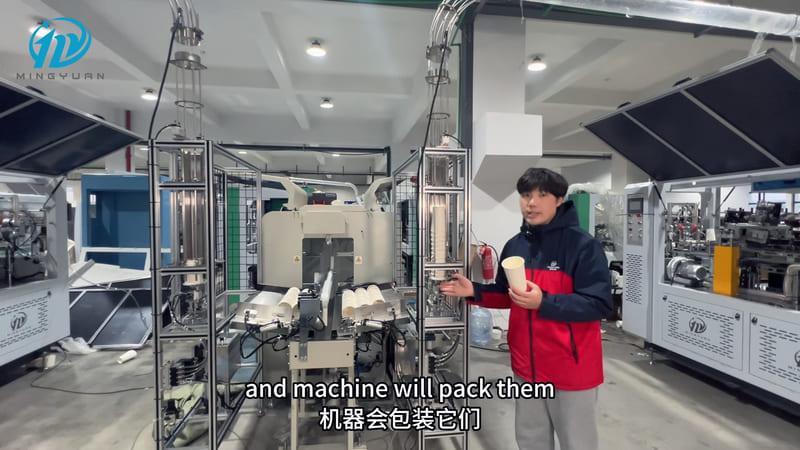

MY-800 automatic paper cup packaging machine

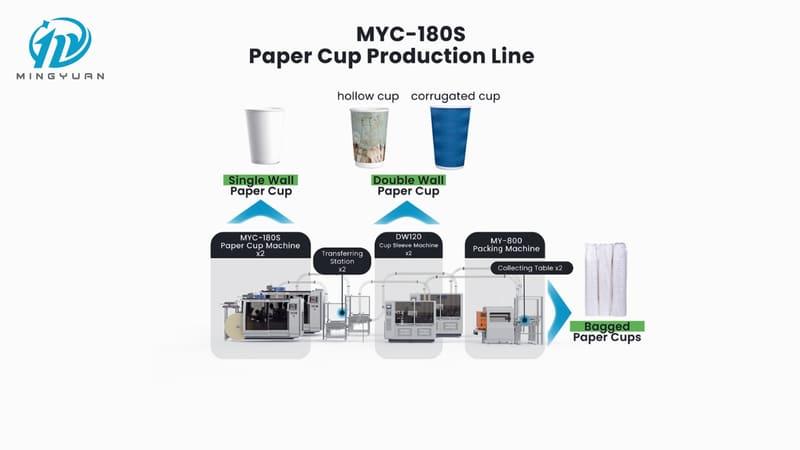

FINAL PRODUCTION FLOW

From Inner Cup to Finished Package

01Two MYC-180S Machines

Produce 12oz and 16oz inner cups.

→

02Two Transfer Stations

Buffer and transfer formed inner cups.

→

03Two MYC-DW120 Machines

Form and bond the outer sleeves.

→

04MY-800 Packaging Machine

Completes automatic packaging.

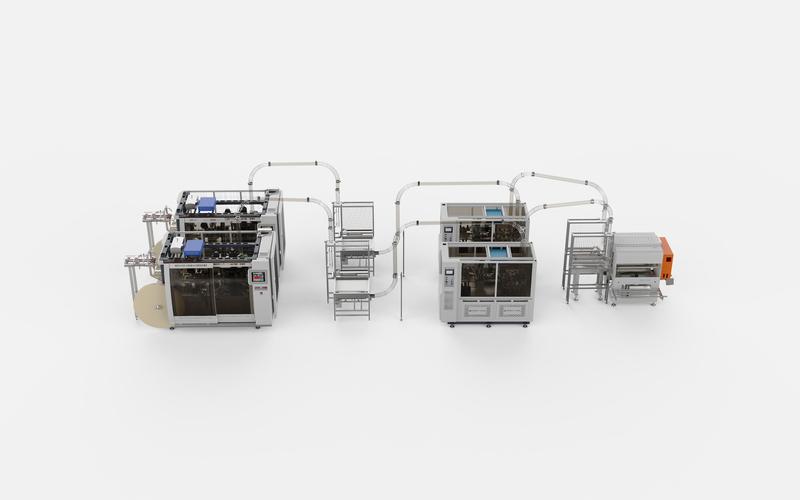

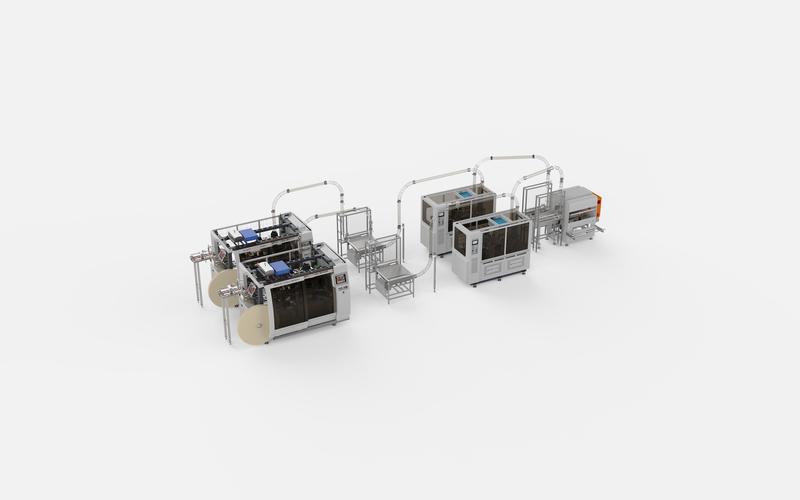

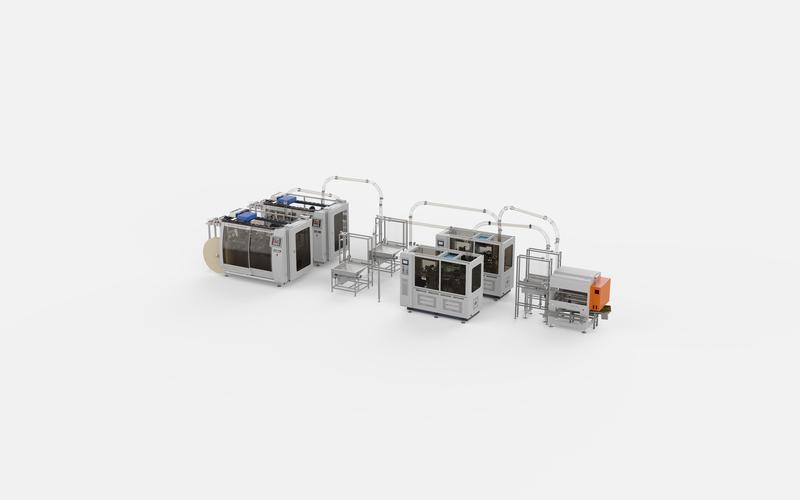

Complete automatic double-wall paper cup production line

A Scalable Solution for Double-Wall Cup Production

This configuration connects inner cup forming, transfer, sleeve application and packaging into a complete inline solution for the client's 12oz and 16oz product plans.
