Coffee Cup vs Cold Drink Cup vs Ice Cream Cup Paper Structure Differences

Myc-120 Connected To Myc-Dw120 Double Wall Paper Cup Forming Production Line Catalog

—Starting with Paper Cup Structure and Manufacturing Process

In paper cup applications, coffee cups, cold drink cups, and ice cream cups are the three most common types. While they all appear to be paper cups, they differ significantly in paper structure, coating methods, and forming processes.
For buyers planning a paper cup production line, understanding these differences helps in selecting the right paper cup machine and suitable raw materials, avoiding problems such as leakage, deformation, or unsuitability during later production.

I. Coffee Cups: Primarily Designed for Heat Resistance and Stable Molding

1. Usage Scenarios
Coffee cups are primarily used to hold hot drinks, typically at temperatures between 60–90℃, and in some cases, for delivery.
Therefore, the core requirements for a coffee cup are:

• Heat resistance and non-deformation;
• Good cup sturdiness;
• Protection against burns.

2. Common Materials and Structures
    Paper Weight: Generally 190–300 gsm
    Lamination Structure: Primarily single-layer PE lamination

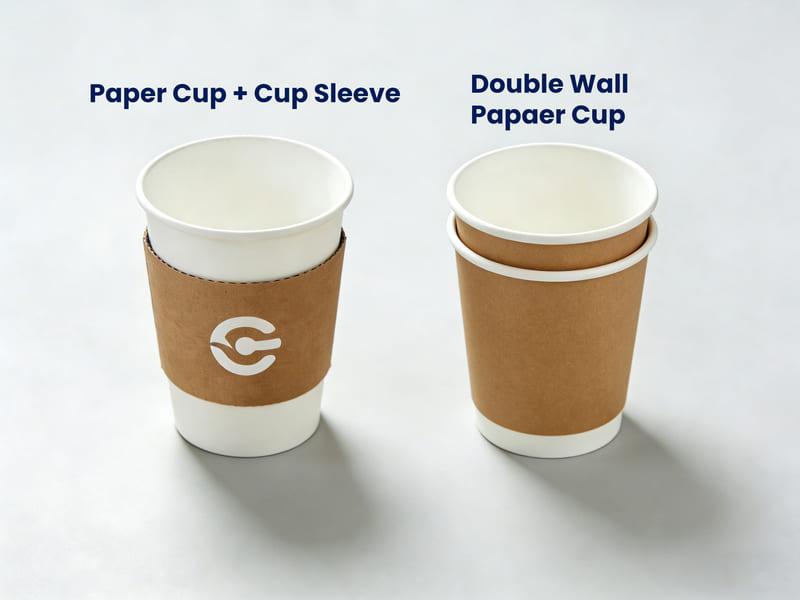

    Cup Sleeves: Often used with high-end or takeaway coffees (or double-layer cup solutions)

II. Cold Drink Cups: Primarily Designed to Prevent Leakage and Condensation

1. Usage Scenarios
Cold drink cups are typically used to hold:
    Cold drinks
    Ice water
    Juice, soda

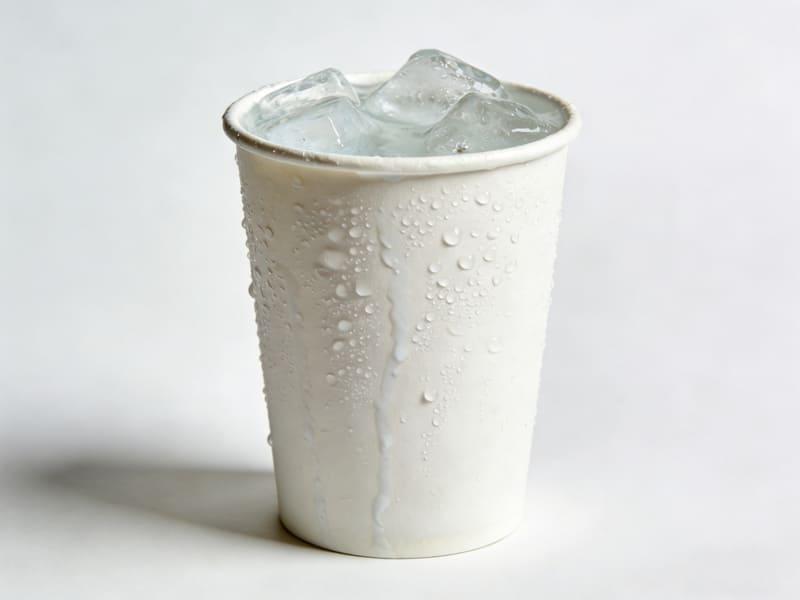

The low internal temperature of the cup makes it easy for condensation to form on the cup body, requiring higher waterproof performance from the paper cup.

2. Common Materials and Structures
    Paper Weight: Typically 230–320 gsm
    Lamination Structure:
        Single PE (for regular cold drinks)
        Double PE (for ice water, long-term serving)
    Cup Type: Straight-sided and conical cups are more common.

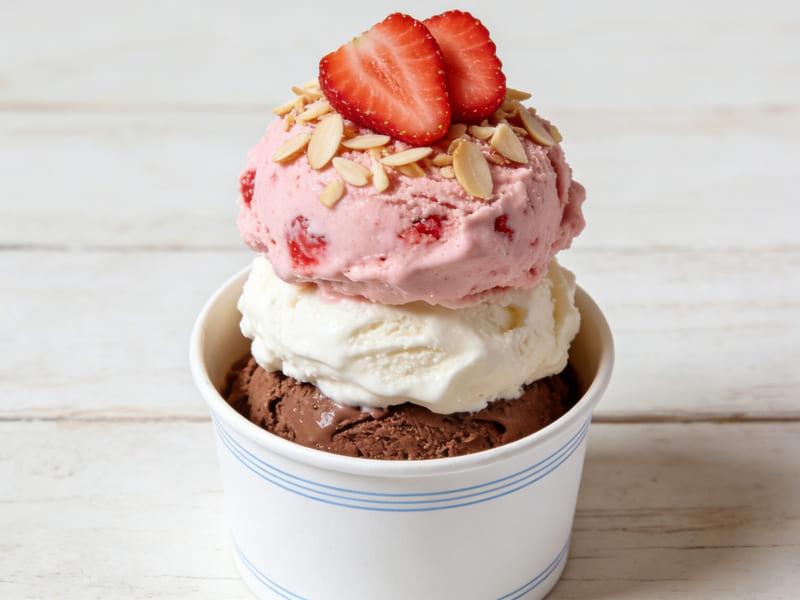

III. Ice Cream Cups: Primarily Designed for Low-Temperature Resistance and Small Size

1. Usage Scenarios
Ice cream cups are typically used for:
    Frozen foods
    High-viscosity contents
    Handheld eating scenarios
Although the temperature is low, the liquid content is relatively small, so the requirements for leak prevention are actually lower than for cold drink cups.

2. Common Materials and Structures
    Paper Weight: Generally high, approximately 260–350 gsm
    Lamination Structure: Mostly Double-layer PE lamination
    Cup Characteristics:
        Small cup height
        Large cup mouth diameter
        Emphasis on printed appearance

IV. Comparison of the Core Differences Among the Three Types of Paper Cups

V. Why Is It Important to Choose the Right Paper Cup Machine and Raw Materials?

Although coffee cups, cold drink cups, and ice cream cups all fall under the category of "paper cups," they differ significantly in several key aspects of actual production:

• Different types of paper: The grammage range and stiffness requirements vary.
• Different coating structures: Paper cups have different structural requirements for single-layer and double-layer PE.
• Different molding process parameters: Bottom sealing and cup body shaping methods have different focuses.
• Different cup dimensions and structures: Height, diameter, and taper directly affect mold design.

Furthermore, when producing double-layer cups (such as double-layer coffee cups), not only a paper cup machine but also a cup sleeve machine is needed for integrated production. For a detailed look at such a configuration, you can review the MYC-120 connected to MYC-DW120 double wall paper cup forming production line.

Buyer's Checklist: Preparing for Your Paper Cup Project

Before you request a quotation, prepare the following information to ensure the machine configuration matches your target cup type:

• Cup specification: Top diameter, bottom diameter, height, and wall taper for each cup type you plan to produce.
• Material specification: Paper GSM, PE coating type (single or double), and whether you need a cup sleeve or double-wall structure.
• Production target: Required output per minute and daily shift hours.
• Utilities: Available voltage/frequency, air compressor capacity, and workshop floor space.

Conclusion

The difference between coffee cups, cold drink cups, and ice cream cups is not simply about "what's in them," but a comprehensive difference in material selection, structural design, and manufacturing processes.
Before planning a paper cup production line, it's essential to understand the target cup type, and then match it with suitable paper cup machines and raw materials to achieve stable production and long-term operation. For more on material selection, see our guide on commonly used paper types for disposable paper cups.
