Integrated Paper Cup Production Solution: MYC-OCM12, MYC-DW100, and MY-450X

This solution combines three machines into a coordinated production line for manufacturing and packaging double-walled paper cups. It is designed for buyers planning to automate the complete process—from cup forming and sleeve application to final packaging—in a single, continuous workflow. The system is suitable for producing insulated paper cups for hot beverages, where thermal protection and a comfortable grip are important.

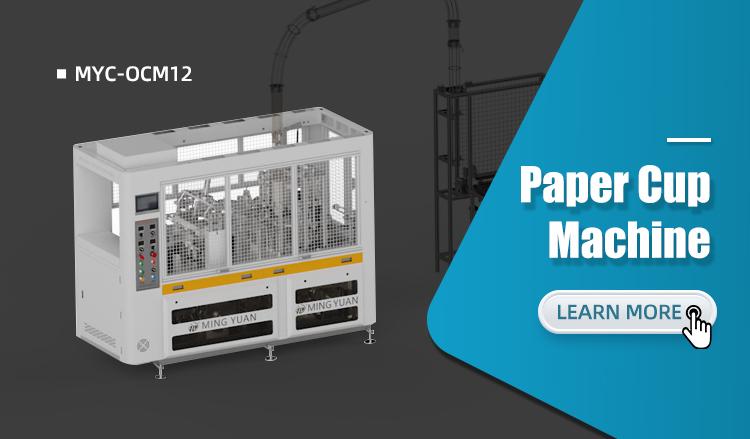

① MYC-OCM12 High-Specification Fully Automatic Paper Cup Machine

This machine performs fully automatic forming of paper cups, completing the entire process—from paper feeding, heating, and bottom embossing to top curling—in a single step. The high-specification version features a more stable configuration, enabling high-speed, continuous paper cup production and ensuring consistent product quality. It is the core forming unit of the line, designed for reliable, long-run operation.

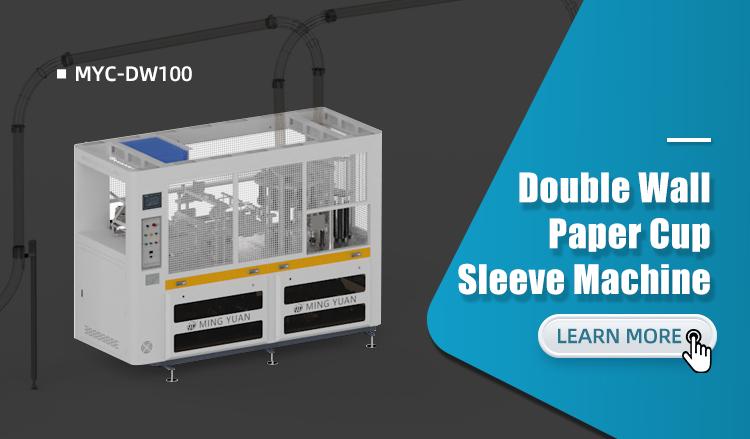

② MYC-DW100 Cup Sleeve Machine

Operating in tandem with the paper cup machine, this unit automatically completes the forming, bonding, and sleeve application processes. The equipment operates reliably, producing high-quality double-walled paper cups that provide superior thermal insulation and a more comfortable grip for hot beverages. It is the key module for adding the insulating outer layer to the single-wall cup body.

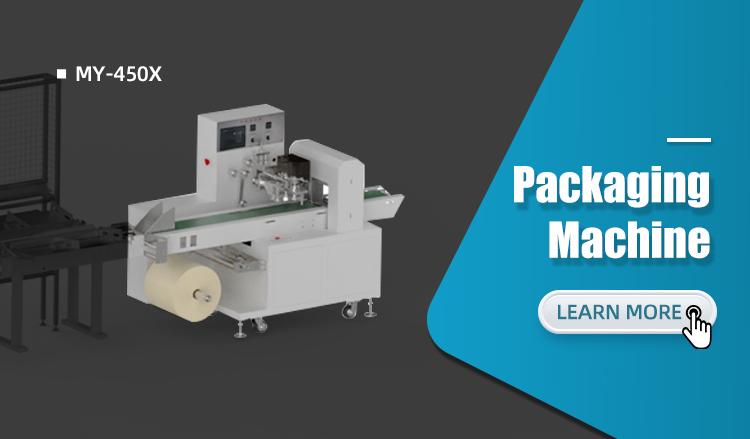

③ MY-450X Automatic Packaging Machine

Finished double-walled paper cups are automatically fed into the MY-450X packaging machine via a conveyor system, where they undergo automatic counting, sorting, bagging, and sealing. The packaging process is efficient and stable, reducing manual labor and creating a fully automated production line from cup forming and sleeve application to packaging. This final stage ensures the cups are ready for distribution.

Line Integration and Configuration

The three machines are designed to work as a connected system. The paper cup machine forms the basic cup, the sleeve machine applies the outer layer, and the packaging machine handles the final bagging. This integration reduces manual handling between stages and supports a continuous production flow.

For a complete line, you should consider the following configuration points:

• Conveyor connection: Ensure the discharge height and speed of the cup and sleeve machines match the infeed requirements of the packaging machine.
• Control system coordination: Verify that the control interfaces can be synchronized for smooth operation and easy troubleshooting.
• Changeover flexibility: Plan for the time needed to adjust the line when switching between different cup sizes or sleeve types.

Buyer's Checklist for Project Preparation

To receive an accurate line configuration and quotation, please prepare the following information before contacting us:

• Cup specifications: Provide a detailed drawing or sample, including top diameter, bottom diameter, height, and wall thickness.
• Material and coating: Specify the paper type, GSM (grams per square meter), and any required coating (e.g., PE or PLA) for both the cup body and the sleeve.
• Production target: State your required output per hour or per shift, as this affects the machine speed settings and line balance.
• Utility conditions: Confirm your available voltage, frequency, and air supply pressure to ensure the machines are configured correctly.
• Packaging requirement: Define the bagging format, such as the number of cups per bag and the bag material.

Why Choose This Integrated Solution?

This line is intended for buyers who want a single-source solution for producing double-walled paper cups, avoiding the complexity of integrating machines from different suppliers. The main benefits include:

• Reduced labor: Automation from cup forming to packaging minimizes manual handling and increases efficiency.
• Consistent quality: A synchronized line helps maintain uniform product quality and reduces waste.
• Simplified project management: One responsible supplier for the core production and packaging stages simplifies communication and service.

For more information on how this line can be adapted to your specific cup size and production needs, please contact our sales team with the details listed above.
