Custom Sizes OCM12 Intelligent Model Paper Cup Machine Connect DW100 Paper Cup Sleeve Machine Solution In Tajikistan

Full Sleeve Double Wall Cup Case Study

Technological Case Study

Customized Solutions for Double-Walled Cup Rim Diameters in Tajikistan

This project was designed to help the Tajikistan client establish double-wall paper cup production while meeting the demand for customized cup sizes.

Background

Customer Needs

The customer planned to set up an automated production line for 10-ounce double-wall paper cups and has specific dimensional requirements for the cups’ height, rim diameter, and base diameter to meet the needs of a particular market.

Key Requirements

Requirement Summary

✓ Double-walled Cup Production

✓ 10oz Paper Cup

✓ Special Sizes

✓ Automated Production

Customized Cup Specifications

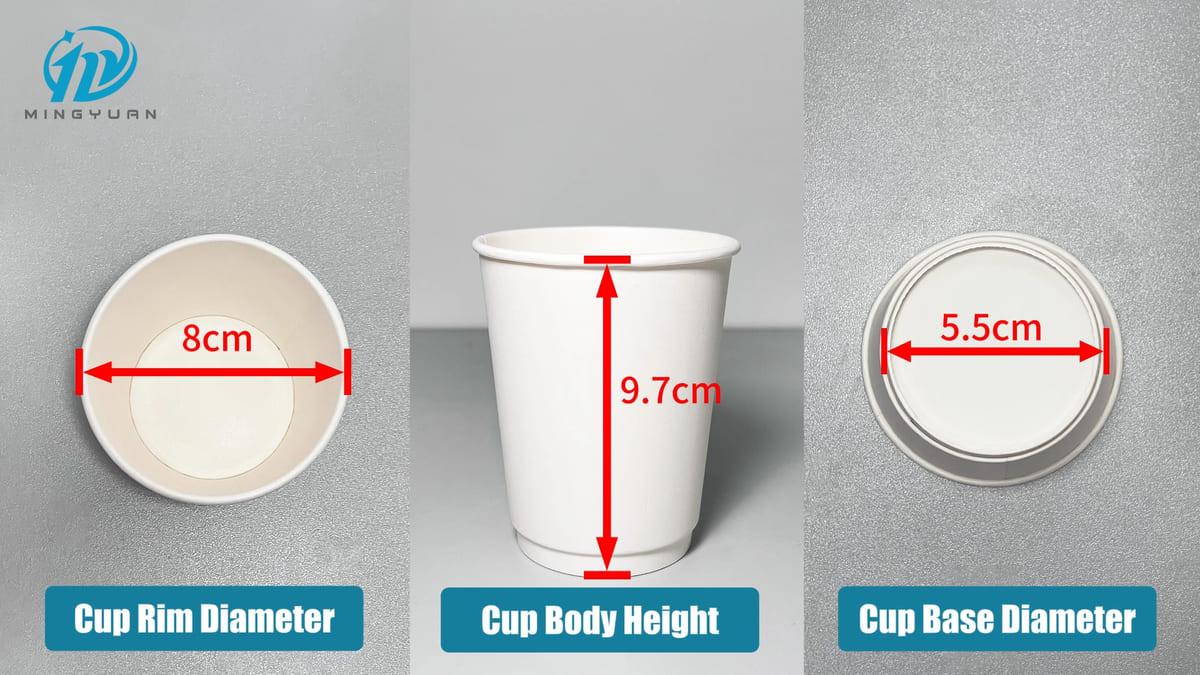

Three-View Drawings

The customer required customized dimensions for the cup height, rim diameter, and base diameter.

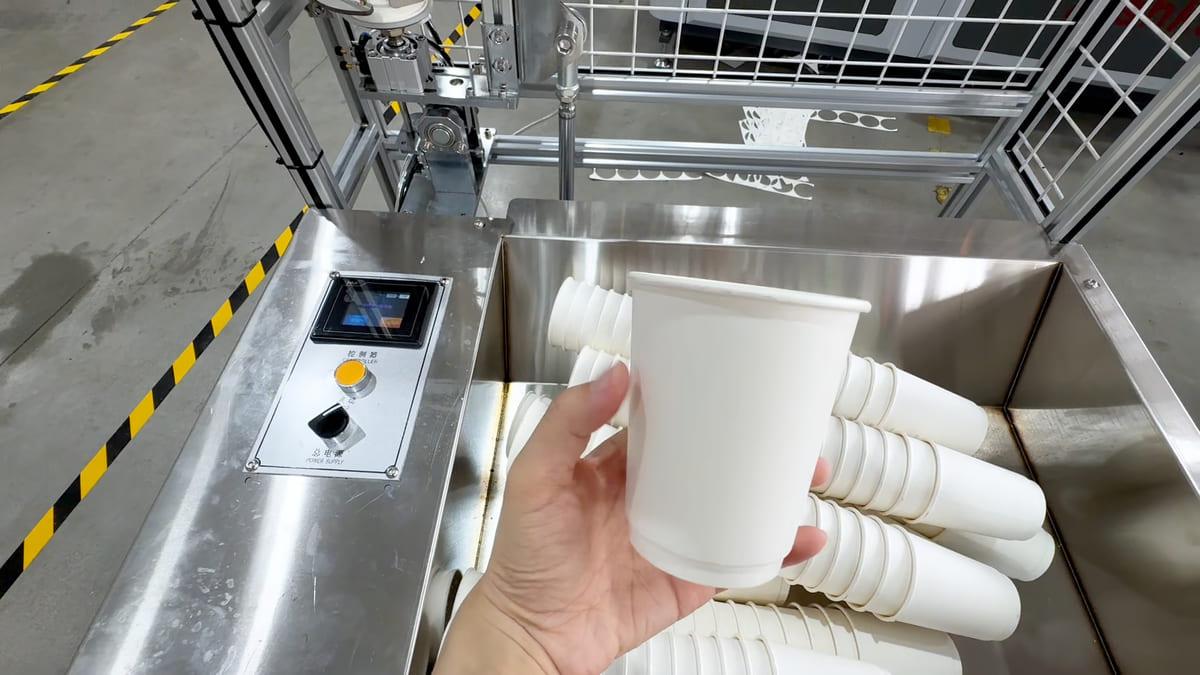

Scene Diagram

Finished cups are manufactured to specification to ensure consistent dimensional accuracy.

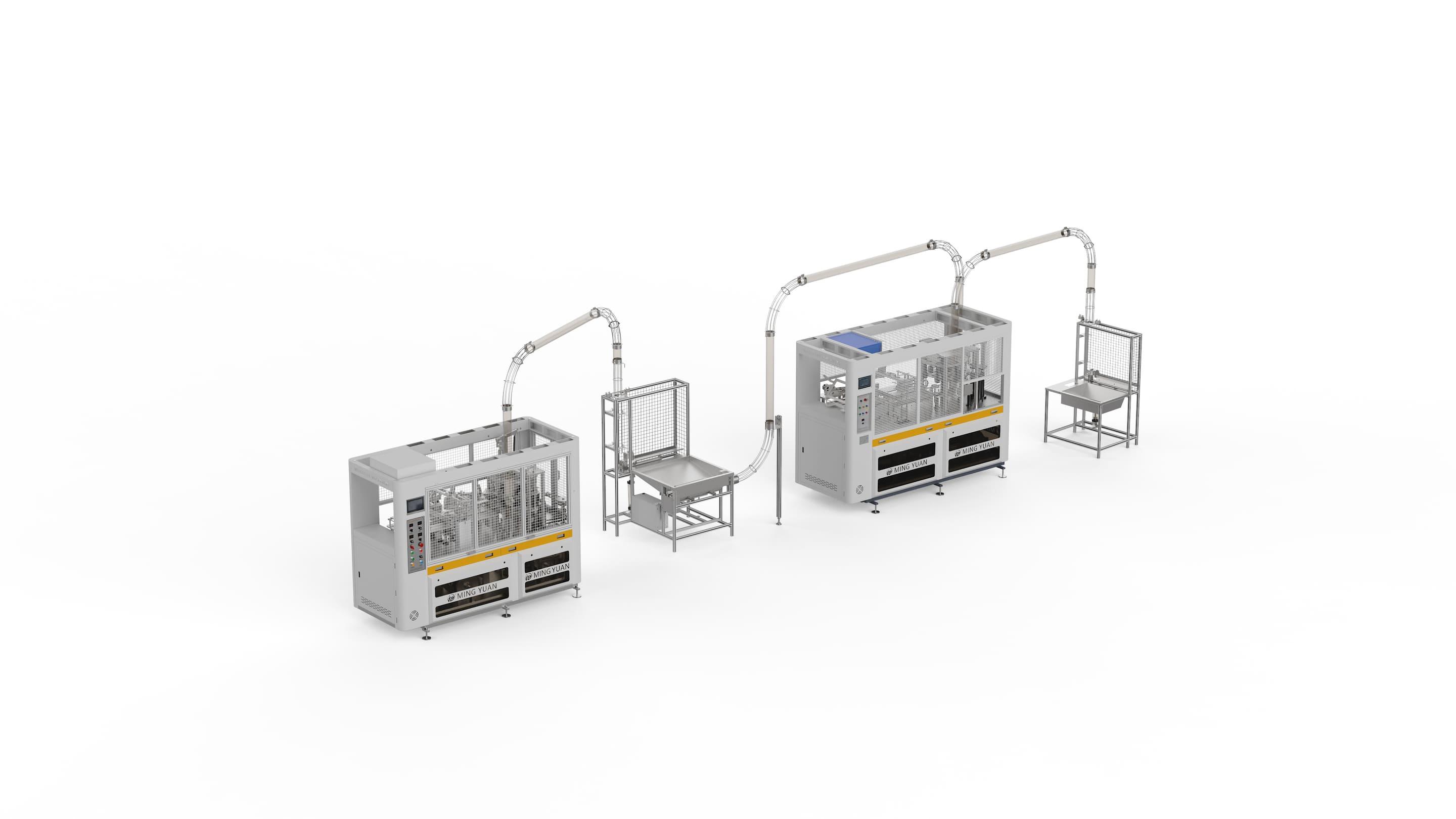

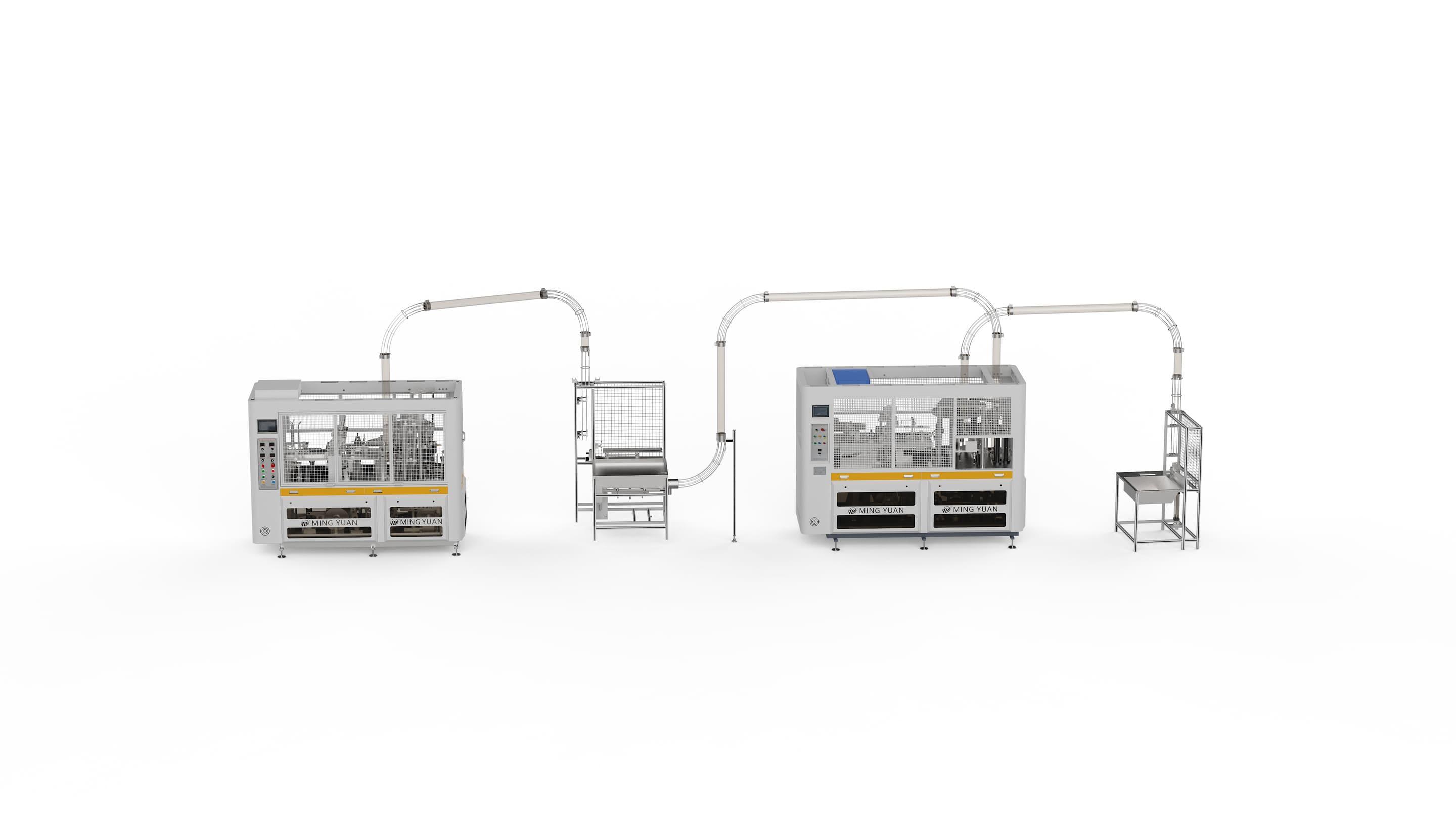

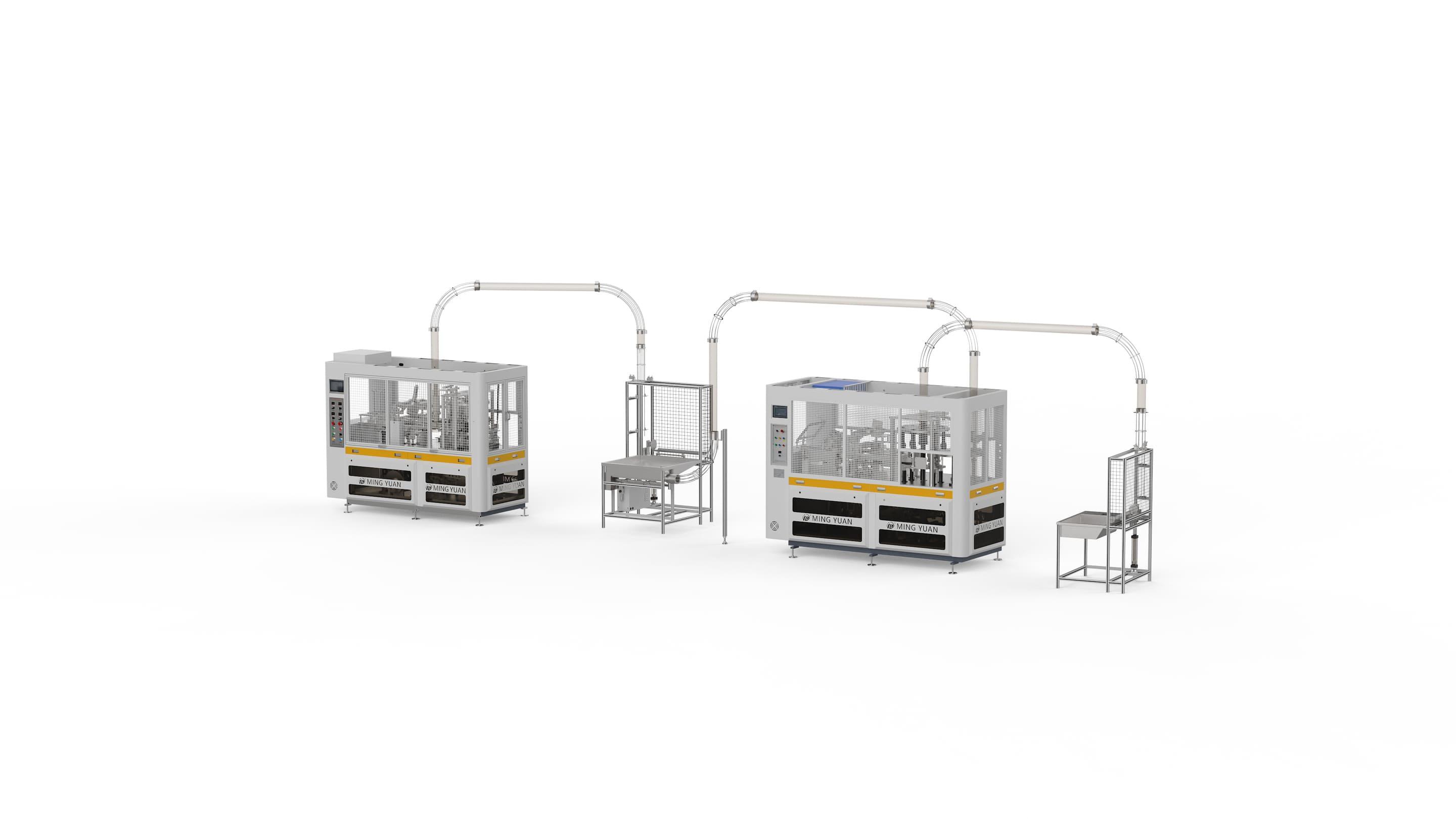

Production Line Configuration

We analyzed the customer's needs and, based on that analysis, customized the following production line to meet the customer's requirements.

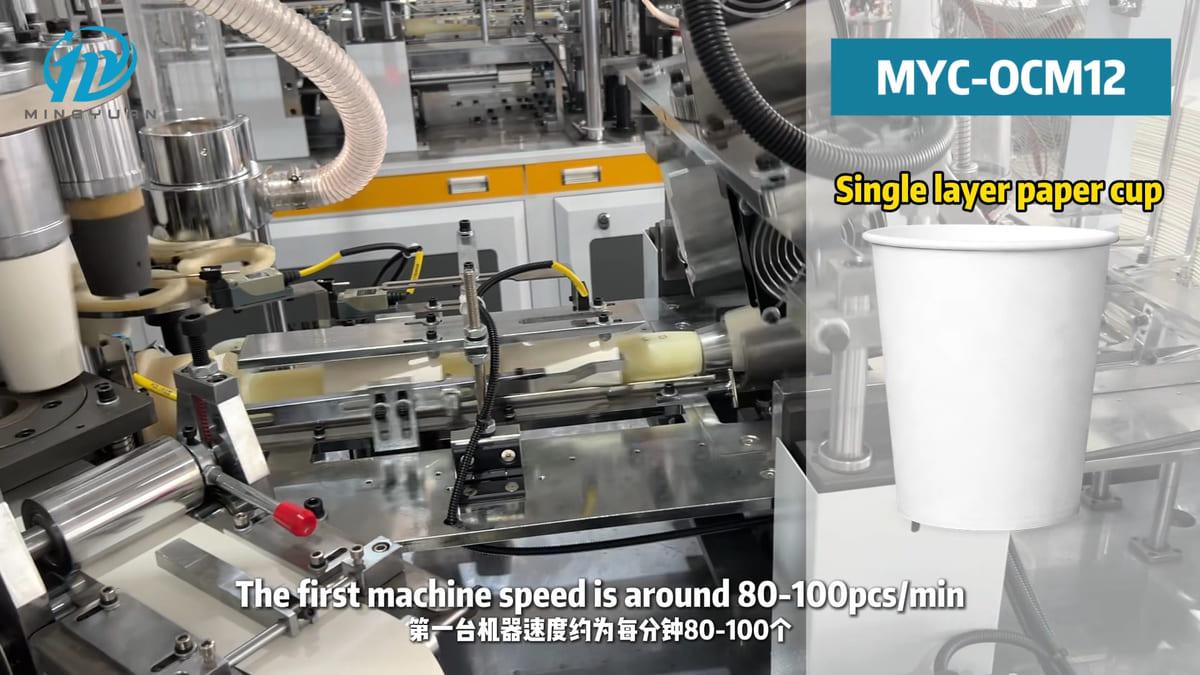

OCM12 Paper Cup Machine

OCM12 Intelligent Model With a production speed of 80–100 pcs/min and a size range of 1.5–16 oz,Equipped with custom molds to meet customers' specific size requirements the machine can meet customers' production needs.

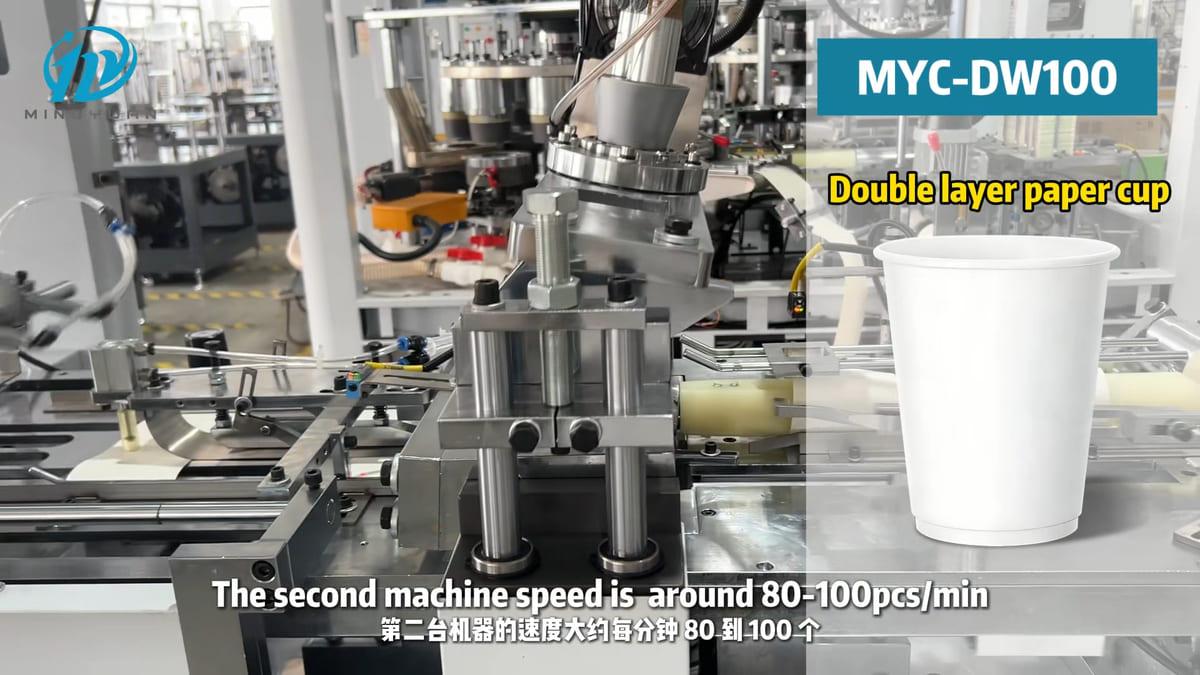

DW-100 Cup Sleeve Machine

DW-100 Cup Sleeve Machine Speed: 80–100pcs/min, Size: 4-22oz.The synchronized operating speeds of the OCM12 and DW100 enable seamless integration between inner cup forming and sleeve assembly,reducing production waste.

Raw Materials

Using 230GSM gsm raw material is sufficient to produce paper cups that meet the required stiffness and strength standards, while also reducing production costs.

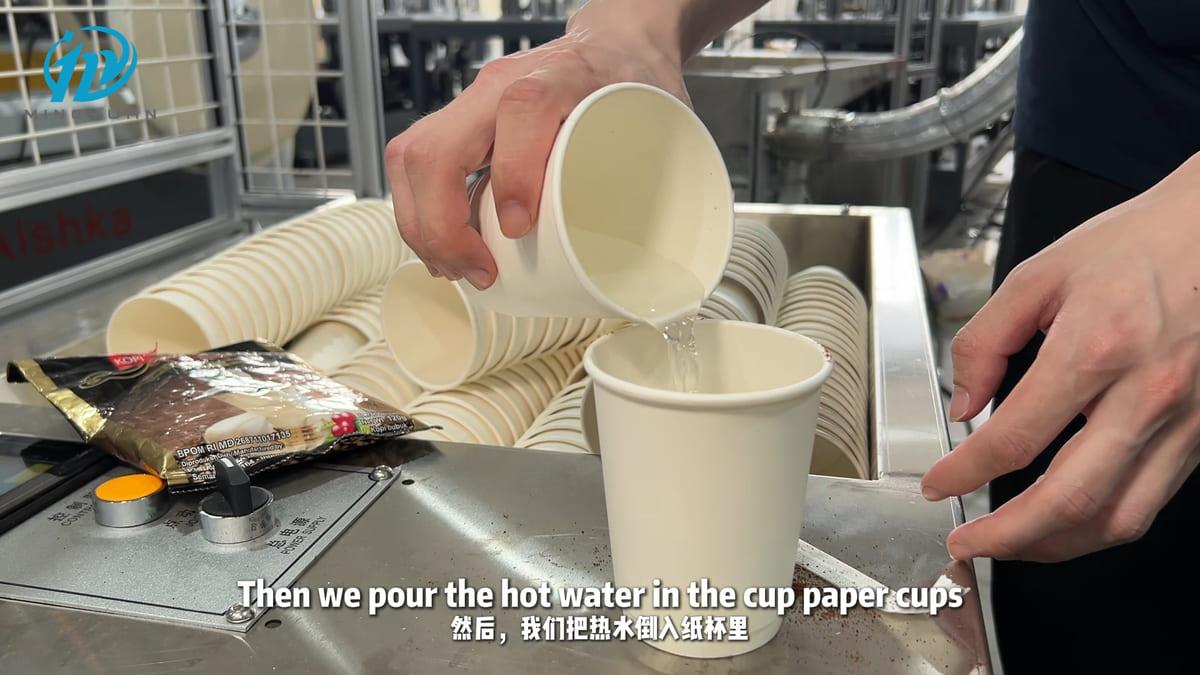

The Quality Benchmark

Every finished cup undergoes strict quality inspection to ensure consistent forming quality, reliable performance, and compliance with production requirements.
