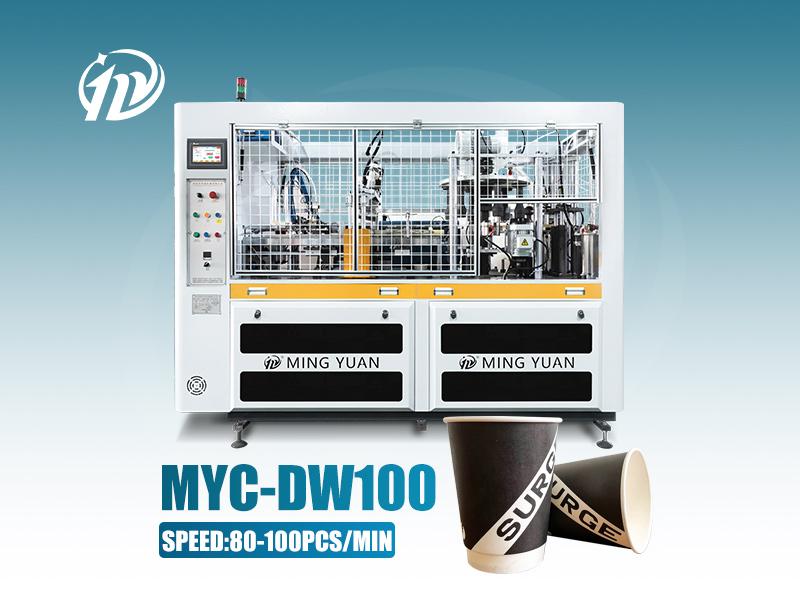

MYC-DW100 Double Wall Paper Cup Sleeve Machine 70-90 pcs/min

MYC-DW100 Double Wall Paper Cup Sleeve Machine.

MYC-DW100 Double Wall Paper Cup Sleeve Machine: What It Does

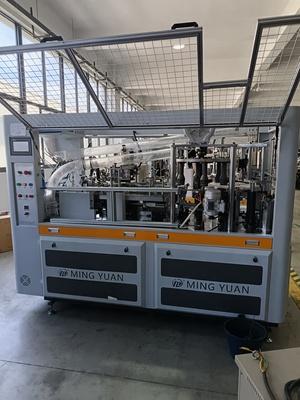

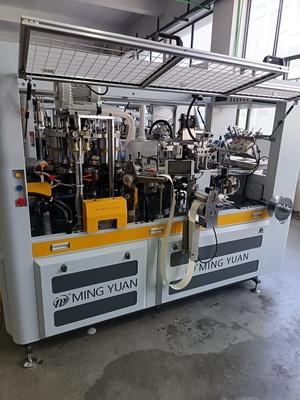

The MYC-DW100 is an automatic double wall paper cup sleeve machine. It forms the outer sleeve of a double wall cup and presses it onto a cup body, so buyers planning insulated hot-drink cups, ripple-style cups or premium double wall formats can judge whether this machine fits their cup program. It is a sleeve-forming and assembly unit, not a complete cup production line: the inner cup itself is made on a separate paper cup machine before the sleeve is applied.

Process Sequence and Machine Structure

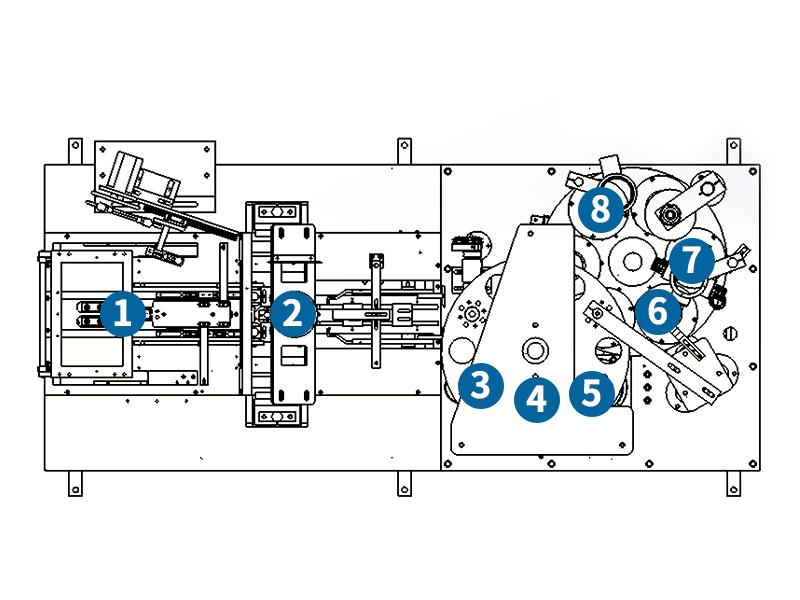

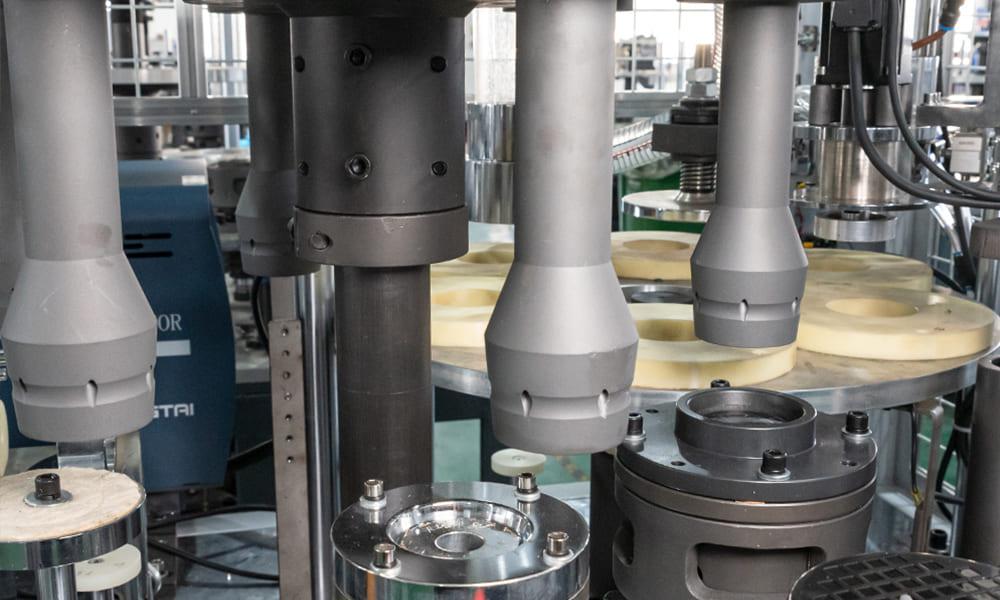

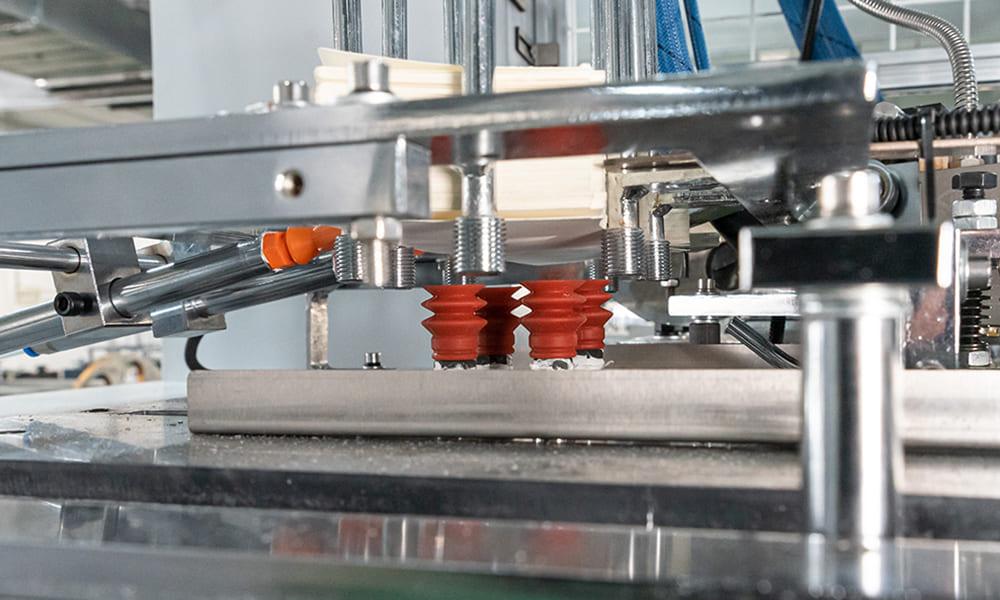

The machine runs an automatic sequence covering paper fan feeding, sleeve side sealing, sleeve transfer, robot hand feeding of the sleeve, two-stage sleeve pressing and finished cup stacking. An open intermittent indexing mechanism, gear transmission and longitudinal axis structure carry the sleeve through these stations, and a whole-machine oil lubrication system with automatic oil circulation keeps the mechanical parts running smoothly. Intelligent photoelectric control monitors machine operation, and a servo motor glue feeding system meters adhesive to the sleeve seam.

Controls and Sealing Configuration

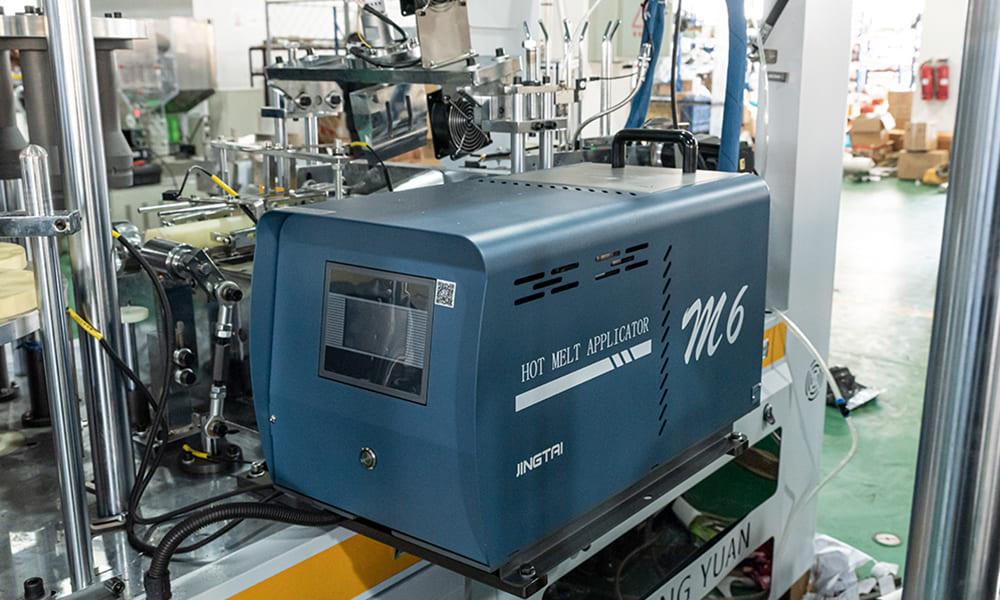

The MYC-DW100 uses an intelligent operating system built around a PLC and touch screen, which is intended to make daily operation and maintenance more convenient for the production team. The machine is supplied with a hot melt glue system for sleeve sealing. Because sealing method, glue type and station details affect both cup appearance and running stability, confirm the exact sealing configuration for your cup design at quotation stage rather than assuming a standard arrangement.

Selection Variables Buyers Should Confirm

• Cup drawing or physical sample: top diameter, bottom diameter and height of both the inner cup and the finished double wall cup, so the sleeve fit can be matched.
• Paper and coating: the paper grade and coating used for the sleeve fan, since material behaviour affects feeding and sealing.
• Target output: the rated speed is listed in Technical Specifications; discuss your required stable output and shift pattern separately, as real output depends on cup size, material and operating conditions.
• Sealing preference: hot melt glue configuration and the adhesive supply arrangement you plan to use.
• Line position: whether the sleeve machine will run stand-alone or be connected downstream of an existing cup machine, and how cups will be transferred between them.
• Utilities and layout: voltage and frequency, air supply, and available floor space in your workshop.

Line Integration and Project Preparation

The DW100 is commonly planned as the second stage of a double wall cup line, receiving inner cups from a paper cup machine and adding the outer sleeve. If you are building that combination, review the single and double wall paper cup solutions overview to see how the forming and sleeving stages are arranged, and check the MYC-DW100 double wall paper cup sleeve machine page for the current machine scope. Before quotation, send your cup drawing or sample, material and coating details, target output, voltage and frequency, air supply, workshop layout and packing requirement so the configuration can be matched to your project.

Sample Display and Inquiry Next Step

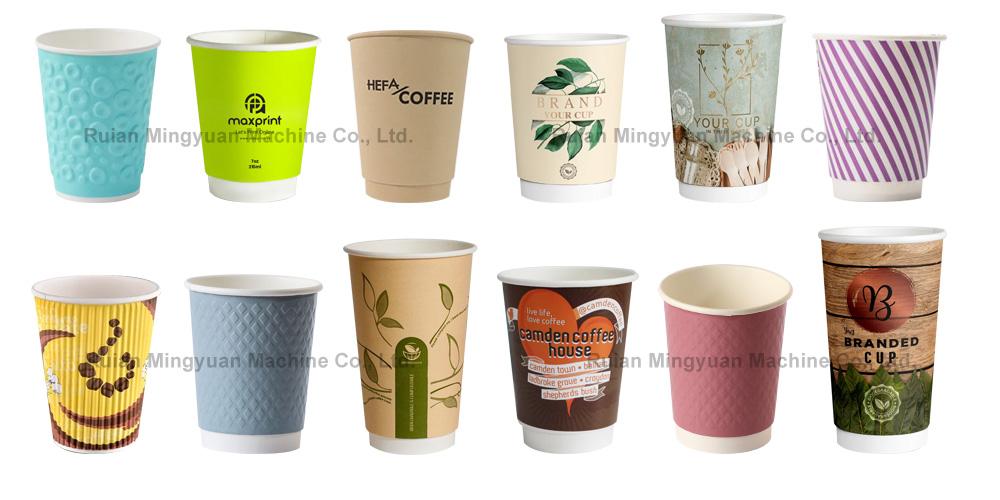

Finished double wall cups from this process are shown in the sample image above. To move from evaluation to a firm proposal, share your cup specifications and production plan through the inquiry form on this page or contact us on WhatsApp; our team will confirm the applicable configuration, utility requirements and delivery scope for your order.
