MYC-DB120 Paper Bowl Machine with MYC-DW120B Double Wall Sleeve Machine – Integrated Production Line

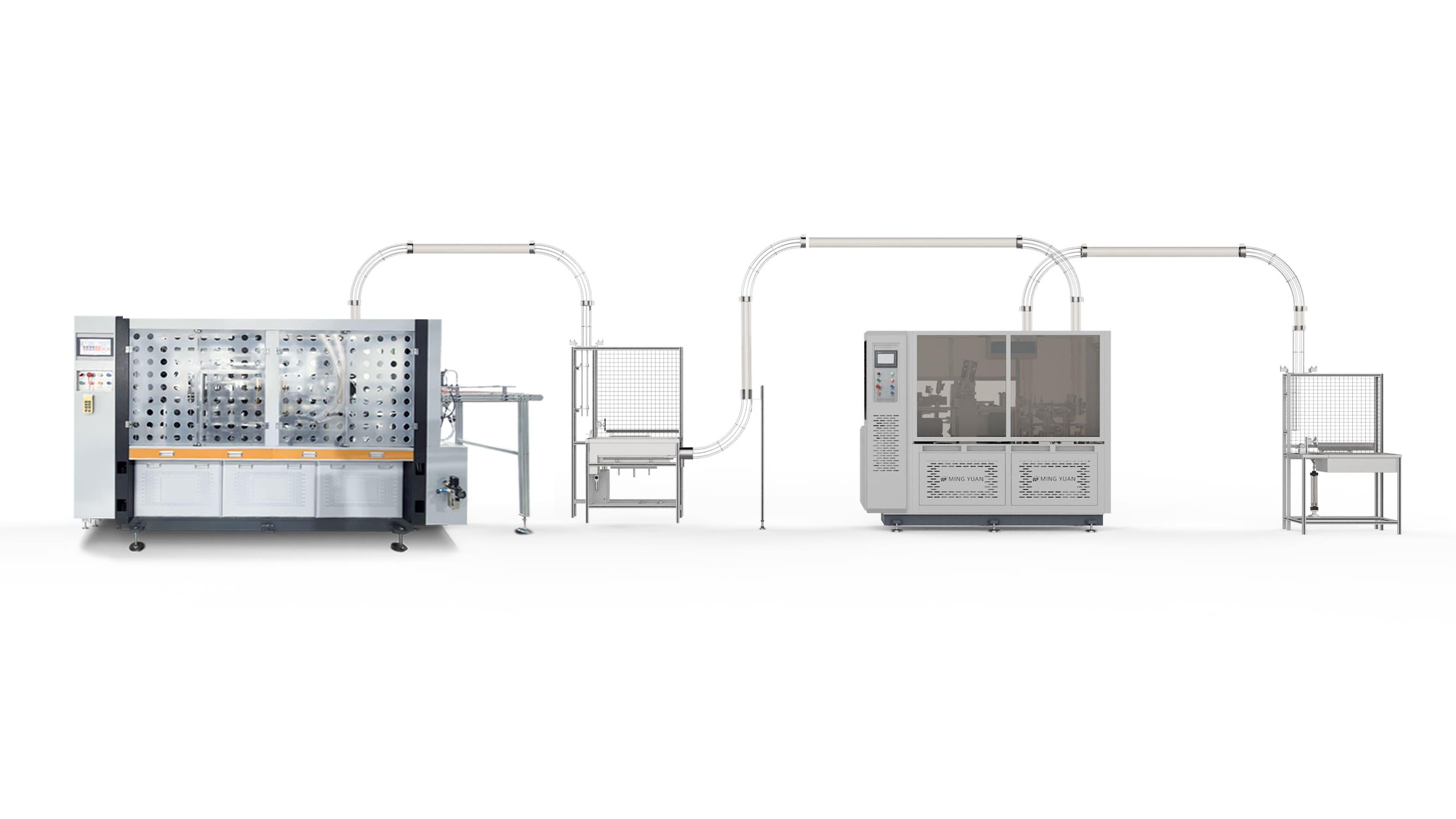

This integrated production line combines the MYC-DB120 Fully Automatic Paper Bowl Machine with the MYC-DW120B Bowl Sleeve Machine to produce double-layer paper bowls in a continuous, automated process. Designed for food-service manufacturers, this line is suitable for producing insulated paper bowls for hot soups, noodles, and other takeaway meals where thermal protection and product rigidity are required.

How the Line Works

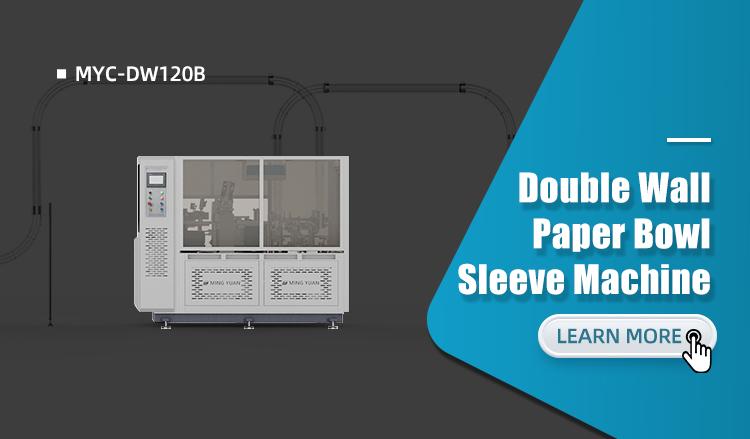

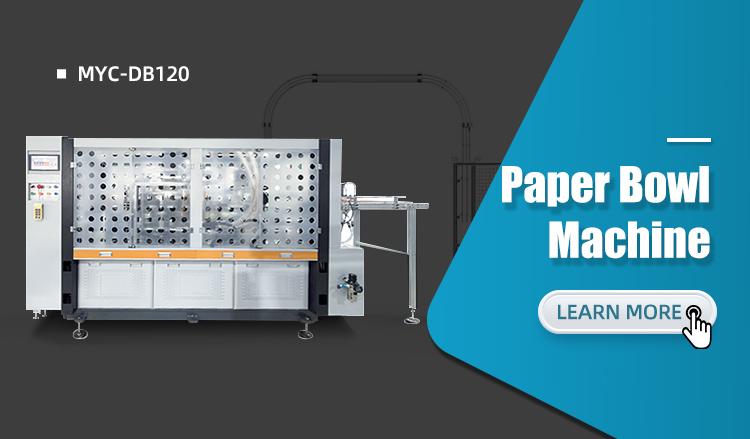

The MYC-DB120 performs the core bowl-forming process—paper feeding, body sealing, bottom forming, and rim curling—in a single operation. The formed single-wall bowl is then transferred to the MYC-DW120B, which automatically applies a pre-formed paper sleeve. The sleeve is bonded and precisely positioned around the bowl, creating a double-wall structure with an insulating air gap. This seamless transition between the two machines supports continuous production of double-layer bowls with improved heat retention and a more rigid sidewall.

Key Configuration Highlights

• Fully automatic operation: From paper feeding to rim curling on the DB120, and from sleeve forming to application on the DW120B, the line minimizes manual handling.
• Integrated sleeve application: The DW120B is designed to operate in line with the DB120, ensuring accurate sleeve placement for consistent double-wall quality.
• Insulated bowl output: The double-layer structure provides enhanced thermal insulation, suitable for hot-food packaging applications.
• Continuous production: The synchronized line is intended for manufacturers seeking a streamlined process from single-wall forming to finished double-wall bowl.

What to Specify When Ordering

To ensure the line is configured for your product, please provide the following details with your inquiry:

• Finished bowl dimensions: top diameter, bottom diameter, and height (or a sample/drawing).
• Paper material type, GSM (gram per square meter), and any coating (e.g., PE or PLA) for both the bowl and the sleeve.
• Target production output per minute and daily shift hours.
• Available electrical supply (voltage/frequency) and air compressor capacity.
• Workshop floor layout and available space for the line.
• Packing requirements (e.g., bulk packing, sleeving, or bagging).

For detailed technical specifications—including speed, power, air consumption, and dimensions—please refer to the Technical Specifications section on this page. Final configuration and output will be confirmed based on your specific bowl design and material.

For more information on how this line compares to other configurations, or to discuss your specific project requirements, please contact our sales team. You can also browse the MYC-DB120 paper bowl machine catalog for additional details.
