MYC-D Double Wall Paper Cup Sleeve Machine 50-60 pcs/min

MYC-D Double Wall Paper Cup Sleeve Machine.

MYC-D Double Wall Ripple Cup Sleeve Machine: What It Does

The MYC-D is a dedicated paper cup sleeve machine for producing the outer ripple or sleeve layer used in double wall paper cup construction. Rather than forming a complete cup from a flat fan, it converts printed or plain sleeve blanks into a finished sleeve that is later combined with an inner cup. This makes it relevant for converters and cup producers who want to add a decorative or insulation sleeve to an existing cup line, or who plan a dedicated sleeve production cell.

The machine handles white cardboard and corrugated paper, which are the typical materials for ripple sleeves and printed outer wraps. Buyers considering this model should confirm their sleeve material, blank dimensions and target output before quotation, because sleeve geometry and paper grade directly affect the feasible configuration.

Sample Display

The image below shows representative sleeve samples produced on this type of machine. Use it as a visual reference for the ripple profile and print registration you expect; final appearance depends on your artwork, paper grade and forming settings.

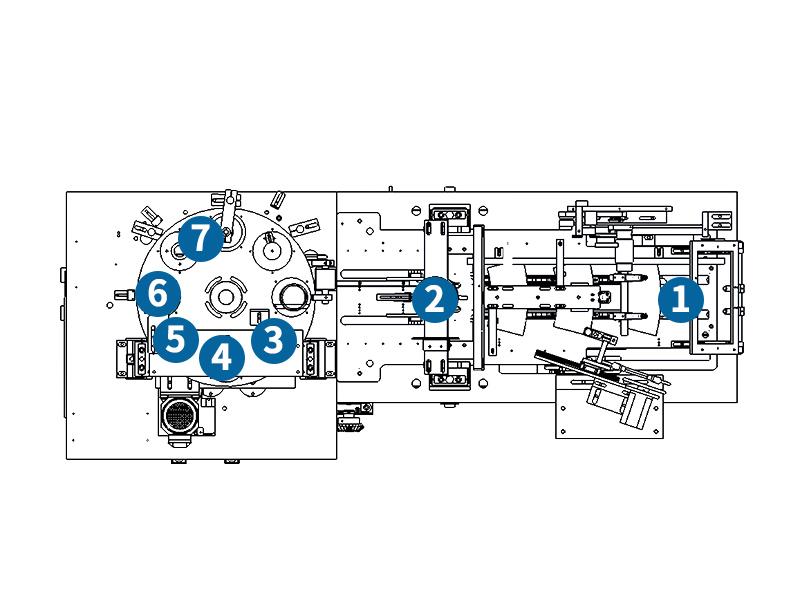

Machine Structure and Working Principle

The MYC-D uses an open intermittent indexing mechanism combined with gear transmission and a longitudinal axis structure. A hot melt adhesive system performs the side seam sealing, and an oil lubrication system circulates lubricant to keep mechanical components running smoothly during continuous operation. The process sequence covers paper fan feeding, edge sealing, sleeve conveying, automatic oil circulation and cup stacking.

Selection Variables to Confirm Before Ordering

Sleeve machines are configured around the blank and the finished sleeve, so the following inputs matter more than a generic model number. Send these details with your inquiry so the configuration can be matched to your product:

• Sleeve drawing or sample: top and bottom diameter, height, and the ripple or wall profile you need.
• Material and coating: white cardboard or corrugated paper, plus any printed or coated surface.
• Paper GSM range: confirm the thickness band your sleeve design requires.
• Target output: state the stable output you need per shift, not only the rated speed.
• Sealing method: confirm that hot melt adhesive suits your material and seam requirement.
• Utilities and workshop: voltage, frequency, air supply and available floor space.
• Line interface: whether the sleeve will be combined with an existing inner cup machine or packed separately.

Configuration Boundaries and Project Preparation

The MYC-D is a sleeve-making unit, not a complete double wall cup line. If your project requires forming the inner cup as well, the sleeve machine is one stage in a broader sequence and should be planned alongside the cup forming equipment. Review the single and double wall paper cup solutions to understand how sleeve production fits into a full line, and check the MYC-D double wall paper cup sleeve machine page for the model-specific overview.

Before shipment planning, prepare a workshop layout showing infeed and discharge positions, confirm the power and air supply available on site, and clarify packing and container requirements. Final machine configuration, utilities and dimensions are confirmed at quotation stage and are listed in the Technical Specifications field of this page.

Next Step: Request a Matched Quotation

To receive an accurate proposal, send your sleeve drawing or physical sample together with material type, GSM, target output, voltage and frequency, air supply and workshop layout. Our team will confirm the feasible configuration and the specification details for your project. You can also use the inquiry form or WhatsApp contact on this page to start the discussion.
