MYC-DW100 Double Wall Ripple Cup Sleeve Machine

The MYC-DW100 is an automatic double wall paper cup sleeve machine designed for producers who need to add a corrugated or ripple outer sleeve to a finished inner cup. It is typically used alongside a paper cup forming machine in a two-stage production setup: the inner cup is formed first, then the DW100 applies and bonds the outer sleeve to create a double wall cup with improved insulation and a premium feel.

This machine suits converters and food-packaging manufacturers planning medium-volume double wall cup production, particularly where hot melt glue bonding and a compact, mechanically driven sleeve line are preferred over a fully integrated single-pass system.

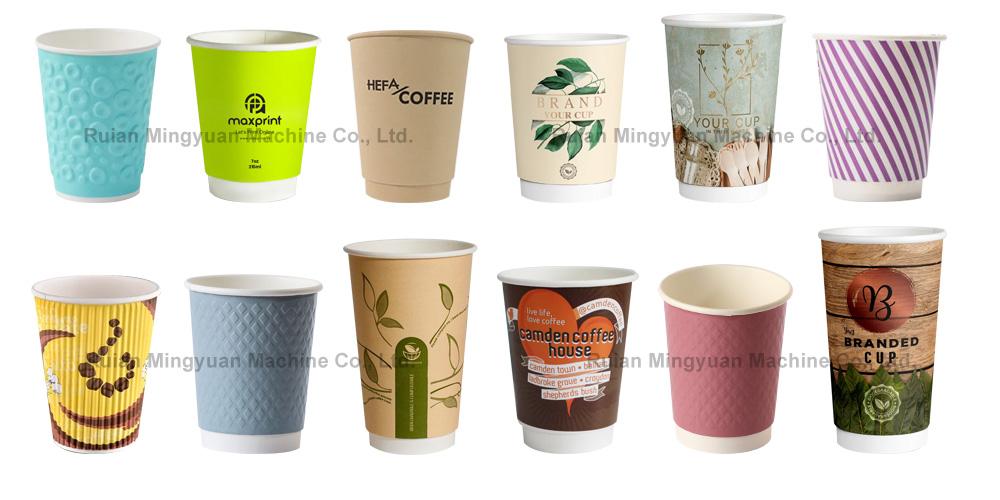

Sample Display

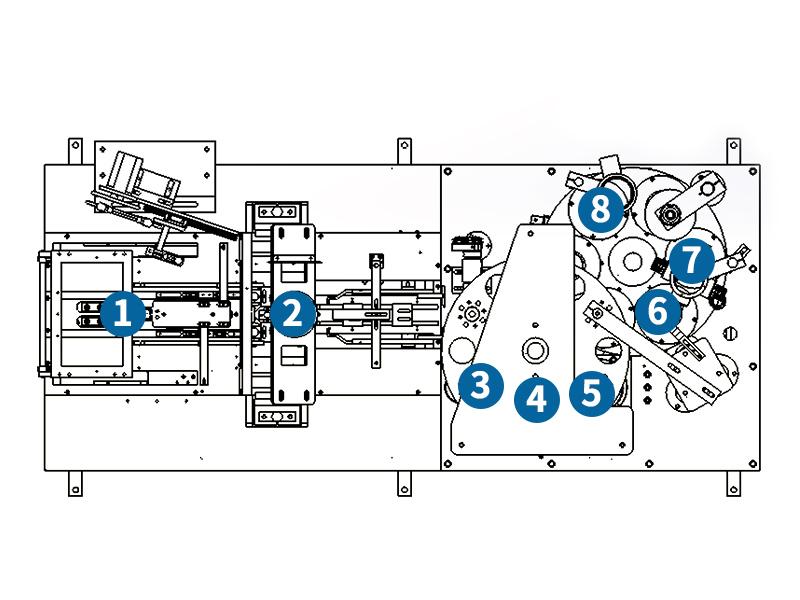

Machine Structure

How the Sleeve Process Works

The MYC-DW100 completes the sleeve-making sequence in one continuous flow. Paper fan blanks are fed into the machine, the sleeve side seam is sealed, and the formed sleeve is transferred to a robot hand that places it over the inner cup. A servo-driven glue feeding unit applies hot melt adhesive, and the sleeve is pressed onto the cup in two pressing stages before the finished double wall cup is stacked at the discharge.

The machine uses an open intermittent indexing mechanism, gear transmission and a longitudinal axis structure. A full oil lubrication system keeps the mechanical parts running smoothly, and intelligent photoelectric control supports correct, repeatable operation. An intelligent operating system with PLC and touch screen makes the machine easier to operate and maintain.

Selection Variables to Confirm Before Ordering

Because the DW100 works with an existing inner cup, the sleeve configuration must match the cup it will wrap. Buyers should confirm the following before a quotation can be finalized:

• Cup dimensions: top diameter, bottom diameter and height of the inner cup, plus the intended sleeve height and overlap.
• Cup drawing or physical sample: a drawing or sample is the most reliable way to confirm sleeve fit and pressing geometry.
• Paper material and GSM: the inner cup board and the outer sleeve paper, including whether a ripple/corrugated sleeve is required.
• Coating: whether the cup or sleeve uses PE or another coating, since this affects bonding with hot melt glue.
• Target output: the required stable output for your line, which should be checked against the machine's rated speed rather than assumed.
• Upstream machine: the model of the cup forming machine that will feed the DW100, so the two stages can be matched.
• Utilities and layout: voltage and frequency, air supply, and available workshop space for the sleeve line.
• Packing requirement: how finished cups will be collected, counted and packed downstream.

Configuration Boundaries

The DW100 is a sleeve machine, not a complete cup production line. It performs the sleeve forming, gluing, sleeve placement and pressing stages, but the inner cup must be supplied by a separate cup forming machine. Optional downstream equipment such as inspection or packing systems should be discussed as separate items and confirmed in the final quotation rather than assumed as standard.

Rated speed and stable output are not the same figure. Actual output depends on cup size, paper grade, glue settings and how smoothly the upstream cup supply is matched to the sleeve machine. Final configuration, including glue system details and pressing setup, is confirmed against the buyer's cup sample.

Related Equipment and References

For buyers building a complete double wall cup line, the sleeve machine is usually paired with a cup forming machine. You can review the single and double wall paper cup solutions to see how the stages fit together, or explore the MYC-DB120 double turn plate paper bowl machine if your project also covers paper bowls.

For a closer look at how the DW100 connects with an upstream cup machine, see the MYC-OCM12 and MYC-DW100 connection video.

Next Step: Send Your Cup Details

To match the MYC-DW100 to your product, send your cup drawing or sample, top/bottom/height dimensions, paper material and GSM, coating type, target output, voltage and frequency, air supply, workshop layout and packing requirement. Our team will confirm the sleeve configuration and prepare a quotation based on your actual cup. Use the inquiry form on this page or contact us via WhatsApp to start the review.
