MYC-W35 Paper Soup Cup Making Machine: What This Machine Covers

The MYC-W35 is an automatic paper bowl forming machine built for producing paper soup cups and paper bowls used in hot food, takeaway and food-service packaging. It suits converters and food-packaging producers who need an in-house bowl-forming stage rather than buying finished bowls, and who want a machine that can be matched to a specific bowl drawing before quotation.

This page explains the machine scope, the configuration points that change between projects, and the information a buyer should prepare. Confirmed model, speed, power, air, dimensions and weight values are listed in the Technical Specifications field of this page; the sections below do not repeat them.

Sample Display

The sample image below shows the type of formed paper bowl this machine family is used for. Final bowl shape, rim profile and print depend on the mold set and the paper specification agreed for your project.

Machine Structure

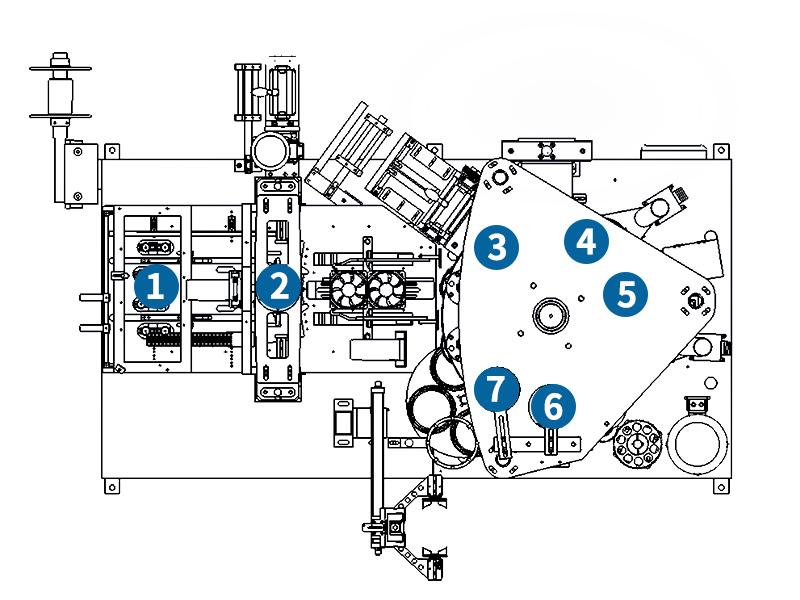

The structure image below shows the main forming and drive arrangement of the MYC-W35. Review it together with the Technical Specifications field so that the station layout, drive system and collection arrangement match what your project requires.

How the Forming Process Runs

The machine converts printed or plain paper bowl blanks through feeding, forming and sealing, then discharges finished bowls. The description supplied for this model notes a PLC control system with sensor failure detection that stops the machine automatically when an operating fault is detected, which supports safer unattended running between operator checks.

The same source describes oil lubrication with a circulation system, servo motor drive, open cam drive and a full gear drive system, presented as the basis for more accurate and stable forming. A robot-hand collecting and counting system is described as a way to pack multiple bowl sizes and reduce manual labor in the collection stage. Treat these as the configuration described for this model; confirm the exact drive, control and collection arrangement for your order in the quotation.

Selection Variables to Confirm Before Quotation

Paper bowl machines are configured around the finished bowl, not the other way round. The following points decide mold, station and collection configuration, so they should be settled before a price is fixed:

• Finished bowl dimensions: top diameter, bottom diameter and height, ideally with a drawing or a physical sample.
• Bowl type and use: soup cup, noodle bowl, ice-cream bowl or takeaway bowl, including whether a lid is planned. See fast food and takeaway paper bowl applications for typical use cases.
• Paper and coating: base paper GSM and the coating or barrier layer, since these affect sealing behavior and bowl rigidity.
• Target output: the rated speed is stated in Technical Specifications; required stable output over a shift depends on bowl size, paper and operator practice, so state your planned daily volume.
• Collection and packing: whether robot-hand counting and collection is required, and how bowls will be stacked, sleeved or boxed downstream.
• Utilities and site: voltage and frequency, air supply, and the space and layout available in your workshop.

Configuration Boundaries and Line Integration

The MYC-W35 is a bowl-forming machine, not a complete production line. Printing, die cutting and material preparation are separate stages, and downstream packing is separate equipment. If you plan to pack bowls automatically, review the paper cup and bowl packing machine range and confirm with us how the collection output of the forming machine would interface with the packing equipment you choose.

Lid supply is a separate decision as well. If your product will be served with a paper lid, check lid compatibility and supply options before finalizing the bowl rim design; the soup cup paper lid question covers the practical points buyers usually raise.

Factory Preparation and Maintenance Planning

Because the machine uses an oil lubrication and circulation system, plan for lubrication checks and oil condition monitoring as part of routine maintenance, and confirm the recommended schedule in the operation manual supplied with your machine. Keep the sensor and control area clean so that fault detection works as intended, and train operators on the automatic stop behavior so a fault is investigated rather than bypassed.

Before installation, confirm the foundation and access route against the machine dimensions and weight in Technical Specifications, and verify that your power and air supply match the confirmed configuration. Spare mold sets for additional bowl sizes should be planned as separate items and quoted with the bowl drawings they will run.

Next Step

To receive a matched quotation, send your bowl drawing or sample, paper and coating details, target output, voltage and frequency, air supply, workshop layout and packing requirement. Our team will confirm the mold configuration, collection arrangement and line interface for your project. You can also review the MYC-W35 paper bowl making machine project reference to see how this model has been configured for other buyers, and use the inquiry form or WhatsApp on this page to start the discussion.
