MYC-OCM100 High Speed Simple Model Tea Cup Machine

The MYC-OCM100 is a high speed simple model tea cup machine built for paper cup producers who need a compact, easy-to-operate forming machine for single-wall tea cups and similar hot-drink cups. It converts printed or plain paper fan blanks into finished cups through a continuous forming sequence, and it is aimed at workshops and factories that want straightforward operation, stable running and simple maintenance rather than a fully automated multi-layer line.

This page helps buyers judge whether the MYC-OCM100 fits their cup type, paper material and target output. Confirmed machine values — including suitable paper weight, rated speed, power supply, air requirement, dimensions and weight — are listed in the Technical Specifications field. Please read that table together with the notes below, because final configuration depends on your cup drawing and material.

Typical Applications

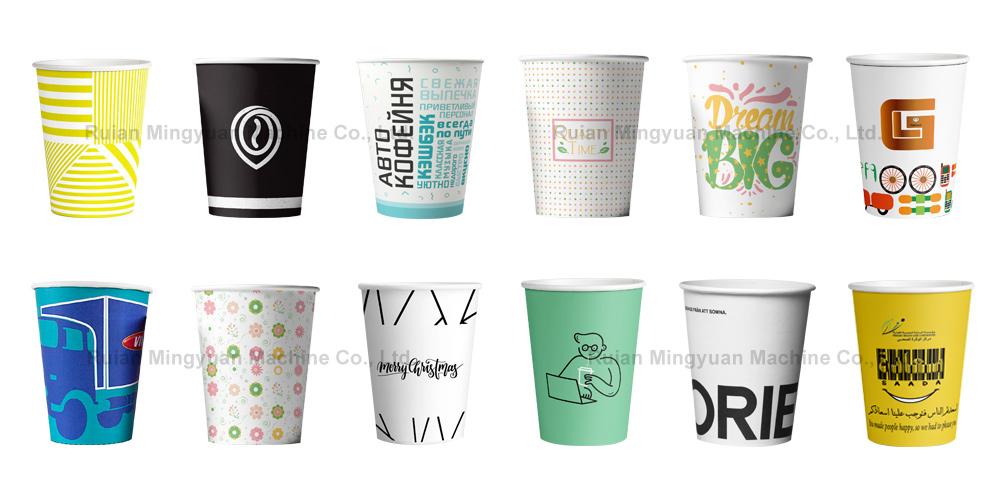

• Single-wall tea cups and hot-drink paper cups for tea shops, cafes and food service.
• Small and medium cup sizes used for tasting, sampling or portioned beverages.
• Plain or printed paper cups where a simple, reliable forming machine is preferred over a complex line.
• Start-up or expanding paper cup workshops that need a compact machine footprint.

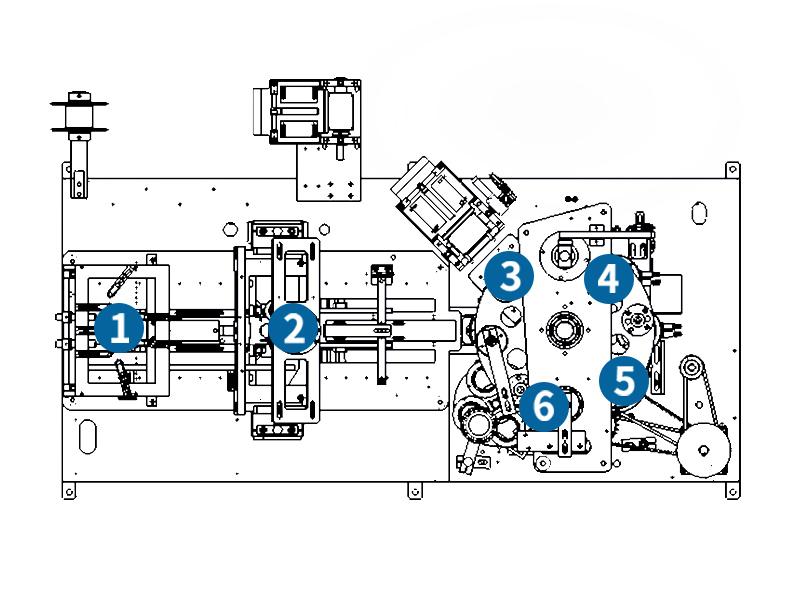

Machine Structure and Working Principle

The machine forms cups from paper fan blanks. The blank is fed into the forming section, the cup body is wrapped and sealed, the bottom is inserted and sealed, and the finished cup is discharged. The MYC-OCM100 uses an open CAM drive and a full gear transmission system, which supports accurate and stable movement of the forming stations.

Configuration Highlights

• PLC control system for coordinated machine operation.
• Sensor fault detection system — when a problem is detected, the machine stops automatically, which supports safer operation.
• Automatic oil lubrication system to support smooth running and reduce manual maintenance attention.
• Servo motor for controlled motion of the forming process.
• Open CAM drive and full gear transmission for accurate, stable running.

These features describe the machine as supplied. Optional items, sealing method details and any additional equipment should be confirmed against your cup sample before ordering.

Selection Variables Buyers Should Confirm

What to Send for Matching

To confirm the correct configuration, please send your cup drawing or a physical sample with top diameter, bottom diameter and height; the paper type, coating and GSM; your target output per minute; your available voltage and frequency; your air supply; and your workshop layout and packing requirement. With these details, the machine configuration and mold set can be matched to your cup.

Related Equipment and References

If your project also covers bowls or larger containers, you can review the MYC-DB120 Double Turn Plate Paper Bowl Machine. For buyers who want to see the machine running before deciding, the MYC-OCM100 Simple Model Paper Cup Machine Operation Video shows the forming process in practice. A full overview of available models is available in the Paper Cup Machine Catalog.

Next Step

Send your cup sample details through the inquiry form on this page, or contact us on WhatsApp, and our team will confirm the suitable configuration, mold set and quotation for your tea cup project.
