Customized MYC-OCM12 Paper Cup Machine for 12 oz Cups in the USA

A non-standard high configuration built around 320 GSM paper, 18 GSM PE, and reinforced side-seam and bottom sealing.

12 oz Single-wall beverage cup, approximately 360 ml

320 + 18 320 GSM paper with 18 GSM PE coating

80-100 Confirmed MYC-OCM12 running speed in pcs/min

3 added Hot-air guns for reinforced sealing

Application Brief

A 12 oz Cup Built Around a Heavy Paper Structure

The U.S. customer required a firm single-wall beverage cup for use in coffee shops, milk tea shops, and fast-food restaurants.

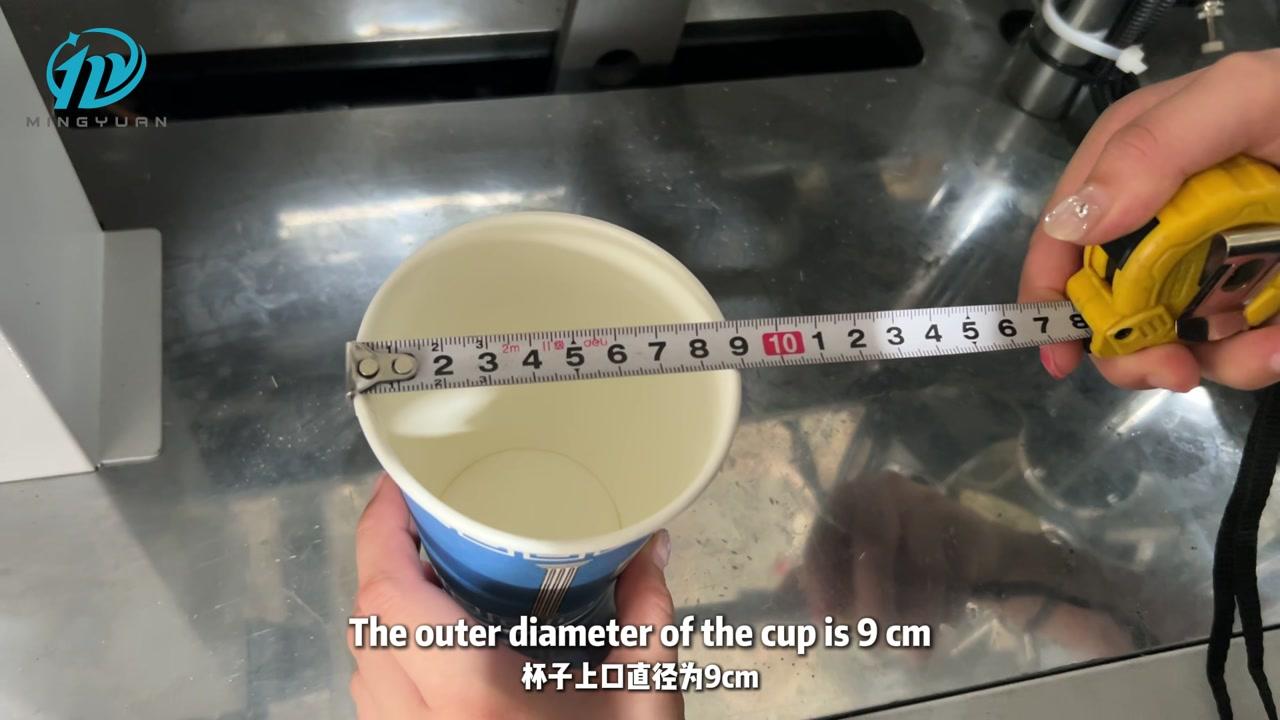

The selected 12 oz format is approximately 360 ml. Its measured dimensions are about 9 cm across the top, 11.5 cm in height, and 6 cm across the bottom. These dimensions, together with the 320 GSM paper structure, defined the forming and sealing requirements for the project.

9 cm Top diameter

11.5 cm Cup height

6 cm Bottom diameter

Customized Sealing

Why the Sealing Setup Was Adjusted: Uses Three Additional Hot-Air Guns

01 / SIDE SEAM

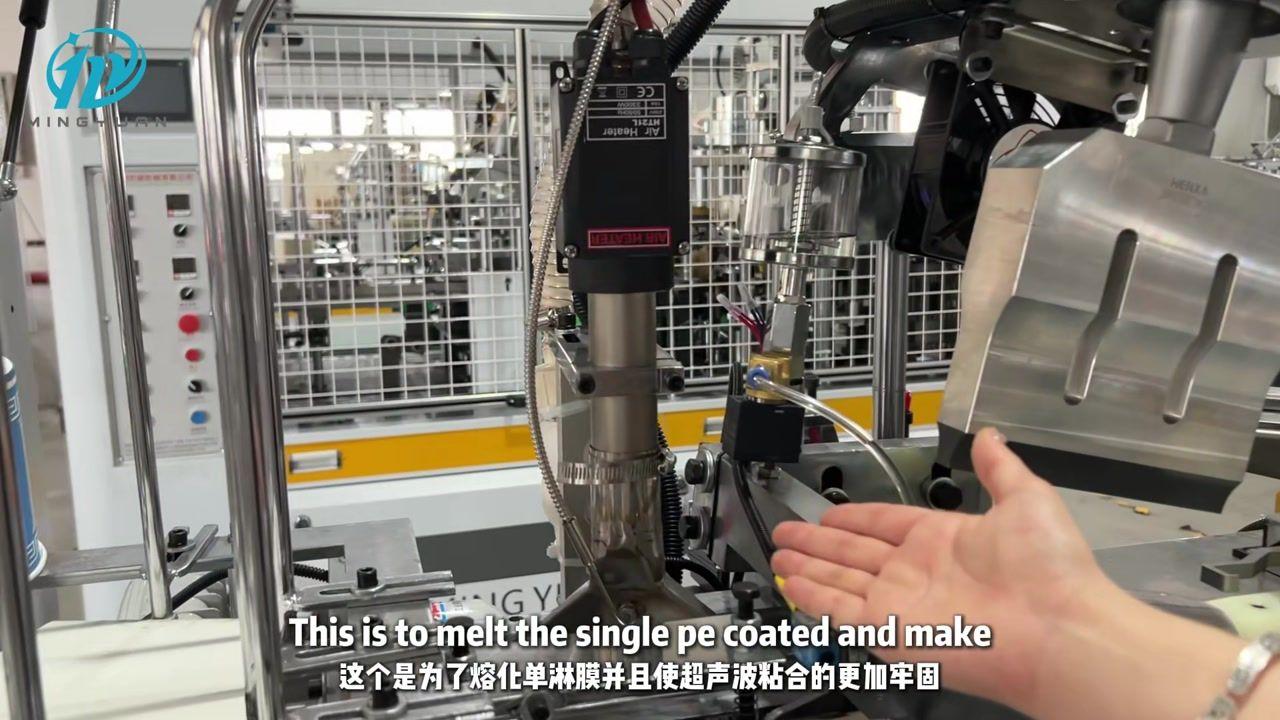

Preheating Before Ultrasonic Bonding

For 320 GSM paper with an 18 GSM PE coating, a hot-air gun preheats the side-seam area before ultrasonic bonding, helping the bonding process work more efficiently.

02 / CUP BOTTOM

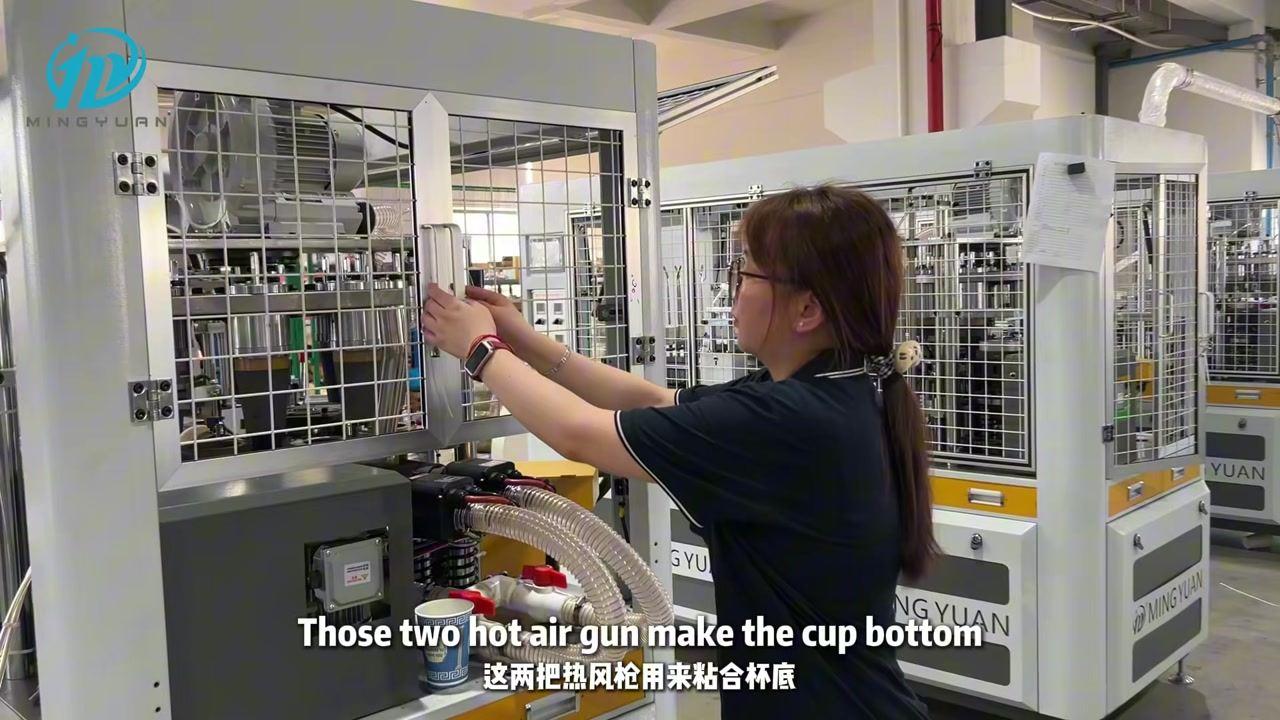

Heat Distribution at the Bottom Joint

Compared with lighter cup stock, the 320 GSM blank presents greater resistance during forming, making heat distribution at the bottom joint important.

Machine Selection

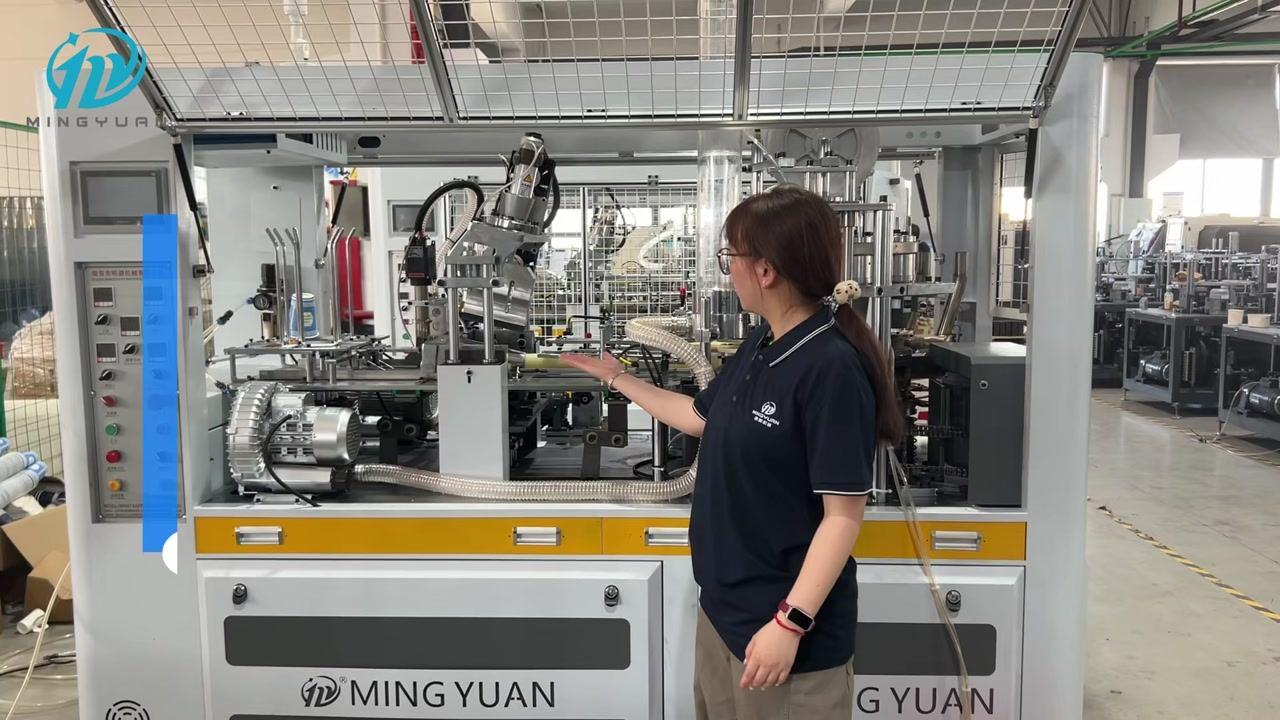

MYC-OCM12 Paper Cup Machine

This model covers the required 12 oz cup format and supports a wide range of common paper cup sizes.

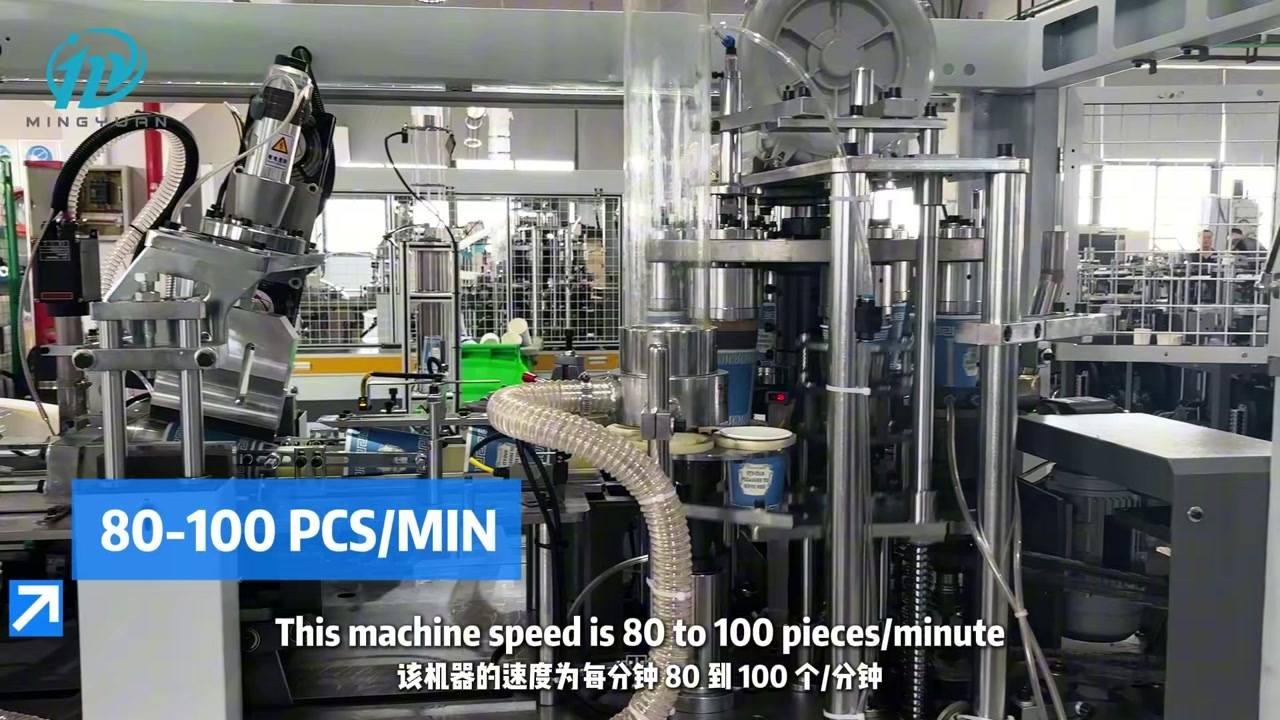

80-100 pcs/min Production speed

1.5-16 oz Cup size range

Printing Customization

Custom Printing for Branded Paper Cups

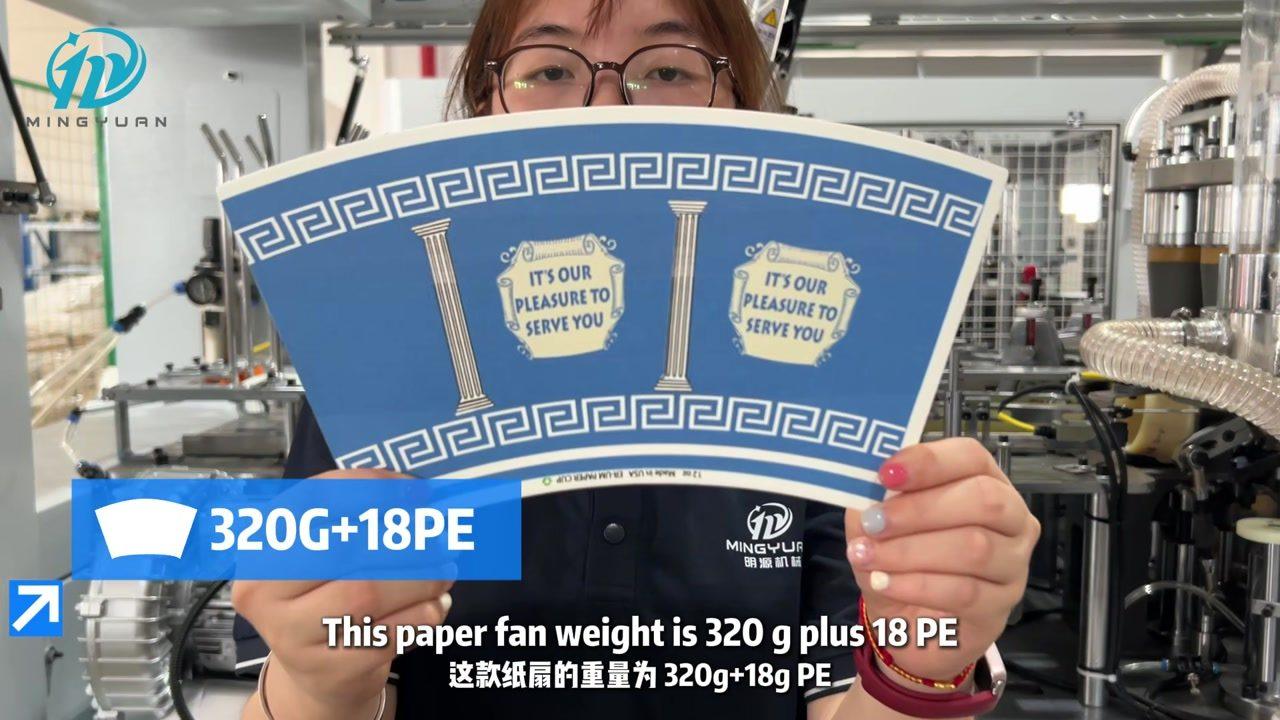

We support custom printing for paper cup projects. Logos, brand colors, text, patterns, and full-wrap artwork can be applied to the paper fan blanks before cup forming.

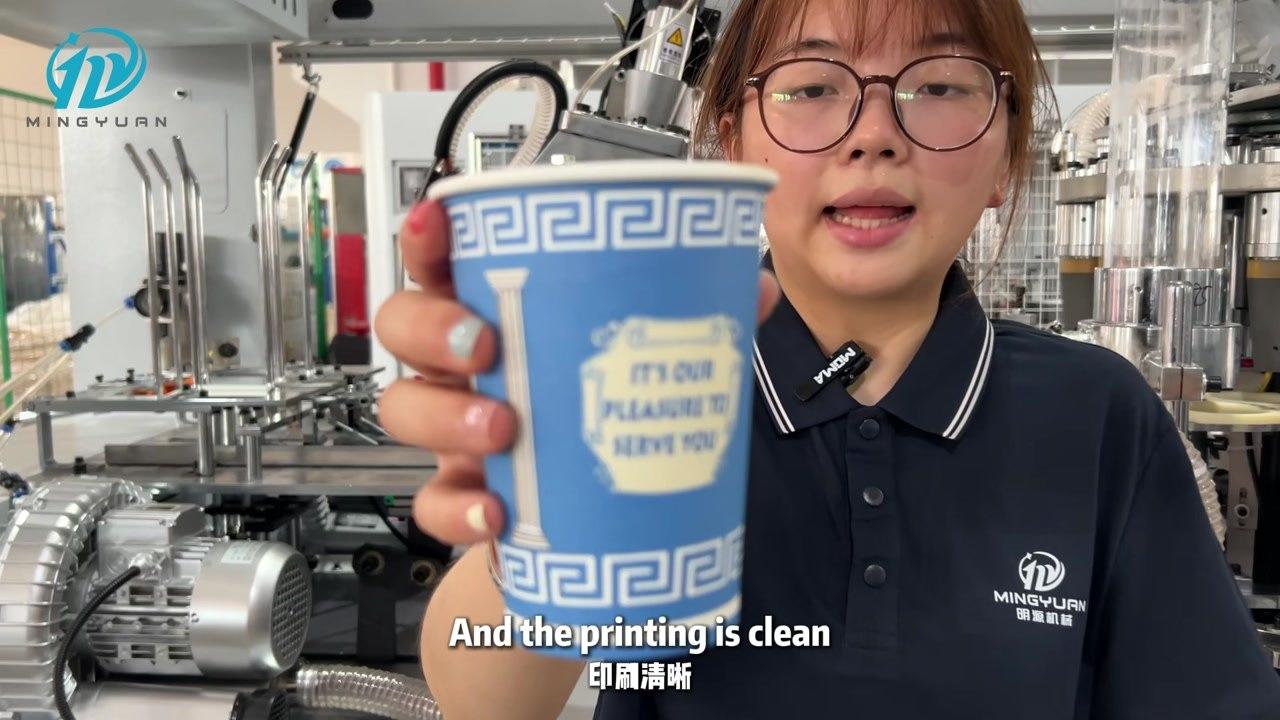

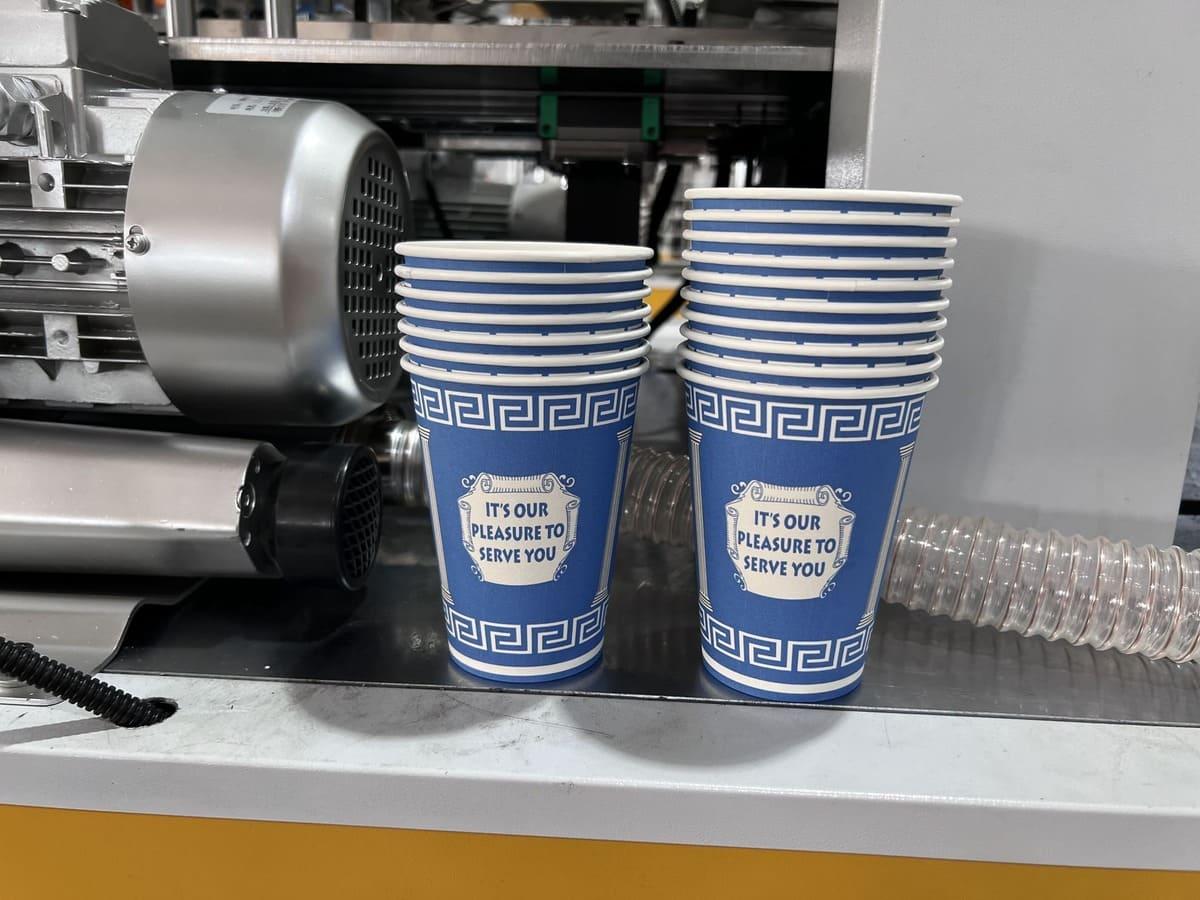

For this U.S. project, the blue full-wrap design remained clear on the finished 12 oz cups. Customers can provide their artwork or cup design so the print layout can be prepared for the selected cup format.

Customization options: logos, brand colors, text, repeating patterns, and full-wrap designs.

Recorded Verification

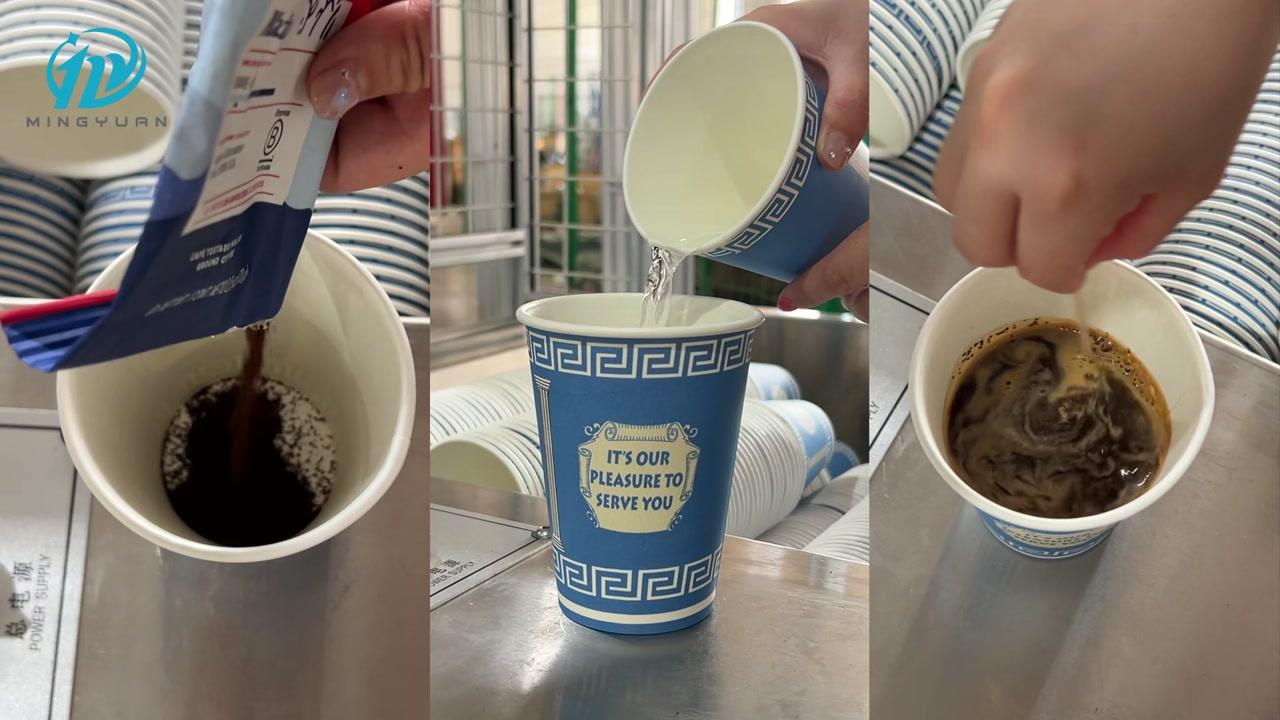

A Simple On-Site Cup Test

We filled and stirred a finished cup during a simple on-site check. The cup kept its shape, with no visible leakage or obvious deformation during the recorded demonstration.

Project Result

Custom 12 oz Cups Produced as Specified

The configured MYC-OCM12 produced completed 12 oz single-wall cups from 320 GSM paper with 18 GSM PE. The finished samples showed clear custom printing, maintained their shape during use, and showed no visible leakage in the recorded check.
