One MYC-OCM12 for 9 oz Paper Cups and H55 Ice Cream Cups in Ningbo

Two dedicated molds connect one high-configuration paper cup machine with a 9 oz single-PE cup and a wide, double-PE ice cream cup.

2 molds A mold suitable for two different cup designs

9 oz + H55 9 oz single-PE paper cups and 55 mm-high double-PE ice cream cups.

230 GSM Use 230 gsm raw material

80-100 MYC-OCM12 speed range in 80-100 pcs/min

Two Cup Formats

How Can a Single Machine Produce Two Different Cup Sizes?

With two sets of molds, the same machine can make both 9-ounce single-PE paper cups and wide-mouth double-PE ice cream cups.

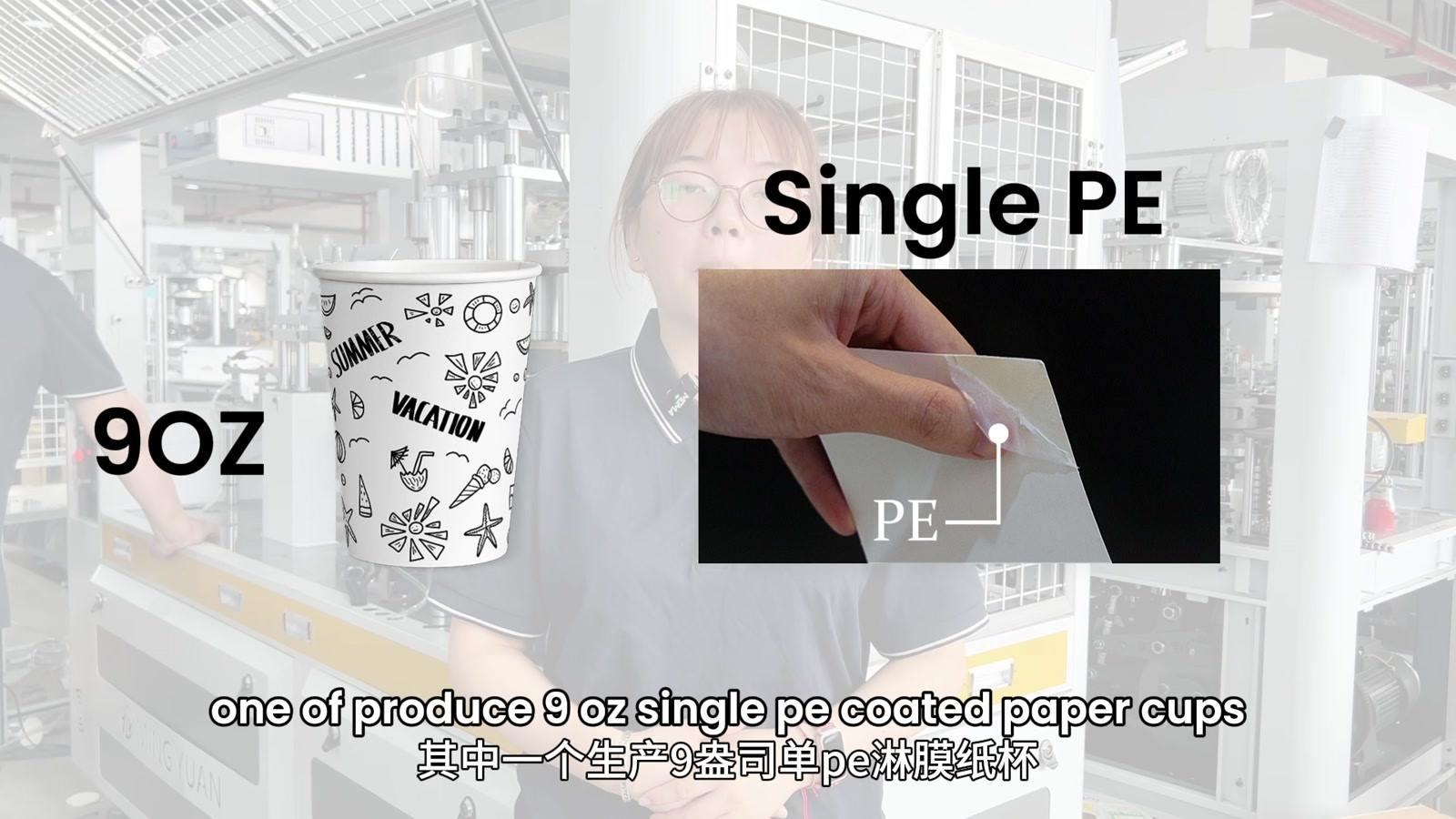

9 oz single-PE paper cup format for the MYC-OCM12

Mold 01

9 oz Paper Cup

Mold 01 produces the 9 oz paper cup shown above. The paper has a single PE coating, while the outer surface carries the printed design.

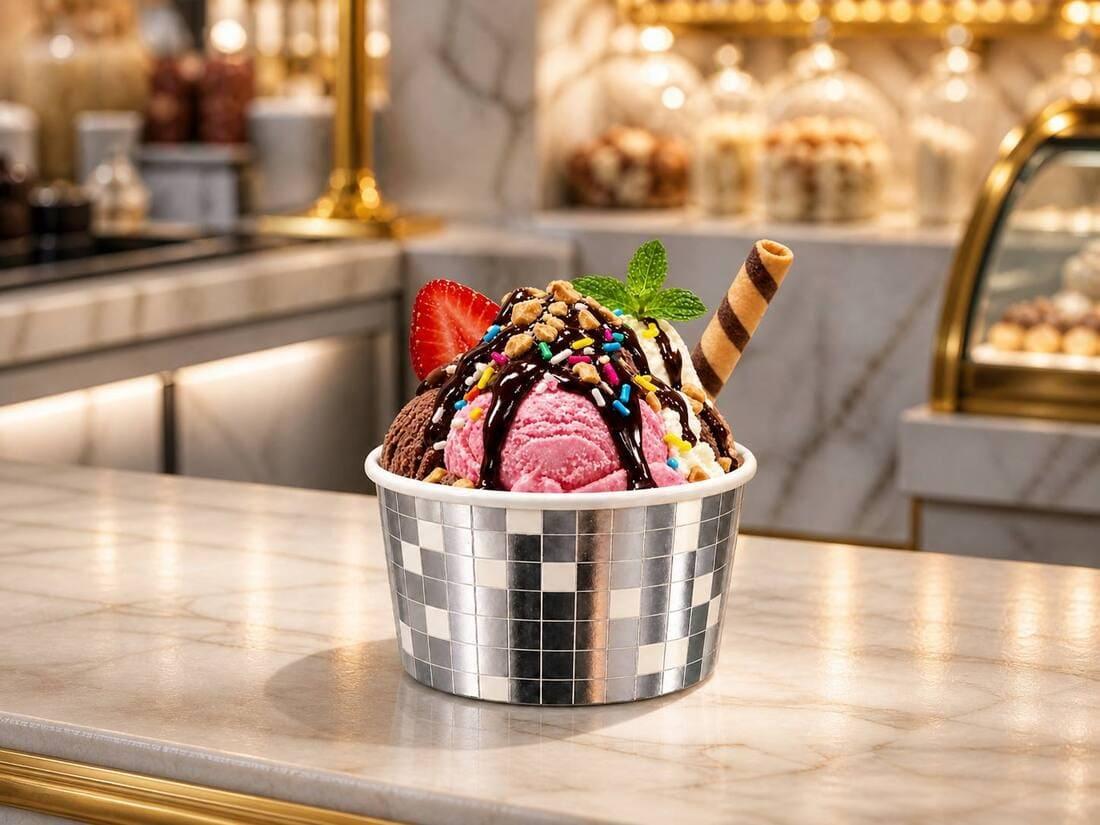

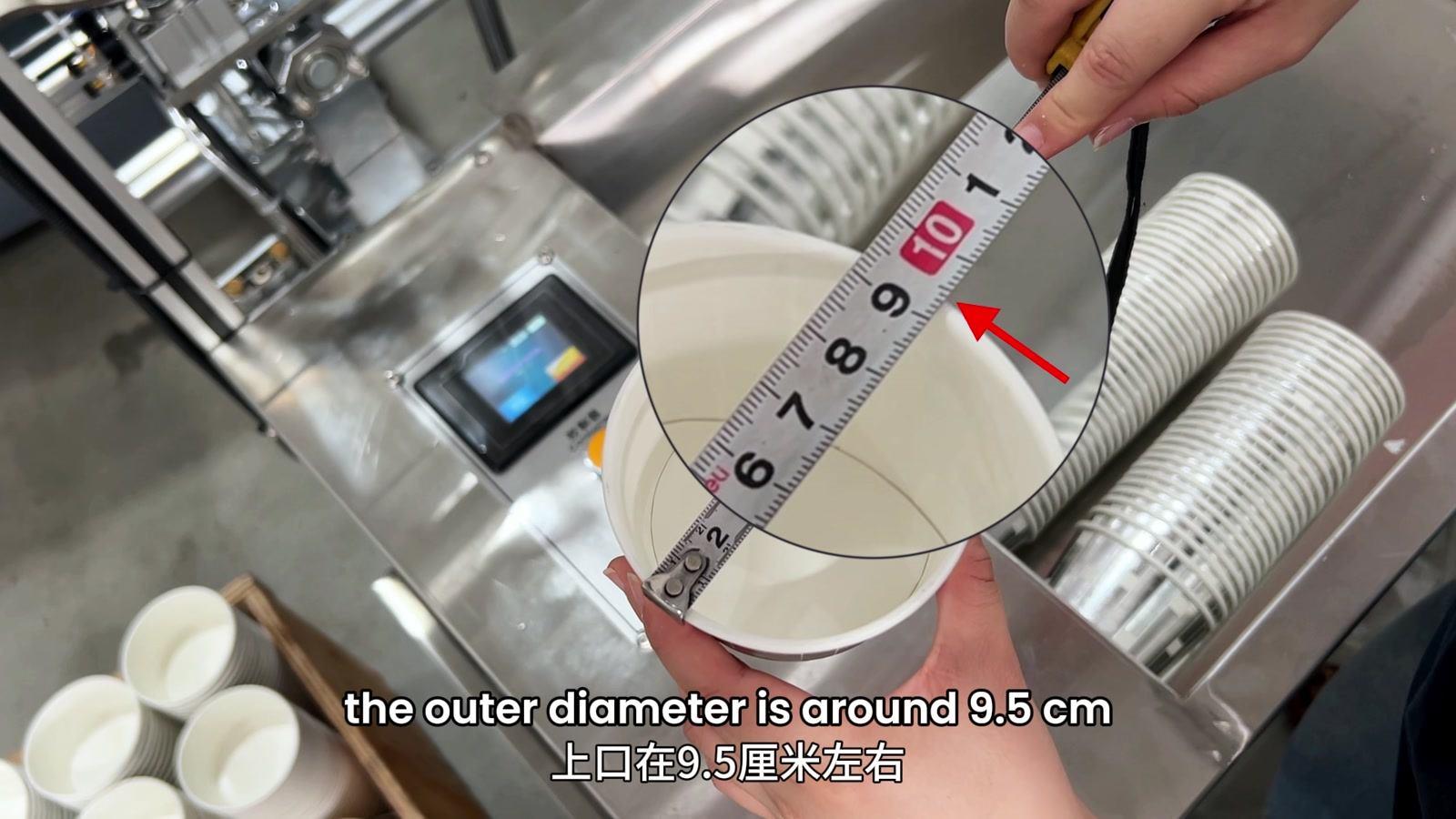

H55 double-PE ice cream cup for the Ningbo project

Mold 02

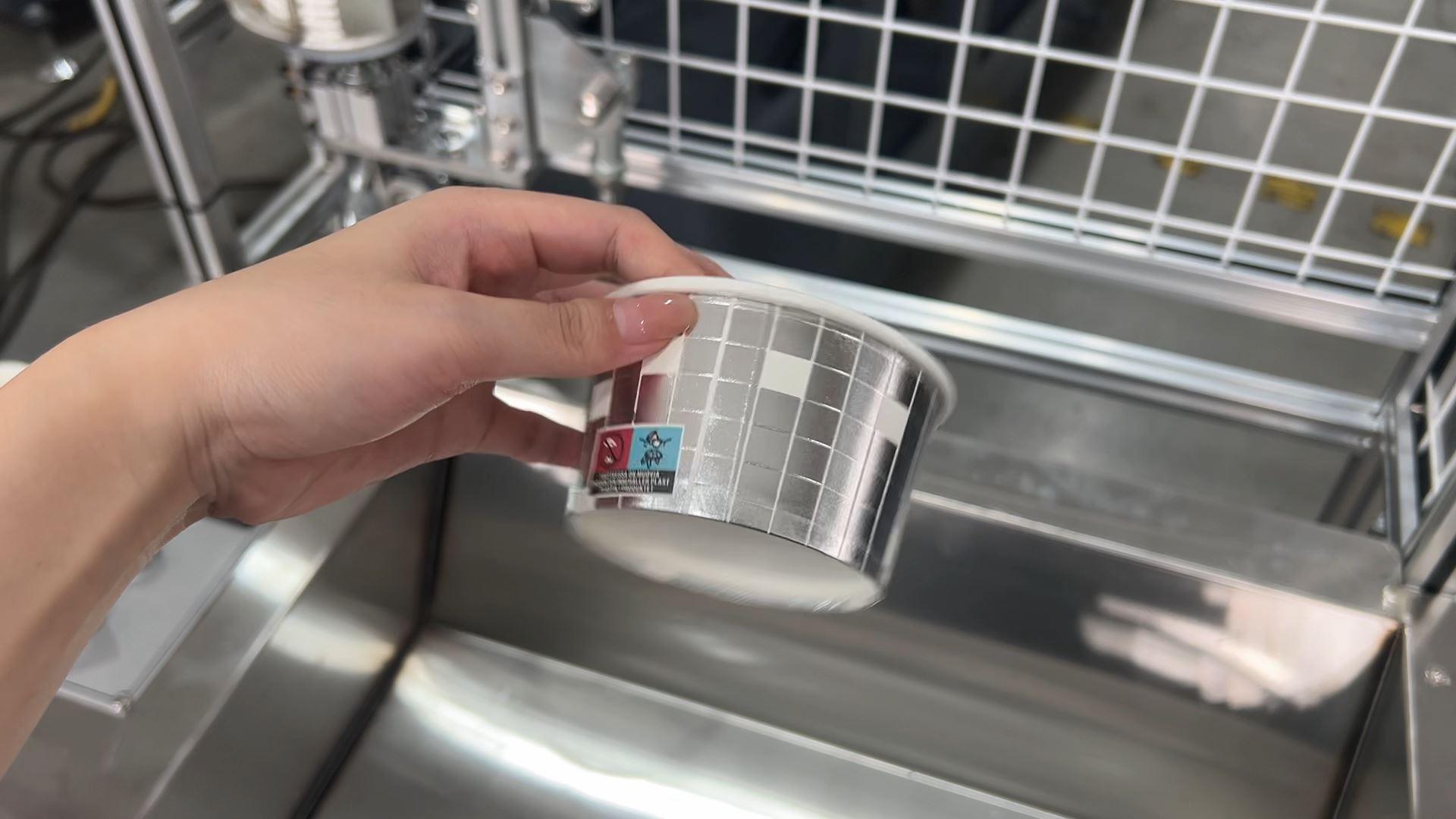

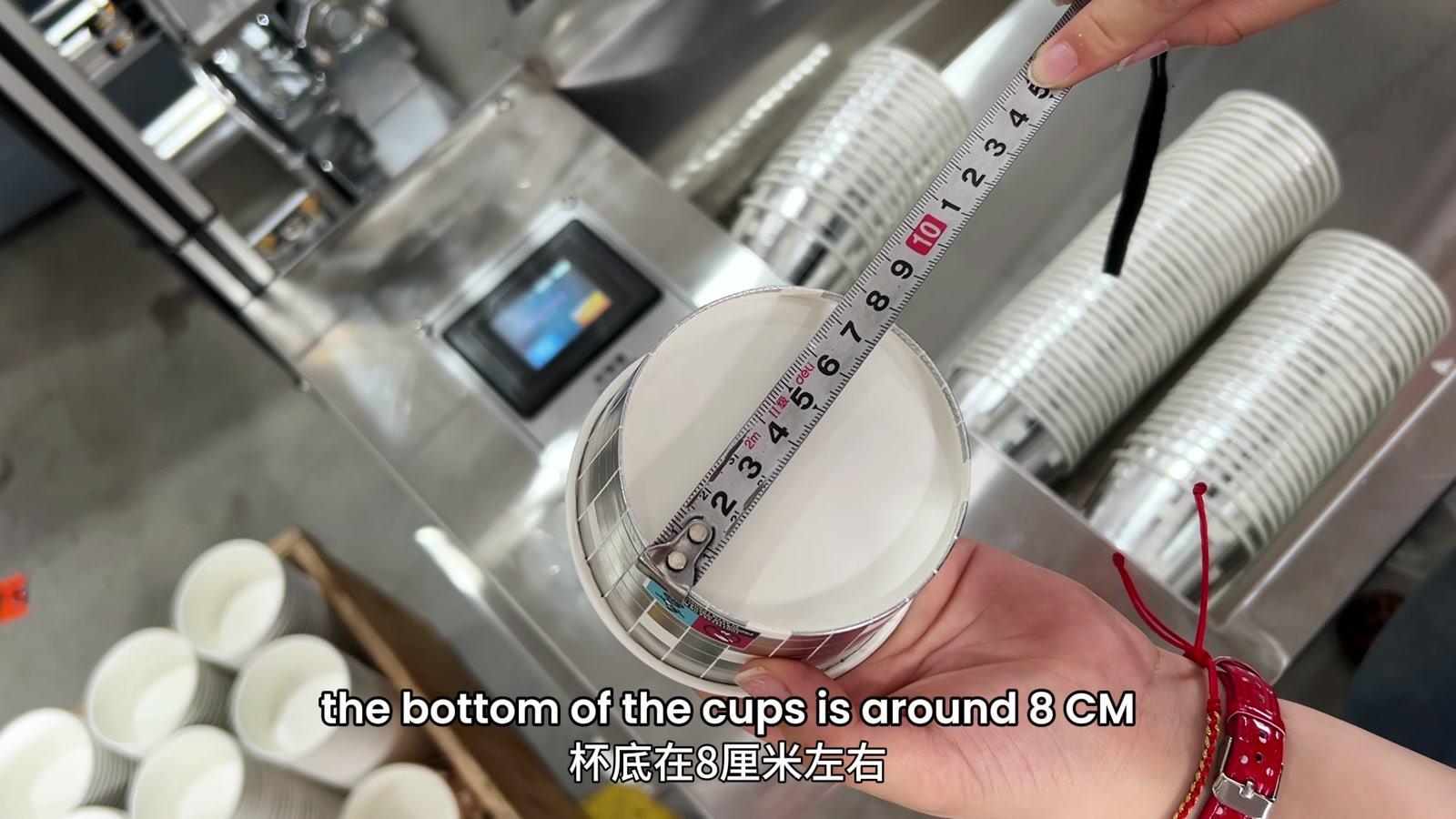

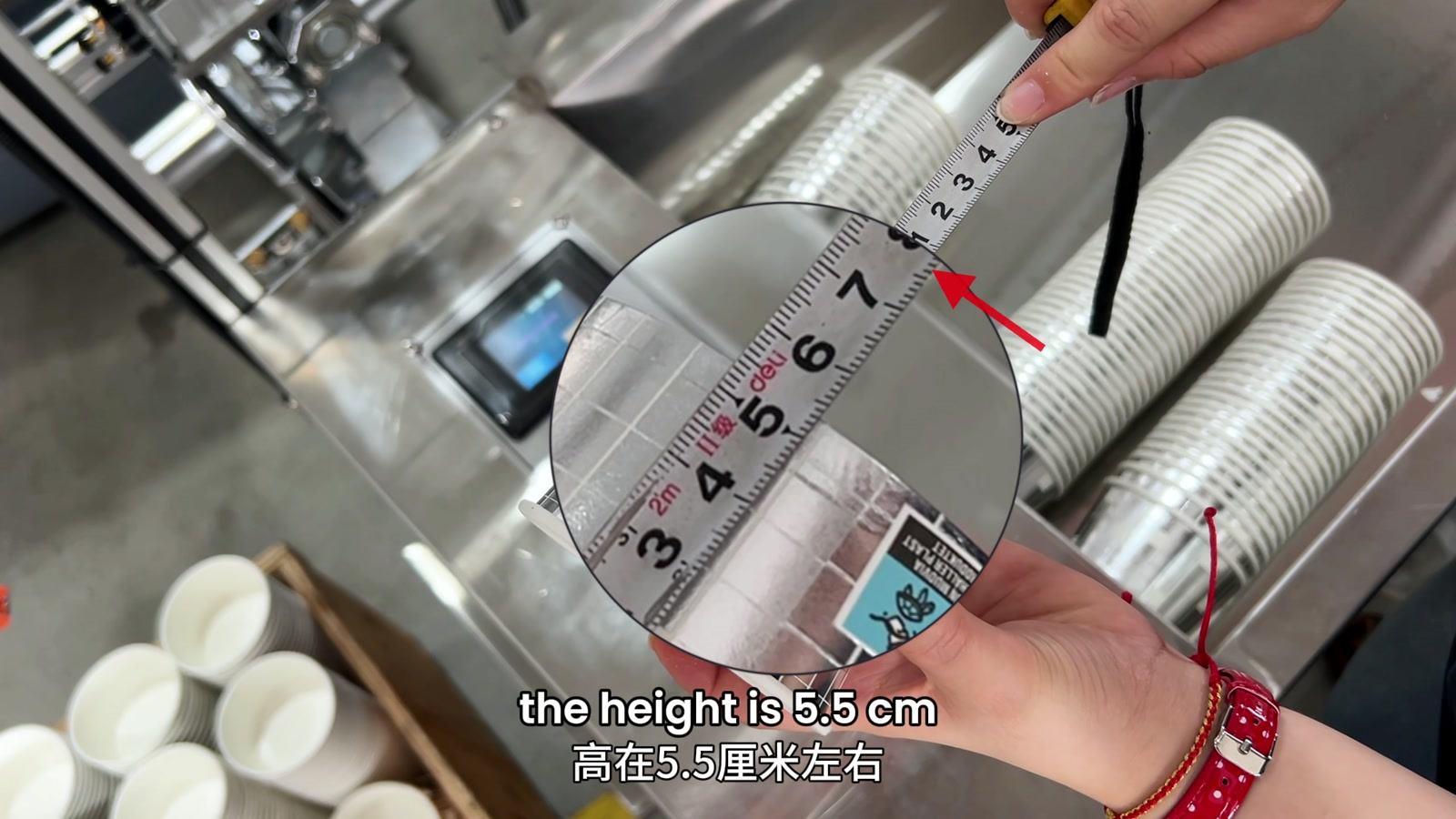

H55 Ice Cream Cup

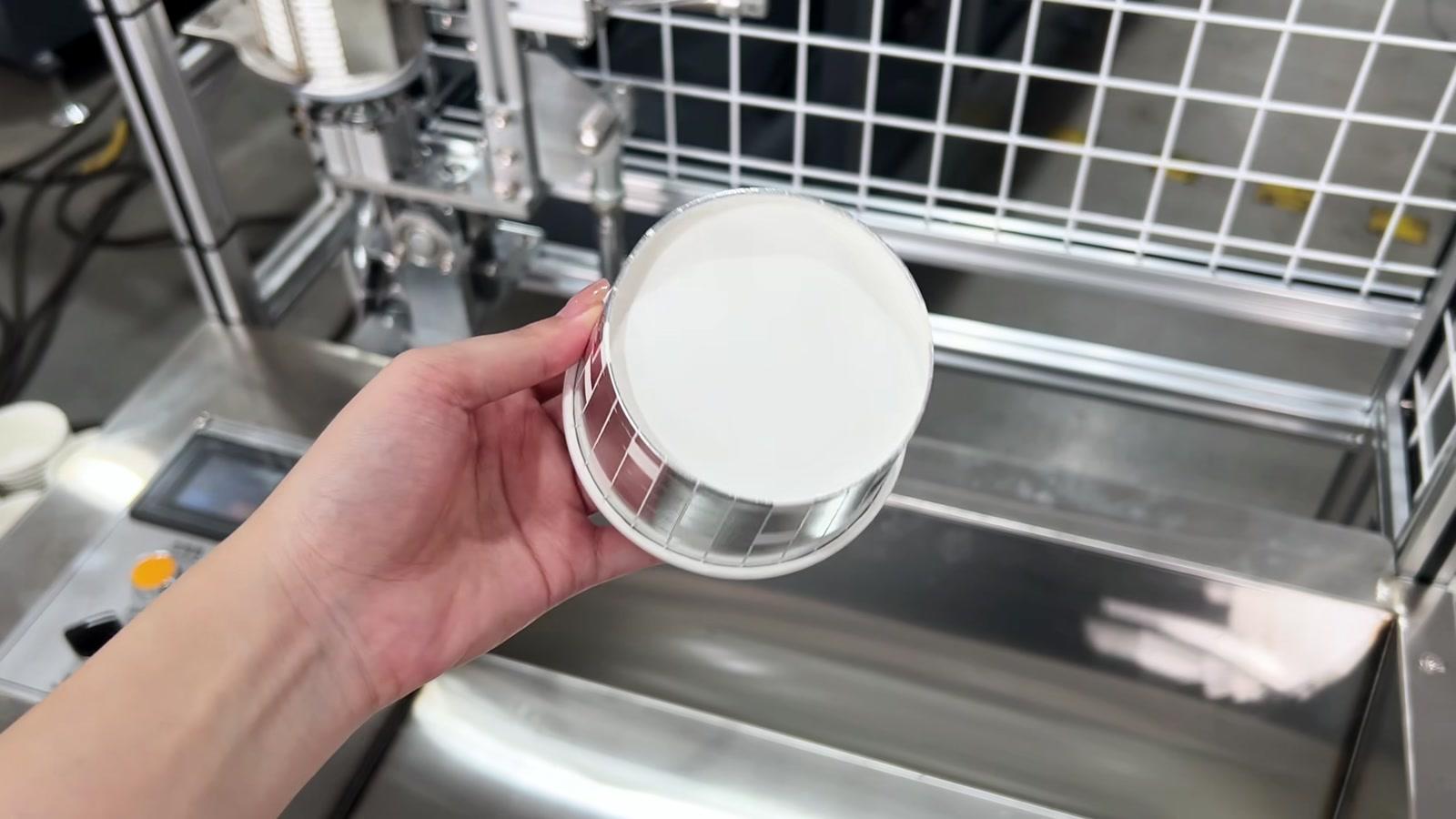

Mold 02 produces the wide, shallow H55 ice cream cup. PE coatings on both sides help protect the cup from moisture inside and condensation on the outside.

Options	9 oz paper cup	High55 ice cream cup
Coating structure	Single PE	Double PE
Tooling	Dedicated 9 oz mold	Dedicated H55 mold
Geometry	Standard opening and taller body	Wide opening and shallow body

Production note: Both cup formats run on the same machine, with a mold changeover between production runs. They are produced separately, not at the same time.

Machine Selection

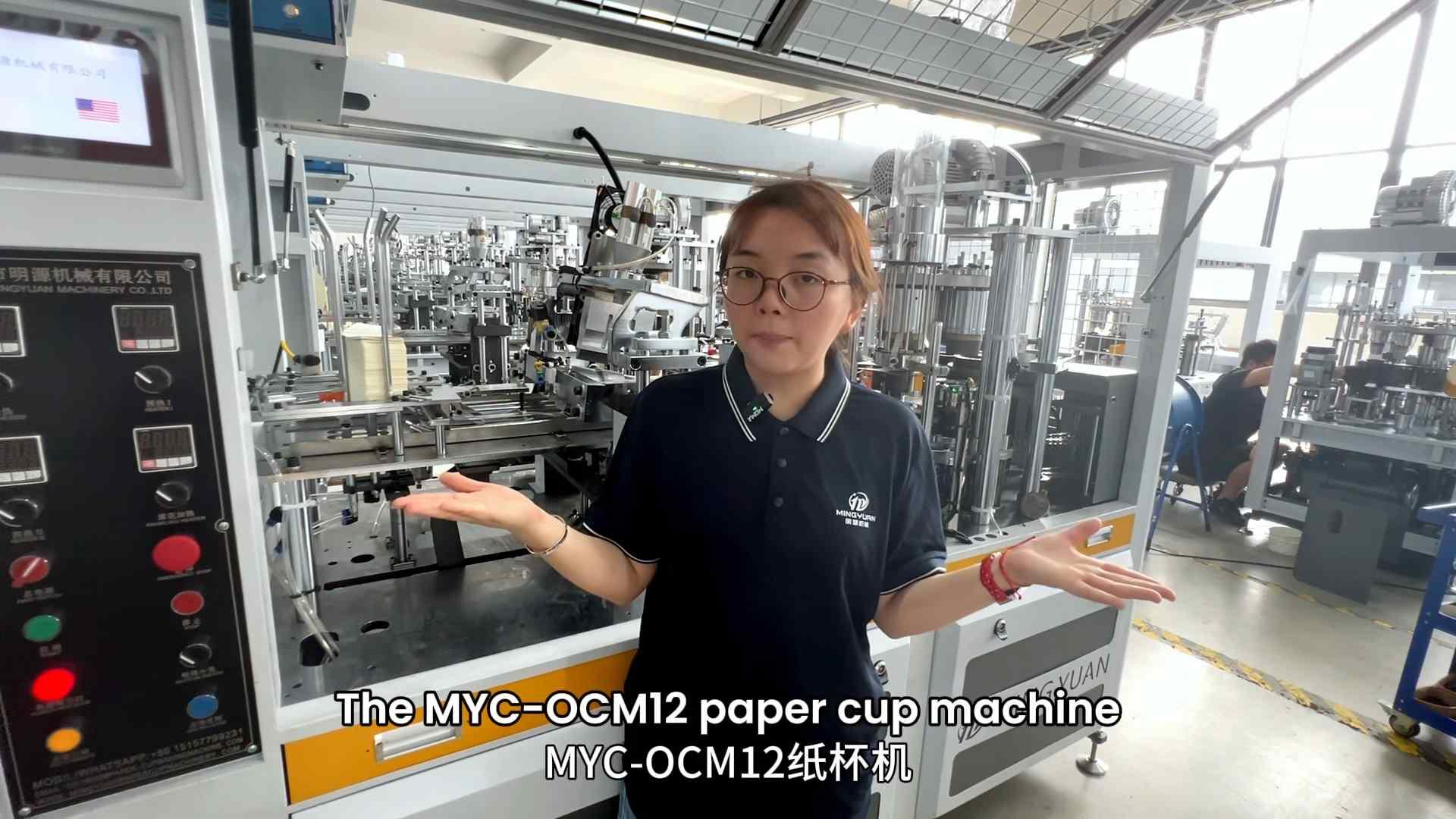

Why the MYC-OCM12 Fits this Project

The MYC-OCM12 can be fitted with a dual-coating unit and supports quick mold changeovers for different cup sizes. This allows one machine to switch between paper cup and ice cream cup production in separate runs. With an output of 80 to 100 cups per minute, it also meets the required production volume.

80-100 pcs/minConfirmed speed range

1.5-16 ozEstablished MYC-OCM12 cup range

Printing Process Display

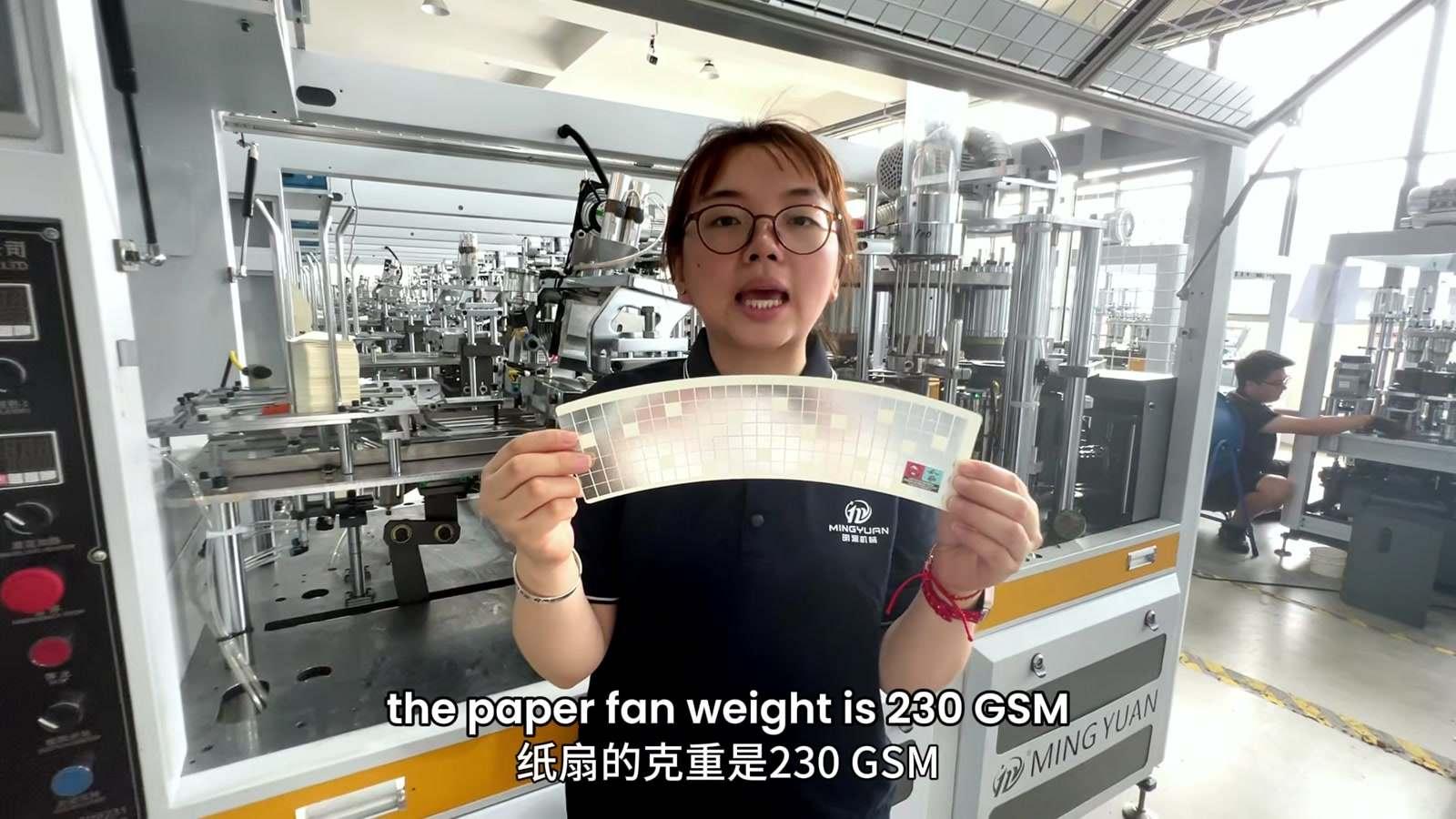

Full-Surface Silver Foil Stamping

The paper fan shown in this project uses full-surface silver foil stamping.

Custom Finishing OptionsWe support a range of customized printing and finishing processes, including gold foil stamping, silver foil stamping, and other decorative effects.

Production Process
