MYC-120 Paper Cup Machine with MYC-DW120 Cup Sleeve Machine Solution

MYC-120 paper cup machine with MYC-DW120 paper cup sleeve Machine and cup collection table Solution Catalog

Integrated Double-Wall Paper Cup Production Solution

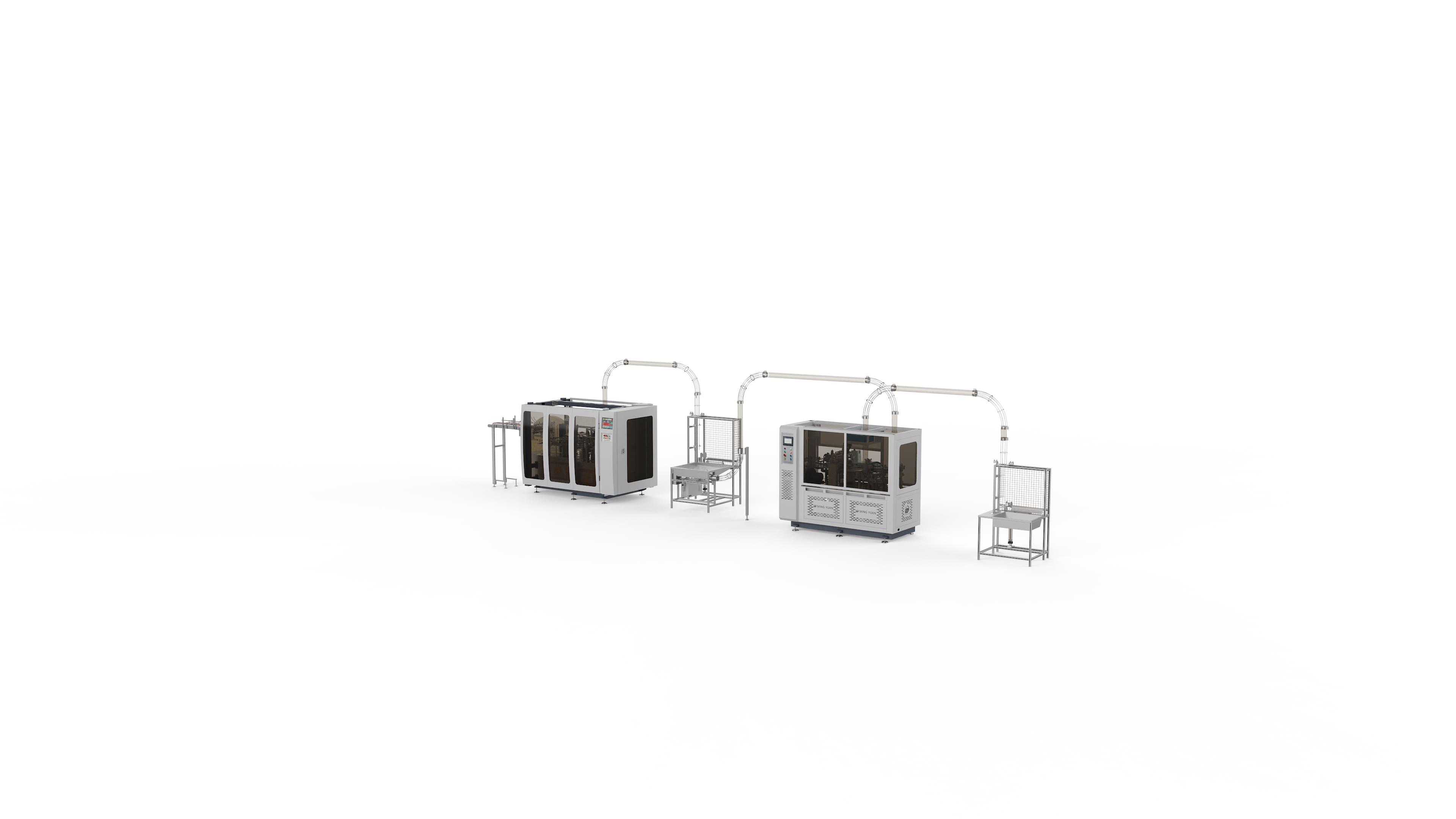

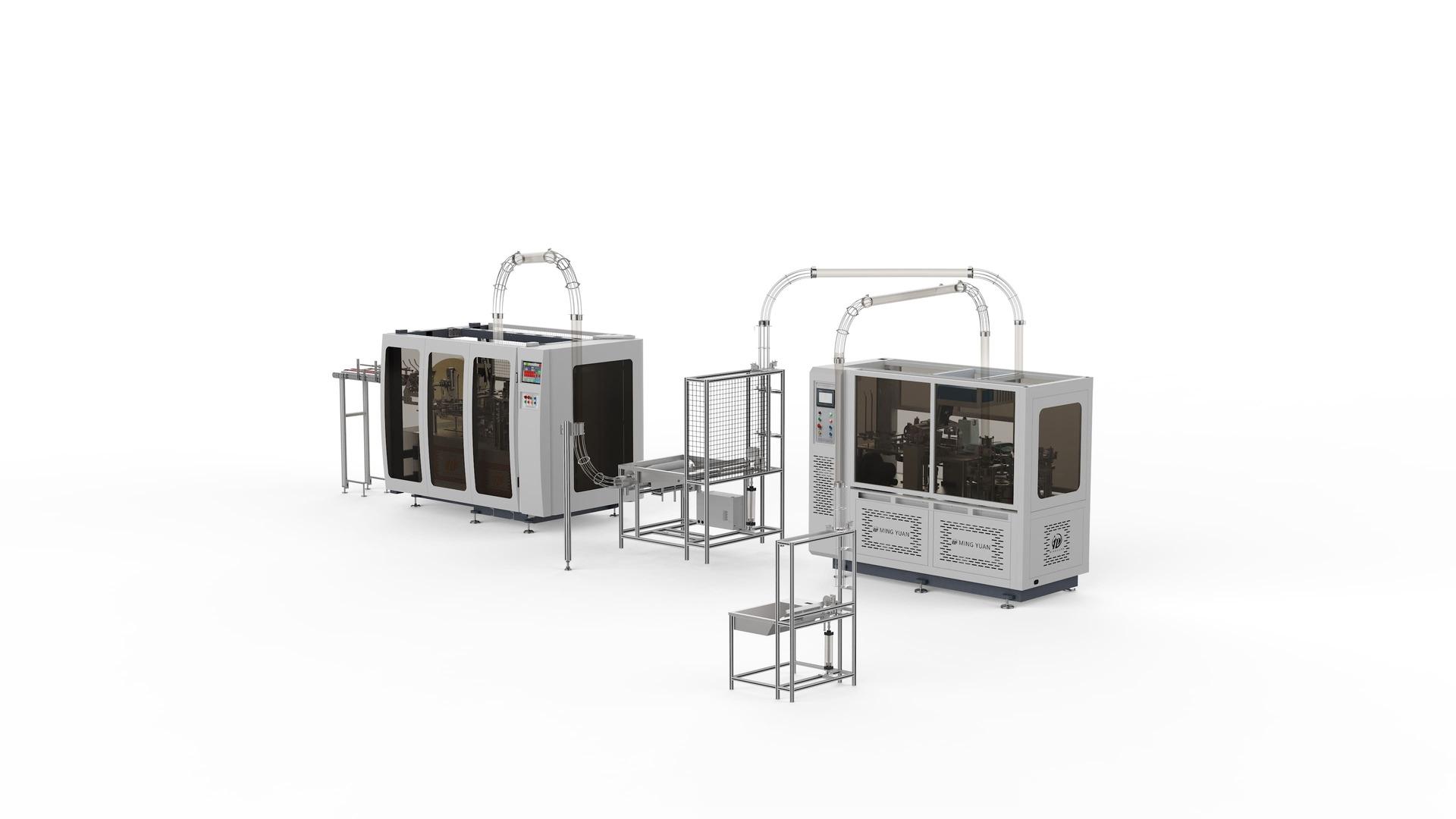

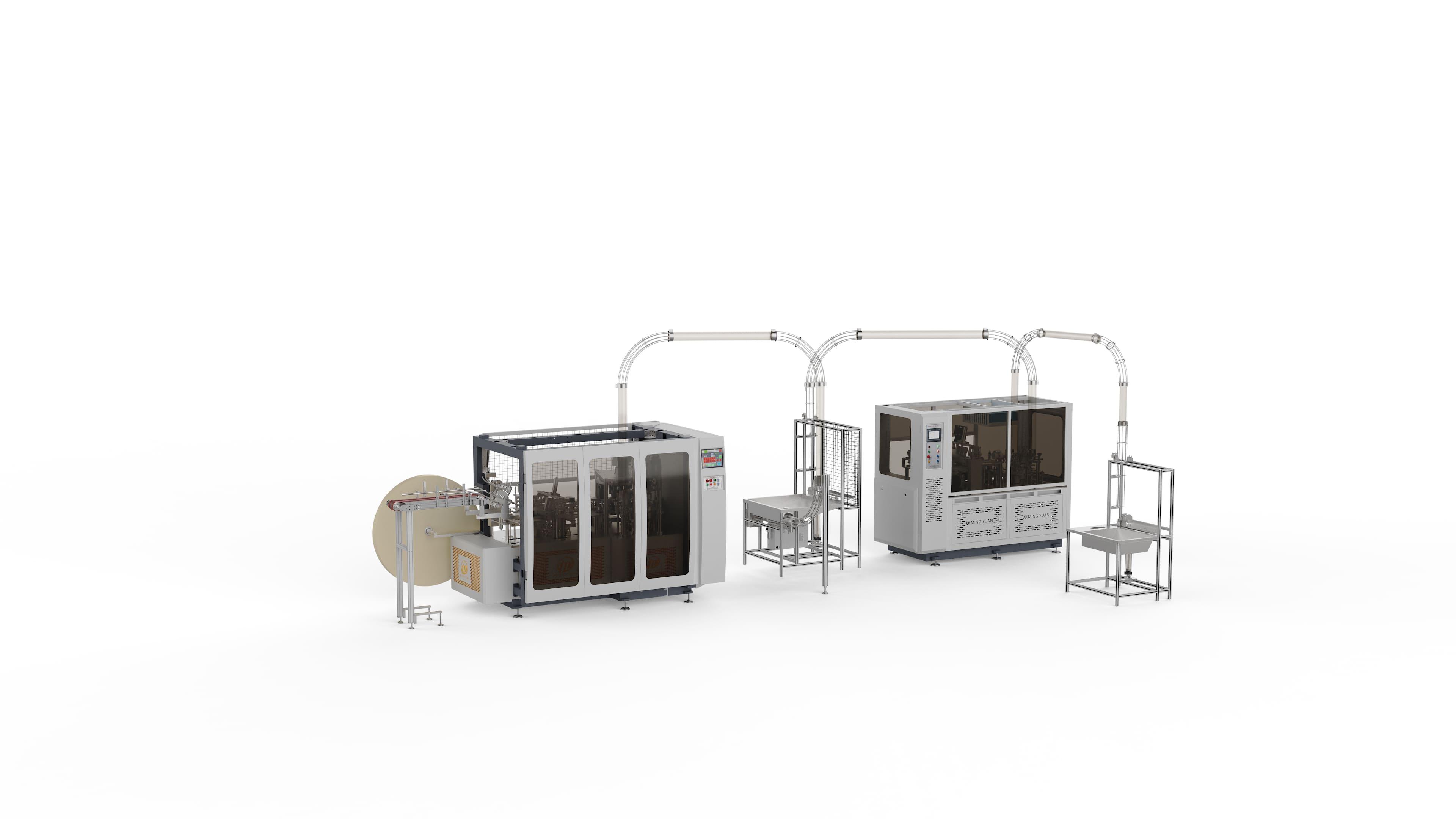

This solution combines the MYC-120 Fully Automatic Paper Cup Machine with the MYC-DW120 Cup Sleeve Machine and a cup collection table, creating a streamlined production line for double-wall paper cups. It is designed for manufacturers who need to produce insulated paper cups efficiently, from cup body forming to sleeve application, in a continuous process.

System Components and Workflow

The line is built around two core machines that work in sequence:

• MYC-120 Paper Cup Machine: Handles the primary cup forming process. It manages paper feeding, cup body sealing, bottom forming, and top curling automatically. This machine is engineered for stable, continuous operation across a range of cup sizes.
• MYC-DW120 Cup Sleeve Machine: Operates in tandem with the MYC-120 to automatically form and apply the outer sleeve. It ensures a precise fit, enabling seamless integration between the cup body and sleeve. This process produces double-walled cups that offer improved thermal insulation and a better user experience.
• Cup Collection Table: Positioned downstream to receive finished cups, facilitating organized collection and preparation for packing.

Configuration and Project Preparation

To ensure a correct match for your production needs, please provide the following information when making an inquiry:

• Detailed cup drawing or physical sample, including top/bottom diameter and height.
• Target cup size range (e.g., 4oz, 8oz, 12oz, 16oz).
• Material specifications: paper type, GSM, and coating (e.g., single/double PE, PLA, or plastic-free paper).
• Required output speed and operating hours.
• Site utilities: available voltage/frequency and air supply specifications.
• Workshop layout and space constraints.
• Packing requirements for the finished cups.

For detailed technical parameters such as rated speed, cup size range, paper weight, and power requirements, please refer to the Technical Specifications section on this page. Final configuration and output will be confirmed based on your specific cup design and material.

To explore other related solutions or see this line in action, you can review our paper bowl machine options or watch the MYC-120 and MYC-DW120 connection video.

For a complete project proposal and pricing, please use the inquiry form or contact us via WhatsApp. Our team will assist you in configuring the right solution for your factory.
