16oz & 22oz Double Wall Milk Tea Cup Production Line in Vietnam

Client Background：

This client from Vietnam operates several milk tea and beverage chain brands. With the continued growth of their store network, they sought to establish an in-house paper cup production line to reduce long-term procurement costs, stabilize their paper cup supply cycle, and enhance their brand image.

The client's core requirements were: in-house production of 16oz and 22oz double-walled hollow milk tea cups with a crisp, scald-resistant design, and high production efficiency.

Customer needs：

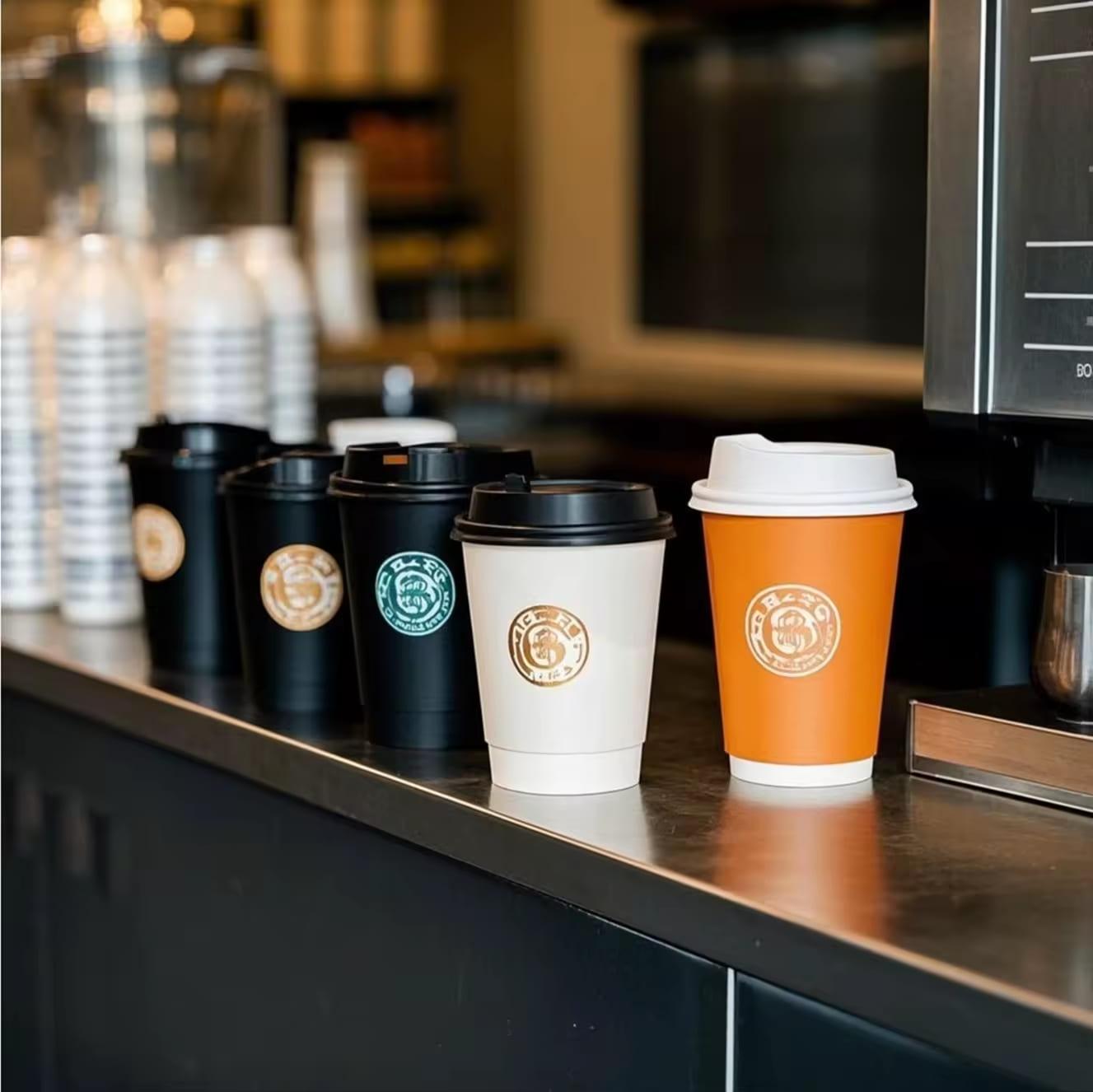

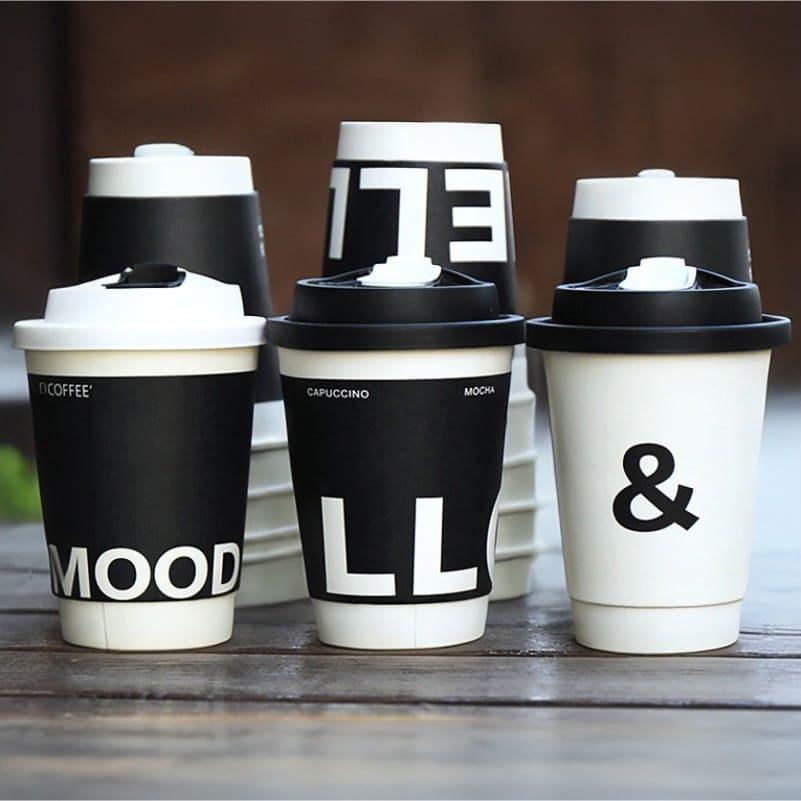

• Cup Sizes: 16oz & 22oz Double Wall Cup (Hollow Milk Tea Cup)
• Production Requirements: 80,000–100,000 units per day per line
• Production Goal: Automated continuous production, from inner cup molding to packaging
• Finished Product Requirements: Stable anti-scalding structure, rounded rim, and clear printing

Solutions provided by Mingyuan Machinery：

Based on the customer's production target and cup shape requirements, we customized a complete double-layer paper cup production line configuration solution, including the following equipment:

Process	Device Model	Main Features	quantity
Inner cup molding	MYC-120 Paper Cup Machine	Production of single-layer inner cups	2
Double Wall paper cup forming	MYC-DW120 Wall paper cup machine	Add a single-layer paper cup and an outer cup paper cup fan to form a double-layer paper cup	2
Paper cup packaging	MY-800 paper cup packaging machine	Packing the formed double wall paper cups	1

Advantages of the whole line:

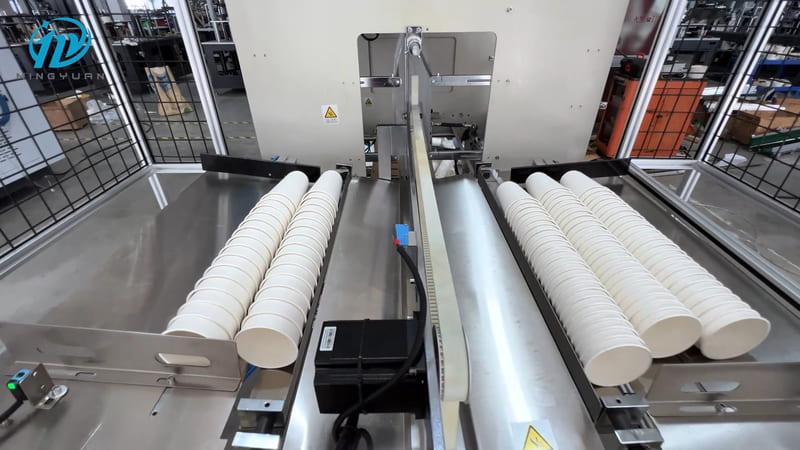

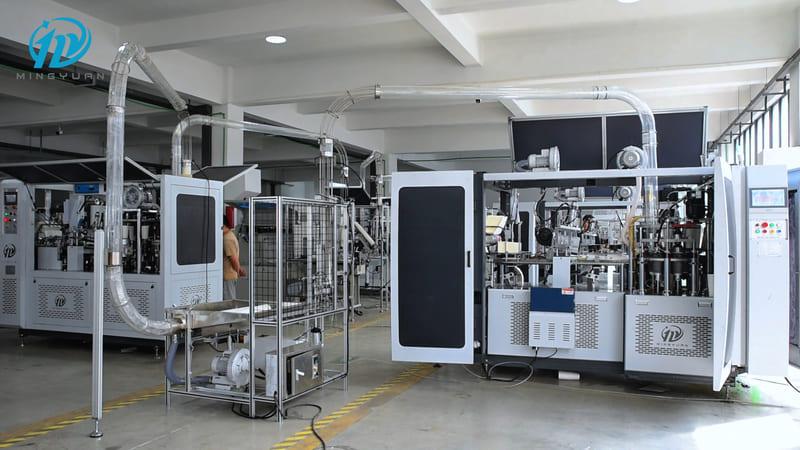

Efficient, integrated production: The MYC-120 and MYC-DW120 machines achieve precise integration through an automated conveyor system, enabling truly unmanned production from inner cups to double-walled cups.

Based on the cup size, the 16oz and 22oz production lines operate independently without interfering with each other, ultimately connecting to the MY-800 sling-type packaging machine for automated sorting and packaging, ensuring a highly efficient and stable process.

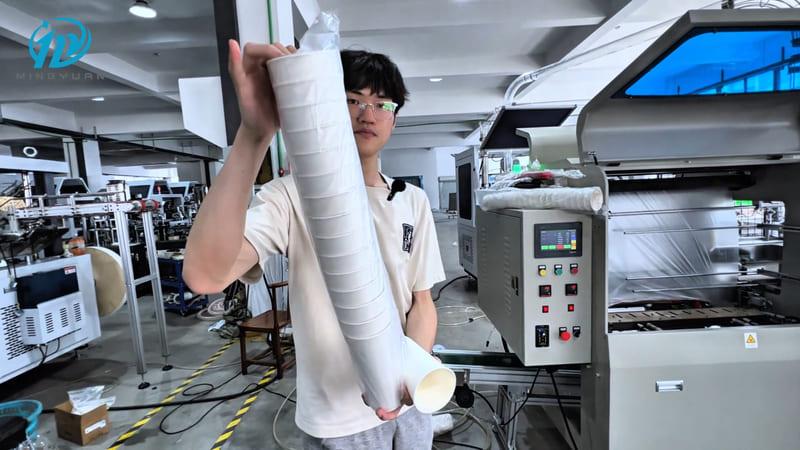

Intelligent packaging system: The MY-800 packaging machine realizes automatic counting and sling bagging, which is convenient for transportation and storage.

The automated double-layer paper cup production line consisting of MYC-120+MYC-DW120+MY-800 significantly reduces the procurement cost of finished paper cups, achieves a stable self-supply of paper cups for the store, and improves overall operational efficiency.
