MYC-120 Paper Cup Machine and DW120 Paper Cup Sleeve Machine Solution In Uzbekistan

Full Sleeve Double Wall Cup Case Study

Technological Case Study

Full Sleeve Double Wall Cup Solution in Uzbekistan

This production system is specifically designed for Uzbekistan to produce full-coverage sleeves for double-walled paper cups.

Background

Customer Profile

The customer, a paper cup supplier in Kazakhstan, already serves a stable client base in the local market. To support business expansion and higher production demand, They are building a production line for 11oz double-walled paper cups and want the outer layer to completely cover the inner layer.

Key Requirements

Specific Needs

✓ Double-walled Cup Production

✓ The outer sleeve fully covers the inner cup

✓ High-speed operation

✓ Automated Production

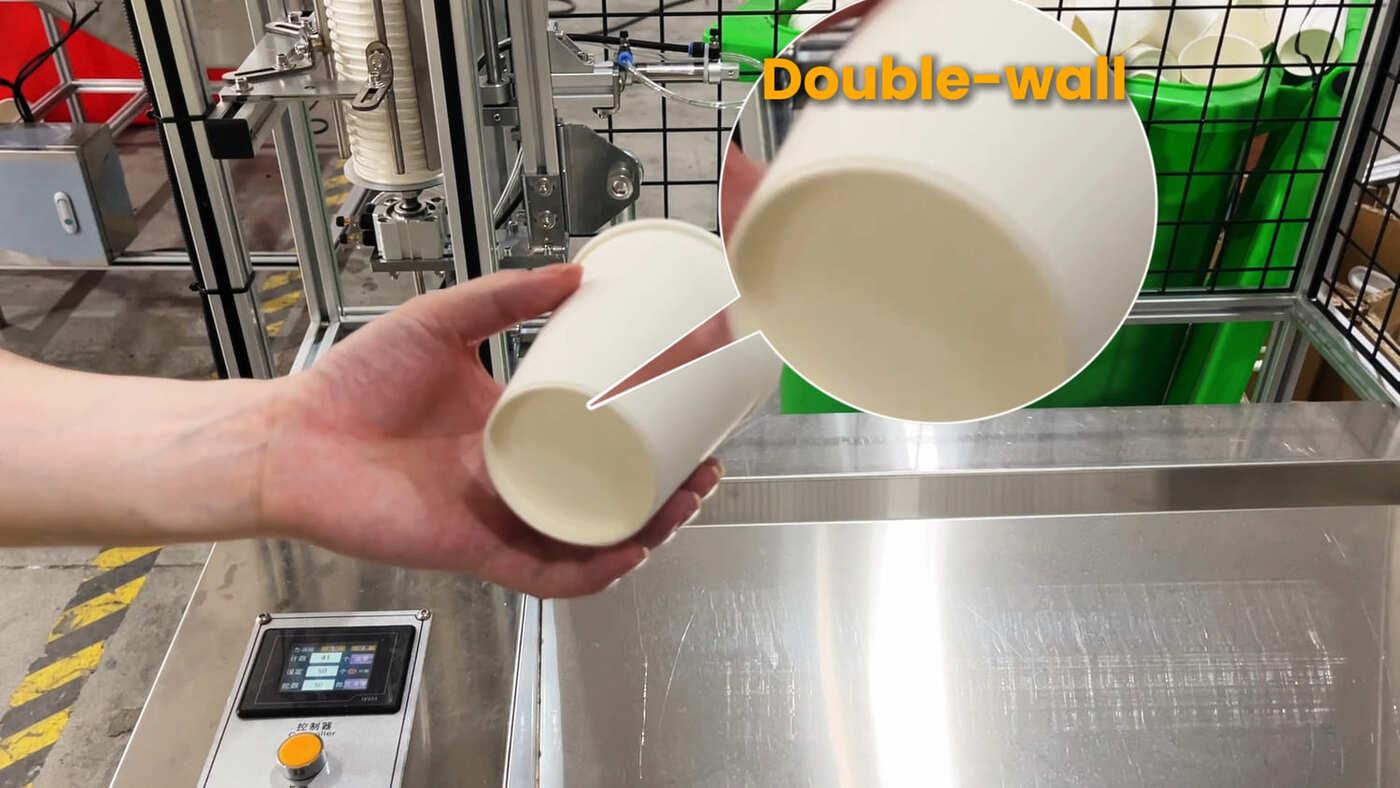

Double-walled cups Comparison

Hollow Cup

The sleeve does not fully cover the inner cup. There is a gap between the inner cup and the cup sleeve.

Directly Attached Cup

The sleeve fully covers the inner cup. The inner cup and the cup sleeve are directly bonded together, with no gaps.

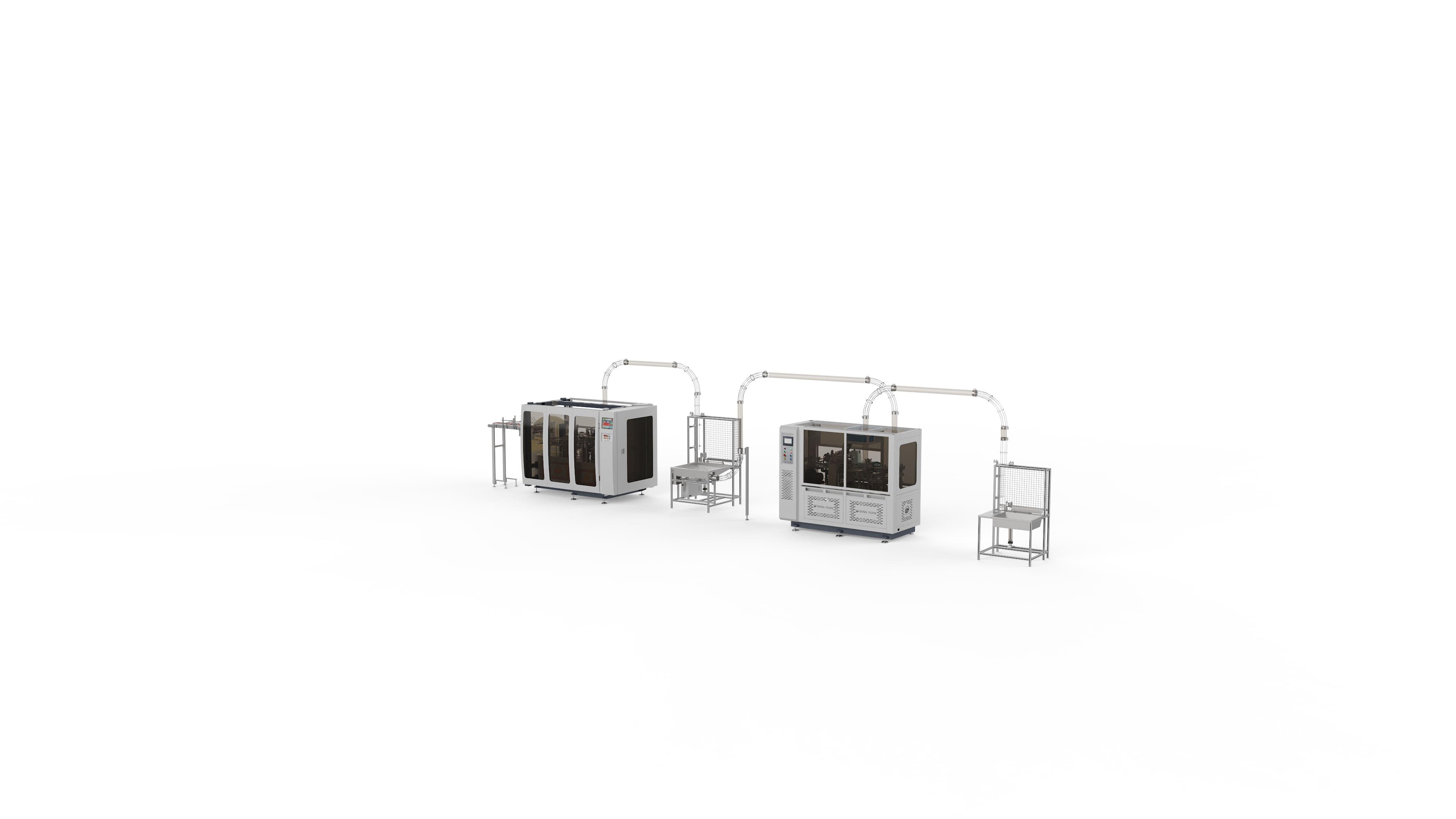

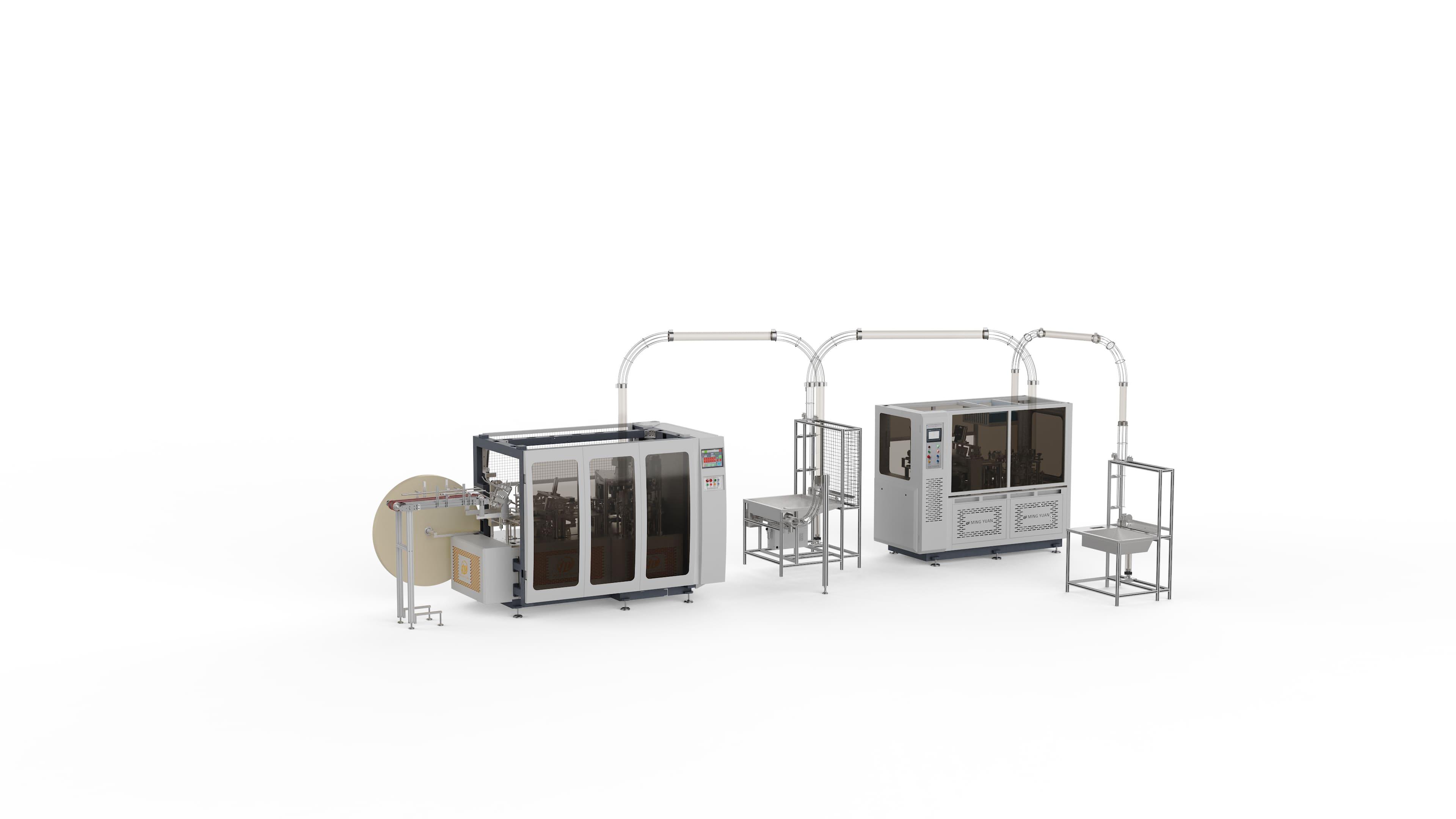

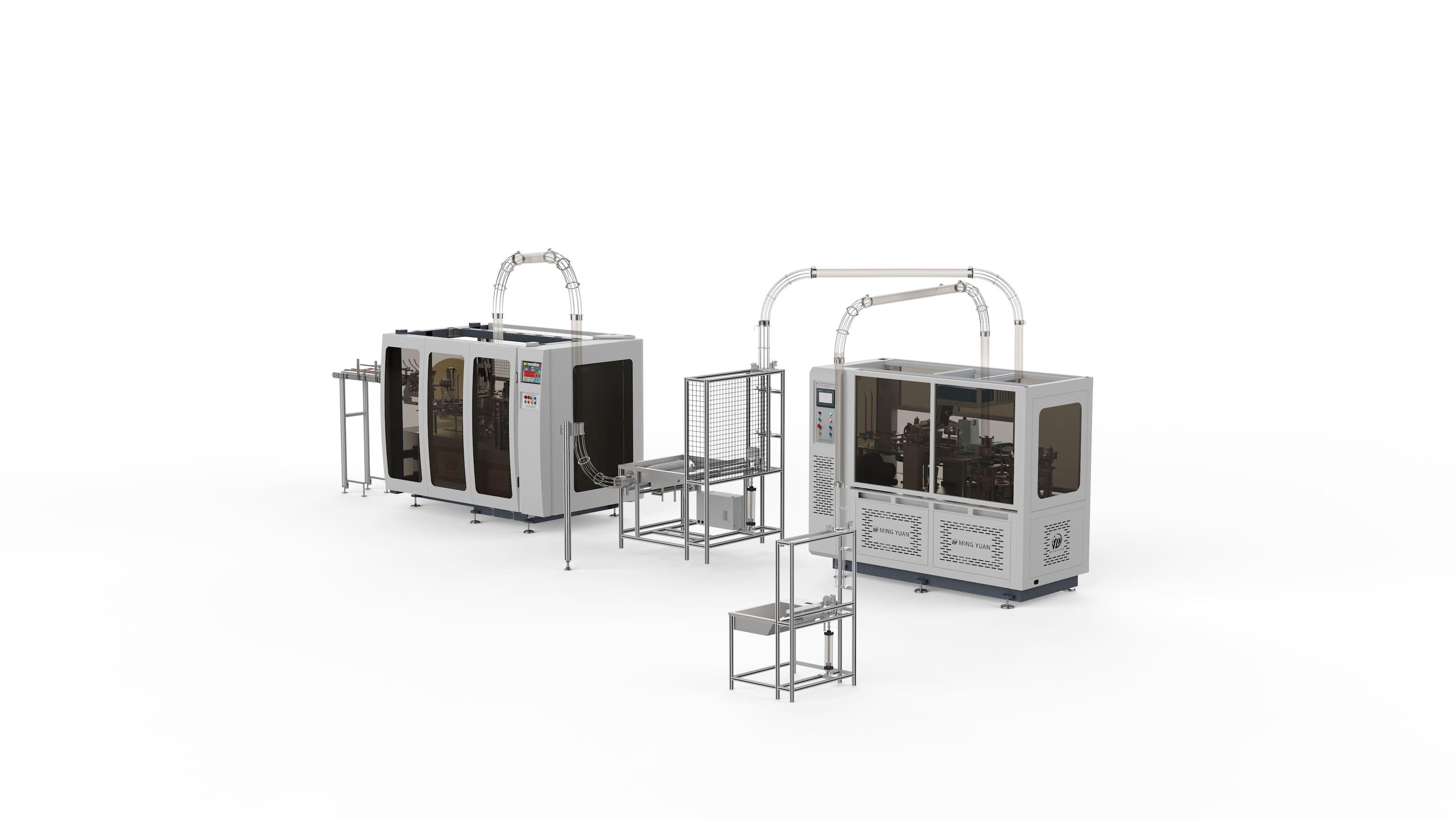

Production Line Configuration

We analyzed the customer's needs and, based on that analysis, customized the following production line to meet the customer's requirements for high output, automated operation, and a double-walled cup design where the outer cup completely encloses the inner cup.

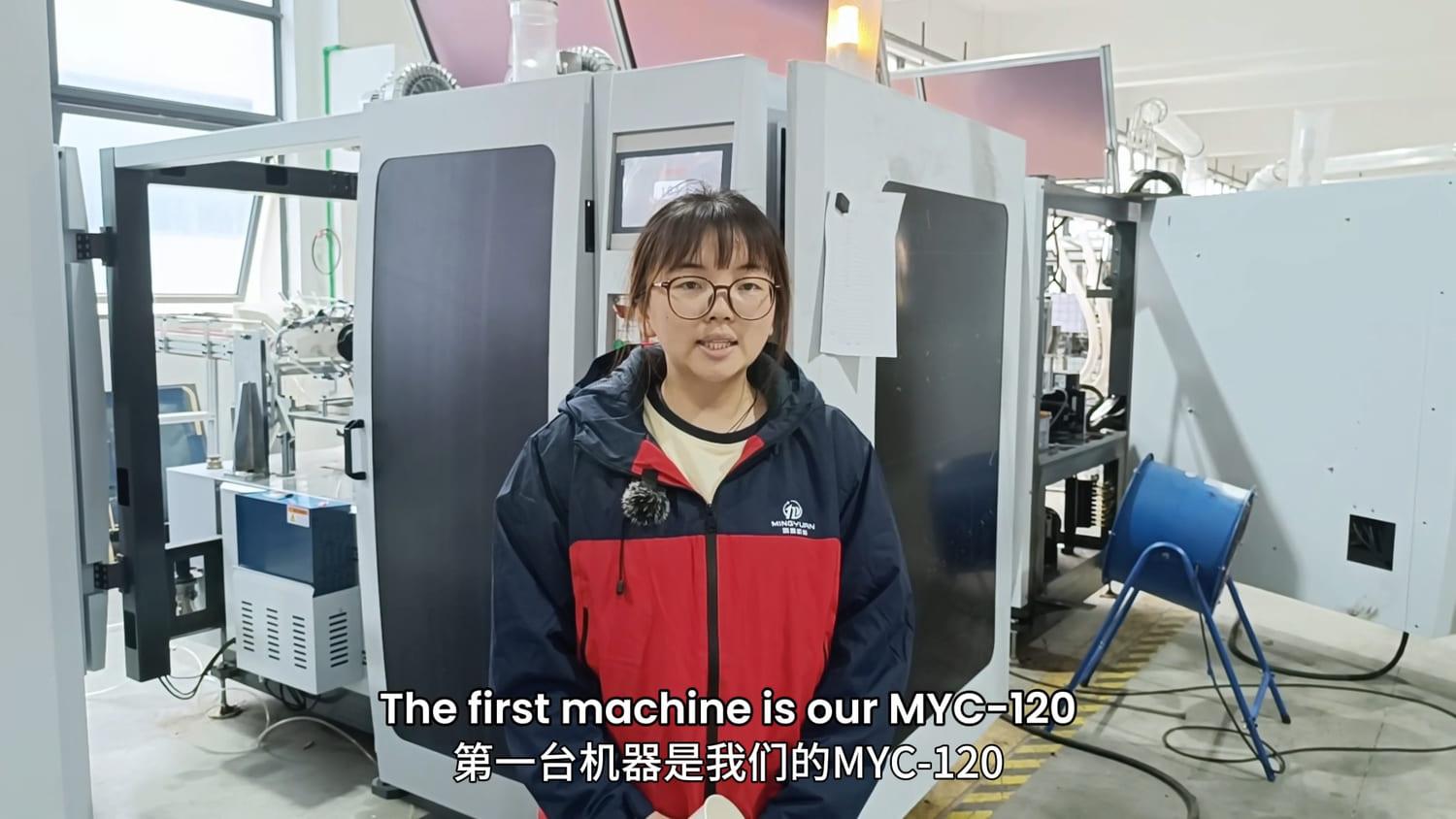

MYC-120 Paper Cup Machine

With a production speed of 130–150 pcs/min and a size range of 1.5–16 oz, the machine can meet customers' production needs. It is also equipped with four servo motors, which enhance production accuracy and stability.

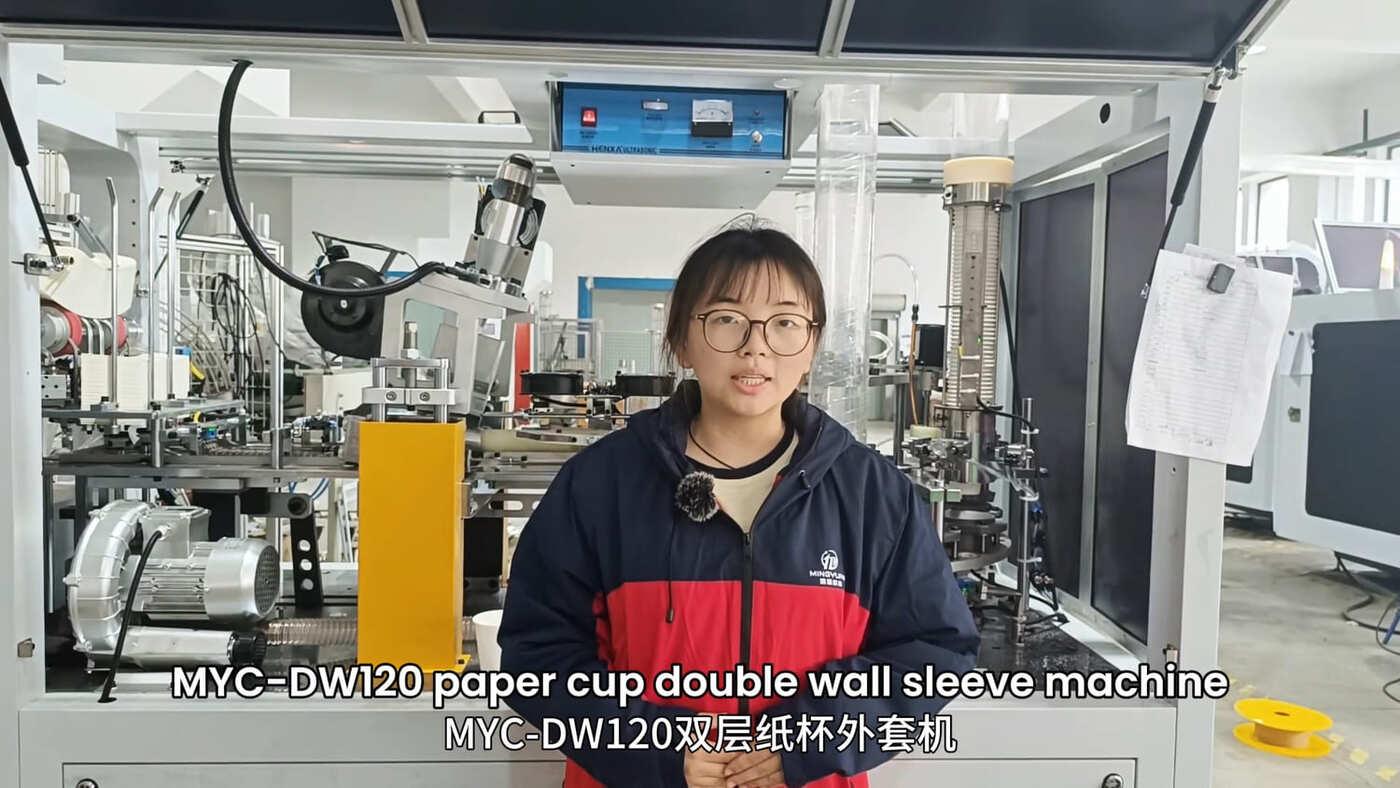

DW-120 Cup Sleeve Machine

DW-120 Cup Sleeve Machine Speed: 110–120pcs/min, Size: 1.5-16oz. This machine produces cup sleeves and automatically bonds them to the inner cups; by adjusting the process, it can ensure that the cup sleeves completely cover the inner cups.

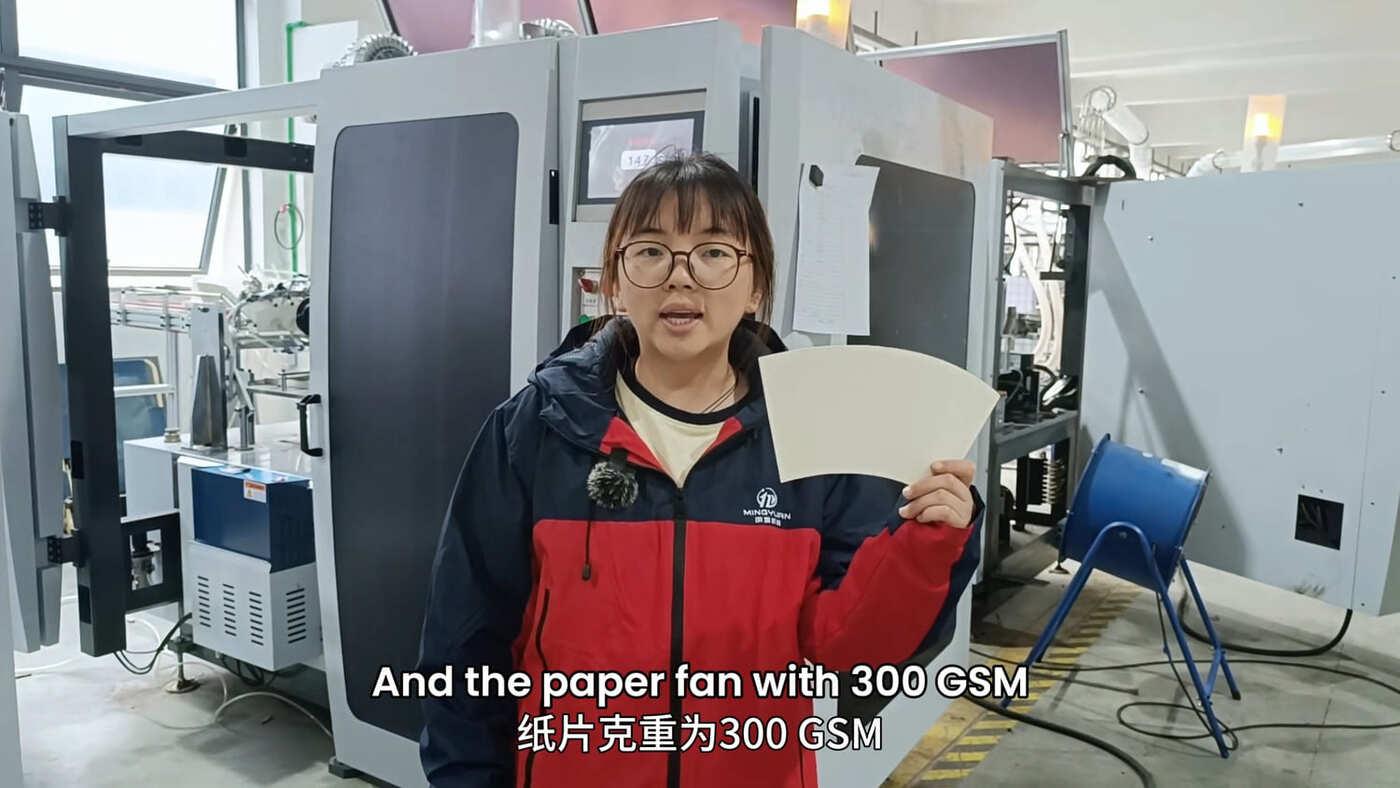

Raw Materials

Using 300GSM paper ensures that the cup body has good rigidity. When the sleeve material is sized to match the cup body, the sleeve can completely cover the inner cup using a direct-adhesive bonding method.

Final Results & Impact

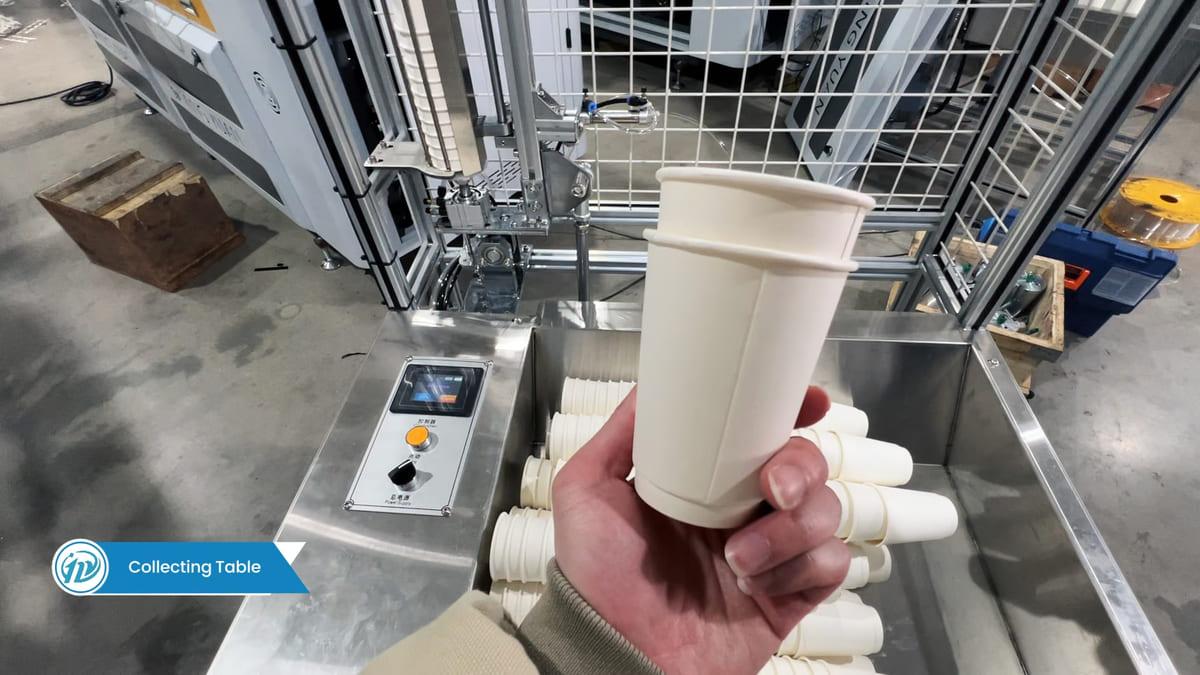

Full Coverage Full Sleeve Coverage Achieved

130-150 Production Speed (pcs/min)

99.5% Quality Consistency Rate

Cost Reduction Labor Cost Reduction

A Solution For Full Sleeve Double Wall Cup Production

This configuration integrates inner cup forming, transfer, and sleeve application into a complete automated production solution, while meeting the customer’s needs for producing a full range of double-walled cups.
