UL & CE Certification Two OCM12 Paper Cup Machine Connect MY-800 Paper Cup Packing Machine Solution In Canada

Canada Project: Dual-Line Synchronized Production System

CANADA Project

12oz and 16oz Dual-Line Production System in Canada

A production line custom-designed to meet the needs of Canadian customers, capable of simultaneously producing 12-ounce and 16-ounce paper cups at high speed.

Custom Needs

Simultaneous 12oz & 16oz Production

Our client is a Canadian supplier of disposable coffee cups. To meet the growing demand for large-capacity paper cups in the North American market, the company needs a production line capable of manufacturing both 12oz and 16oz paper cups simultaneously.

Regulatory Excellence

UL & CE Certification: Built-In Safety

Why Certification Matters in Canada

The Canadian market demands rigorous electrical safety standards. Every component in our production system has been selected and configured to meet UL and CE requirements.

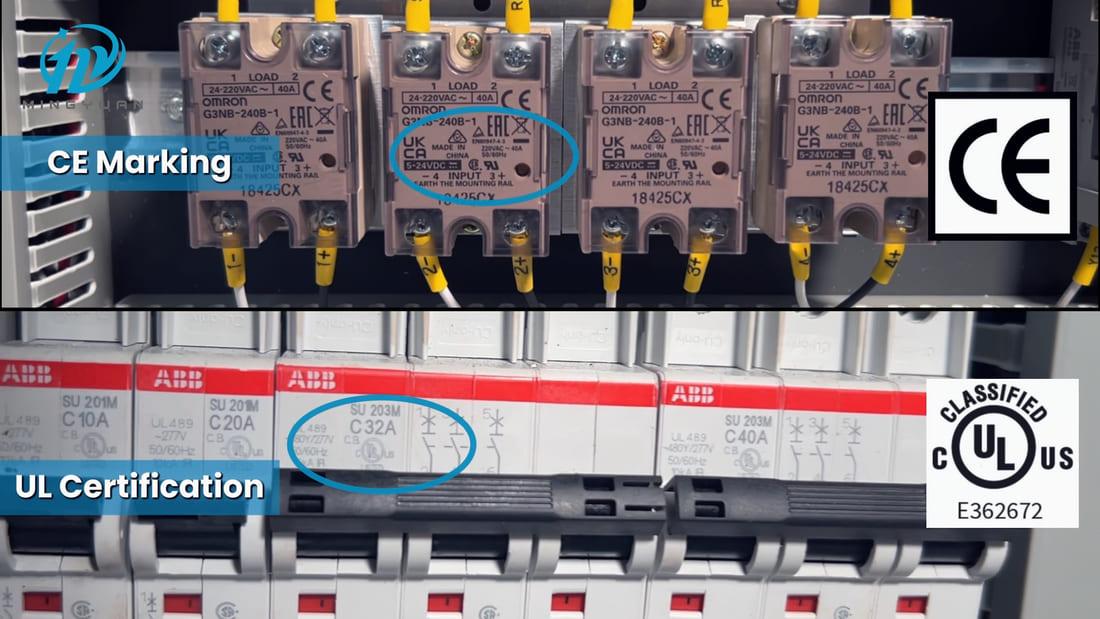

UL-Listed Electrical Cabinet: All wiring, circuit breakers, and contactors comply with CSA/UL standards for North American distribution.
CE-Marked Components: European-grade safety features ensure compatibility with global markets.

UL Certified

CSA/UL Listed Components

✓

CE Compliant

EU Safety Standards

Integrated Solution

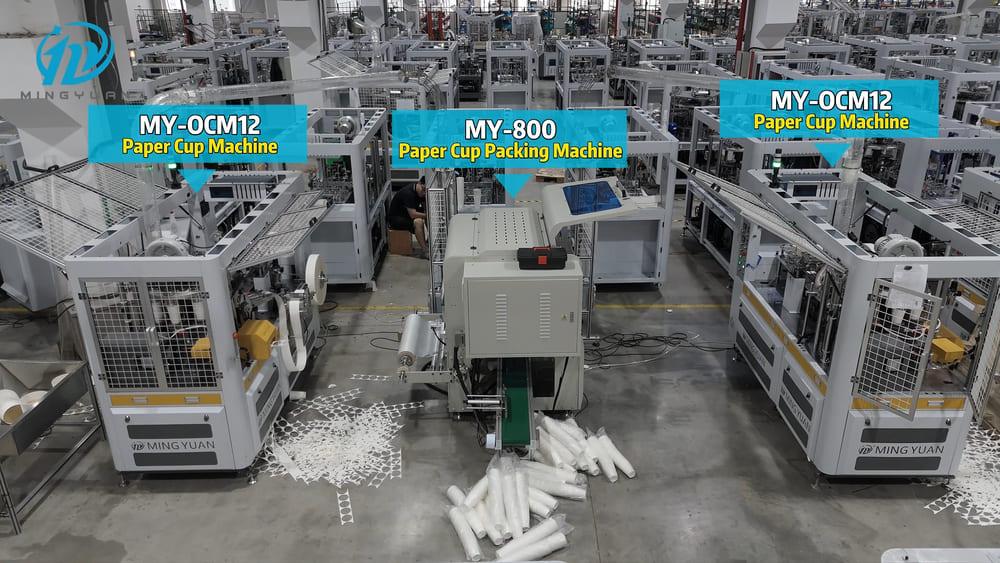

Production Line Configuration

System Architecture

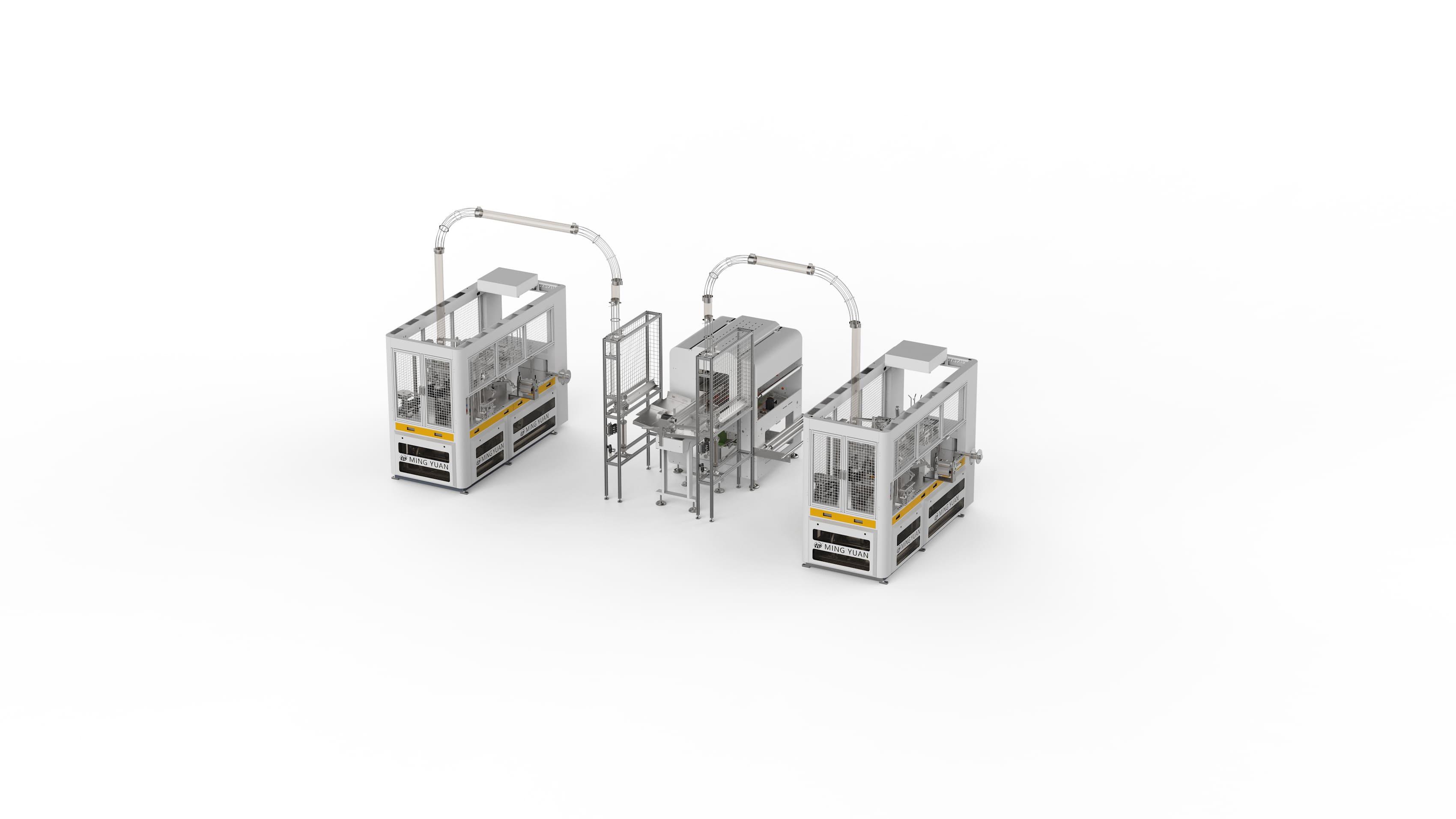

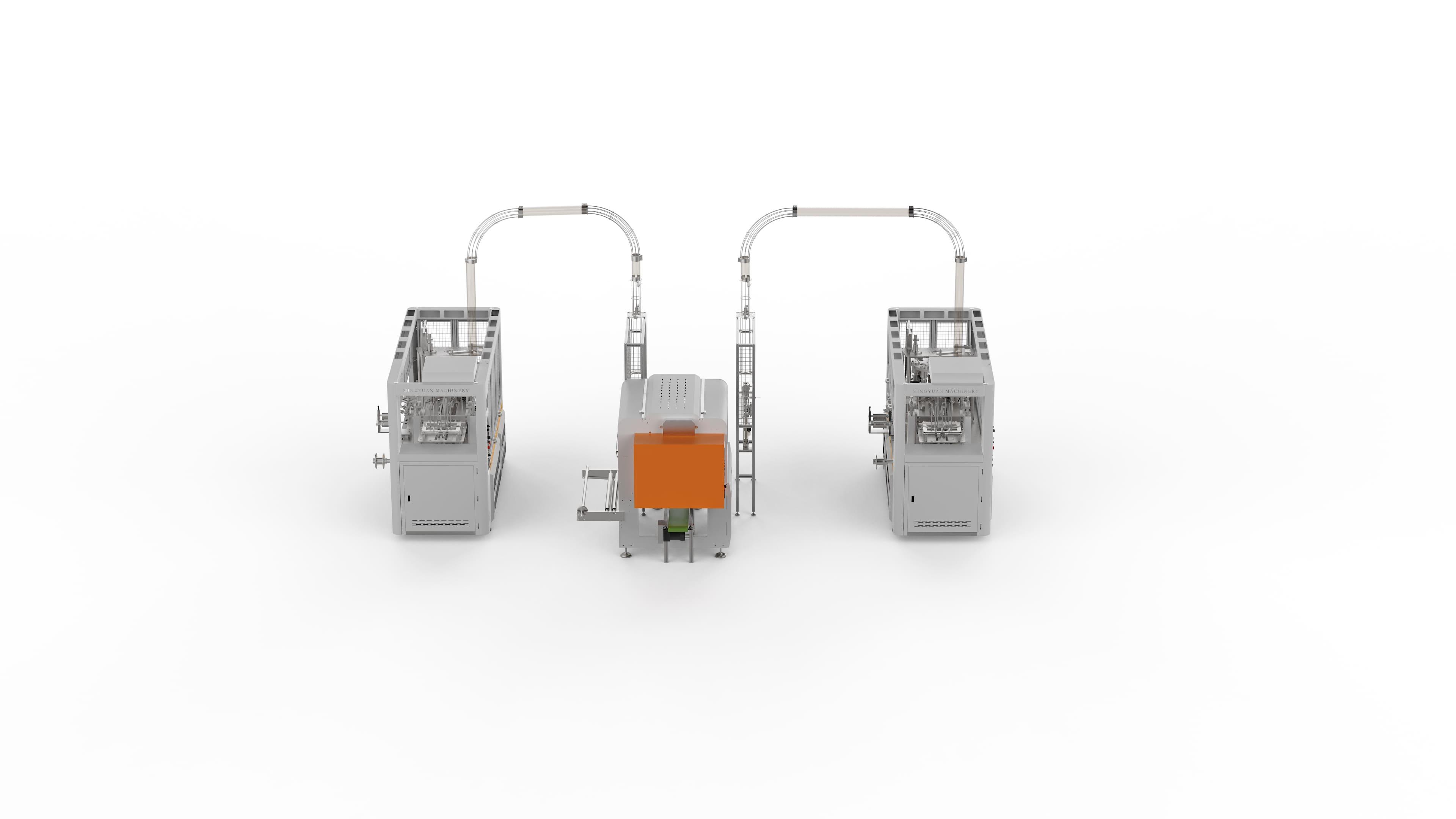

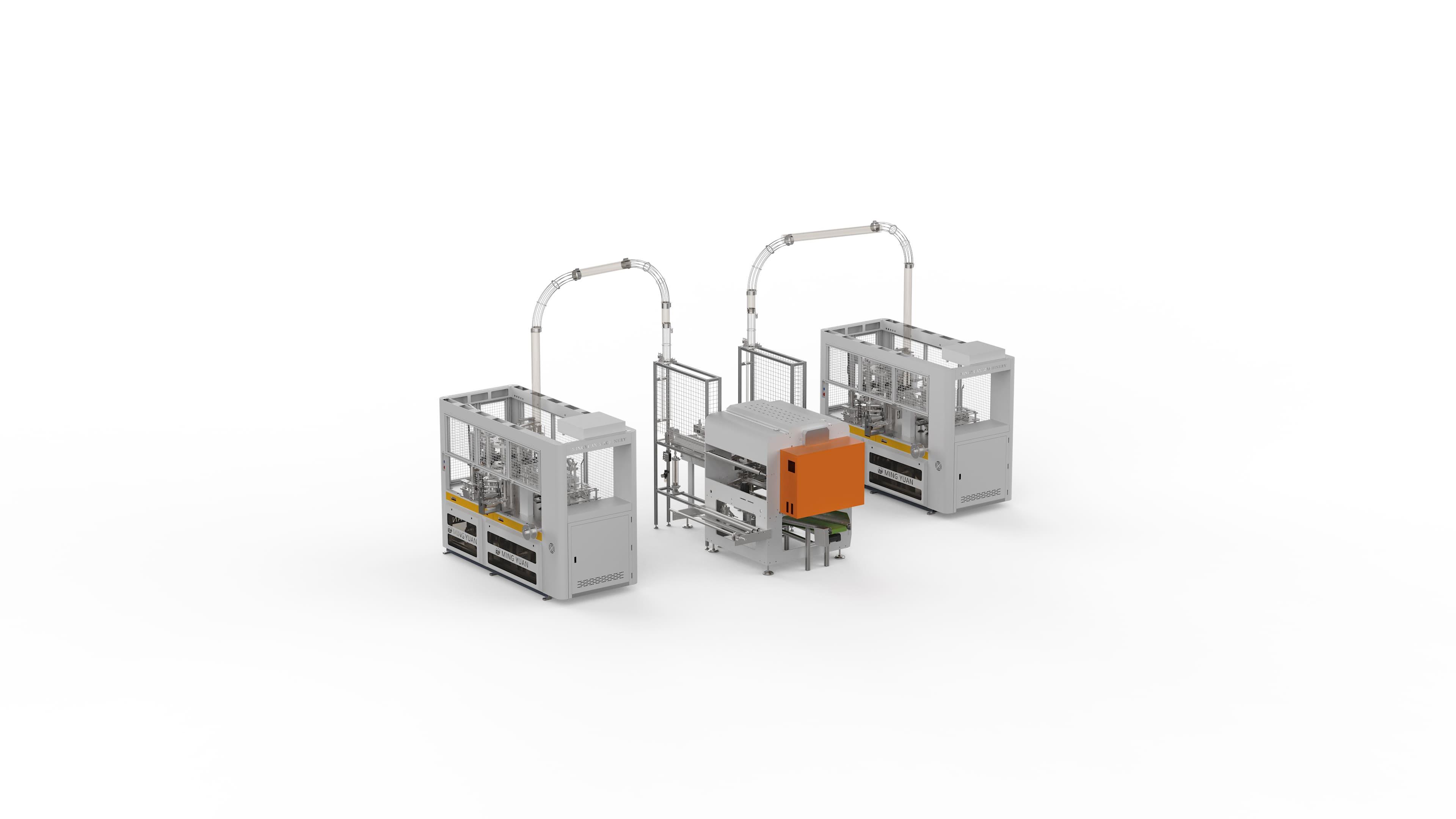

To meet our customers’ production needs for 12-ounce and 16-ounce paper cups, we recommend a dual-production-line configuration connected to a single packaging machine. This configuration allows for the high-speed simultaneous production of both sizes of paper cups, simplifies the packaging process, and makes better use of existing factory space.

Forming Center

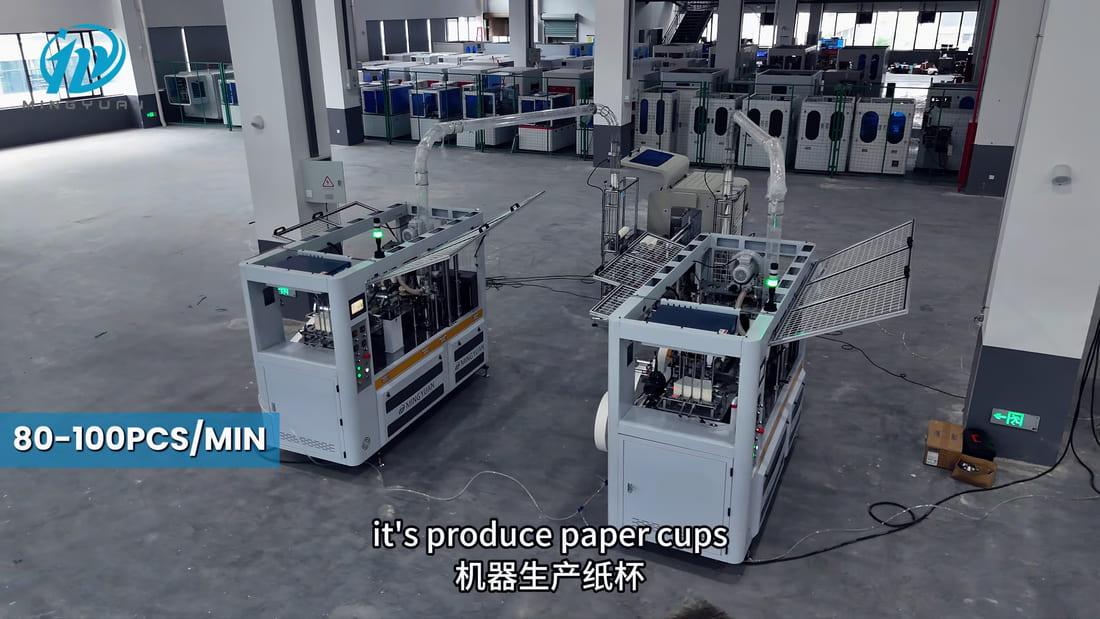

Dual OCM12 High-Speed System

Two OCM12 units operating in parallel for synchronized multi-size production.

250+ BPM

Combined Output

Shared Technical Excellence

Both units feature servo-driven precision, UL-listed electrical cabinets, and heavy-duty knurling systems optimized for 280gsm material.

Parallel Production Specs

Unit A 12oz Production

120-150 cups/min

Unit B 16oz Production

100-130 cups/min

↓

Packaging Hub

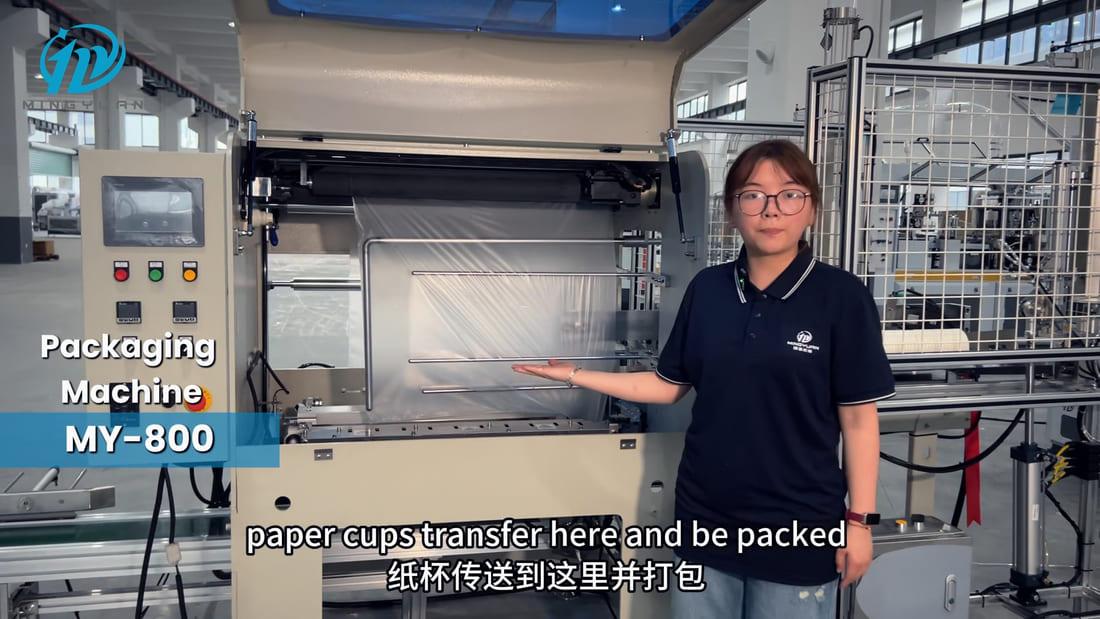

MY-800 Intelligent Packaging System

A high-speed bagging system designed to handle the combined output of both forming lines with zero bottlenecking.

Dual-Inlet Buffer
UL-Certified Control
Batch Sorting Logic
100 Bags/min Speed

Material Engineering

280gsm + 16g PE: Premium Specification

280gsm

Paper Base Weight

Premium virgin fiber paper, ensuring structural rigidity for large-capacity cups.

+16g

PE Coating Layer

Food-grade polyethylene coating for thermal insulation and moisture barrier.

100%

Leak-Proof Seal

Double-sealed bottom with reinforced knurling for maximum durability.

Why This Specification?

For 16oz high-capacity cups, the 280gsm + 16g PE combination is critical. The heavier paper provides structural integrity to prevent deformation under the weight of hot beverages, while the 16g PE coating ensures excellent thermal retention—essential for the Canadian market where hot coffee and tea are year-round staples. The OCM12's precision knurling system is specifically calibrated to handle this heavier material without compromising seal quality.

Project Outcomes

Final Production

Paper Cup Production Line Case
