650ML Double-Layer Paper bowls MYC DB120 Paper Bowl Machine Connect MYC DW120B Paper Bowl Sleeve Machine Solution In Uzbekistan

USA Case: Dual-Line Paper Cup Production

UZBEKISTAN CUSTOMER PROJECT

650ML Double-Layer Paper Bowl Production Line In Uzbekistan

A customized production solution for customers in Uzbekistan to manufacture 650ml double-layer paper bowls featuring improved insulation, reliable quality, and efficient production performance.

PROJECT OBJECTIVES

650ml Insulated Paper Bowl Solution

The project was initiated to develop a 650ml double-layer paper bowl solution for hot food applications, including soups, noodles, and takeaway meals. The client focused on achieving a balance between product quality, insulation performance, and production efficiency to meet the requirements of food service customers.

RECOMMENDED SOLUTION

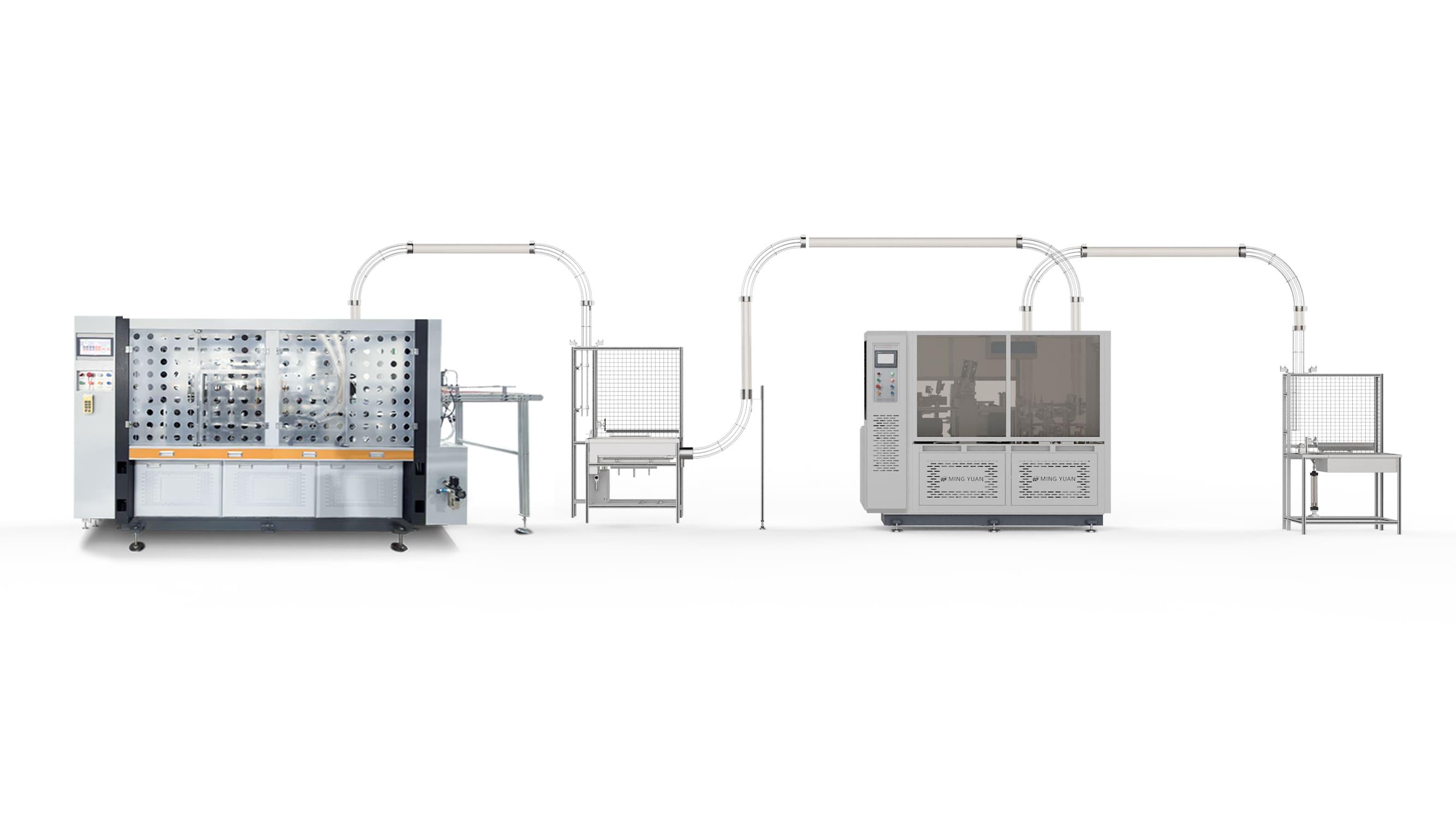

Recommended Production Line Equipment

01 / DUAL-LINE FORMING

MYC-DB120 Paper Bowl Machines

The MYC-DB120 is a double-turn plate paper bowl machine with an extremely fast production speed of 120–150 pcs/min. It can produce paper bowls with capacities ranging from approximately 8–32 oz (240–1000 ml).

Bottom Knurling Depth:4–8 mm (popular 5mm)
Bottom Diameter: 70–120 mm
Top Diameter: 75–145 mm
Height: 50–110 mm

02 / DUAL-CHANNEL BUFFERING

Double PE Coating Device

Since the customer later expressed a need to produce double-coated paper cups, we equipped the machine with a double-coating unit.

Anti-Drop Holder
Water Circulation System
Double-Coated Paper Cups

03 / Raw Materials

300 GSM Paper Fan

300gsm paper provides excellent rigidity and structural strength, helping the bowl maintain its shape when filled with hot food. It also offers better insulation performance, improving handling comfort and overall user experience.

Improved resistance to deformation when filled with hot food
Stronger bowl body with better rigidity
Better insulation for comfortable handling

Reasons

Reasons for Recommendation

Superior Rigidity for 650ml

Handling a large 650ml capacity requires exceptional stiffness. The 300gsm paperboard ensures the bowl remains rigid even when filled with heavy snack products, preventing deformation during stacking.

Direct-Bonding Precision

For unprinted bowls, visual flaws are more noticeable. The DW120's direct-bonding technology ensures a seamless, wrinkle-free fit between the inner bowl and the outer sleeve, maintaining a premium look.

High-Volume Stability

The MYC-DB120 is engineered for 24/7 industrial output. Its heavy-duty servo system handles high-grammage paper with ease, delivering a consistent speed of 100+ pcs/min with minimal maintenance.

Future-Proof Versatility

The system supports quick mold changes, allowing the client to expand their product line in the future while maintaining the same high standards of stiffness and production efficiency.

FINAL PRODUCTION

Finished Product Showcase

START YOUR PROJECT

Ready to Elevate Your Paper Bowl Production?

Whether you are looking for high-speed forming technology or customized insulation solutions, we provide end-to-end expertise to help you lead the market with superior quality and efficiency.

Consult Our Experts Today
