4 oz Double Wall Paper Cup Line for Iraq

For this 4 oz double wall paper cup line, we matched MYC-OCM100 inner-cup forming with MYC-D sleeving—and planned the connection between them.

Printed inner cup → transfer → outer sleeve → collection

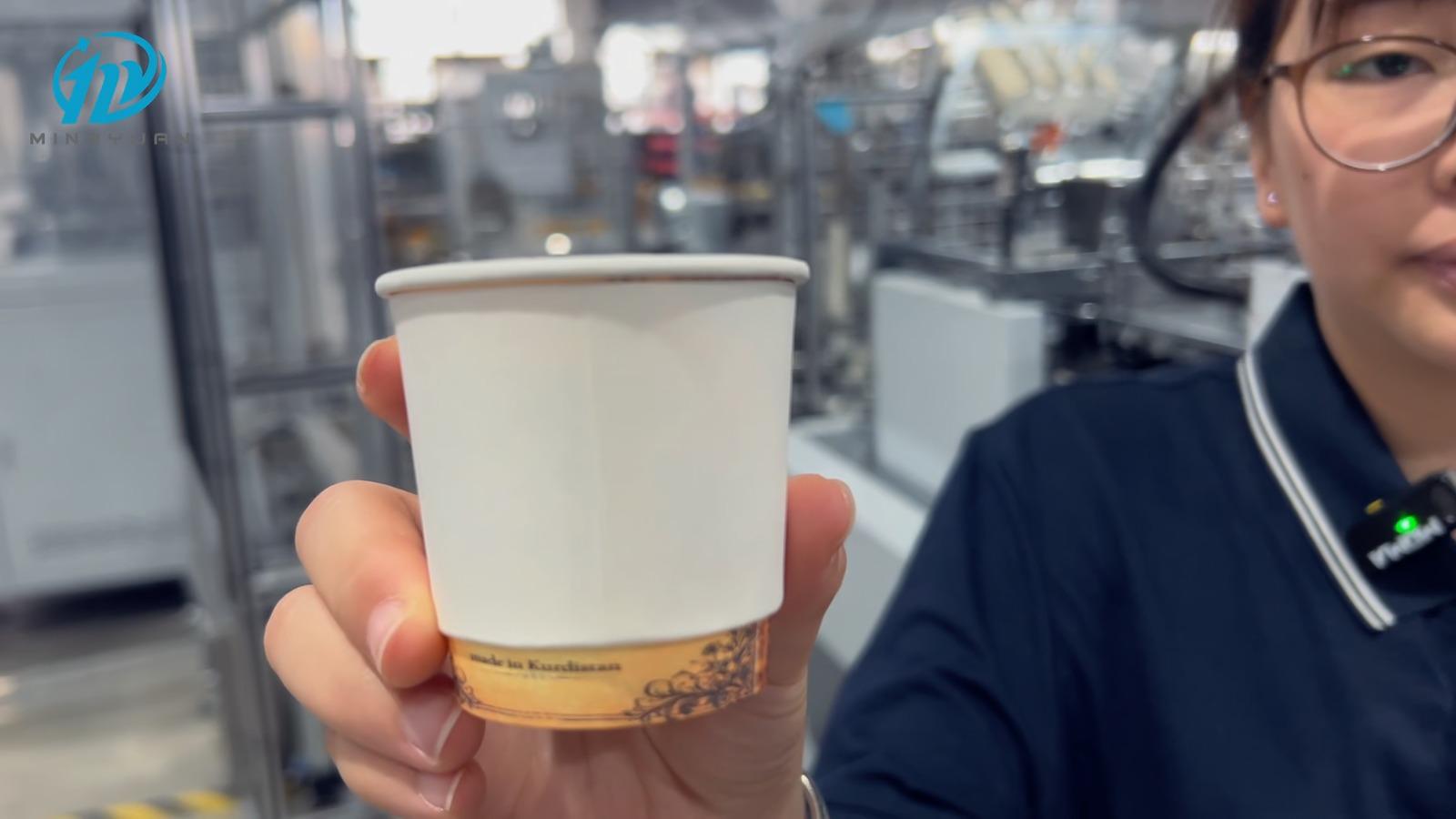

A plain white outer sleeve with a printed band visible at the base.

4 ozFinished double wall cup

190 GSMPrinted inner-cup paper fan

2 machinesInner-cup forming + sleeving

Customer background

A small cup that needs two forming stages

The Iraqi customer wanted to develop a compact double wall cup. The selected 4 oz design combines a printed inner cup with a plain white outer sleeve.

The key planning question was how to make those two parts work together. We built the recommendation around inner-cup forming, sleeve fit and the handoff between machines, rather than treating the two machines as separate purchases.

Inner-cup machine: MYC-OCM100
Cup sleeve machine: MYC-D

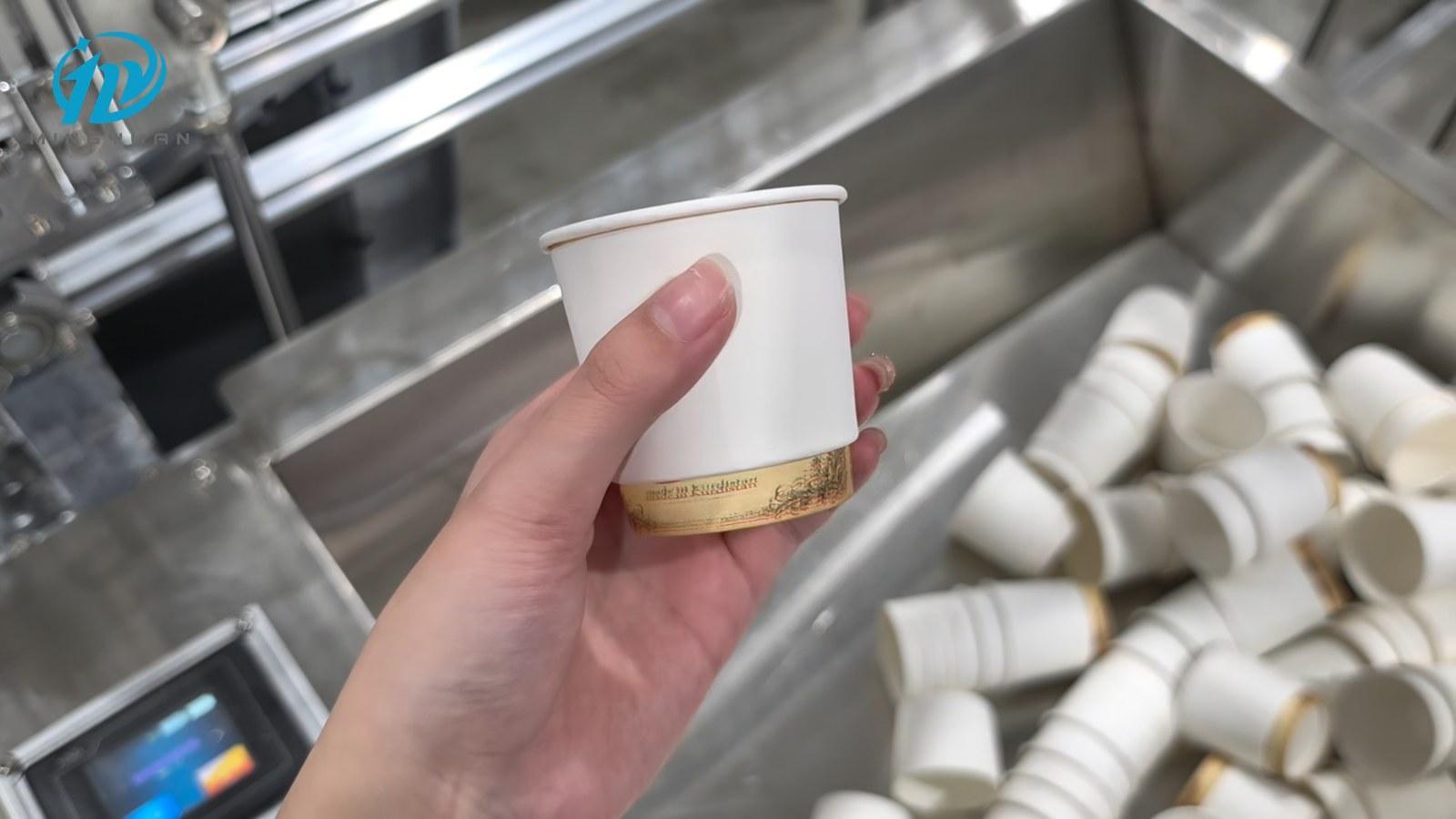

Completed 4 oz cup with a white outer sleeve beside the collection area — The finished cup shown during the project demonstration.

Our equipment recommendation

Why we paired MYC-OCM100 with MYC-D

A double wall cup still starts with a single wall inner cup. We assigned each forming task to the machine that performs it.

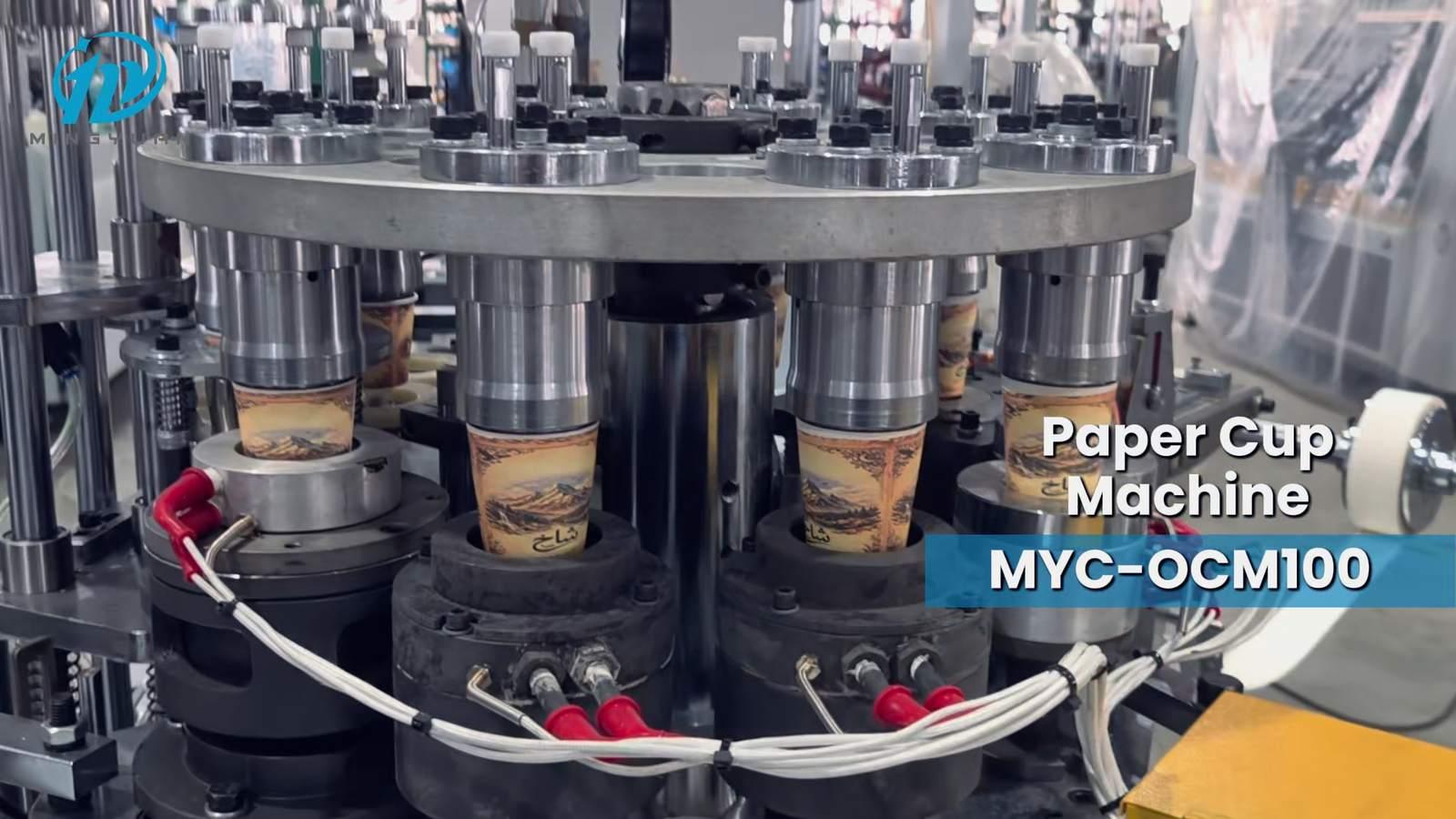

Printed inner cups on the MYC-OCM100 forming stations — MYC-OCM100 forming the printed inner cups.

MYC-OCM100: make the inner cup

We recommended the simple-model paper cup machine for the first stage: forming the cup that holds the drink. The outer wall is added later, so the first machine does not need to perform the sleeving task.

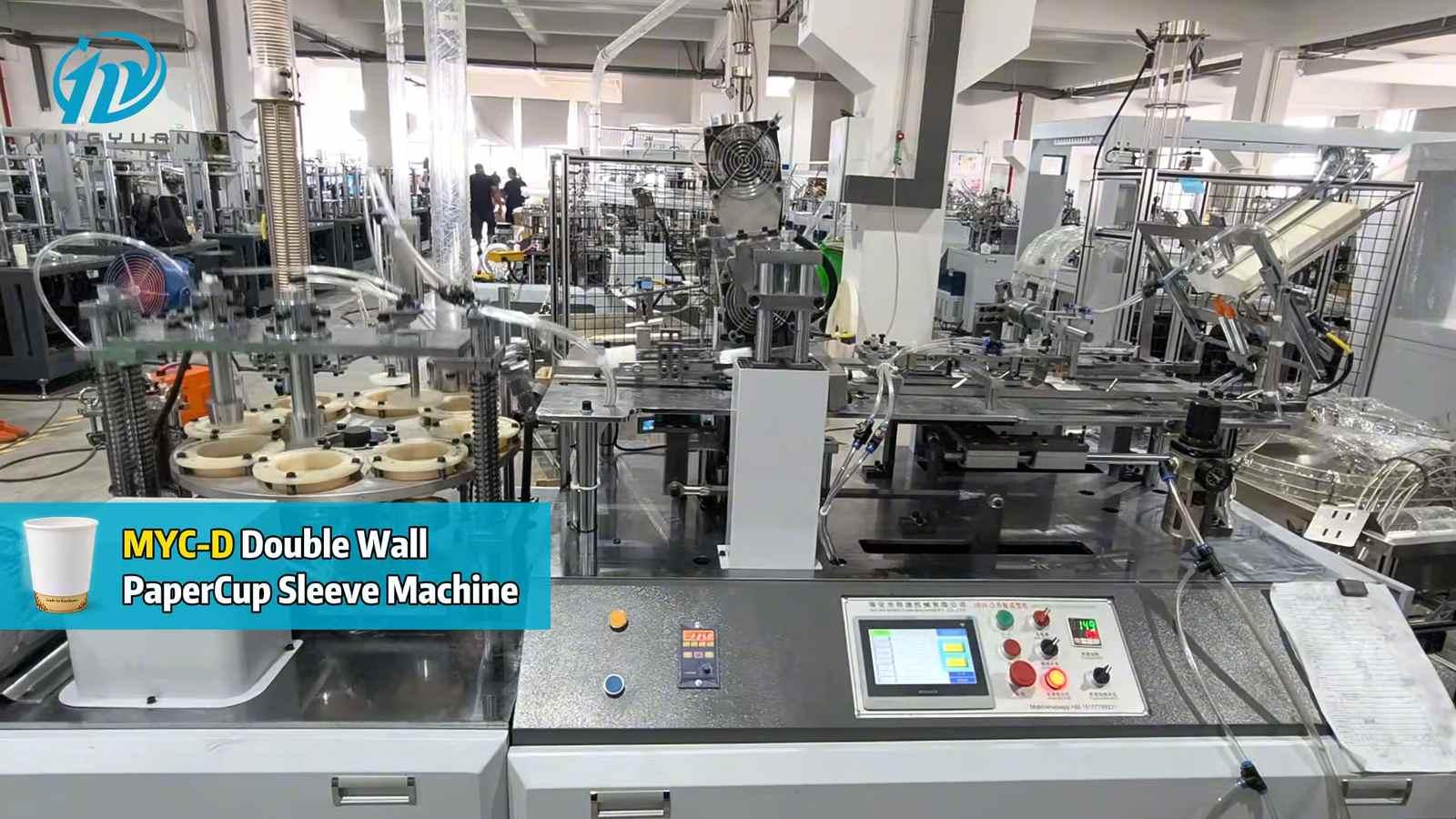

MYC-D Cup Sleeve Machine used in the Iraq IQ013 project — MYC-D is the separate cup sleeve machine in this setup.

MYC-D: add the outer sleeve

The MYC-D receives the formed inner cup and applies its outer sleeve. Our advice was to confirm the inner cup and sleeve tooling as a matched pair, not approve each part only by its 4 oz label.

Material and fit

Specify the two paper layers separately

The presenter identifies the printed inner-cup fan as 190 GSM. The finished sample has a plain outer sleeve; its paper weight is not separately stated.

We advise reviewing the sleeve paper and shape against the actual formed inner cup. Matching both layers is more useful than assuming the same paper specification should serve both jobs.

Presenter showing the printed 190 GSM inner-cup paper fan — 190 GSM refers to the printed fan introduced with the inner-cup machine.

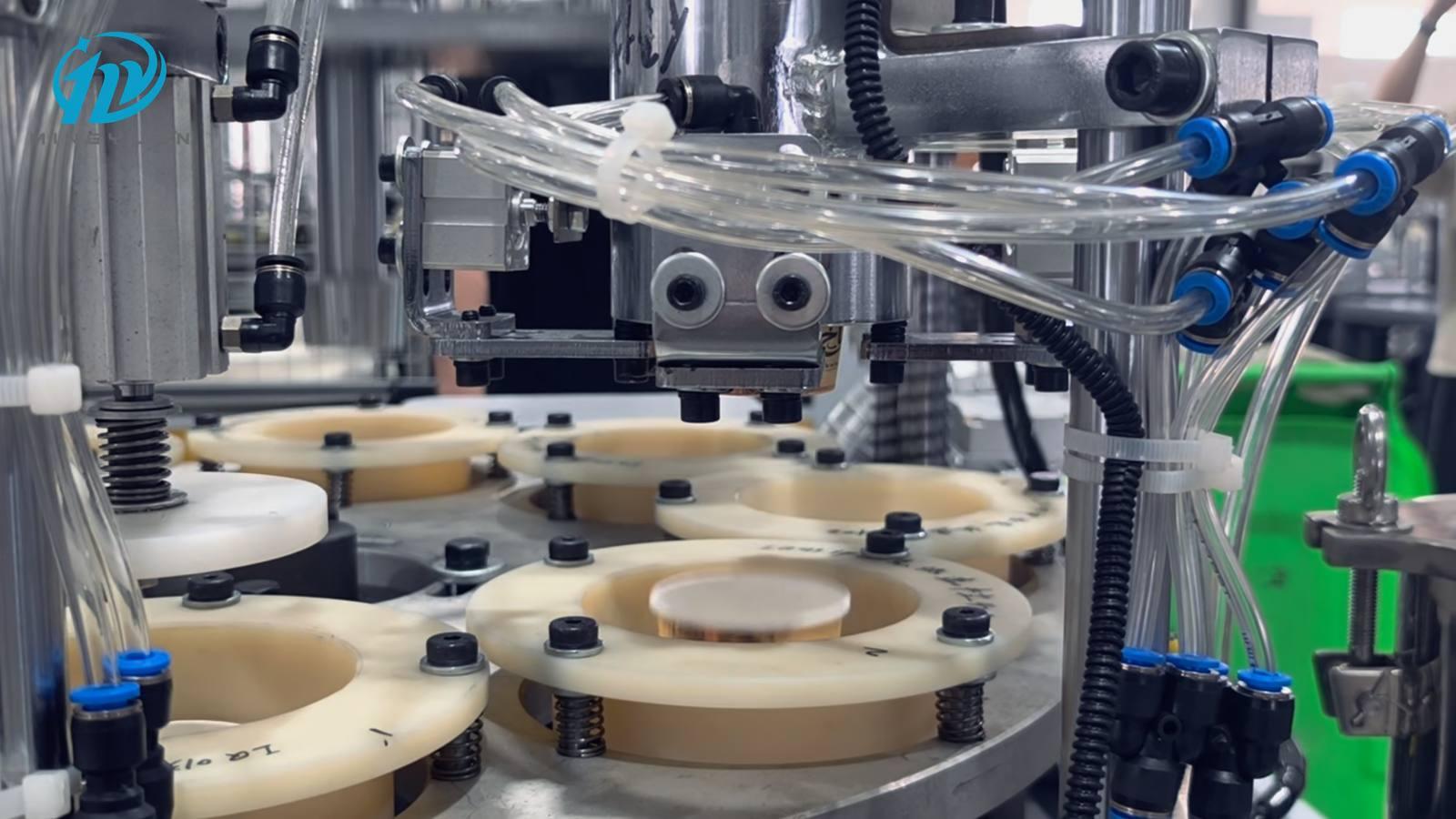

Forming stations on the MYC-D during the sleeve operation — Check the sleeve shape and fit against the formed inner cup.

Connection and layout

Connecting the 4 oz double wall paper cup line

The transfer station links the inner-cup machine to the sleeve machine. Finished double wall cups are then sent to the collecting table.

01 · MYC-OCM100Forms the single wall inner cup.
02 · Transfer stationReceives cups and feeds the next stage.
03 · MYC-DAdds the outer sleeve.
04 · Collecting tableReceives completed double wall cups.

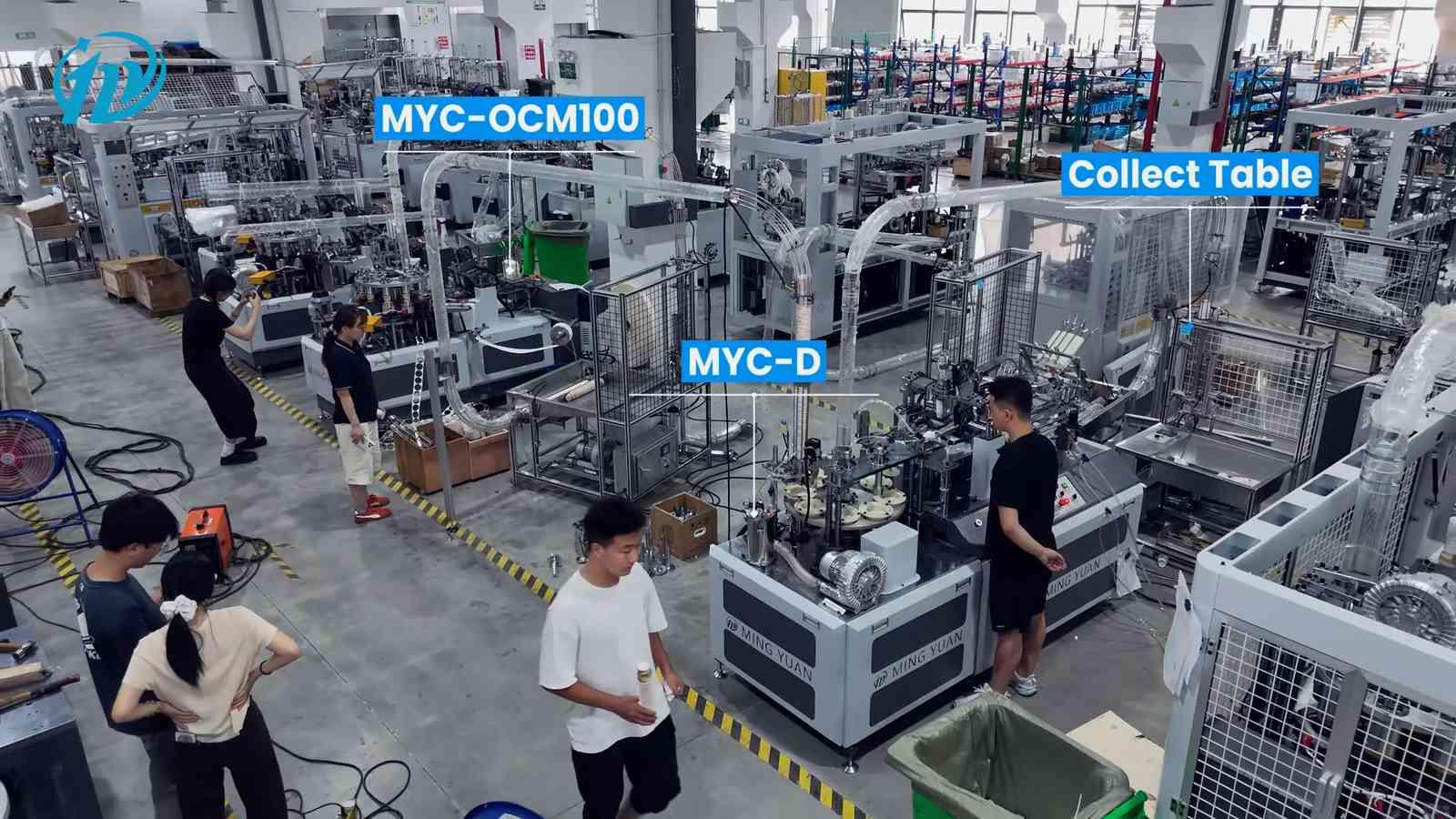

Labelled overview of MYC-OCM100, MYC-D and the collecting table — The two forming stages and collection end shown in the demonstration.

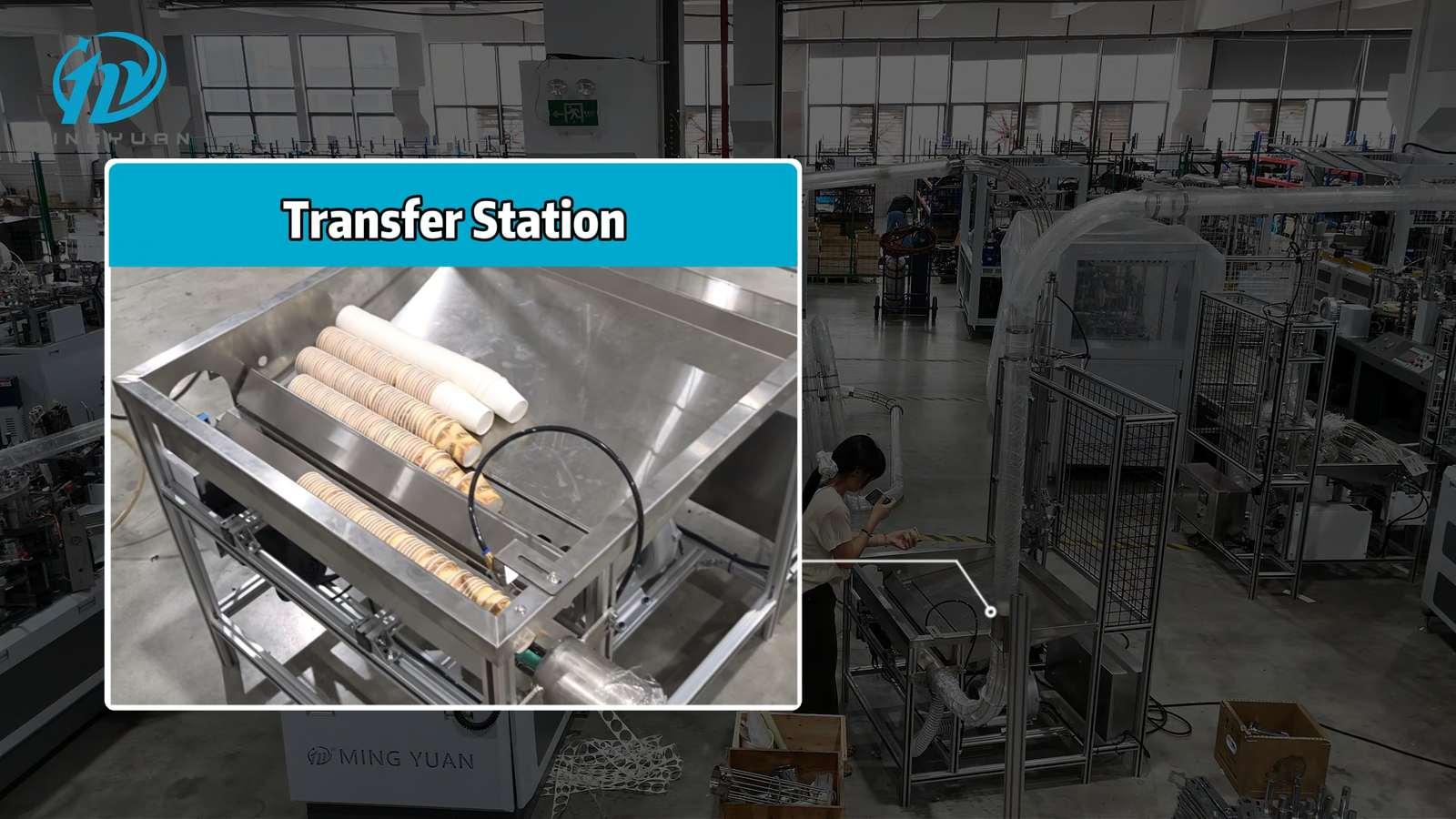

Transfer station holding printed inner cups before sleeving — The running video shows the intermediate cup-handling station.

Our layout guidance: Review the cup handoff before finalising the machine positions. Leave access for loading, setup and sample checks, as well as space for the equipment itself.

Finished-cup check

Check one finished sample, not two separate parts

The demonstrated 4 oz sample measures approximately 60 mm across the top, 60 mm in height and 45 mm across the base. We recommend comparing the assembled cup with the agreed drawing, including sleeve position, rim and bottom finish.

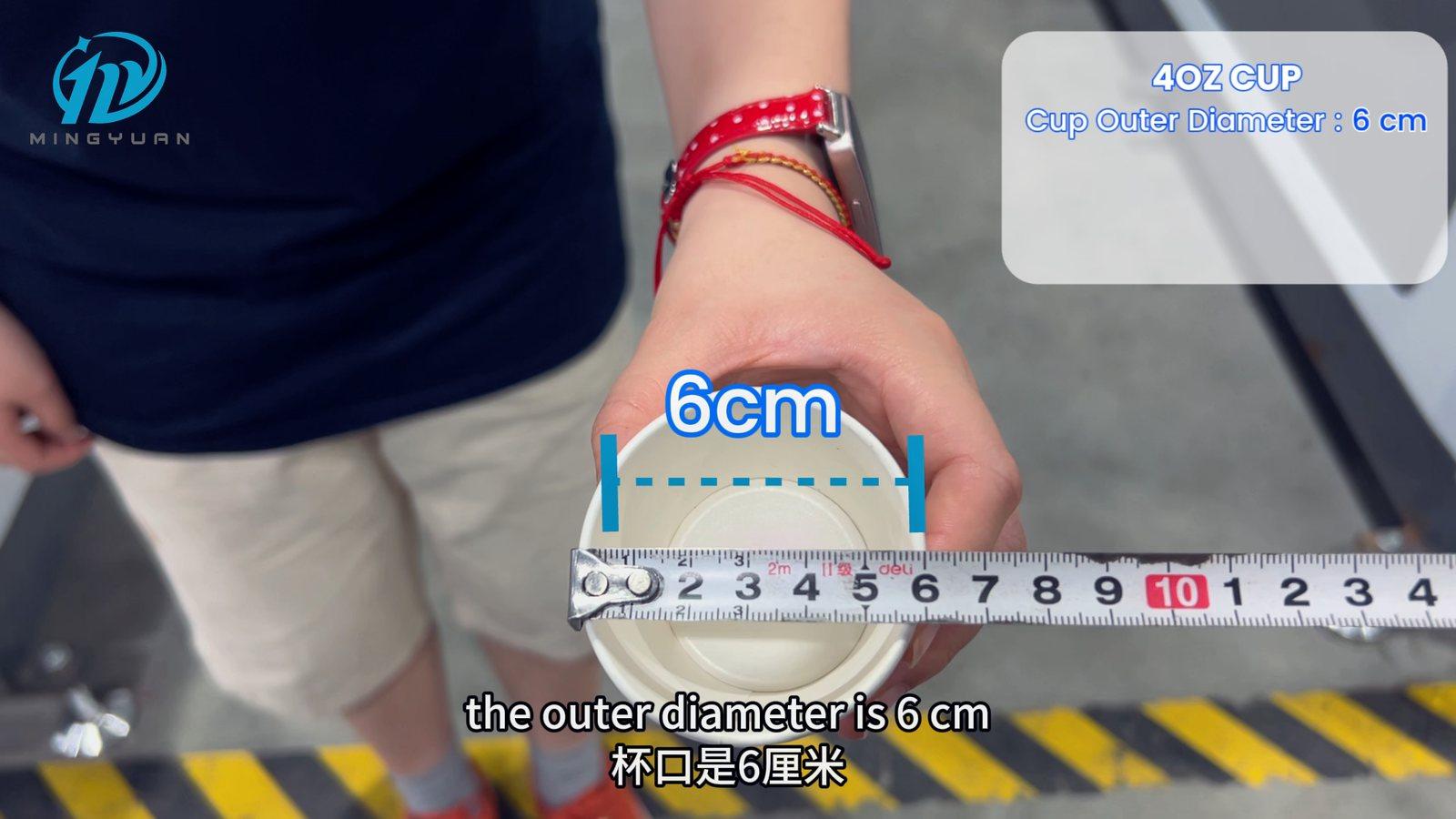

Top outside diameter of the Iraqi 4 oz cup measured at approximately 60 mm — **60 mm**Top outside diameter

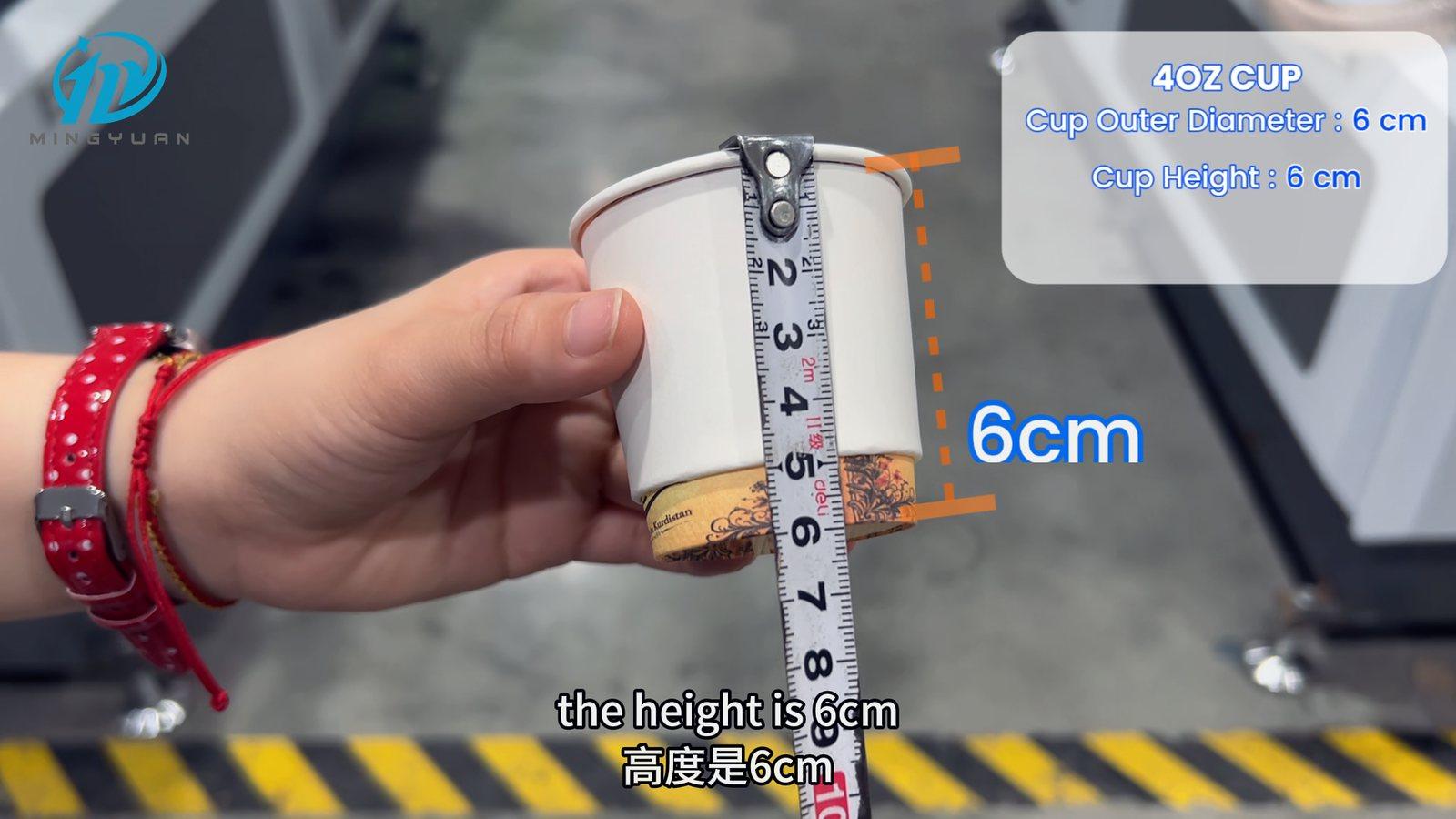

Finished double wall cup height measured at approximately 60 mm — **60 mm**Cup height

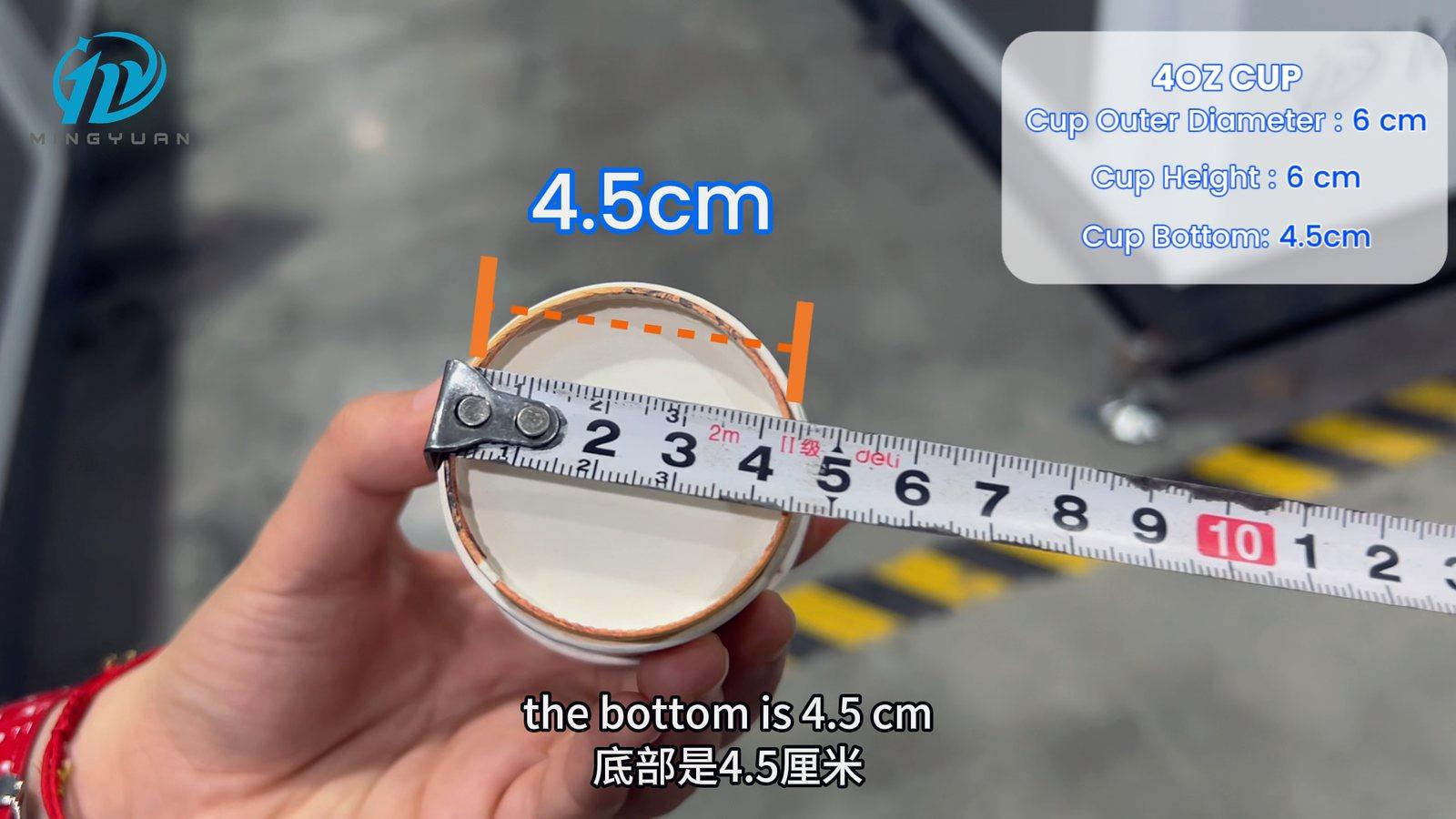

Base diameter of the 4 oz double wall cup measured at approximately 45 mm — **45 mm**Base diameter

The source video uses centimetres: 6 cm / 6 cm / 4.5 cm. These are sample measurements, not specified manufacturing tolerances.

The resulting setup: MYC-OCM100 + transfer station + MYC-D + collecting table. The demonstration shows the connected equipment and its finished 4 oz cup.

Discuss a two-layer cup project

Let us review your inner cup and sleeve together

Send the finished-cup drawing, paper details for each layer and your proposed floor layout. We can help define the two forming stages and the transfer between them.
