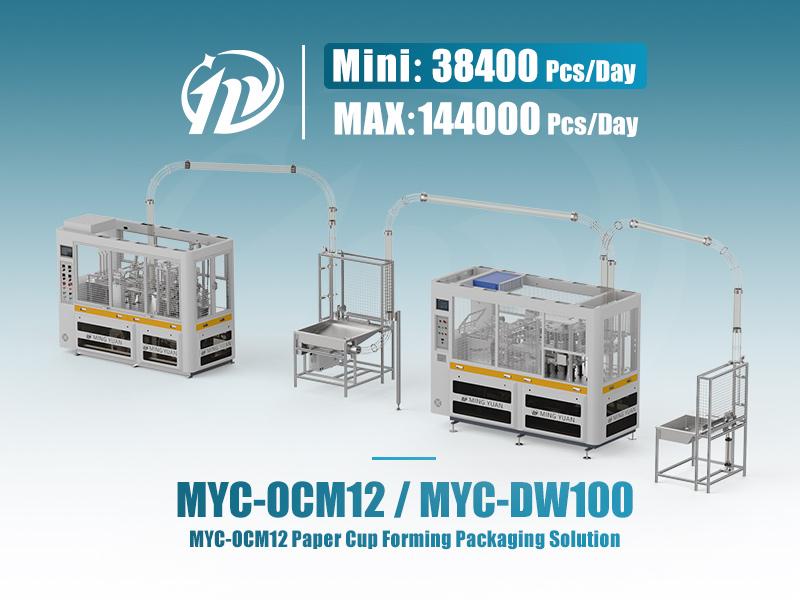

Integrated Paper Cup and Sleeve Production Line MYC-OCM12 with MYC-DW100

Mini CapacityMini Capacity (8 hours/day) 38400
Maxi CapacityMaxi Capacity(24 hours/day) 144000
SpeedSpeed 80-100pcs/min
SizeSize 1.5-16 0Z
PowerPower 50/60HZ,380V/220V
Raw MaterialRaw Material Polyethylene (PE) Coating/Polylactic Acid (PLA) Coating/coated paper/kraft paper/white cardboard
Paper WeightSuitable Paper Weight 140-350gsm
>ModelModel MYC-OCM12 / MYC-DW100
CertificationCertification CE, ISO,SGS
Get Quote

FULLY AUTOMATIC CUP PRODUCTION

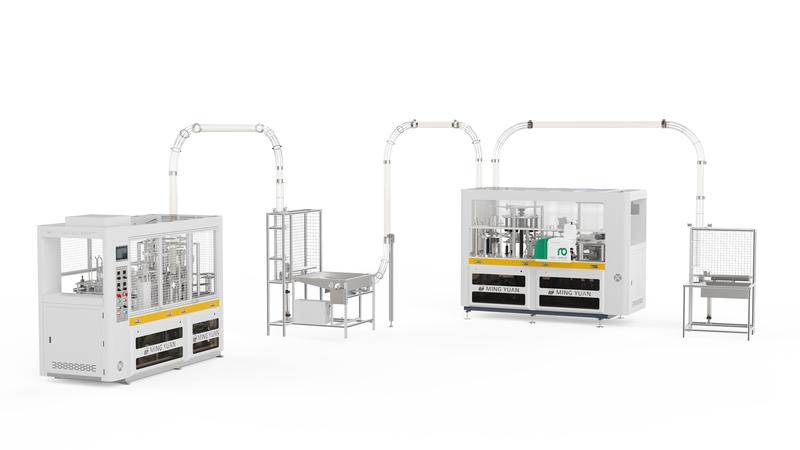

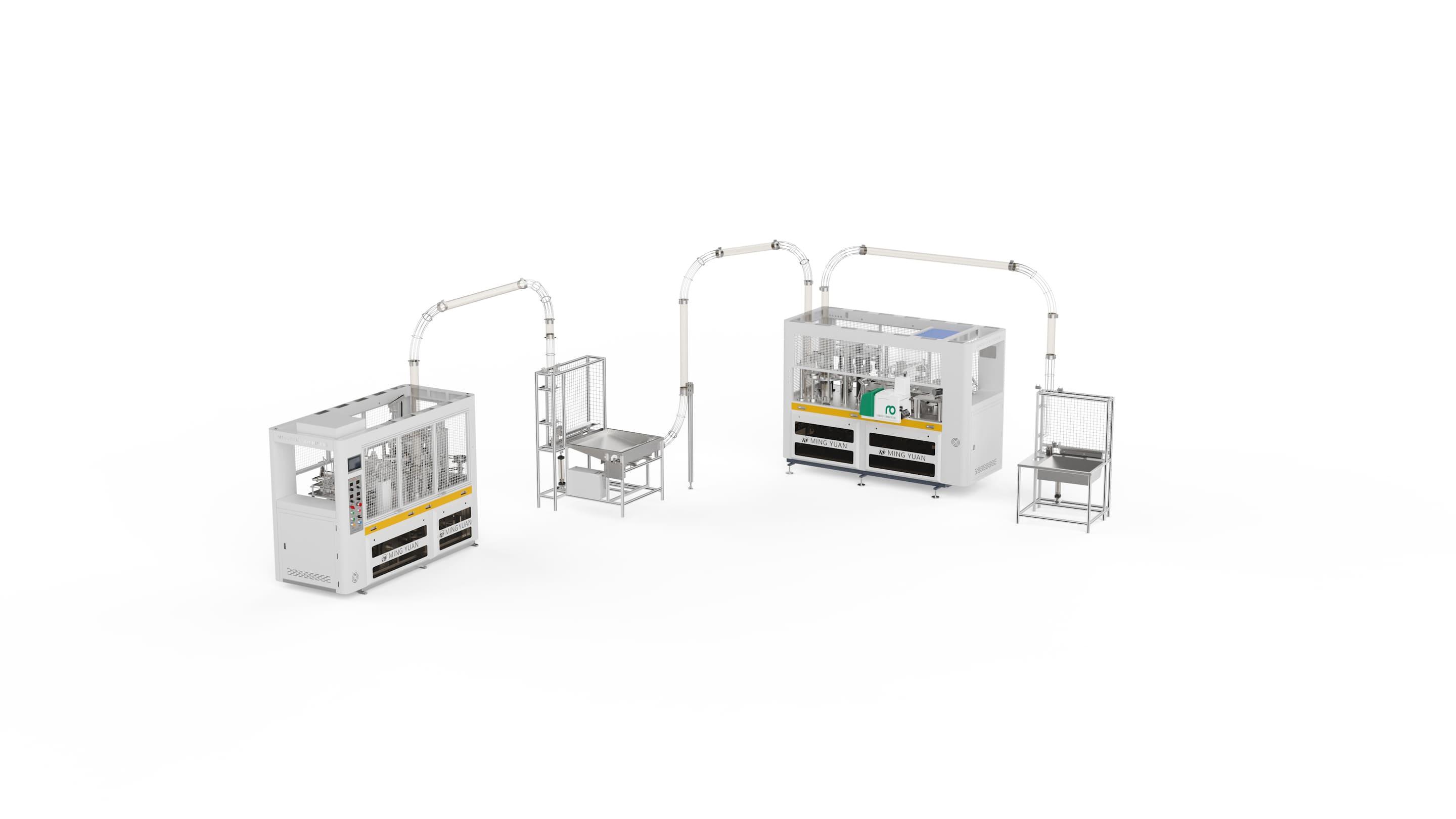

Integrated Paper Cup and Sleeve Production Line

The MYC-OCM12 paper cup machine and MYC-DW100 cup sleeve machine work together to connect cup forming with hot melt glued sleeve application for a stable, efficient production workflow.

CORE EQUIPMENT

Two Machines, One Coordinated Workflow

Each machine handles a defined stage of production, helping maintain consistent forming and reliable integration between the paper cup and outer sleeve.

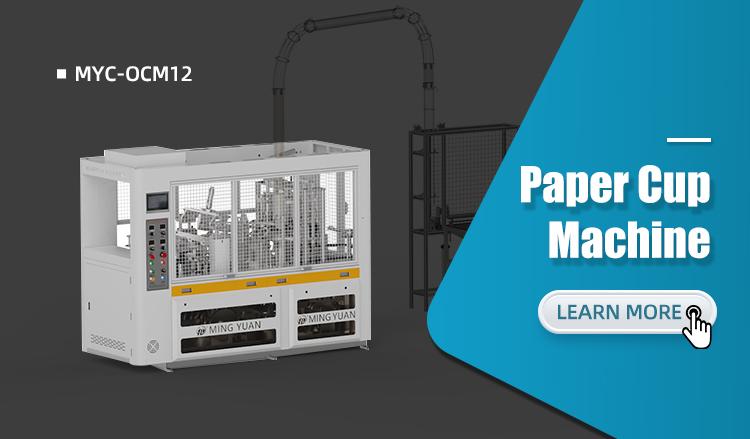

MYC-OCM12 fully automatic paper cup machine
01 / PAPER CUP FORMING

MYC-OCM12 Fully Automatic Paper Cup Machine

The MYC-OCM12 completes the paper cup forming process through automatic paper feeding, heating, bottom embossing and top curling.

  • Fully automated forming operations
  • Stable continuous production
  • Supports paper cups in multiple sizes

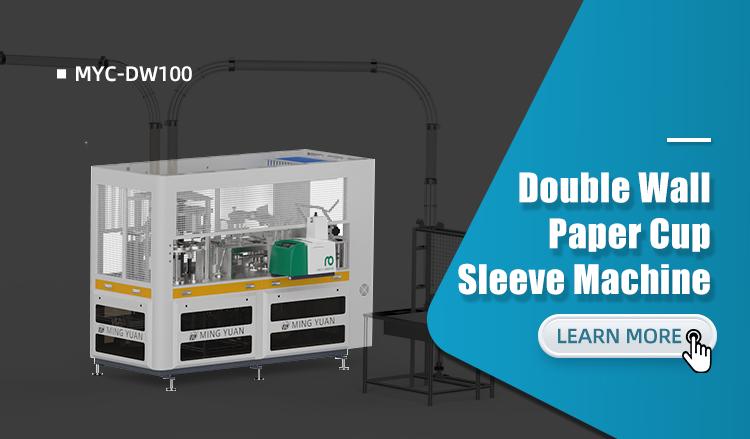

MYC-DW100 hot melt glue cup sleeve machine
02 / CUP SLEEVE APPLICATION

MYC-DW100 Cup Sleeve Machine

Equipped with a hot melt glue tank, the MYC-DW100 completes sleeve bonding, forming and application while operating in tandem with the paper cup machine.

  • Hot melt glue bonding system
  • Consistent sleeve forming and application
  • Efficient connection with cup production
COORDINATED PROCESS

From Paper Feeding to Finished Sleeved Cup

The combined setup links the main forming and sleeve application stages into a clear automated production sequence.

01

Paper Feeding

Paper material enters the automatic cup forming process.

02

Cup Forming

Heating, bottom embossing and top curling complete the paper cup.

03

Sleeve Bonding

Hot melt glue supports strong and consistent sleeve bonding.

04

Sleeve Application

The formed sleeve is applied to complete the integrated workflow.

Stable Integration for Automated Cup Production

By coordinating cup forming with sleeve bonding and application, the MYC-OCM12 and MYC-DW100 provide an efficient solution for producing sleeved paper cups. For detailed technical specifications, please refer to the Technical Specifications section or contact our sales team with your cup size, material, and output requirements.

Model
MYC-OCM12 Intelligent Model
Machine
Paper cup machine
Speed
80-100 pieces per minute
Paper Cup Size
1.5 - 16 oz
Machine Size
2550*1410*2000mm
Machine Weight
2230 kg
Stable structure design: adopts mechanical transmission, stable operation and simple maintenance.
High-speed production efficiency: The speed can reach 80-100 pcs/min, meeting the needs of large-volume orders.
Easy to operate: equipped with an intelligent control panel, easy to learn and use, reducing manual dependence.
