MYC-OCM12 Paper Cup Machine with MYC-DW100 Cup Sleeve Machine Line

MYC-OCM12 intelligent model paper cup machine with MYC-DW100 paper cup sleeve machine production line Catalog

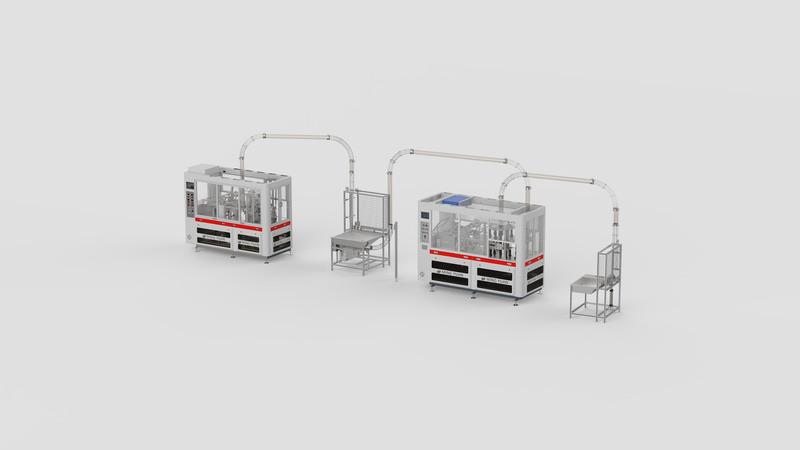

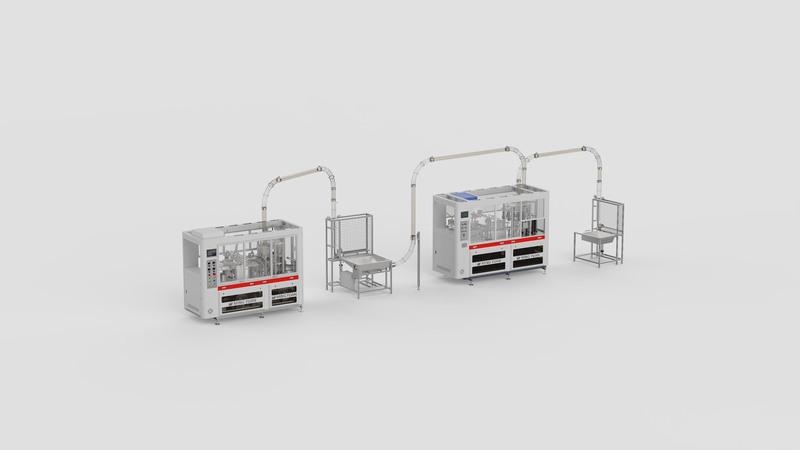

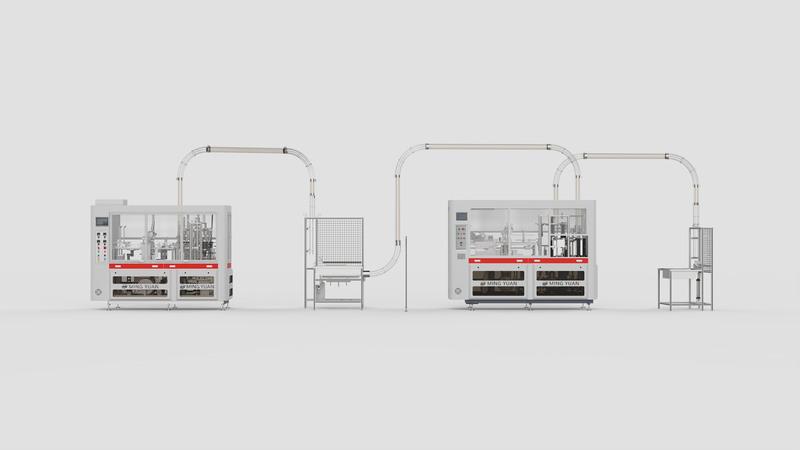

MYC-OCM12 Intelligent Model Paper Cup Machine with MYC-DW100 Paper Cup Sleeve Machine Production Line

This integrated production line combines the MYC-OCM12 intelligent model paper cup machine with the MYC-DW100 paper cup sleeve machine, creating a streamlined solution for manufacturing double-layer paper cups. The system is designed for food packaging producers who need to move from separate cup forming and sleeving steps to a coordinated, efficient workflow.

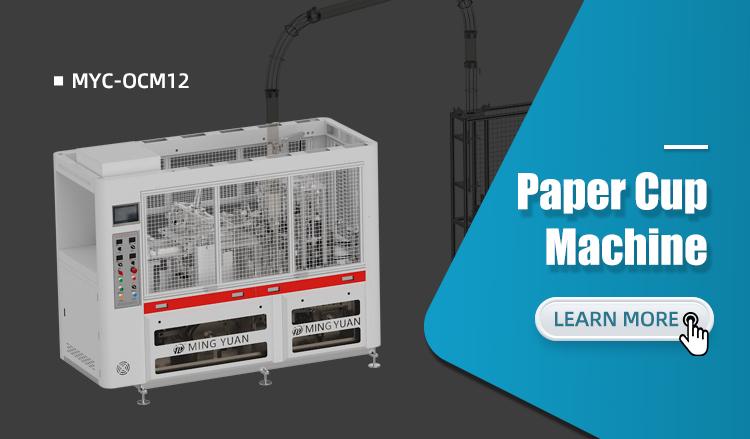

MYC-OCM12 High-Specification Fully Automatic Paper Cup Machine

The MYC-OCM12 handles the fully automatic production of paper cups, completing the entire process—from paper feeding, cup body sealing, and bottom knurling to top curling—in a single step. The high-specification version features a more stable configuration, offering high operational efficiency and consistently producing paper cups of uniform quality.

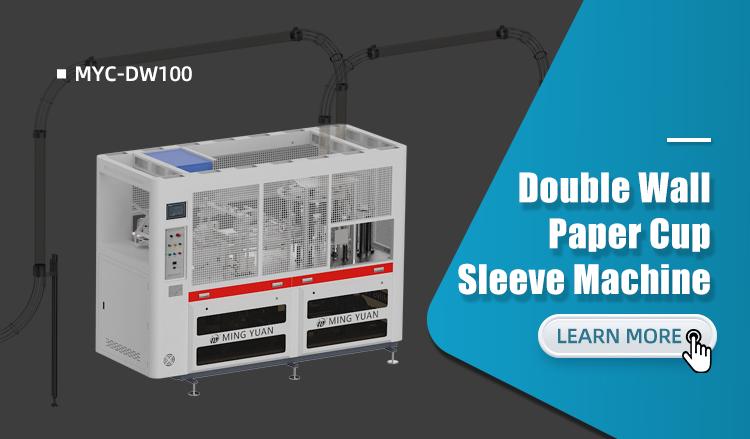

MYC-DW100 Cup Sleeve Machine

Operating in tandem with the paper cup machine, the MYC-DW100 is used for the automatic forming and application of cup sleeves. It handles the bonding, forming, and precise fitting of cup sleeves, ensuring a seamless transition between paper cup production and cup sleeve processing to create a highly efficient, integrated double-layer paper cup production line.

Who Should Consider This Production Line

This line suits manufacturers producing double-wall paper cups for hot beverages, where an insulating sleeve is required. It is particularly relevant for buyers planning to automate both cup body forming and sleeve application in one coordinated system, reducing manual handling between process stages.

Key Configuration and Selection Considerations

• Supported cup and sleeve range: Confirm the finished cup top diameter, bottom diameter, and height, as well as the sleeve dimensions, against the machine's adjustable range before ordering.
• Paper and coating: Specify the paper GSM, whether single or double PE coating is used, and the material grade for both the cup body and the sleeve.
• Target output: Define your required stable output per minute, considering that rated speed and sustained production output may differ depending on cup size and material.
• Line integration: Clarify whether you need the cup machine and sleeve machine to operate as a synchronized line or as independent units with manual transfer.
• Utilities and workshop: Prepare details on available power supply (voltage and frequency), compressed air capacity, and floor space to ensure the line fits your facility.

Project Preparation and Inquiry Guidance

To receive an accurate machine match, please send the following information with your inquiry:

• A cup drawing or physical sample with top, bottom, and height dimensions.
• Paper material, GSM, and coating specification for both cup and sleeve.
• Target production capacity per day or per shift.
• Available electrical supply, air pressure, and workshop layout.
• Packing requirements for the finished cups.

For a complete overview of available configurations, please refer to the Download Product Catalog. For a practical example of this line in operation, you can review the OCM12 and DW100 production line solution in Georgia.

Contact our sales team with your project details to confirm the final configuration, including mold specifications, optional equipment, and line layout, before placing an order.
