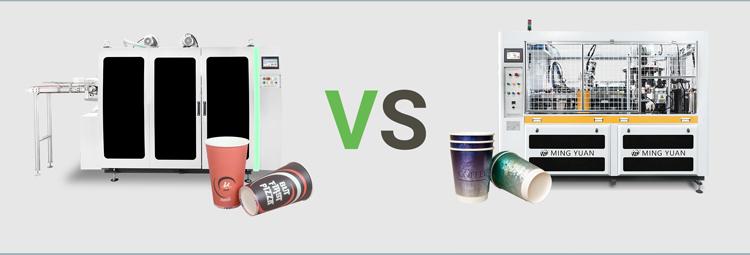

Single Wall vs Double Wall Paper Cup Machine Selection Guide

MYC-DB120 paper bowl making machine with MYC-DW120B Double Wall paper bowl machine Production line Catalog

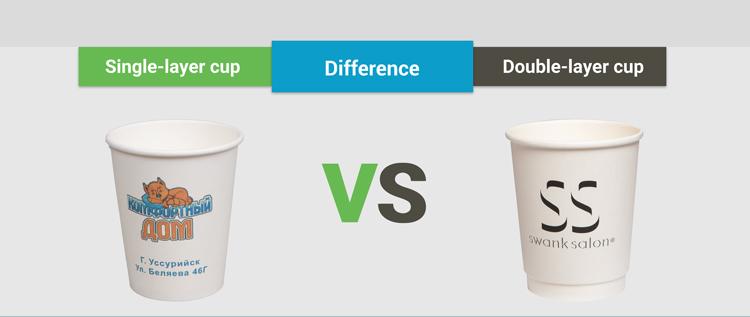

1. What Are Single-Layer and Double-Layer Paper Cups?

Before entering the paper cup manufacturing industry, you need to understand the two most common product types:

• Single Wall Paper Cup
• Double Wall Paper Cup

The core equipment used for these products is:

Paper Cup Machine (also called Paper Cup Making Machine)

Key points beginners must know:

Double wall paper cups are not made directly — they are assembled through a combining process.

2. Single Wall Paper Cup Machine: One Machine Completes the Production

Single wall paper cups are the most basic and widely used products, such as:

• 6oz / 7oz water cups
• 8oz cold drink cups
• Disposable sample cups

Production Equipment:

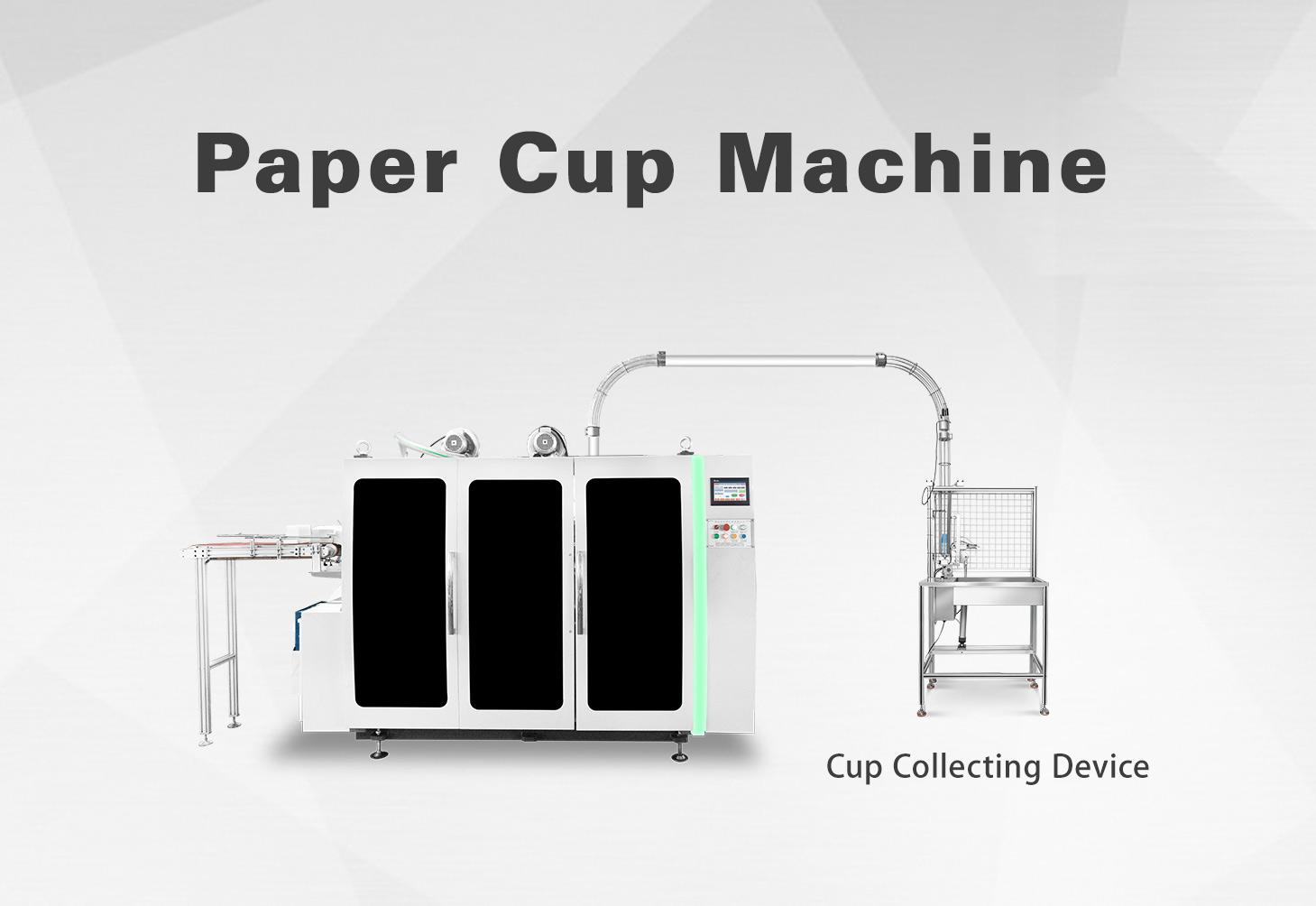

Automatic Paper Cup Machine
Also known as Paper Cup Forming Machine

Production Process:

• Paper is fed into the machine
• Cup body is formed
• Bottom is sealed
• Heated for shaping
• Rim rolling is completed

One paper cup making machine can complete the entire production process.

Example (Beginner Scenario):

If you are just starting your business:

• Budget: $8,000–$12,000
• Customers: Wholesalers / Small restaurants

You only need one:

Paper Cup Machine for Small Business

With it, you can:

• Produce about 50,000 paper cups per day
• Quickly start taking orders

3. How Are Double Wall Paper Cups Produced? (Key Point)

Double wall paper cups are typically used for:

• Coffee
• Milk tea
• Hot drinks

Features:

Heat insulation, not hot to hold, more premium feel

Key concept (very important):

Double wall paper cups are not produced directly by one machine.

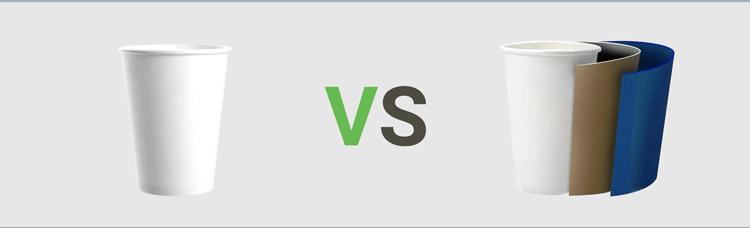

Their structure is:

Single wall paper cup (inner cup) + outer sleeve

4. Two Production Methods for Double Wall Paper Cups (Many People Don’t Know)

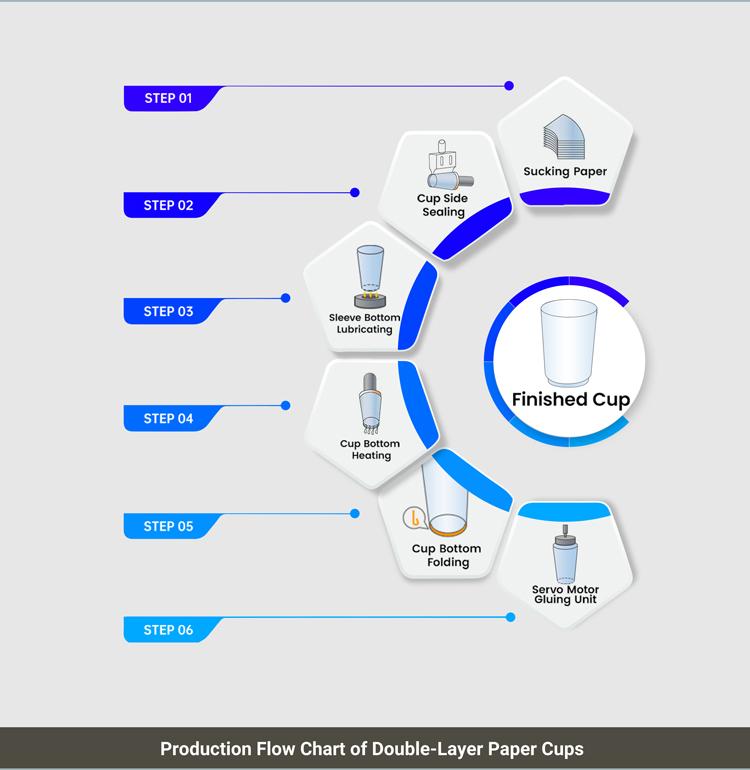

Method 1: Full Production (Common in Factories)

Requires two machines:

• Paper Cup Machine
  → Produces single wall paper cups (inner cups)
• Cup Sleeve Machine (also called Double Wall Machine)
  → Produces the outer layer and applies it to the cup

Final result: Double wall paper cup

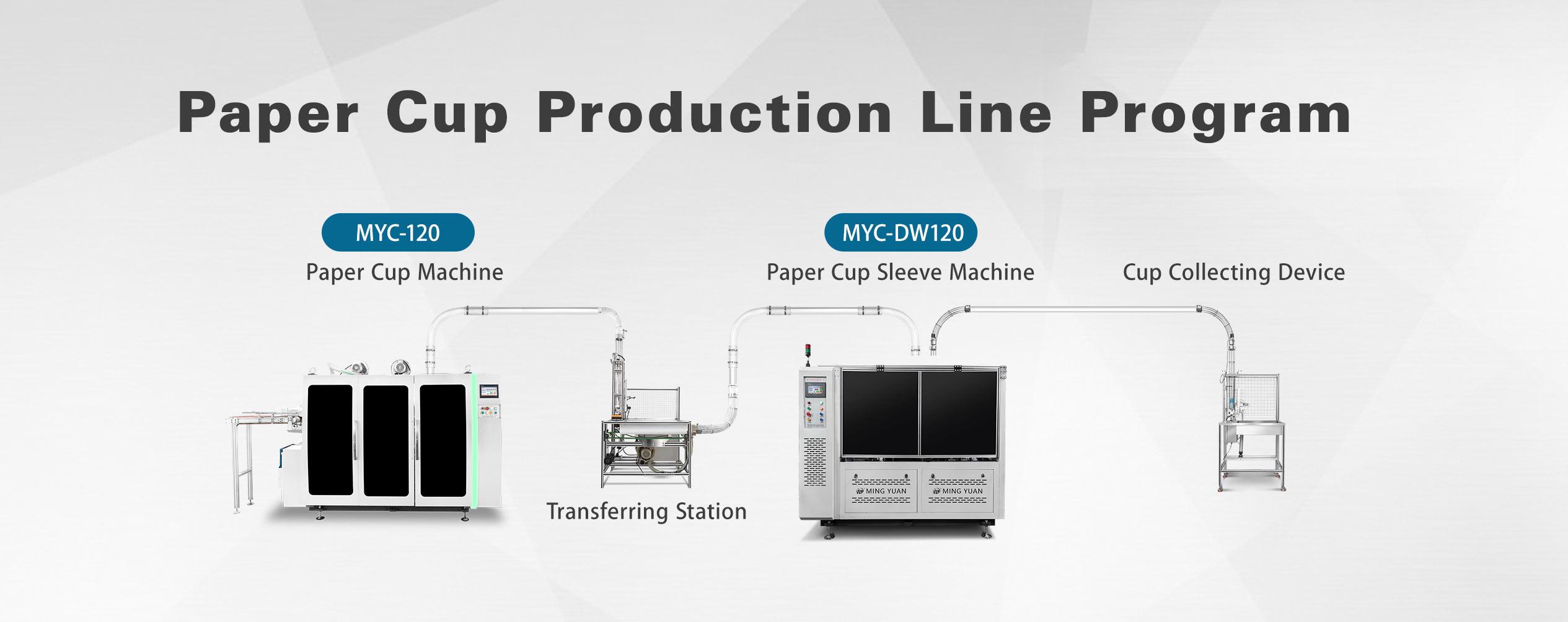

This setup forms a complete paper cup production line. For a detailed example of this configuration, you can review the MYC-120 & MYC-DW120 double wall paper cup machine case study for producing milk tea cups in Russia.

Example:

If your customers are coffee shops, you need:

• 1 automatic paper cup machine
• 1 cup sleeve machine

Method 2: Only Buy a Cup Sleeve Machine (Better for Beginners)

You don’t necessarily need to buy two machines.

You can:

• Purchase ready-made single wall paper cups
• Buy only one cup sleeve machine

Production process becomes:

• Purchase single wall paper cups
• Use the sleeve machine to process the outer layer
• Combine them into double wall paper cups

Example (very practical):

If you:

• Have a limited budget
• Or want to test the market first

You can:

Invest in only one double wall paper cup making machine

Then:

• Buy 8oz / 12oz single wall cups from the market
• Process them into double wall cups and sell to coffee shops

Advantages:

• Lower investment
• Lower risk
• Faster startup

5. Why Can’t One Machine Directly Produce Double Wall Cups?

Many customers ask:

“Is there a machine that can directly produce double wall cups?”

Correct answer:

A standard paper cup machine cannot do this.

Reasons:

• Single wall paper cups use a forming process
• Double wall paper cups use an assembling process (sleeving)
