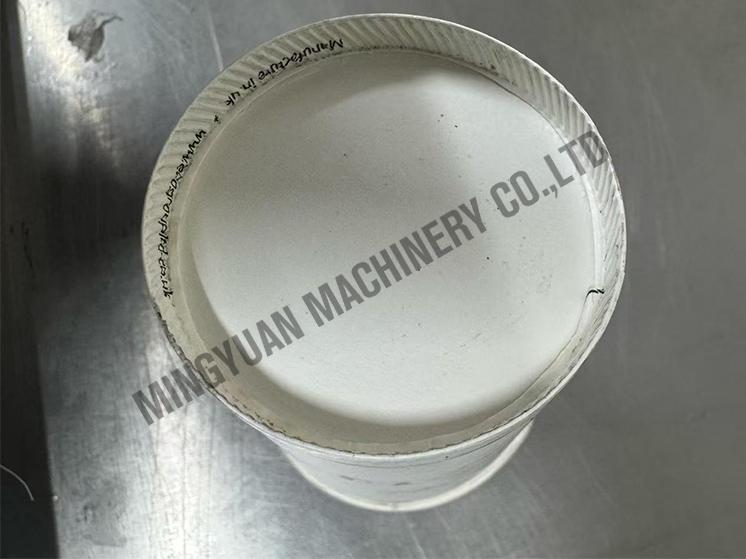

Too many folded edges

Too many folded edges

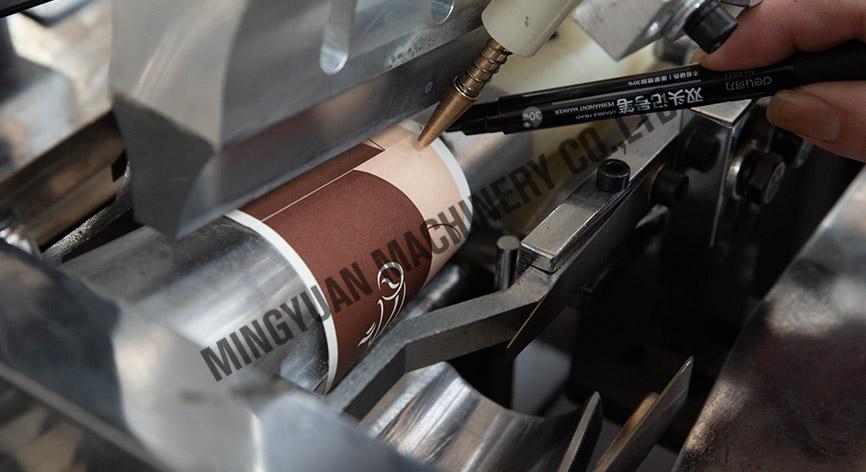

STEP 1

It is recommended to draw the current position of thecup mouth and cup bottom before adjustment. it iseasy to observe the position of the paper cup afteradjustment

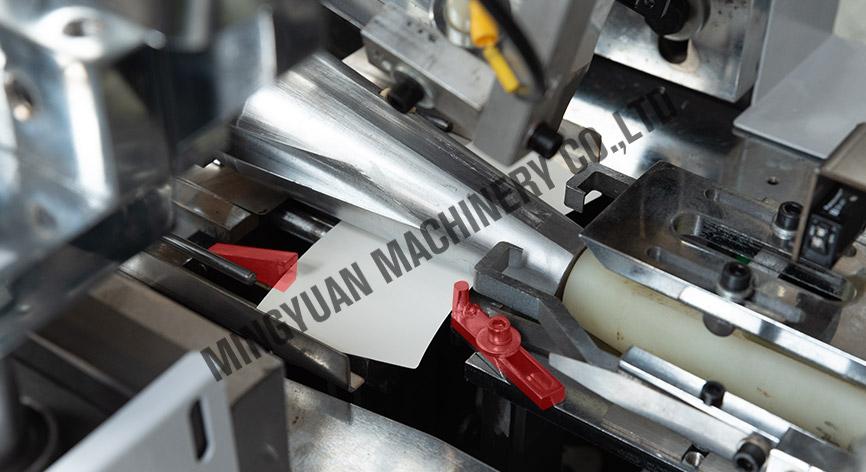

STEP 2

Move the paper between these two and hold itagainst the paper

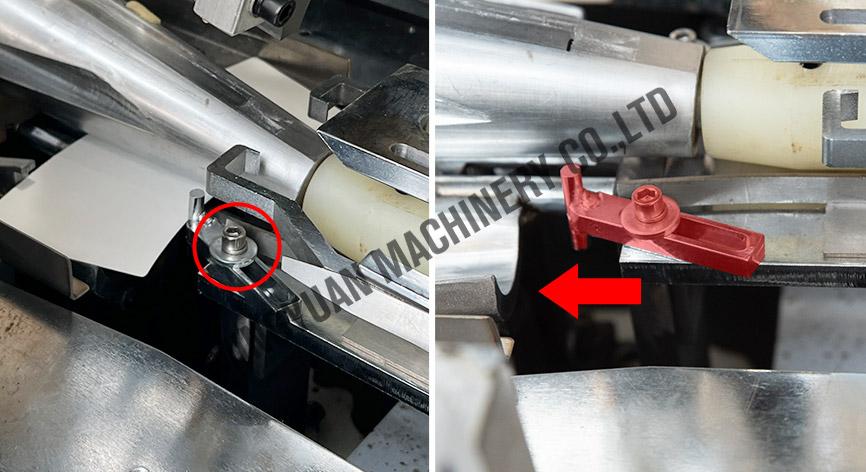

STEP 3

1.Loosen this screw

2.Push forward 1-2mm

3.Tighten this screw

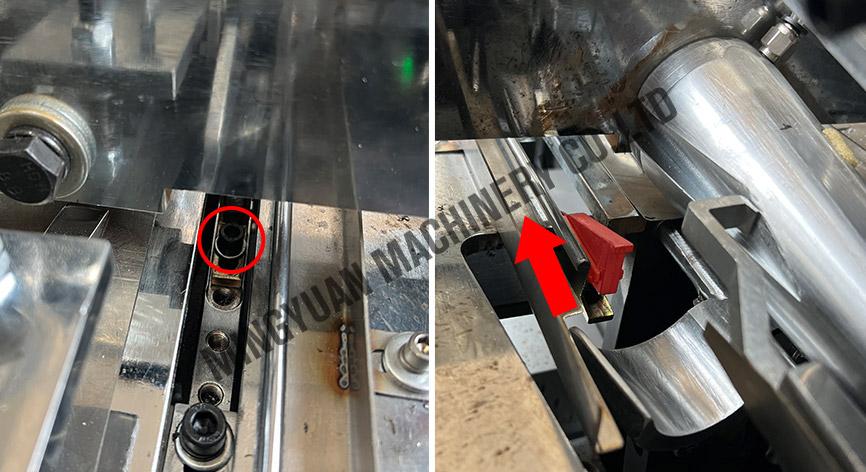

STEP 4

1.Loosen this screw

2.Push forward 1-2mm

3.Tighten this screw

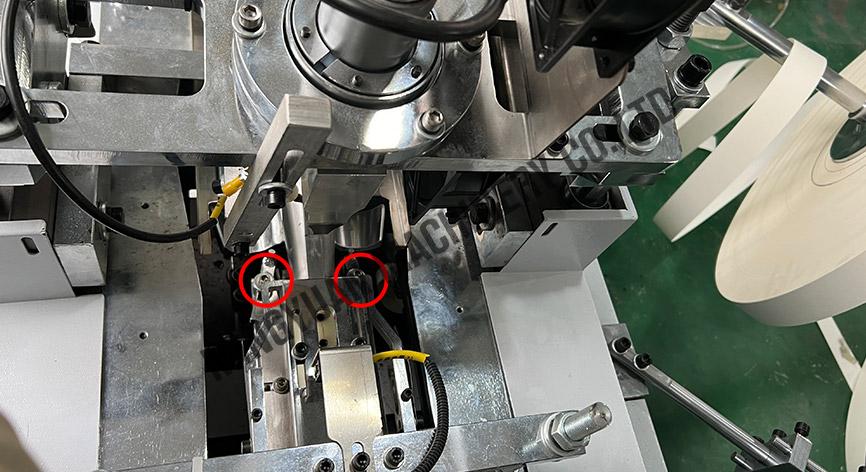

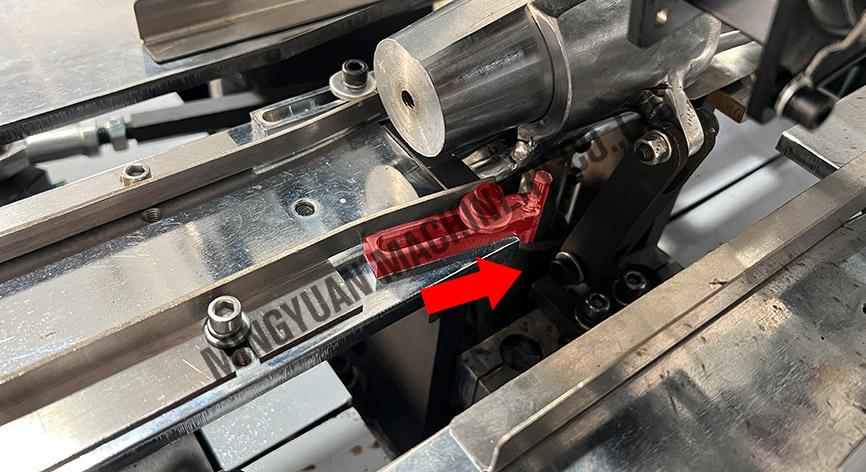

STEP 5

Repeat the same steps on the other side, movingforward 1-2mm, move the same distance on bothsides

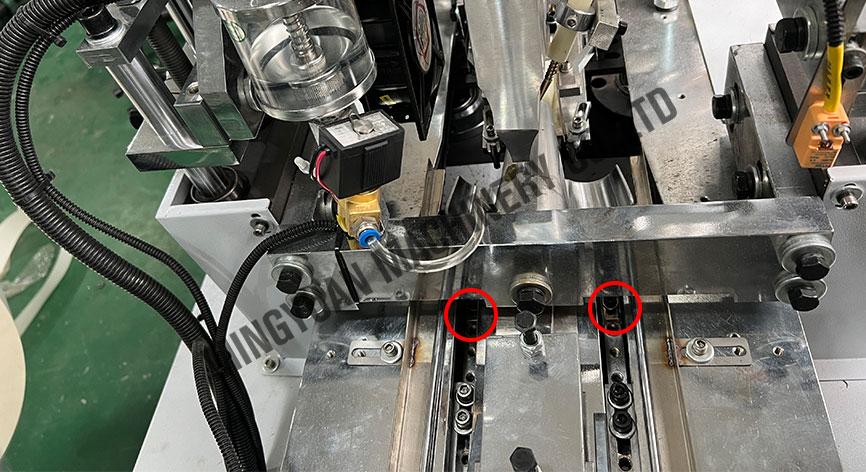

STEP 6

Repeat the same steps on the other side, movingforward 1-2mm, move the same distance on bothsides

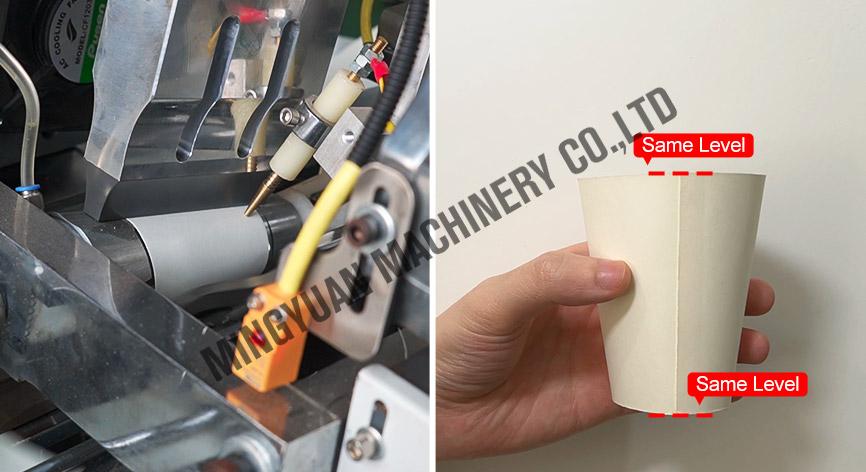

STEP 7

Test the paper cup after adjustment, keep the topof the cup and the bottom glued at the same level
