1.The top of the cup body is not sealed tightly (need to increase the ultrasonic head pressure)

Question

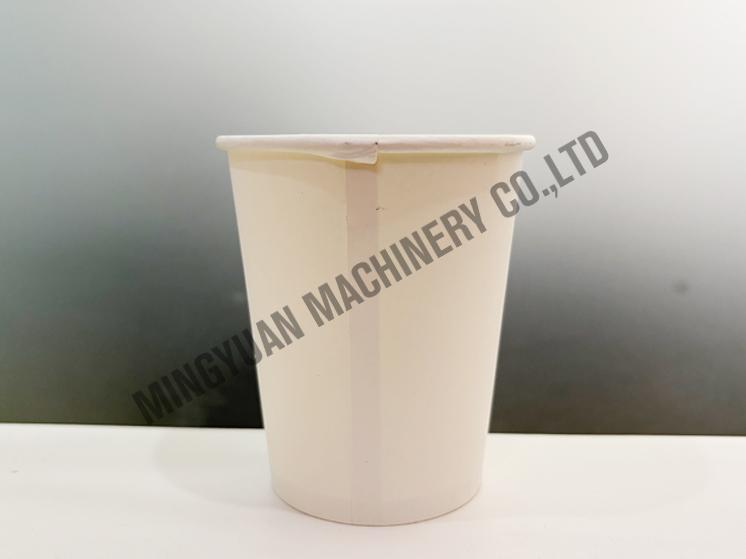

paper cup machine Too Low Pressure On The Front Of TheUltrasound Head，The top of the cup body is not sealed tightly, resulting in a loose seal on the top.

Solution

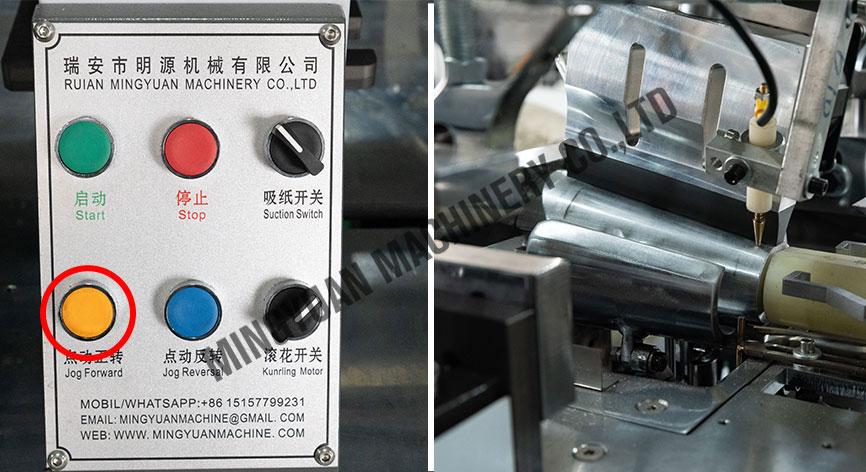

STEP1

Click “Inching", move the ultrasonic head onto the mold

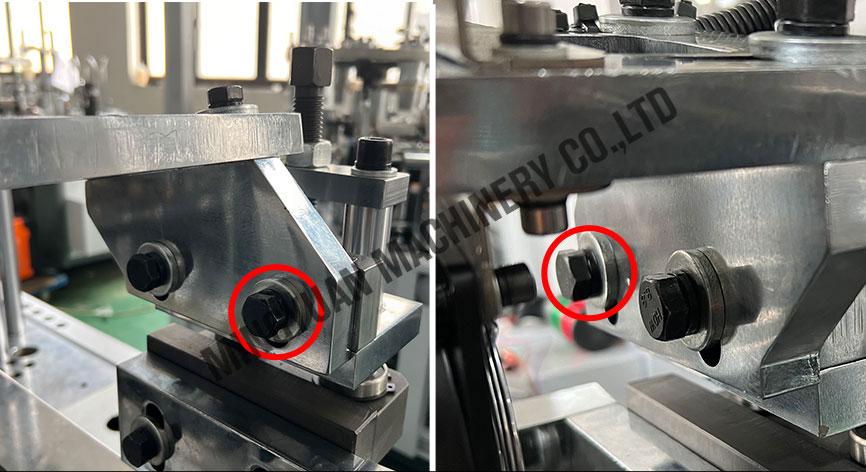

STEP2

Loosen the two screws at the front

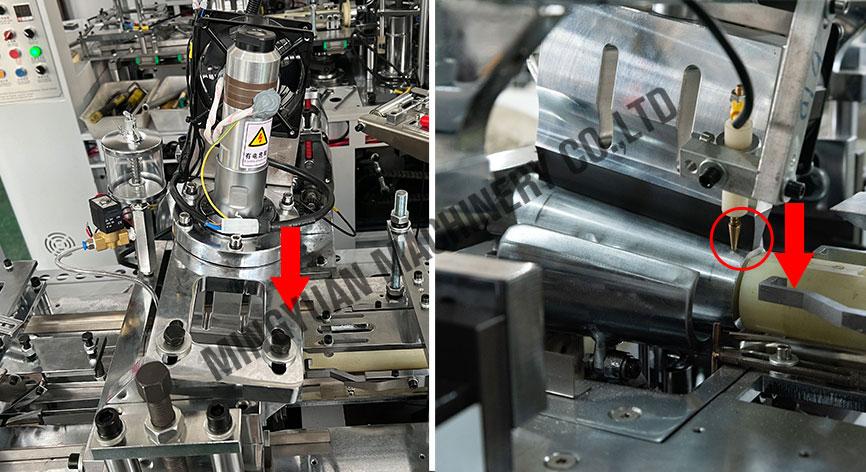

STEP3

Tap the front of the iron plate with your hand toincrease the pressure of the ultrasonic head

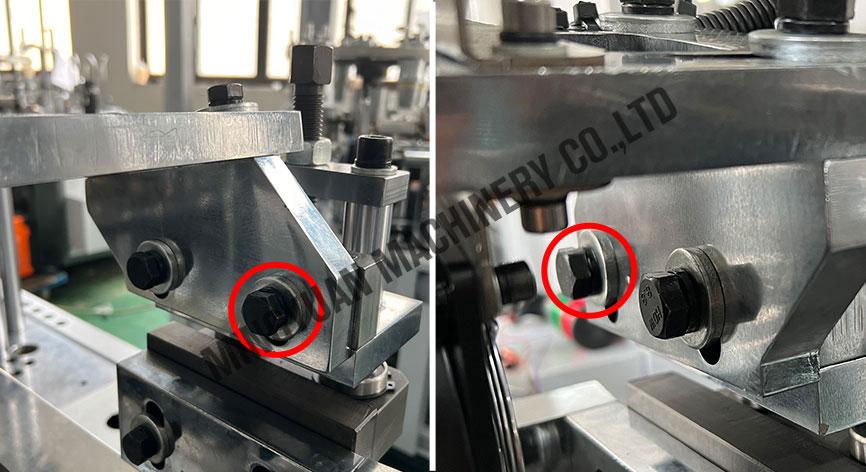

STEP4

Tighten the two screws at the front

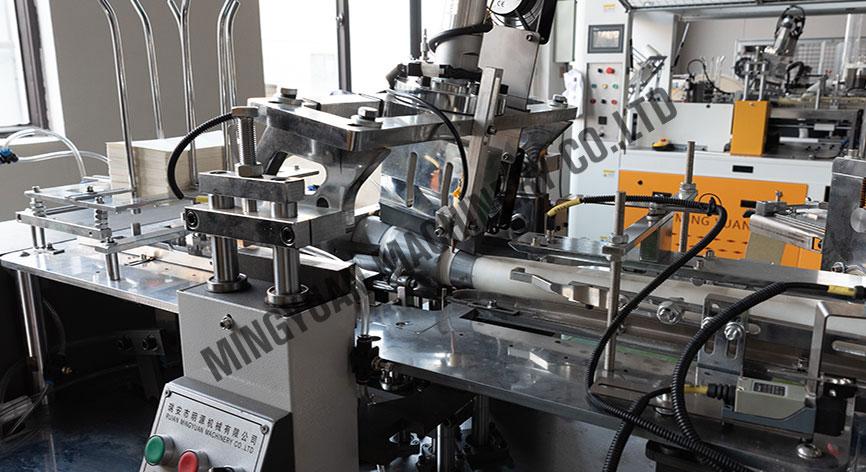

STEP5

Retest the paper sealing effect

The core issue: Insufficient pressure from the ultrasonic head of the paper cup machine results in a poor seal on the cup body.

Solution: Physically moving the ultrasonic head forward to increase pressure and resolve the sealing issue at the top of the cup body.
