5.pressure at the rear part of the ultrasonic head is too low

Problem Description

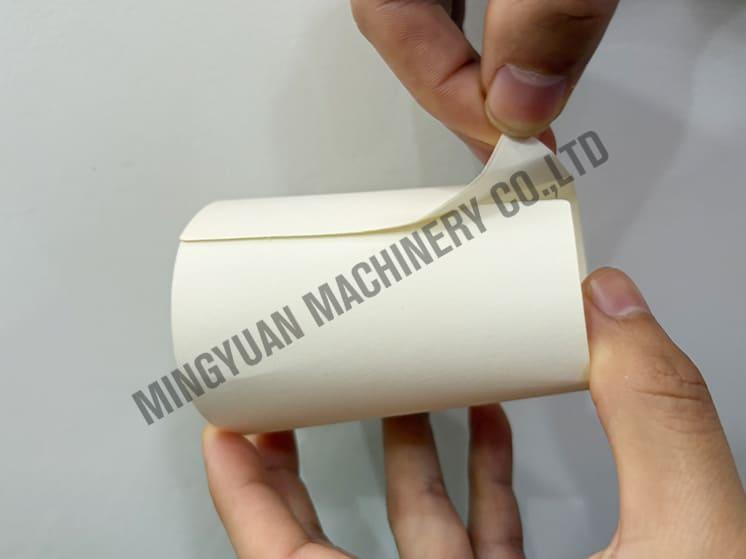

If the pressure at the rear part of the ultrasonic head is too low during cup forming, it may result in poor sealing between the cup bottom and the cup wall, leading to leakage or loose bonding.

Solution

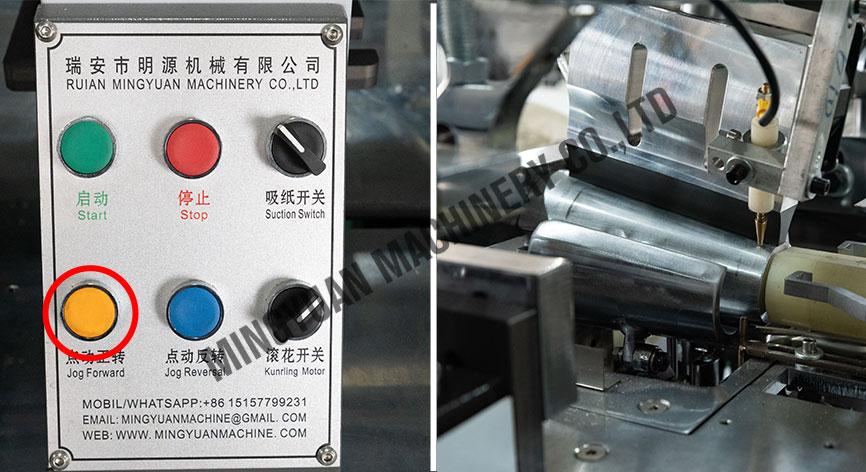

STEP 1

Click “Inching", move the ultrasonic head onto themold

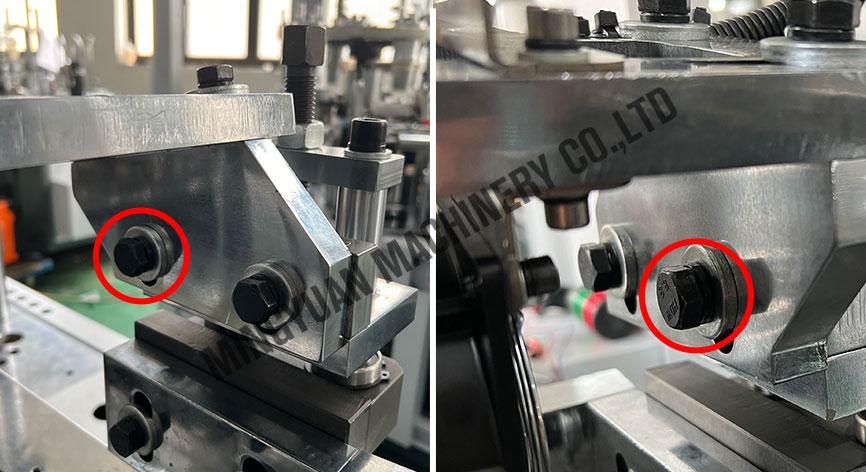

STEP 2

Loosen the two screws at the back

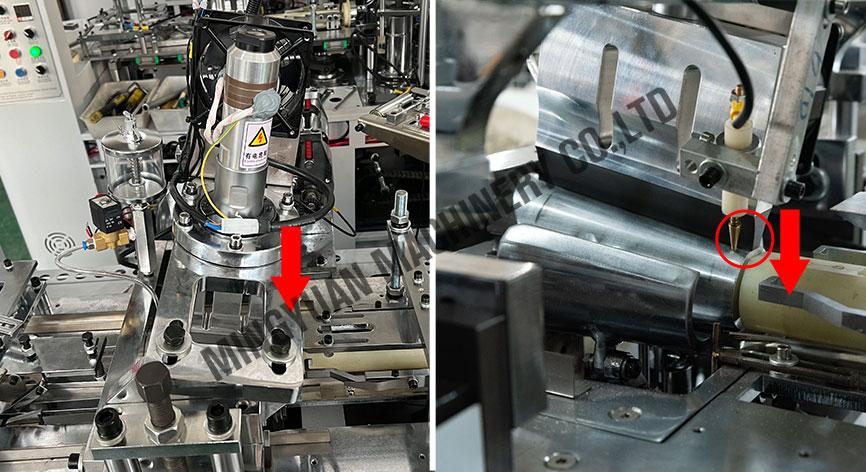

STEP 3

Tap the end of the iron plate with your hand toincrease the pressure of the ultrasonic tail

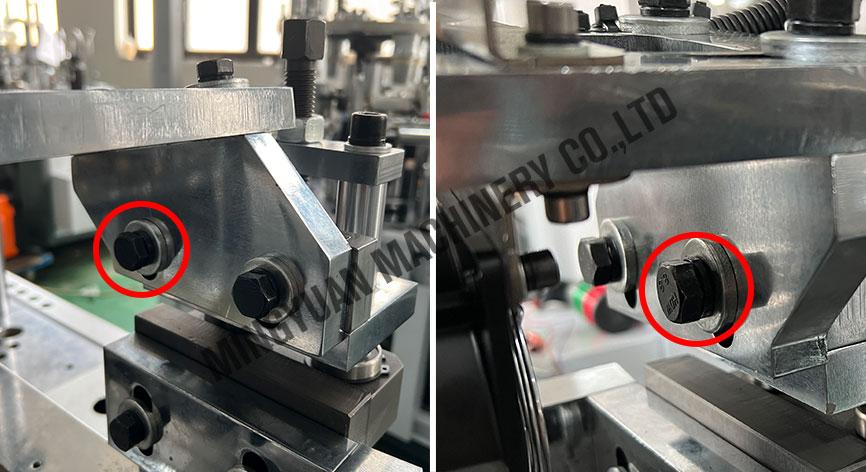

STEP 4

Tighten the two screws at the back

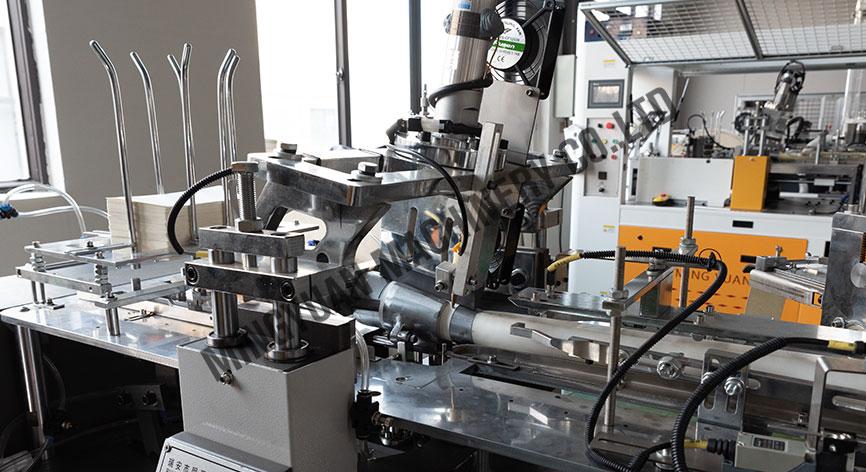

STEP 5

Retest the paper sealing effect
