Misalignment at the sealing edge of the cup body

Author:MINGYUAN Paper Cup Machine SuppliersFROM:Disposable Cup Machine Manufacturer TIME:2025-08-07

MENU

Question

The Cup Seal is Misaligned


Solution

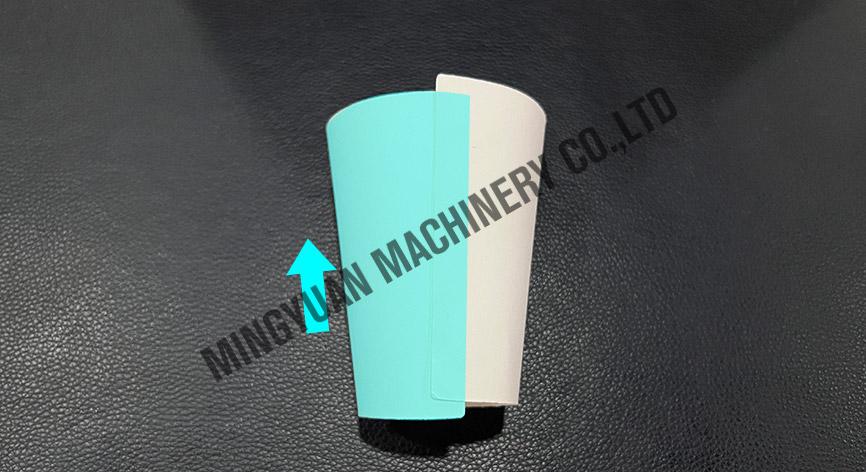

STEP 1

Take this cup as an example,adjust the screw on theleft side of the bucket and move the left paperupwards

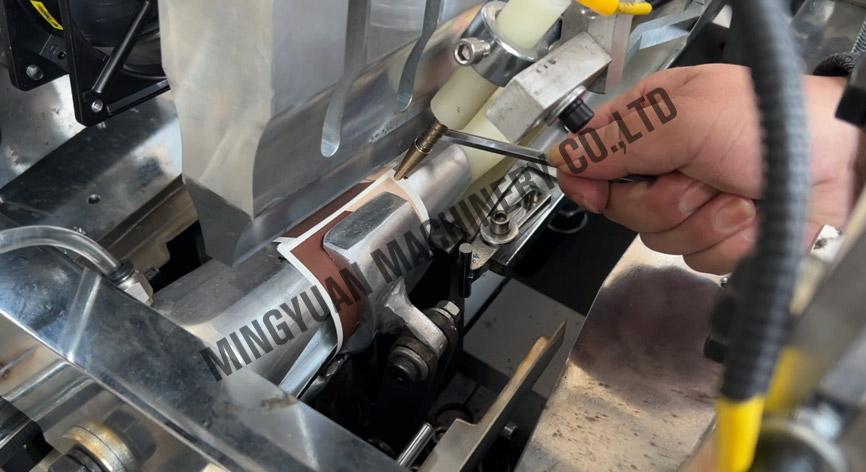

STEP 2

It is recommended to draw the right side of the cupmouth and the position of the cup bottom beforemaking adjustments

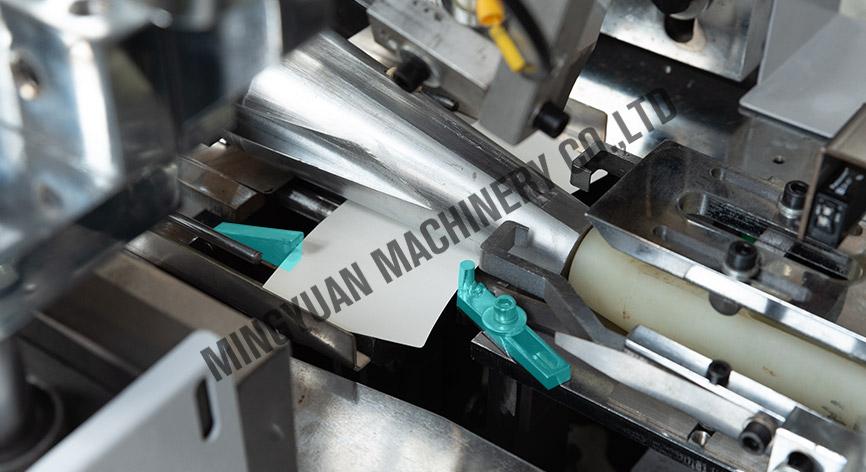

STEP 3

Move the paper between these two and hold itagainst the paper

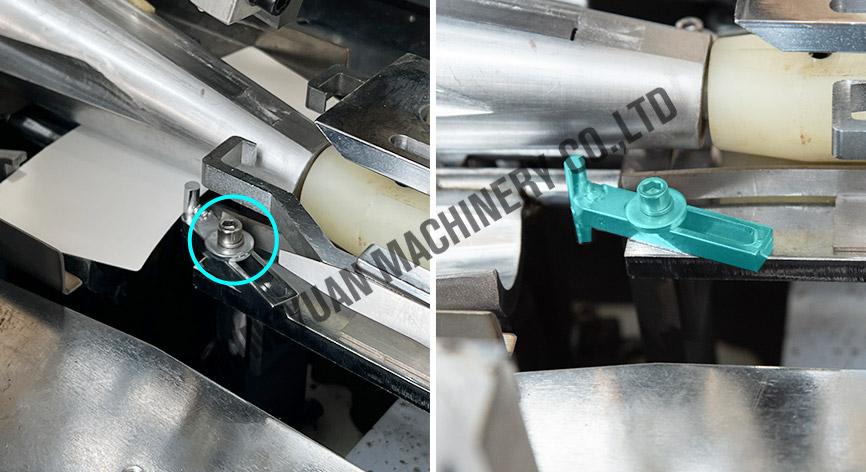

STEP 4

1.Loosen this screw

2.Push it forward 1-2mm,adjust it to the same positionas the other side

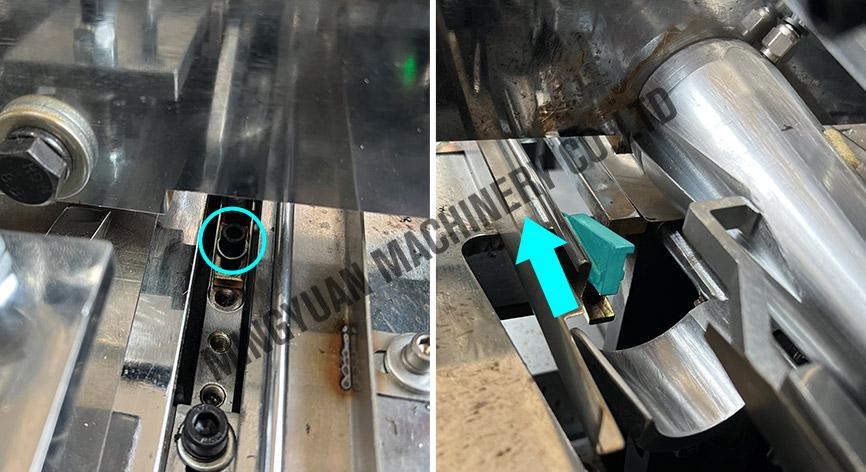

STEP 5

1.Loosen this screw

2.Push it forward 1-2mm,adjust it to the same positionas the other side

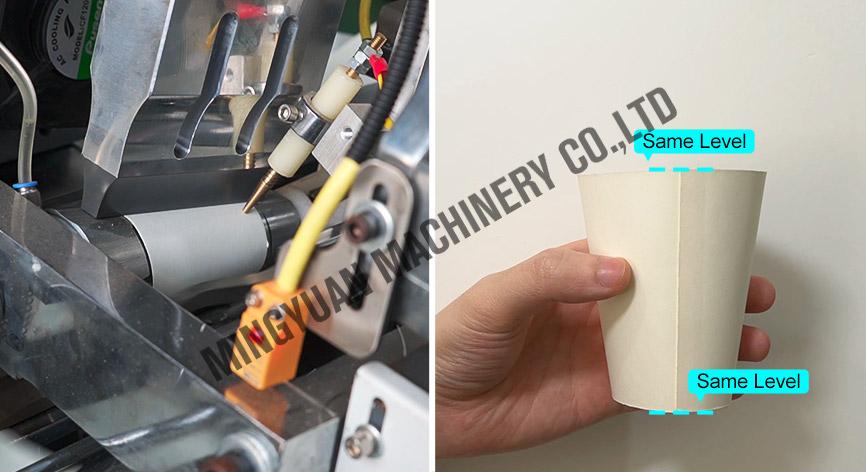

STEP 6

Test the paper cup after adjustment, keep the topof the cup and the bottom glued at the same level
