The folding angle of the paper cup is too large, lower the folding furnace

Question

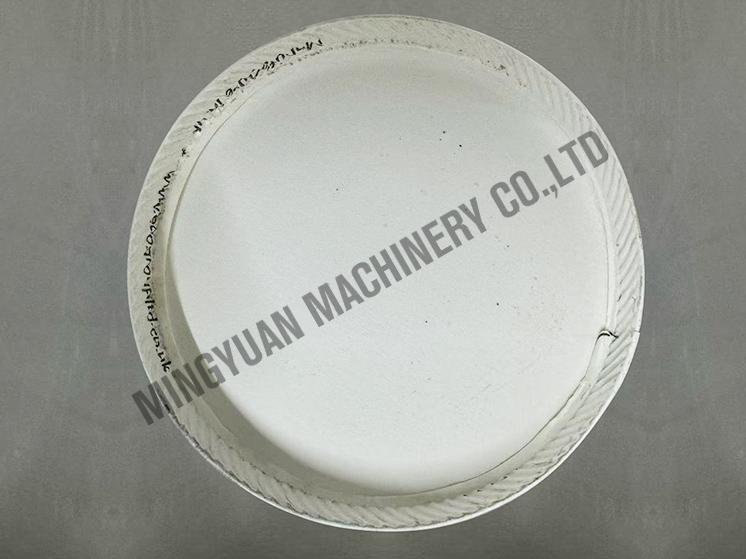

The bottom of a paper cup with a lid isfolded too much

Solution STEP1

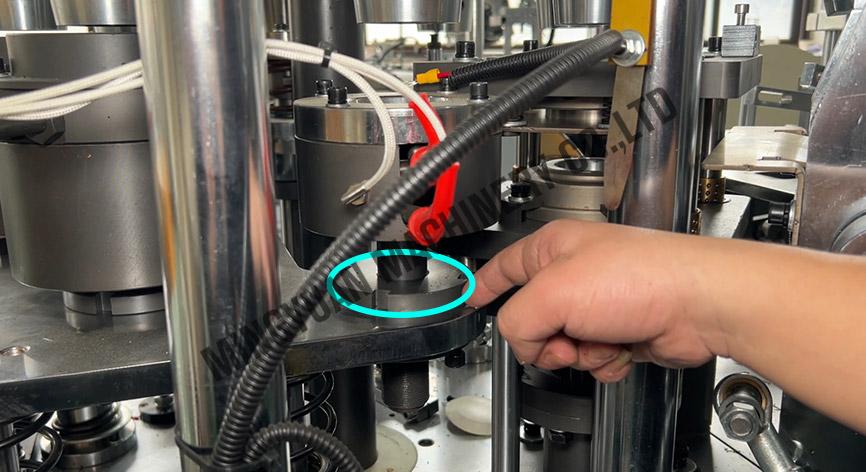

Before adjustment, use a pen to draw the currentposition of the folding bottom furnace along the fixedturntable

STEP 2

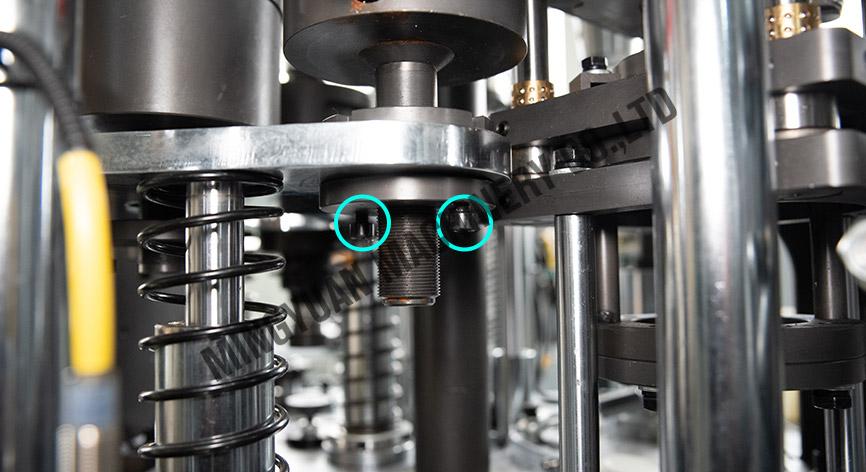

Loosen the two screws under the folding bottomstove

STEP 3

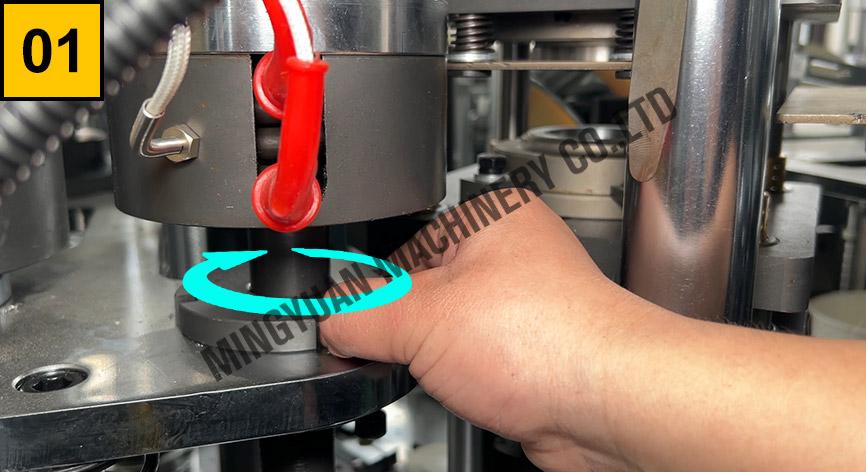

1.Turn the fixed turntable clockwise to lower thefolding bottom furnace

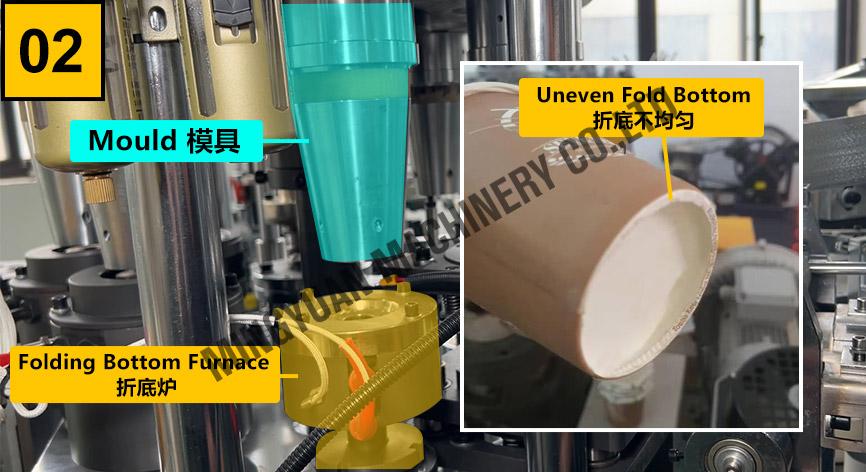

2.After adjustment, move the folding furnace back tothe marked position, Make sure the bottom of thefolding furnace and the bottom of the mold arecentered, lf the position is offset, the bottom of thepaper cup is uneven

STEP 4

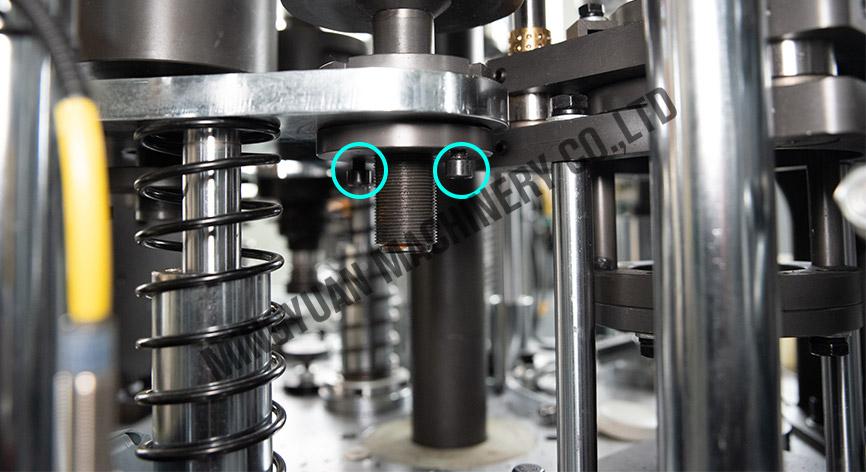

Tighten these two screws
