There are too few folded bottom edges, raise the folded bottom furnace

Question

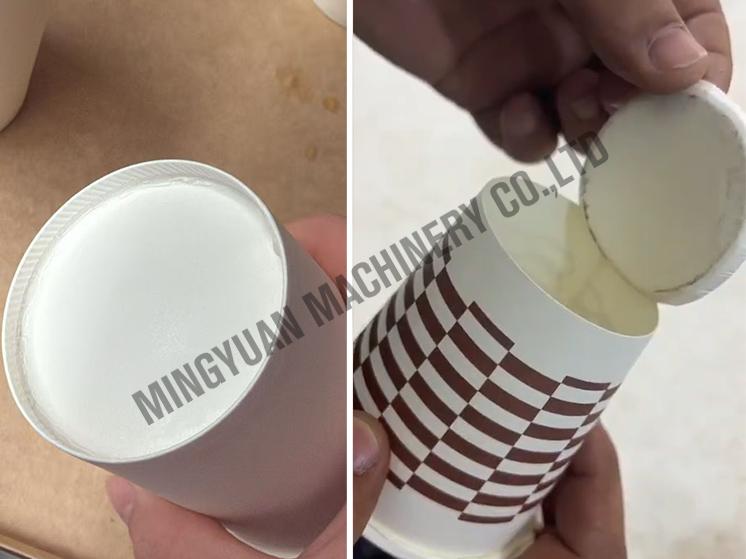

The bottom of a paper cup with a lid isnot folded enough or not folded

Solution STEP1

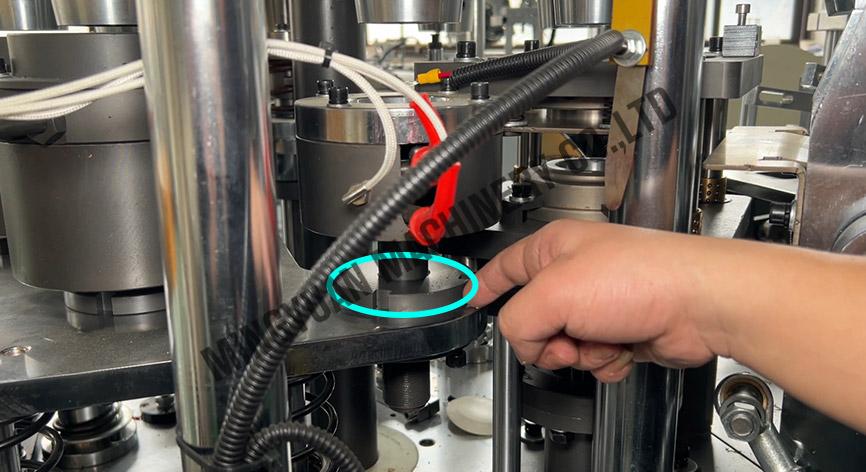

Before adjustment, use a pen to draw the currentposition of the folding bottom furnace along the fixedturntable

STEP 2

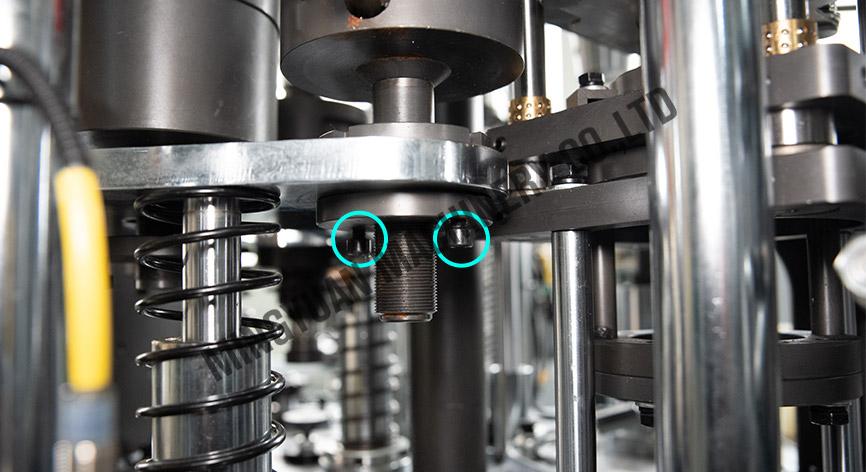

Loosen the two screws under the folding bottom stove

STEP 3

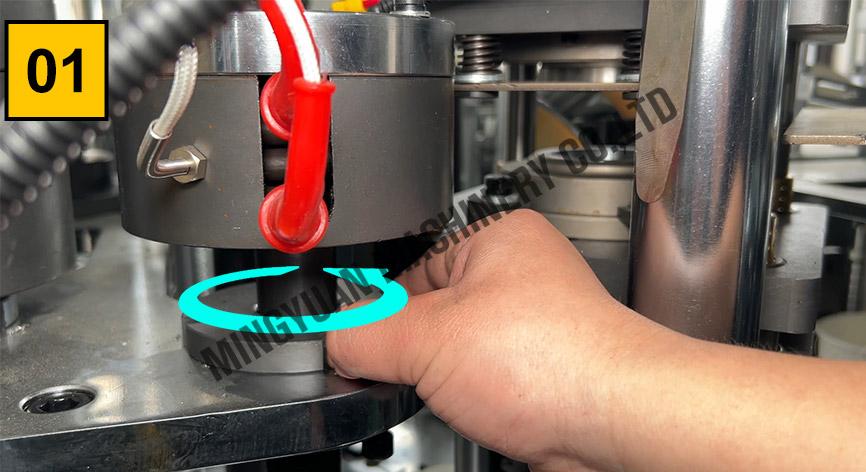

1.Rotate the fixed turntable counterclockwise to raisethe folding bottom furnace

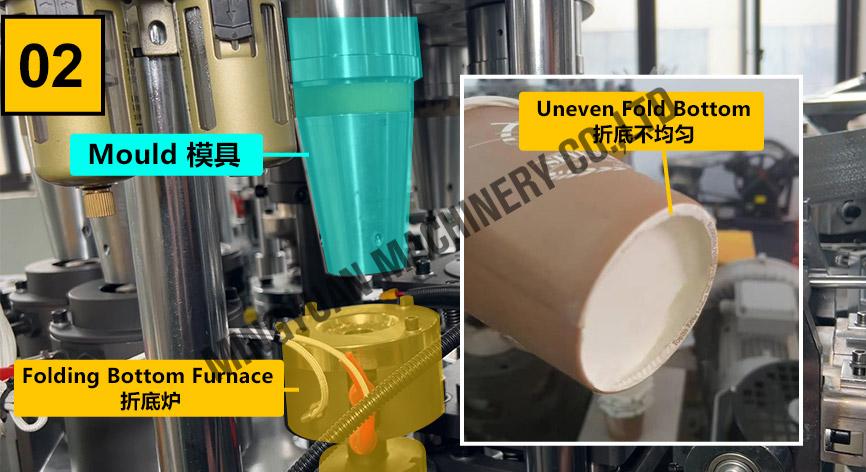

2.After adjustment, move the folding furnace back tothe marked position, Make sure the bottom of thefolding furnace and the bottom of the mold arecentered, If the position is offset, the bottom of thepaper cup is uneven

STEP 4

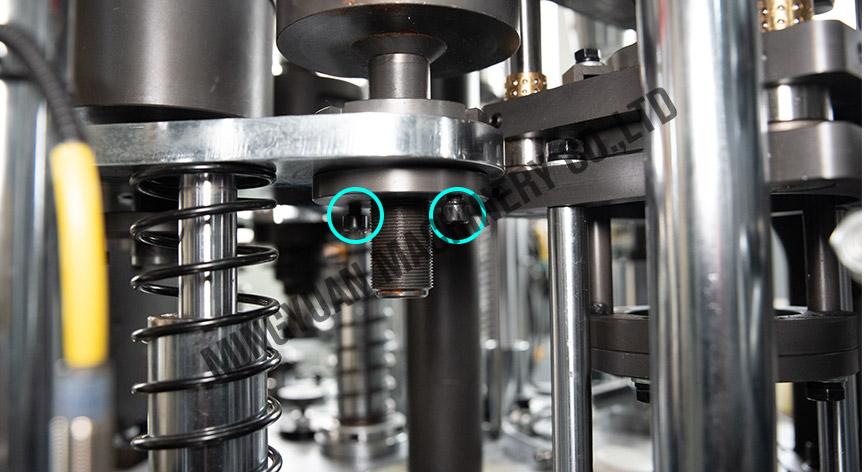

Tighten these two screws
